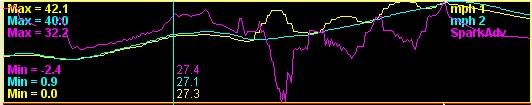

I have Megasquirt working successfully for traction control. Rear wheel speed is the standard Vss signal from the speedo, front wheel speed is read from an ABS sensor. Megasquirt compares the rear with the front and pulls timing when the rear starts spinning faster than the front.
Announcement
Collapse
No announcement yet.
Traction Control!
Collapse
X
-
Originally posted by lolcantturn View Postthis is amazing. can you change the percentage of traction it gives? how do you turn on the traction control?
this is available on MS3 right?
If you were consistently using the same surface you could easily tune it to maintain x% of slip.
What I forgot to mention is that it also does spark cut in addition to timing retard, you can do timing first and then spark cut if it's not enough. It can also pull nitrous or add fuel (although I don't know why you'd want to add fuel as a traction reaction?)
It's in the MS3 alpha code, will be in the next release version as well.
I've gotta say, it's a helluva lot of fun nailing the throttle on a wet morning and clawing for traction up the tach!
Comment
-
That is tremendously cool. If only was using MS.
I am looking at the RaceLogic system, not a lot of info on it though88 325is. S54, CSL airbox, Motec M800, Motec C127, Motec PDM15, Stoptech STR, MCS 2 way coilovers, Forgeline wheels, Recaro SPA, Eisenmann, Personal, lots of custom.
90 318is. As new OEM+, BBS LM, AST 4210 2 way coilovers, Wilwood SL6R/SL4R, Dynaudio, Recaro Experts
Comment
-
Originally posted by hoveringuy View PostWhat I forgot to mention is that it also does spark cut in addition to timing retard, you can do timing first and then spark cut if it's not enough. It can also pull nitrous or add fuel (although I don't know why you'd want to add fuel as a traction reaction?)
Comment
-
The latest version of Megasquirt (Alpha 18 ) added some more variables for traction control. It can now trigger over a certain throttle position and load level.
It's just incredibly fun!Last edited by hoveringuy; 03-03-2012, 06:49 AM.
