    Where do these seals go? Need to install soon..

    Hey guys,

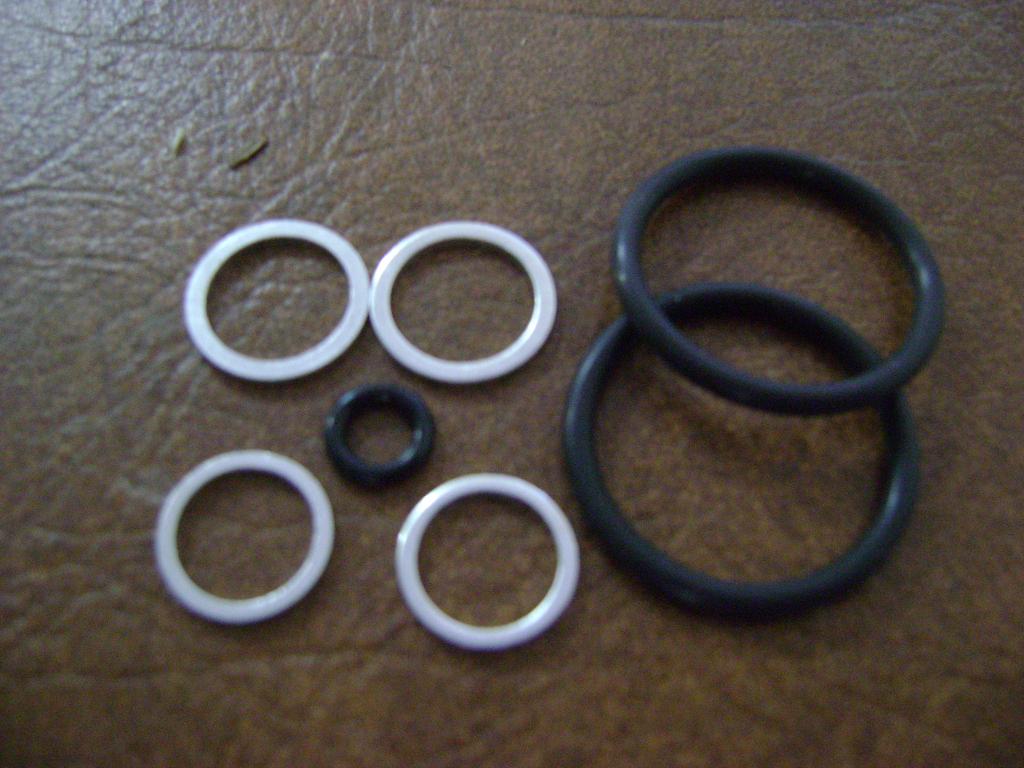

    I found a few seals in the victor reinz gasket set that I'm not sure where they go or if I need them. Can someone please identify these for me? I'm trying to get the car running today so if you know please don't hesitate to respond. Thanks!
    Attached Files
    sigpic

    #2
    Have no scale for reference it is a little hard to tell, but the four white o-rings could be for the oil cooler hoses and the two large black o-rings could be for the oil return tube.
    The car makes it possible, but the driver makes it happen.
    Jim Levie, Huntsville, AL

    Comment


      #3

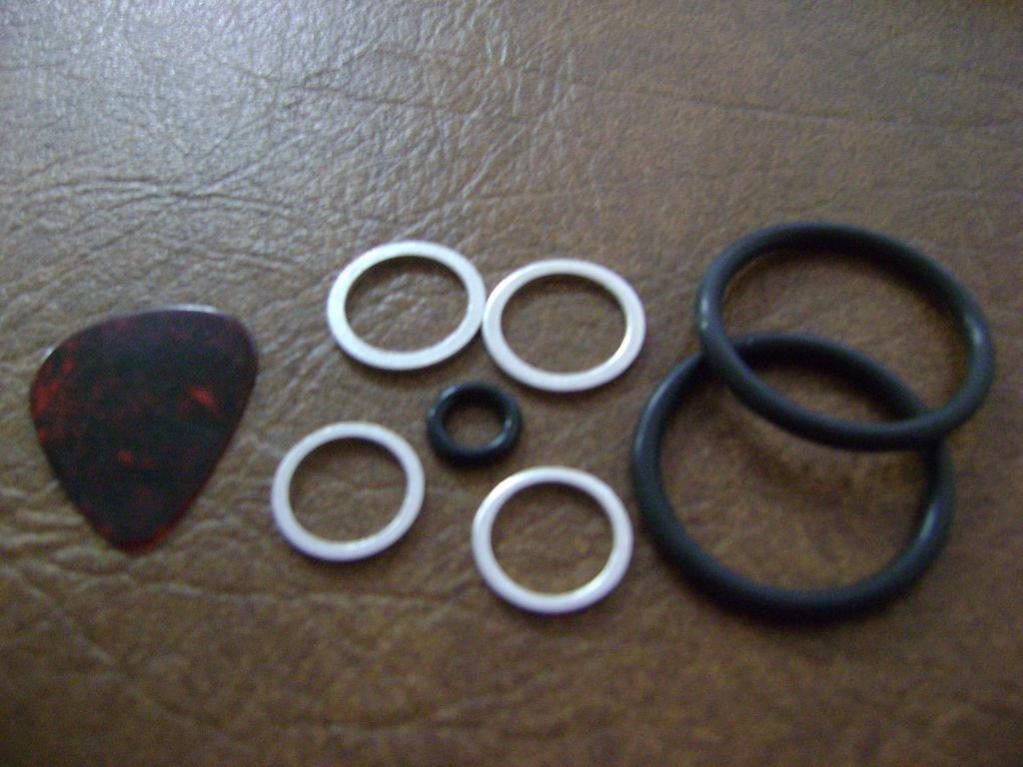

      Thanks for the fast reply Jim. I have an '86 so no oil cooler. Any ideas about the small black one? Guitar pick included for reference
      Attached Files
      sigpic

      Comment


        #4
        just make sure there are seals where they need to be, there are frequently extra/unused seals in gasket kits since they are generic and cover many different M20s.
        Build thread

        Bimmerlabs

        Comment


          #5
          Originally posted by nando View Post
          just make sure there are seals where they need to be, there are frequently extra/unused seals in gasket kits since they are generic and cover many different M20s.
          OK, as far as I can tell there are but just wanted to be on the safe side
          sigpic

          Comment


            #6
            little one looks like an injector seal
            sigpic

            Comment


              #7
              it looks like it but it's not, the VR gasket set doesn't come with injector seals.
              Build thread

              Bimmerlabs

              Comment


                #8
                Originally posted by nando View Post
                just make sure there are seals where they need to be, there are frequently extra/unused seals in gasket kits since they are generic and cover many different m20s.
                +1
                The car makes it possible, but the driver makes it happen.
                Jim Levie, Huntsville, AL

                Comment


                  #9
                  small black one could be for the FPR, I agree with the large black ones being for the oil return tube from the IM to the crankcase.
                  sigpic
                  '86.5 325eis Track Ho | '08 128i DD | '04 Silverado Tow Vehicle
