    My first head build ever :)

    Hey guys im starting my first head build ever. I will learn many things from you guys and never forget this. Im starting from scratch, im going to pull everything out of the head tomorrow and will post pics and questions as my progress goes on. On the list of parts so far.

    SS valve set
    New valve springs
    New spring retainers
    New valve guides

    This is the start of what im going to get.
    sigpic

    #2
    Post lots of pictures. I'm interested in doing this as well.
    Originally posted by TSI
    ♫ Rust flecks are falling on my head...♫
    OEM+

    Comment


      #3
      it looks easy but i know i will run into problems. going to pull everything out of it tomorrow and in a week or two get it hot tanked and shaved.

      any special tools i will need?
      Last edited by e30euro; 02-12-2011, 08:57 PM.
      sigpic

      Comment


        #4
        this will save you many headaches http://www.e30zone.net/e30zonewiki/i..._Cylinder_Head
        Past: 1987 325iS, Bilsteins - HR Sports

        Present: 1999 M3, Koni Yellows - HR Sports - GC Camber Plates - UUC Swaybars - UUC SSK - AFE Intake - Stromung Catback

        2009 Mazdaspeed3, Short Ram Intake - Turbo Inlet Pipe - 2nd cat Delete - Catback - Fuel Pump Internals - Cobb Accessport - Stratified E30 tune - 294/342 - SPC Camber Arms - CPE Rear Motor Mount

        Comment


          #5
          Getting those cams out is a pain, sometimes a rubber mallet works, but you have to be careful. Also if you are taking it completely apart, order some valve seals, cam seal, and valve guides. I had Motorsports parts co. do my head for $300, same place Griffin got his done.
          _________

          Rep Savannah Crew

          Comment


            #6
            ADJ. CAM GEAR on sale now Ireland Engineering $88

            Comment


              #7
              Originally posted by pwagon717 View Post
              Getting those cams out is a pain, sometimes a rubber mallet works, but you have to be careful. Also if you are taking it completely apart, order some valve seals, cam seal, and valve guides. I had Motorsports parts co. do my head for $300, same place Griffin got his done.
              i would do that but its time i learn how to build a head. im now off to pull it apart.
              sigpic

              Comment


                #8
                they have them on ebay. but i would rather get it from IE. yes i will get the cam gear just not right now.
                sigpic

                Comment


                  #9
                  You'll need to have the valve seats ground and the head checked for warp and possibly surfaced.
                  The car makes it possible, but the driver makes it happen.
                  Jim Levie, Huntsville, AL

                  Comment


                    #10
                    yup yup going to drop it off in a few weeks.
                    sigpic

                    Comment


                      #11
                      Interested!! What are your reasons for doing this?
                      REMEMBER: Be safe and have fun is Rule Number 1.

                      The Epic Unbuild of Clint Eastwood

                      Comment


                        #12
                        I forgot to mention that the cam should be checked for wear. It will usually suffice to check the list on each lobe with a dial indicator. If worn, but otherwise in good condition, a re-grind will bring the cam but to spec.

                        Interested!! What are your reasons for doing this?
                        The usual reasons for rebuilding a head are to reduce oil consumption and deal with wear in the valve seats. The rebuild can also be part of the fix for a head gasket failure. Once the head is off it makes sense to rebuild it on a higher mileage (over 120k) engine while dealing with the head gasket problem.
                        The car makes it possible, but the driver makes it happen.
                        Jim Levie, Huntsville, AL

                        Comment


                          #13
                          and to deck the head and use a thin head gasket to raise compression.

                          :D
                          AWD > RWD

                          Comment


                            #14

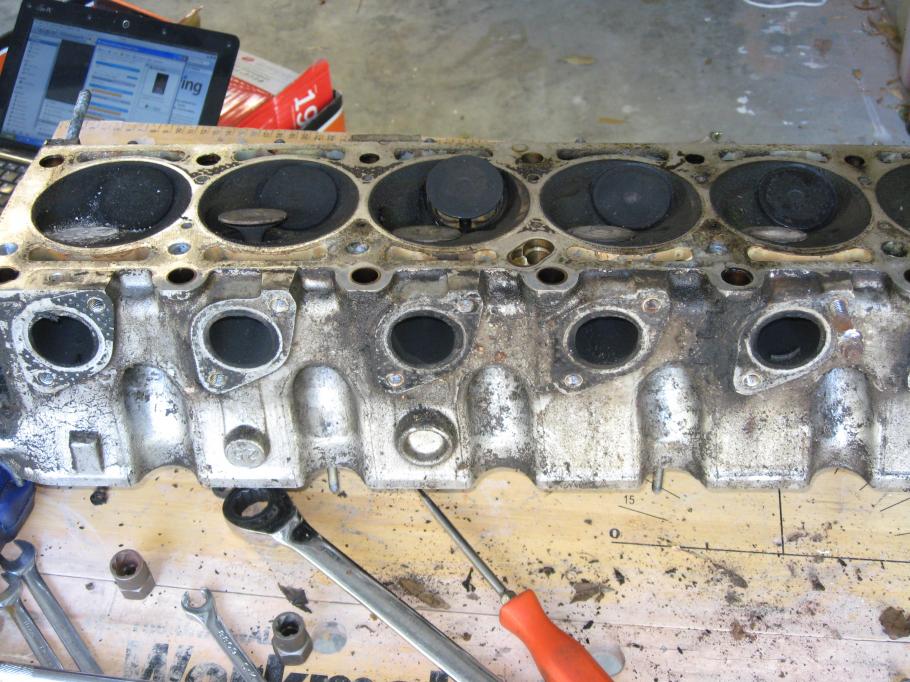

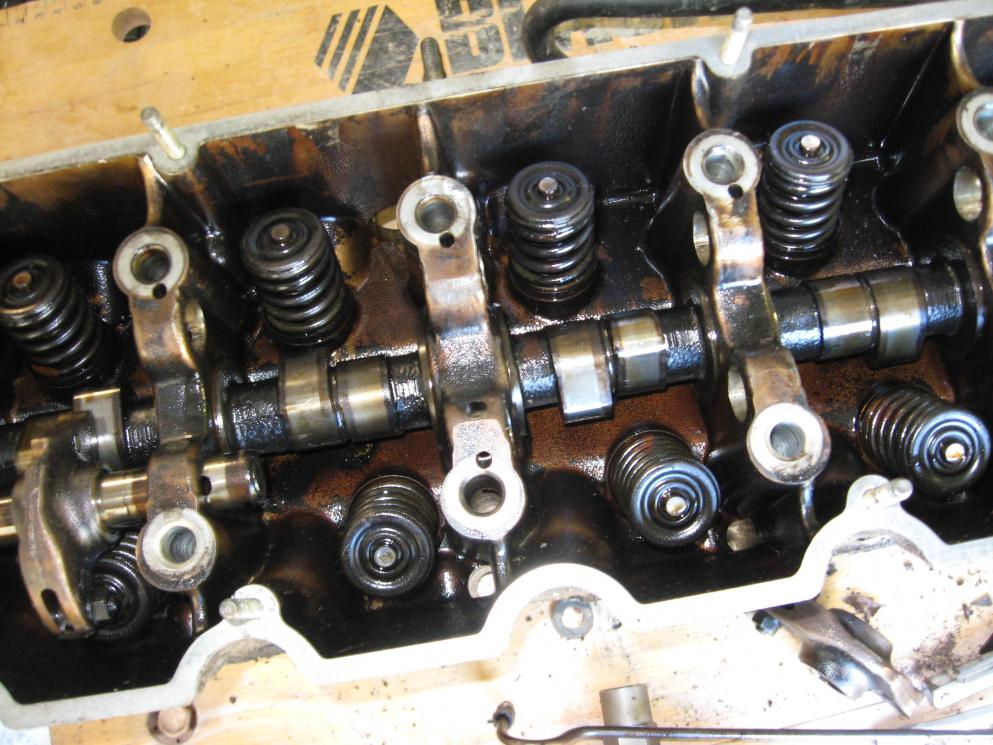

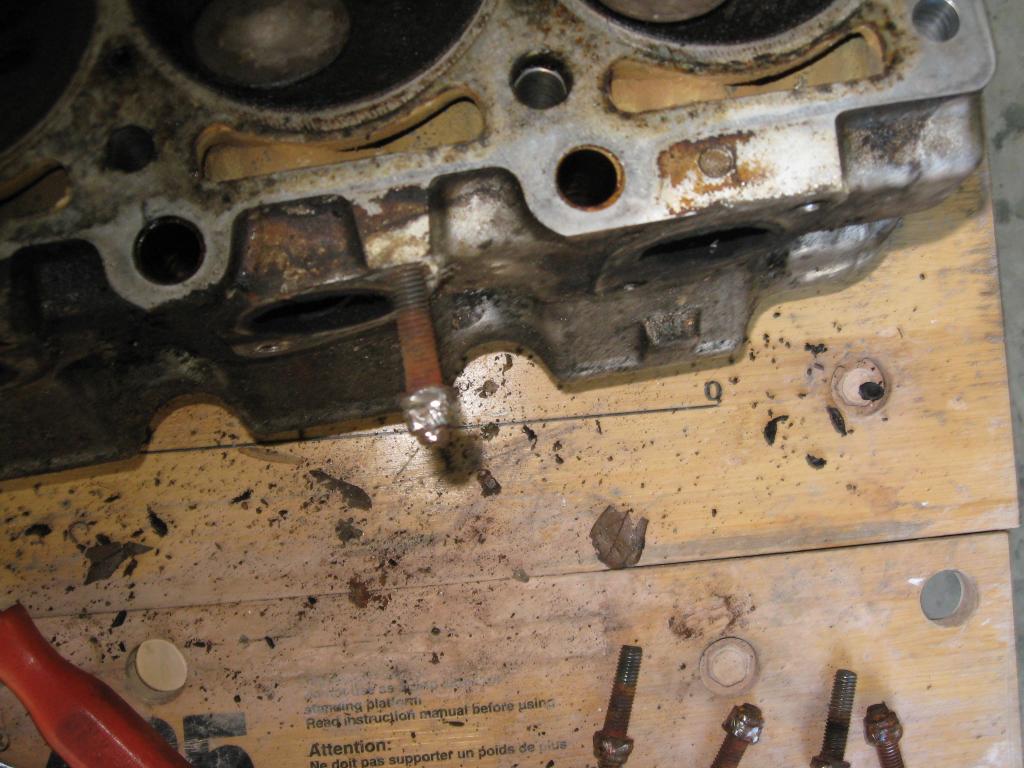

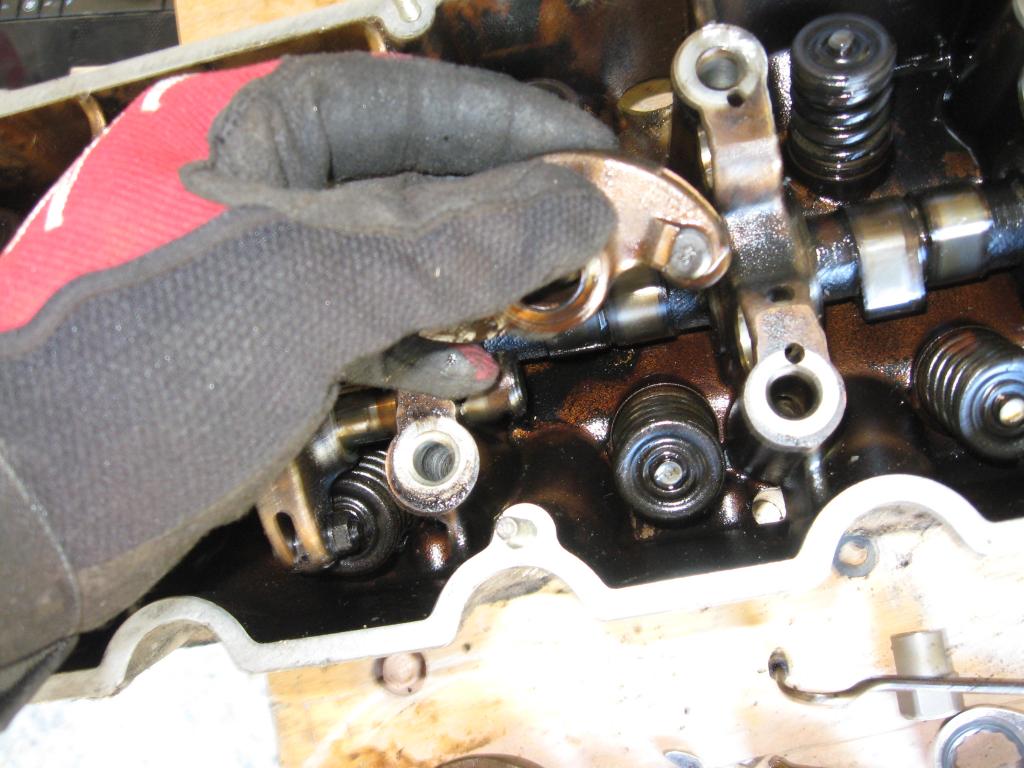

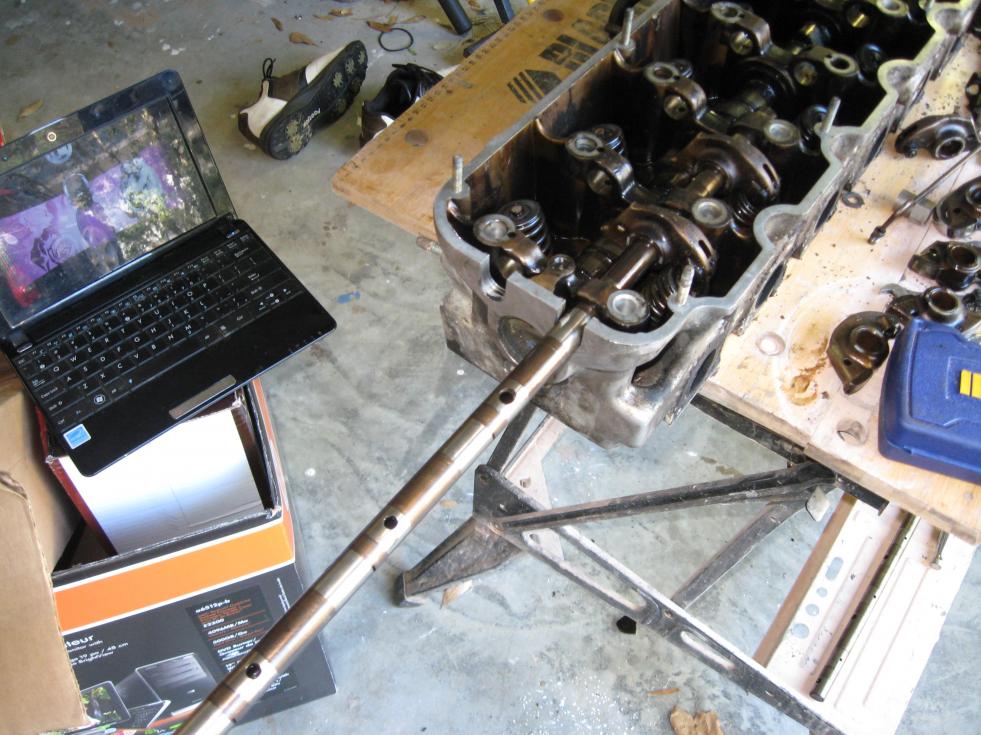

                            everything going in will be new. 272 cam, springs, rocker shafts, everything here are some pics. the first thing i did was pull the exhaust manis off. the firts pic was a nice half cut off stud i pulled without breaking. :D. than i pulled off the oil line on the top which took an 8 mil wrench. than i went ahead and pulled out the rocker shaft seals, and took a long extension and knocked out the rocker shafts.
                            Attached Files
                            sigpic

                            Comment


                              #15

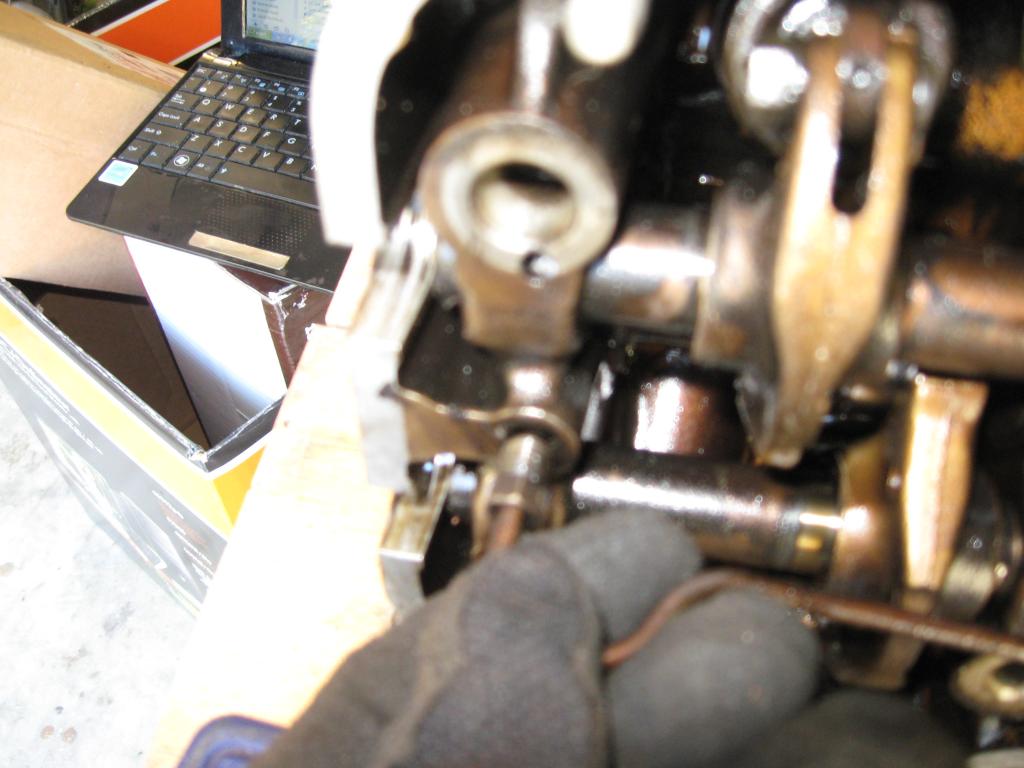

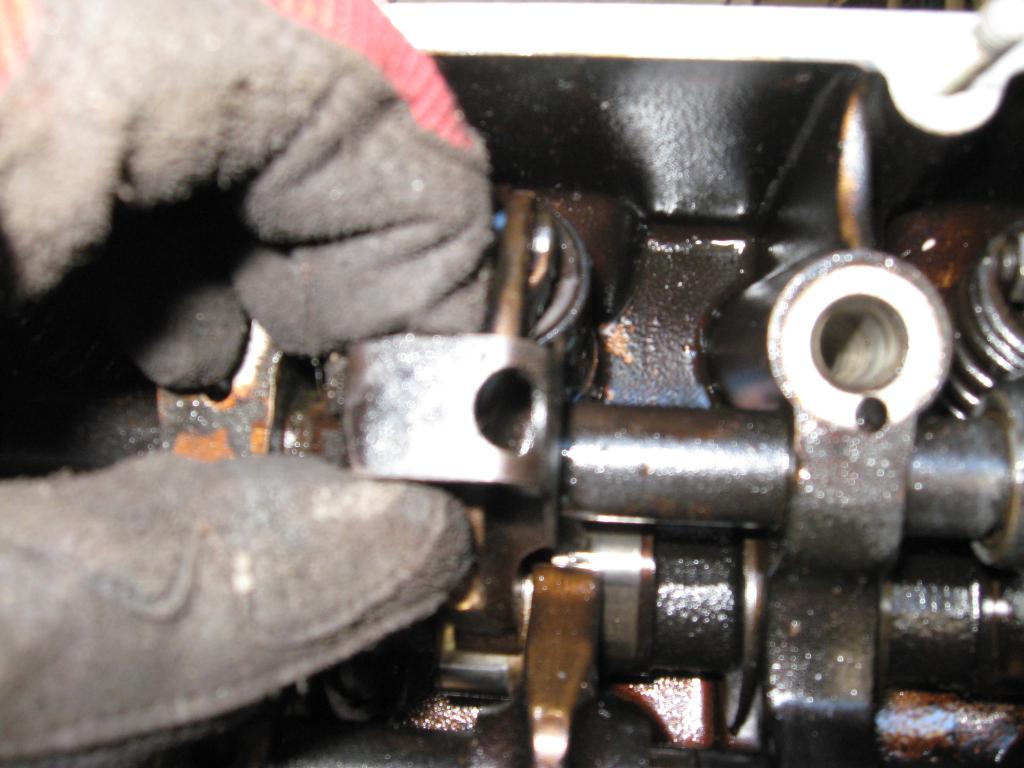

                              more pics

                              more pics
                              Attached Files
                              sigpic
