    Timing question. car runs good haven't removed belt. timing marks way off

    Hey everyone,

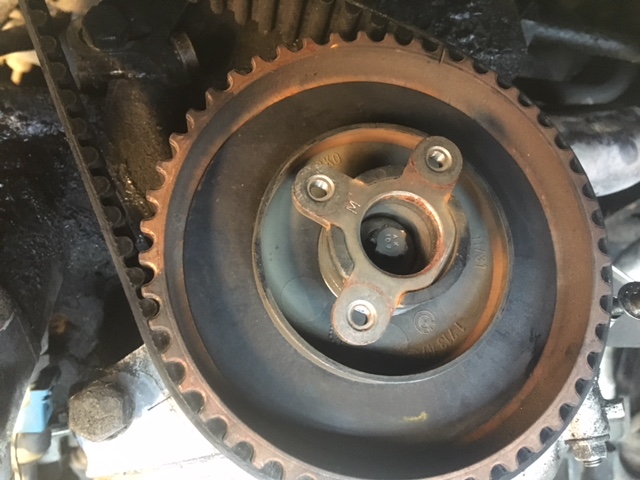

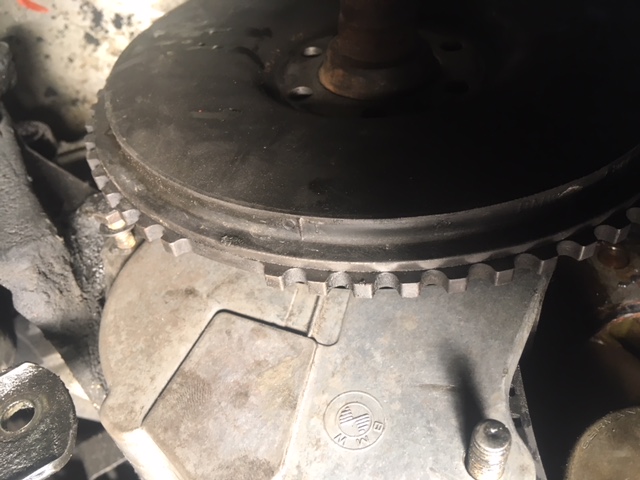

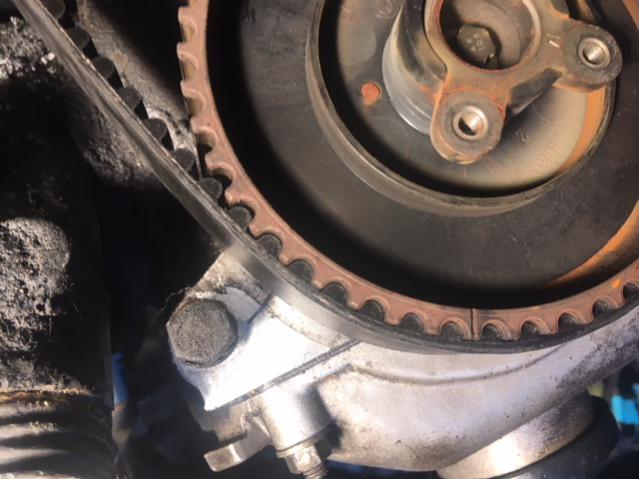

    so im in the process of doing the timing belt, 1988 e30 325is m20b25 the car ran great before and once i got the covers off and started to find TDC, the closest i can get it to line up is 5 teeth retarted. it has a aftermarket cam in it but i don't think it would be that far retarted. is there any wisdom as to how i should proceed, i don't feel comfortable turning the cam 5 teeth over in fear of bending valves,. should i just scribe a new mark on the valve cover considering it already runs? or do i pull the valve cover and visually find TDC? my thought is the cam gear must have been removed and re installed differently so now the marks don't line up. it has a bit of a lumpy idle but i contributed that to the camshaft. heres photos so i don't get a million replies saying to line up the timing marks.
    Attached Files

    #2
    your crank vibration damper/timing wheel is installed backwards, the counterweight goes to the inside
    cars beep boop

    Comment


      #3
      hahahah wow im a moron thank you

      Comment


        #4
        Originally posted by Spilly View Post
        so i don't get a million replies saying to line up the timing marks.
        Line up the timing marks! X 999,999

        Only one more to go!

        Comment


          #5
          Originally posted by kronus View Post
          your crank vibration damper/timing wheel is installed backwards, the counterweight goes to the inside
          Wouldnt that throw a belt ?
          Seat Shocks....I have passed the baton to John Christy from Ninestitch. Email John or Garrett at ninestitch1@gmail.com

          https://www.r3vlimited.com/board/sho...86#post4944786
          Alice the Time Capsule
          http://www.r3vlimited.com/board/showthread.php?t=360504
          87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

          Comment
