    Damnable pressure plate bolt!

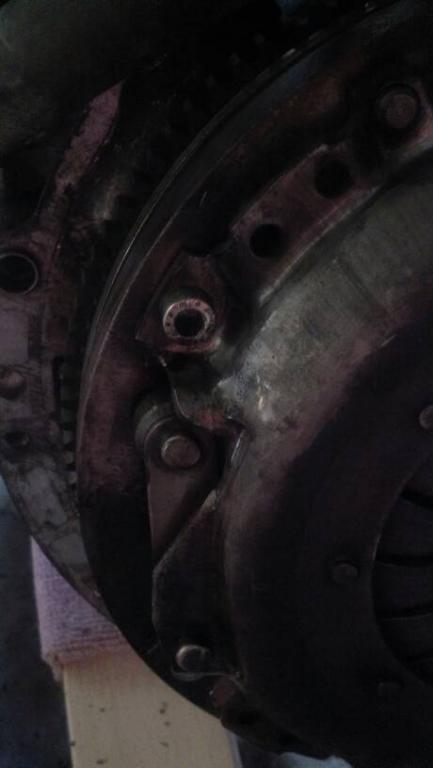

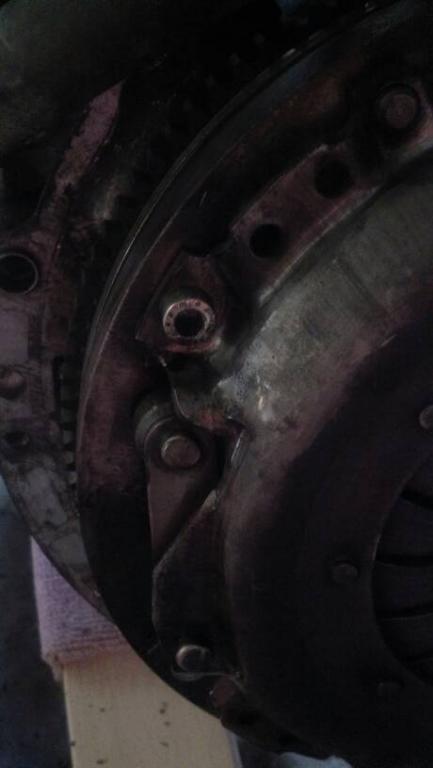

    Any thoughts on how to get a rounded hex key bolt out? Click image for larger version

Name:	uploadfromtaptalk1348877978779.jpg
Views:	1
Size:	24.7 KB
ID:	7229124

    Sent from my DROID RAZR using Tapatalk 2
    Parts Collector and Former Houndstooth interior junkie.
  • jlevie
    R3V OG
    • Nov 2006
    • 13530

    #2
    a) grind tapers on a larger allen driver, pound it in, and remove the fastener. b) weld a nut on the head of the fastener and remove it.
    The car makes it possible, but the driver makes it happen.
    Jim Levie, Huntsville, AL

    Comment

    • Dj Buttchug
      R3V OG
      • Jun 2010
      • 7633

      #3
      dremel larger straight notch across the head of bolt. Use a impact driver with a flat head blade to remove the bolt.

      a little heat never hurts either

      Turbo M42 Build Thread :Here
      Ig:ryno_pzk
      I like the tuna here.
      Originally posted by lambo
      Buttchug. The official poster child of r3v.

      Comment

      • AndrewBird
        The Mad Scientist
        • Oct 2003
        • 11892

        #4
        Vise grips or a bolt out. Something to grab the outside of the bolt basically. Most of the time, once they break loose, they will unscrew easily.

        Comment

        • Simon S
          No R3VLimiter
          • Oct 2004
          • 3758

          #5
          I'm with chugs..

          a fan of dremmeling a slot - then taking it out with an impact driver. This technique has saved me numerous times..
          -----Zen and the Art of e30 Maintenance - / - Zen TOC - / - Zen Summary

          Comment

          • TobyB
            R3V Elite
            • Oct 2011
            • 5168

            #6
            I swear by the vice grips...
            those bolts suck.
            t
            now, sometimes I just mess with people. It's more entertaining that way. george graves
