Garret, I just got my GTO pan in and the oil filter line in the pan touches one of the main journal studs. is that an issue you encountered? I'm not seeing anything about it inyour PDF. I'm thinking it could just be that mine is from a 6.0. Wanted to see if you had this issue before I try to mod it, thanks
-
Garret, I just got my GTO pan in and the oil filter line in the pan touches one of the main journal studs. is that an issue you encountered? I'm not seeing anything about it inyour PDF. I'm thinking it could just be that mine is from a 6.0. Wanted to see if you had this issue before I try to mod it, thanks -
It's been a while since I've updated this post and I said I would post dimensions of the Canton pan I purchased. Well, I was cruising Canton's website and I discovered that they have now posted their dimensions on their site.
So for now, here is my oil pan setup - I haven't received the engine back from machine shop yet so I haven't test fit anything.

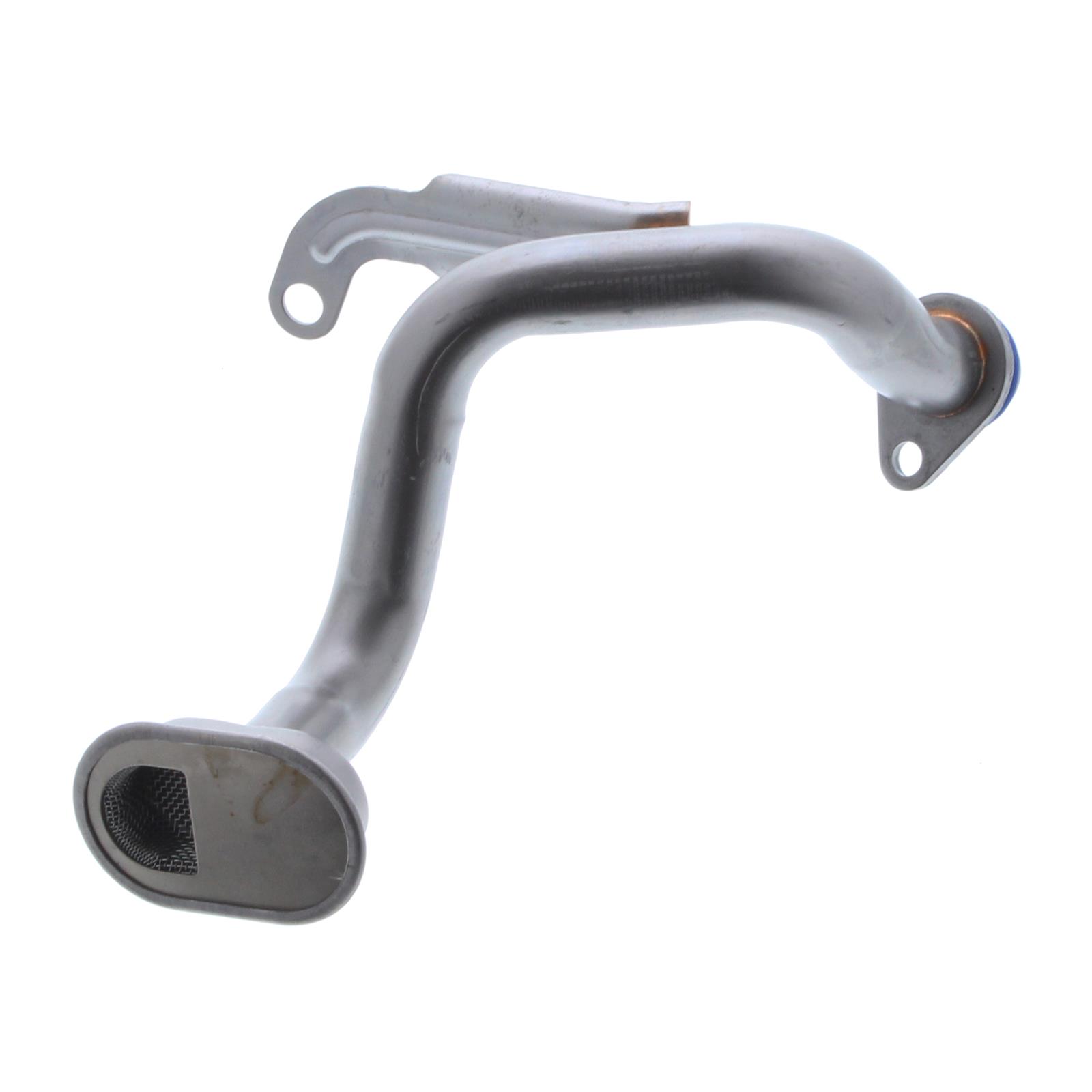

I ordered the Canton 15-276 pan with GM 12572654 pick up.
Total $359Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
What are you doing for your oil filter?1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404
Comment
-
Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
So the guys that are running the modified GTO pan are you still using the GTO dipstick?1989 325i LS Swap (Money Pit):https://www.r3vlimited.com/board/sho...d.php?t=244933
COTM Feb 2019: https://www.r3vlimited.com/board/sho...d.php?t=428404
Comment
-
Something else I am rather proud of - The Gen III GM engines have limited options for timing chain dampeners. So, I designed my own and had several made.
Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
you have more info on those dampeners? just picked up an LS1 last week for my e30.'87 BMW 325i - ground control c/o, condor bushings, 16x8/16x9 wheels - SOLD
'09 MazdaSpeed 3 - FOR SALEComment
-
Sure thing!
Here is my post in Corvette Forum
Here is my Ebay link
Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
you're than man! thanks'87 BMW 325i - ground control c/o, condor bushings, 16x8/16x9 wheels - SOLD
'09 MazdaSpeed 3 - FOR SALEComment
-
:up:Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
Here is my engine with the pan installed.
One thing to note: the pan is thinner than the original cast aluminum and therefore will require the stud kit or shorter bolts.... I didn't find out until I started torquing the bolts down and they bottomed out.
The stud kit was $12 bucks
I went ahead and picked up the remote filter adapter as well. I still need to get the filter mount and hoses but will figure that out once I get the engine in the car.
Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
-
looks good! thats good to know about the stud kit, ill order it when i order my pan.'87 BMW 325i - ground control c/o, condor bushings, 16x8/16x9 wheels - SOLD
'09 MazdaSpeed 3 - FOR SALEComment
-
i have the garagistic/canton pan as well, just remember you're gonna need to also buy oil relocation lines and fittings.e30Ls1 Swap IG: 1dirty30
Comment
-
Yea, that's why I bought the adapter. I'll also be running a cooler and it'll make it easy to plumb all in line.Current: '91 DS M3, '03 TS M3 (6MT)
'06 Chevy 2500 Duramax - Race car hauler, '90 Corvette - Weekend toy
Past: '88 AW M3, '87 RB M6, '98 CS M3, '88 DS M3, '88 Zinno M3, '88 AW SETA (facelift),
1988 Super E (Bronzit - grey wrap)- RIP, 1986 353, 1986 VW Jetta (vr6) - Racecar
IG: RDE_Fabrications
Check us out
Or YouTube --> HERE;Comment
