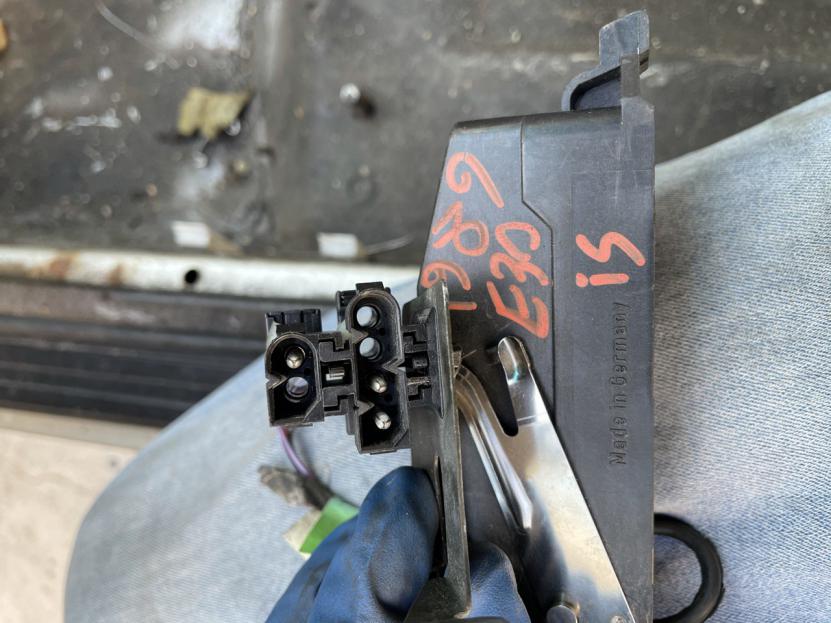

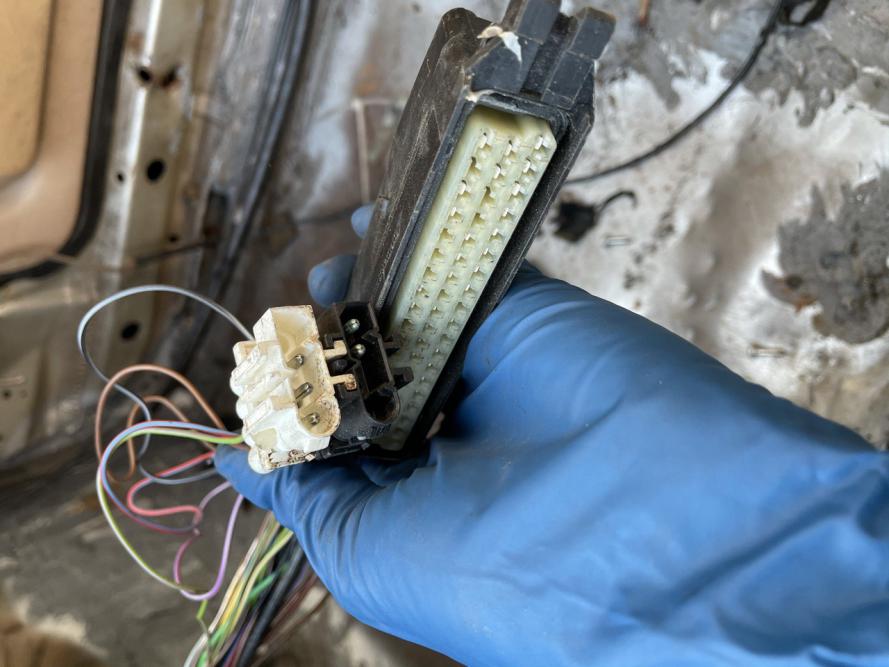

Hey guys I’m doing an engine harness for my 1989 325IS I bought a new harness from a local and the 2 connectors right by the plug for the ECU are completely different. Can anyone tell me what these are for? Thanks
Attached Files
-
-
https://www.bimmerforums.com/forum/s...version-wiring it's connector C131 I believe. Looks like it's something to do with the transmission, auto vs manual.
This link should also help you: http://wedophones.com/Manuals/BMW/19...g%20Manual.pdfInstagram
Build Thread
F87 2020 M2 Competition Coupe Long Beach Blue/Black w/Blue Stitching
F22 2014 M235i Coupe Estoril Blue/Black (Sold)
E46 2003 325xi Sedan Jet Black/Natural Brown Leather
E30 1989 325i Vert Bronzitbeige Metallic/Natural
E30 1986 325es Coupe Alpine White/Pearl Beige -
The WT connector is the C131 and the black the C136
C136 comes from the AC/HVAC to bump the idle when you turn it on (BK/VI wire)
C131 relates to the Automatic trans - the neutral/park switch (RD/BU), and maybe the torque converter lockup, or kickdown (since you seem to have 3 wires).1988 Atlantisblau Euro/Japanese 325i Cabriolet
1989 Schwartz 325i - now M50 powered! - now very dead
1998 Toyota 4Runner Limited
My 17,000km Big NA National Parks trip!Comment
-
Thanks for the info guys
