    What is the stacking order of the door striker latch?

    I'm currently rebuilding my e30 after a respray and thought I took a detailed enough photo of this area, but I'm a bit flummoxed when I compare it to the realoem technical diagram: Could someone provide me the stacking order of the striker plate, washer plate, nut plate and grommets for the door striker assembly (including where the body lies in the order of that stack?)

    I've checked the manuals and can't seem to find anything specific.
    Last edited by dclowd99011; 02-18-2022, 11:20 AM.

    #2
    Originally posted by dclowd99011 View Post
    I'm currently rebuilding my e30 after a respray and thought I took a detailed enough photo of this area, but I'm a bit flummoxed when I compare it to the realoem technical diagram: Could someone provide me the stacking order of the striker plate, washer plate, nut plate and grommets for the door striker assembly (including where the body lies in the order of that stack?)

    I've checked the manuals and can't seem to find anything specific.

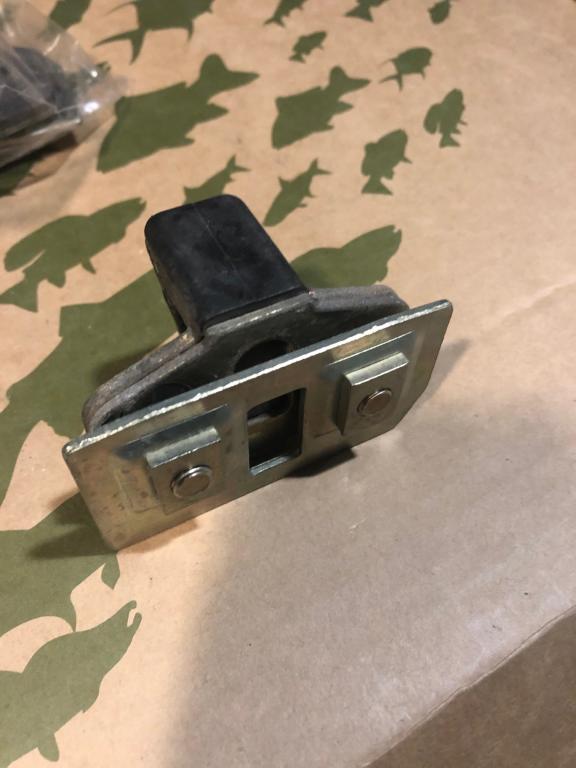

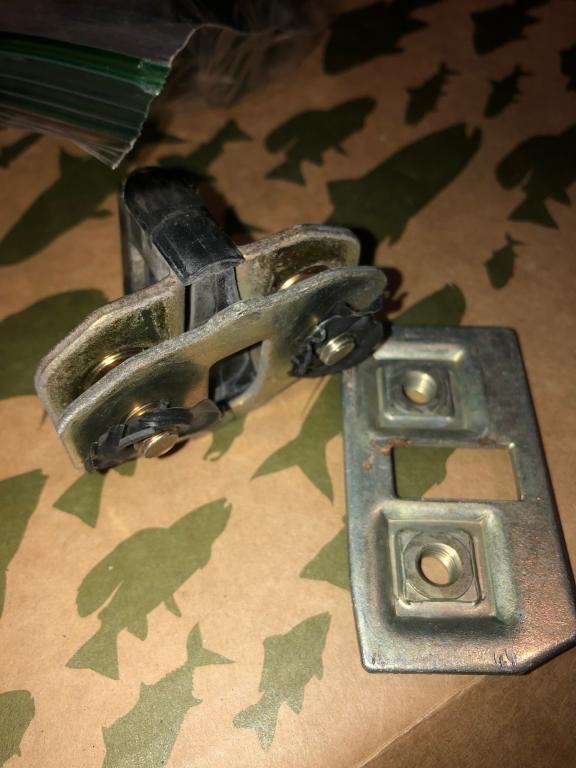

    in the order and orientation as shown. grommets seal holes from outside and the threaded plate goes on the inside.

    Click image for larger version

Name:	IMG_3252.jpg
Views:	156
Size:	44.2 KB
ID:	10047130 Click image for larger version

Name:	IMG_3253.jpg
Views:	126
Size:	52.7 KB
ID:	10047131

    Comment


      #3
      also looks at this thread. It's M3 but a lot of things are applicable....well documented build with lots of pictures

      Comment


        #4
        Originally posted by zaq123 View Post
        also looks at this thread. It's M3 but a lot of things are applicable....well documented build with lots of pictures

        https://www.r3vlimited.com/board/for...-reborn?q=door
        Thank you, I’ll bookmark that one!
