    Plug identification for crank position sensor/spark plug leads under diagnostic port?

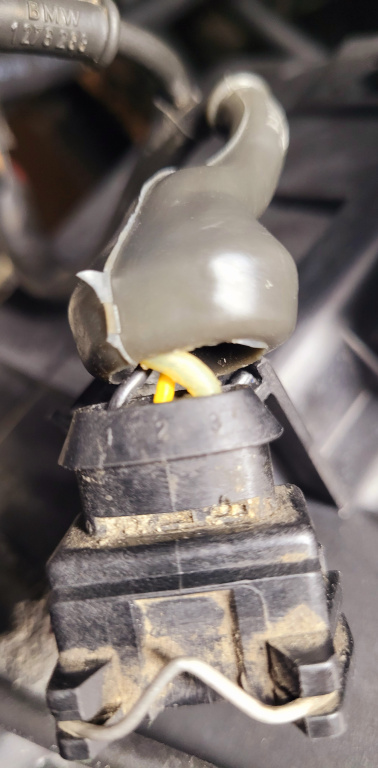

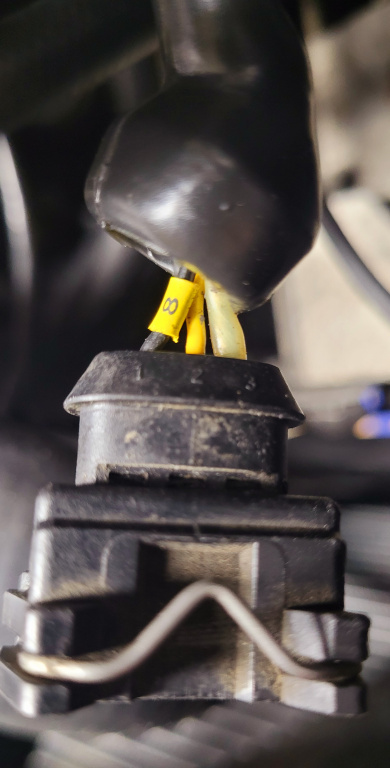

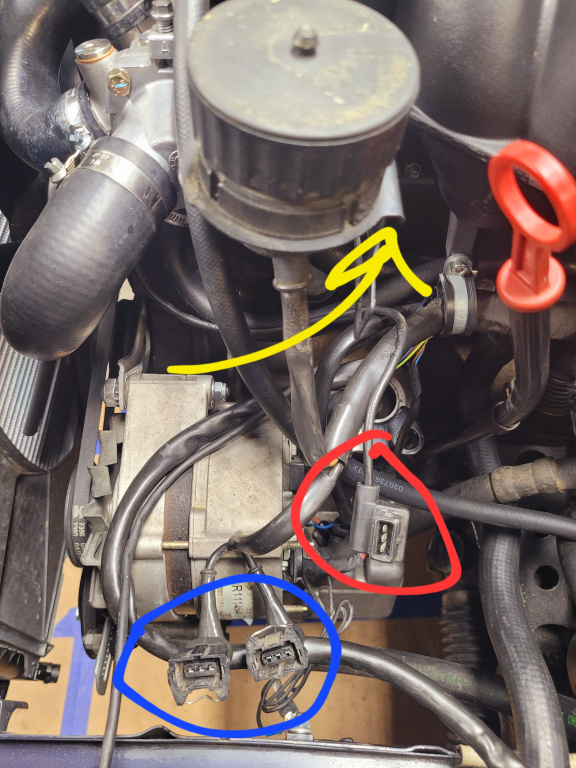

    As per photo, I didn't label the wires on the engine well enough when removing, I believe these two plugs are the two under the diagnostic port, one comes from the spark plug leads and the other from the crank position sensor. Is there a way to figure out which plugs into which? I can't see any of the wire colours to cross reference wiring diagrams as it's all insulated pretty good. What happens if these sensors are switched/plugged into the wrong one?
