    help me identify this under-dash connector

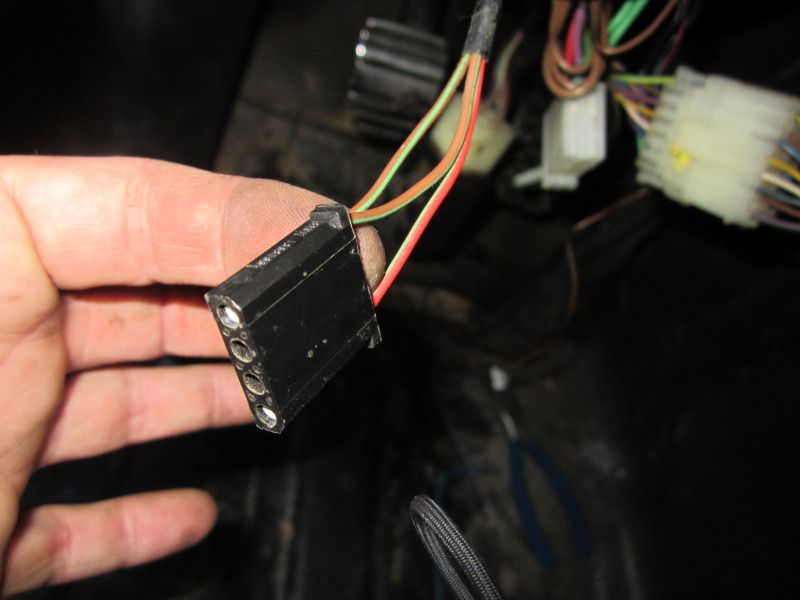

    Just doing wiring cleanup (since my car is a stripper with all non-needed electricals deleted), and keep trying to figure out this little connector.

    It has a BRN/GRN and RED/GRN wire going up into the firewall to the fuse box, and a BRN/GRN that goes to the ignition switch. I don't recall it ever being plugged into anything, but want to make sure before I "delete" it.

    Can't find any such connector in my Bentley. Anyone know offhand what it is?

    btw, it is located under the left side of the dash, and car is an '85 318i.

    Stage rally/rallycross e30 build/competition journal
    Track/street e21 build
    visit Condor Speed Shop
    visit Motorsport Hardware



    [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

    #2
    thinking it's the door or seatbelt chime connector, except I can't check since I don't have the module or the under-dash trim piece. Anyone mind looking at the door chime connector under the dash and see if that's it?
    Stage rally/rallycross e30 build/competition journal
    Track/street e21 build
    visit Condor Speed Shop
    visit Motorsport Hardware



    [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

    Comment


      #3
      side mirror? lol

      Comment


        #4
        don't think it reaches far enough to be side mirror. Doesn't even reach to the door, clearly supposed to plug into something under dash or in that area.
        Stage rally/rallycross e30 build/competition journal
        Track/street e21 build
        visit Condor Speed Shop
        visit Motorsport Hardware



        [FONT="Franklin Gothic Medium"] 1985 318i/M50 Rally Car - 1988 Porsche 924S - 2005 Sequoia tow pig - 2018 GTI

        Comment


          #5
          Goes to the chimer

          Comment


            #6
            Chime has more wires than that... on the later cars, anyway, look at the ETM.



            t
            now, sometimes I just mess with people. It's more entertaining that way. george graves

            Comment


              #7
              Look like a hard drive connector...
              Ma che cazzo state dicendo? :|

              Comment


                #8
                Oh, nope- it's the chime. P134, ETM.

                t
                now, sometimes I just mess with people. It's more entertaining that way. george graves

                Comment
