    Blower resistor or something else?

    The middle settings on my heat/ AC are not working. I changed my blower resistor and it didn't work. I cleaned my old one (which didn't seem dirty) and it worked for about a day or two than stopped again. Any suggestions?
    Tags: None
    • vpilarrt
      R3VLimited
      • Jun 2006
      • 2096
      #2
      Makes me wonder why the new resistor pack wouldn't work but the old one (cleaned) would. Maybe the wiring is defective/intermittent?

        Comment

        • jlevie
          R3V OG
          • Nov 2006
          • 13530
          #3
          Diagnostics should tell you where the problem is. Use a meter at the resistor to see if the switch is providing power at the lower settings. If so, check the output of the resistor.
          The car makes it possible, but the driver makes it happen.
          Jim Levie, Huntsville, AL

            Comment

            • JJ1
              Advanced Member
              • Oct 2009
              • 176
              #4
              I'm terrible with auto electric stuff. But I do have a multimeter so I guess it's time to learn. Thanks guys.

                Comment

                • jeffnhiscars
                  R3V OG
                  • Jun 2011
                  • 6010
                  #5

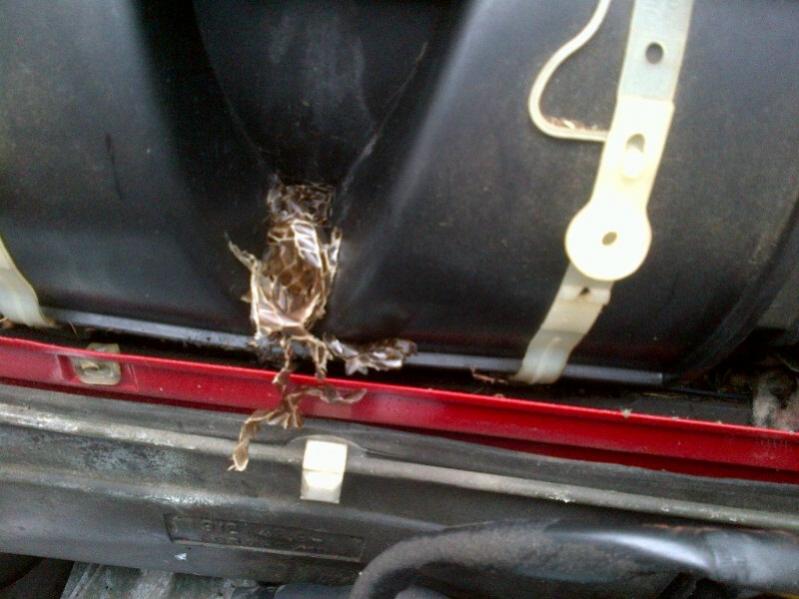

                  I went to install a new resistor and found this...no mention of it in the Bentley so I made a key fob from it. It explains why there was a mouse nest but no mouse.
                  Attached Files
                  Seat Shocks....I have passed the baton to John Christy from Ninestitch. Email John or Garrett at ninestitch1@gmail.com

                  https://www.r3vlimited.com/board/sho...86#post4944786
                  Alice the Time Capsule
                  http://www.r3vlimited.com/board/showthread.php?t=360504
                  87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

                    Comment

                    • reelizmpro
                      R3V OG
                      • Dec 2003
                      • 9465
                      #6
                      Clean the contacts with scotchbrite and spray contact cleaner in the blower motor side. Since you already have the new resistor pack, just resurface the contacts real quick to make sure it's clean and makes good contact with the motor. Reinstall the resistor pack and test. I have also found it helps to spray cleaner in the blower motor itself on the brushes. If full speed position 4 doesn't work or intermittent...starts and stops...try another blower motor.
                      "I'd probably take the E30 M3 in this case just because I love that little car, and how tanky that inline 6 is." - thecj

                      85 323i M TECH 1 S52 - ALPINEWEISS/SCHWARZE
                      88 M3 - LACHSSILBER/SCHWARZE
                      89 M3 - ALPINEWEISS II/M TECH CLOTH-ALCANTARA
                      91 M TECHNIC CABRIO TURBO - MACAOBLAU/M TECH CLOTH-LEATHER

                        Comment

                        • e30smith
                          Noobie
                          • Aug 2012
                          • 33
                          #7
                          Originally posted by JJ1
                          The middle settings on my heat/ AC are not working. I changed my blower resistor and it didn't work. I cleaned my old one (which didn't seem dirty) and it worked for about a day or two than stopped again. Any suggestions?
                          I just had that problem, and a new blower resistor fixed it. Stupid question, but are you sure you replaced it with a working part? Was it new?
