E30 ignition problems

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    E30 ignition problems

    Click image for larger version

Name:	ImageUploadedByTapatalk1434574068.278141.jpg
Views:	1
Size:	29.4 KB
ID:	7244244

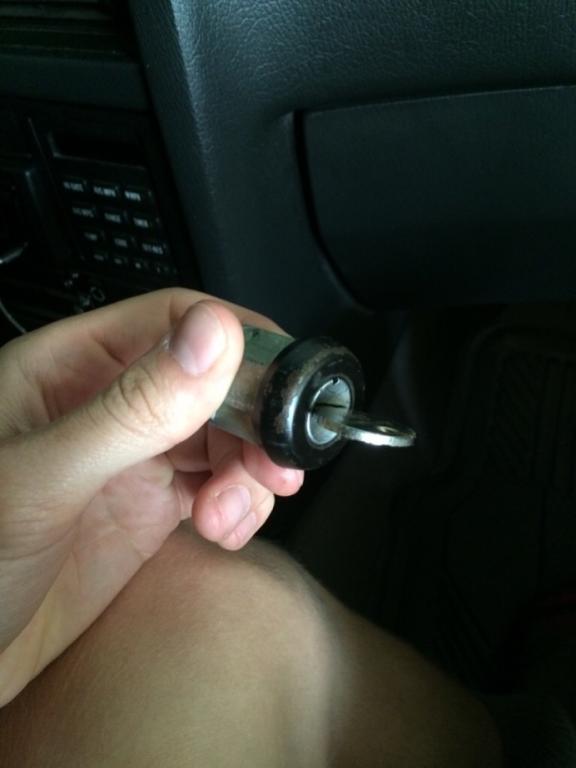

    When I was trying to start my car the other day for some reason i couldnt turn my key past the accessory position 1 (lights dont turn on but steering wheel unlocks) I thought that There was problems with the tumbler / key so i bought a new one off bav auto. I just took the old one out and the key now moves freely in all positions... Does that mean the tumbler is not the problem? Any help is appreciated thanks!


    Sent from my iPhone using Tapatalk

    #2
    Click image for larger version

Name:	ImageUploadedByTapatalk1434575106.627771.jpg
Views:	1
Size:	41.3 KB

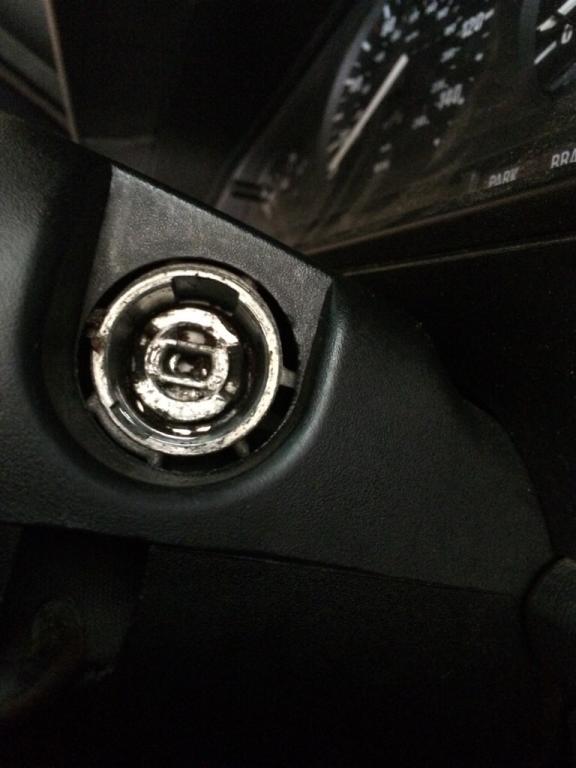

ID:	7177273 Also, should I be able to turn this with a screw driver and it will start? Because if so I cant turn it any farther than i could with the key...


    Sent from my iPhone using Tapatalk

    Comment


      #3
      anyone?


      Sent from my iPhone using Tapatalk

      Comment


        #4
        I had this happen once- just pulling it and reinstalling it fixed it.
        There was a bunch of crud in there...

        t
        now, sometimes I just mess with people. It's more entertaining that way. george graves

        Comment


          #5
          Originally posted by TobyB View Post
          I had this happen once- just pulling it and reinstalling it fixed it.
          There was a bunch of crud in there...

          t

          I noticed that too! Cleaned it off but i cant get it back in... Is there a write up on that?


          Sent from my iPhone using Tapatalk

          Comment


            #6
            ok i got it back in but its still stuck at position 1. I have no idea what to do now


            Sent from my iPhone using Tapatalk

            Comment


              #7
              Don't seem that your tumbler is the problem since it turns all the way when removed. It could be the harness that is faulty.
              1990 325i
              2004 330i Individual 6-speed
              sigpic


              Comment


                #8
                Originally posted by IceWhite View Post
                Don't seem that your tumbler is the problem since it turns all the way when removed. It could be the harness that is faulty.

                is this what you mean?




                Sent from my iPhone using Tapatalk

                Comment


                  #9
                  Yup!!!
                  In the pic, The round Brown Part where the wires attach, it is spring loaded inside, that is what is common to get messed up.
                  1990 325i
                  2004 330i Individual 6-speed
                  sigpic


                  Comment


                    #10
                    Originally posted by IceWhite View Post
                    Yup!!!
                    In the pic, The round Brown Part where the wires attach, it is spring loaded inside, that is what is common to get messed up.

                    so you think i can just get that brown part? (ignition switch)


                    Sent from my iPhone using Tapatalk

                    Comment


                      #11
                      pull the ignition switch (brown electrical part.held on with two screws or clips )off the lock assembly and see if you can now turn the part down inside with the tumbler removed, if it now turns problem is inside switch ,if not problem is in lock assembly
                      Angus
                      88 E30M3 X2
                      89 325IX
                      92 R100GS/PD
                      :)

                      Comment


                        #12
                        Originally posted by park123xyz View Post
                        so you think i can just get that brown part? (ignition switch)


                        Sent from my iPhone using Tapatalk
                        Yup.
                        Part number: 61321377069 (If yours is airbag model. Not sure this exact part number is for your vehicle.), but you get the idea.

                        But before you buy anything do as spdracrm3 above suggests, it may be that brown part or the lock assembly housing.
                        Or you can get both for cheaper than buying any one of them separately. Just like in the attachment that you posted.
                        Last edited by IceWhite; 06-18-2015, 10:39 AM. Reason: Spelling error.
                        1990 325i
                        2004 330i Individual 6-speed
                        sigpic


                        Comment


                          #13
                          Originally posted by IceWhite View Post
                          Yup.
                          Part number: 61321377069 (If yours is airbag model. Not sure this exact part number is for your vehicle.), but you get the idea.

                          But before you buy anything do as spdracrm3 above suggests, it may be that brown part or the lock assembly housing.
                          Or you can get both for cheaper than buying any one of them separately. Just like in the attachment that you posted.

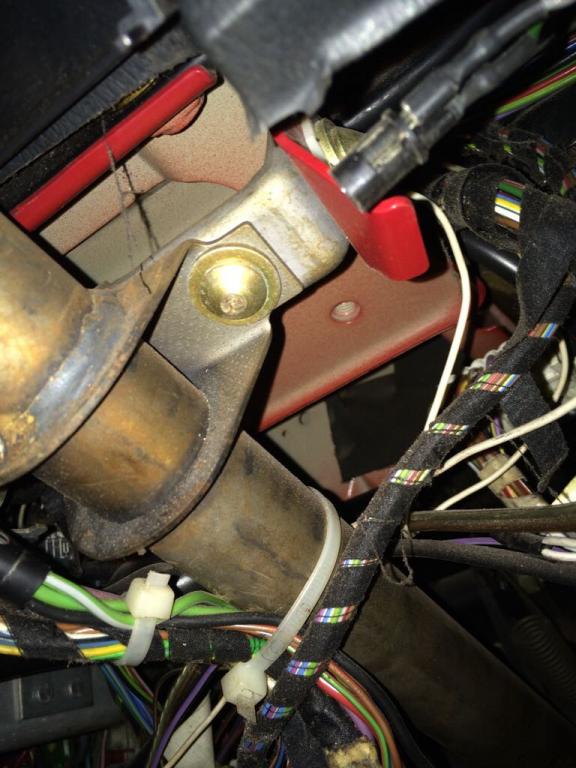

                          Thanks man. I tried taking it apart before I went to work and I couldnt get the steering column bolts off.. Click image for larger version

Name:	ImageUploadedByTapatalk1434655402.399019.jpg
Views:	1
Size:	67.7 KB
ID:	7177293 i think i might just drill them out and get normal bolts


                          Sent from my iPhone using Tapatalk

                          Comment


                            #14
                            That is a pita!! Those bolts are called "Shear Bolts". Their function is for the Hex/Torx or whatever head supposed to be there, to shear clean off when max. tightening is achieved. It is more of a safety thing so the car cannot be stolen easily.
                            1990 325i
                            2004 330i Individual 6-speed
                            sigpic


                            Comment


                              #15
                              Check this out.



                              Hope it helps.
                              1990 325i
                              2004 330i Individual 6-speed
                              sigpic


                              Comment
