    Helping identifying electrical connections

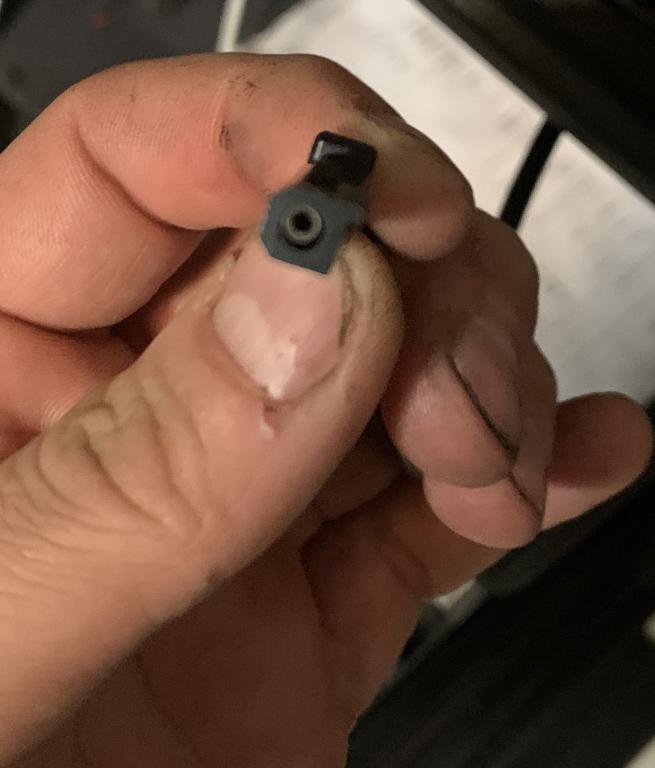

    As I put this thing back together I’ve got a few labels that fell off and need some help identifying. Plus I had the bay resprayed so I’ve got some that may be misplaced.

    Here are the first two...

    One is by the mid fender relay box with cover and is in the same harness that leads to those relays.

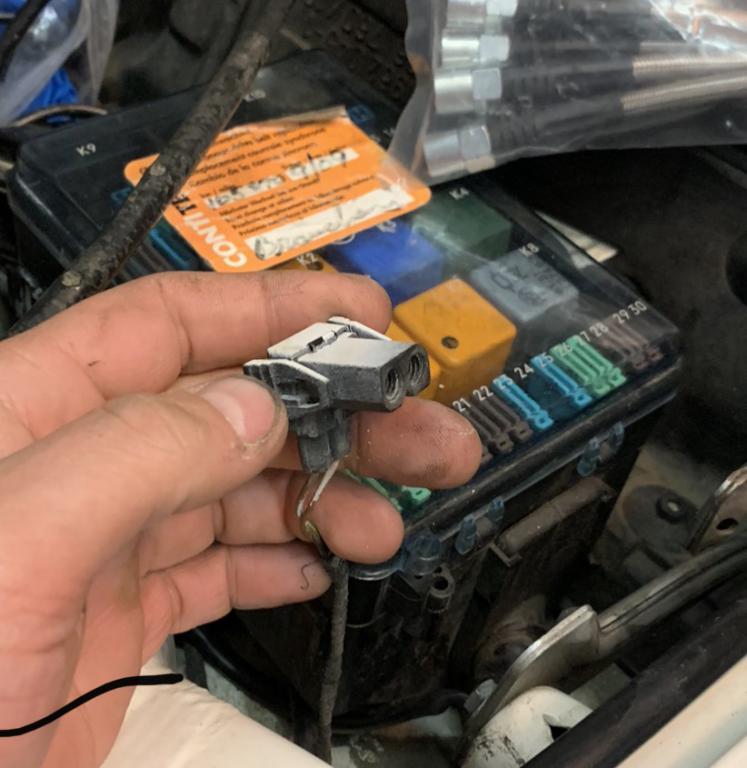

    Second is tucked up by the fuse box. I think it looks like something that should be in the front of the car but maybe something else.

    #2
    The second one...

    Click image for larger version

Name:	63EC34F3-04F7-4947-A531-DB7CF93A88DF.jpeg
Views:	120
Size:	63.9 KB
ID:	9888595

    Comment


      #3
      second one looks like a headlight plug.

      Comment


        #4
        Hard to tell from the pic, but the first connector looks to be the harness for the AFM on the air box
        Albie

        '86 325e Zinnoberrot /// '02 325ci Schwarz II /// '18 M4 Azurite Black Metallic ///

        Albie325 Build Thread | Albie325 Feedback | Albie's M4 European Delivery

        Comment


          #5
          Originally posted by Albie325 View Post
          Hard to tell from the pic, but the first connector looks to be the harness for the AFM on the air box
          You are right! Since I’m using a standalone, I’m not using anything from the OEM afm/intake so that makes sense why it’s not there. Thanks’

          Comment


            #6
            Second connector goes to the headlight assembly I’m almost certain

            Comment


              #7
              I'd say second connector is for the factory alarm horn.

              Comment


                #8

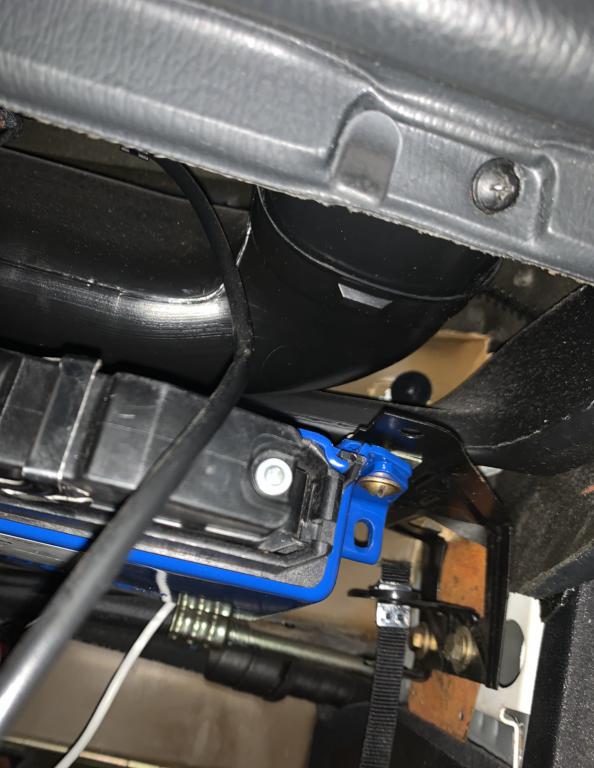

                This one is by the ECU and can’t figure out where it goes. Any idea?

                Click image for larger version

Name:	C711872C-529C-4A00-96A6-F2E94DA48E43.jpeg
Views:	52
Size:	39.0 KB
ID:	9904377

                Comment


                  #9

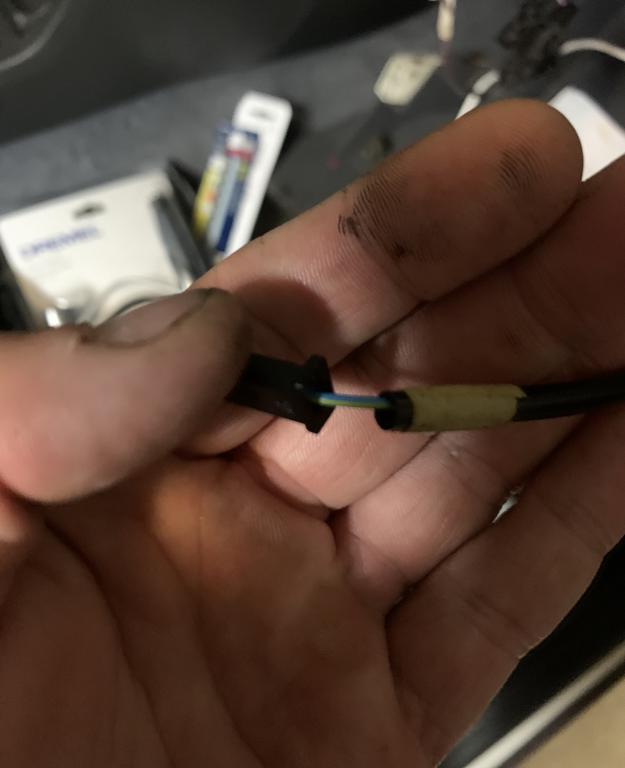

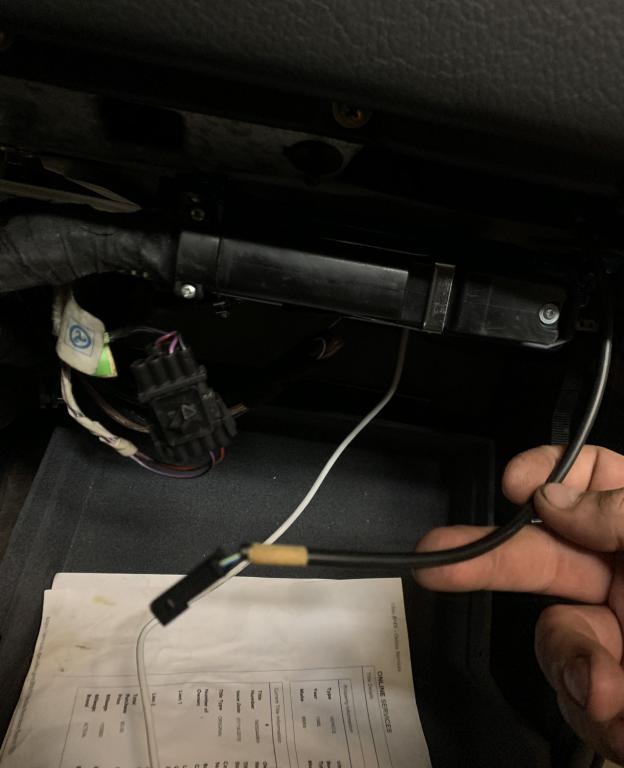

                  Here are more pics of the connection.

                  Click image for larger version

Name:	A85DCFDF-79A8-41D5-AE30-F524CE724DA4.jpeg
Views:	48
Size:	31.5 KB
ID:	9904396
                  Click image for larger version

Name:	43BA68EE-E1BE-46A9-9857-BFAB0DB9CA3E.jpeg
Views:	39
Size:	38.7 KB
ID:	9904397
                  Click image for larger version

Name:	ED9B06AF-3D05-4A09-B69A-6AE1A33F745F.jpeg
Views:	41
Size:	60.5 KB
ID:	9904398

                  Comment


                    #10
                    The wiring harnesses were designed for the whole e30 range so there are some plugs that don't plug into anything on your car. My car had two plugs like that in the ECU area and one of them plugged into the engine wiring harness while the other was just left unplugged.
