No neutral safety switch?!?

[shiboujin]

Disconnecting the auto harness was more annoying than it was worth IIRC. It was simpler to do the wiring in my write up.

OP can you post a picture of your shifter area and any connectors?

[schtozo]

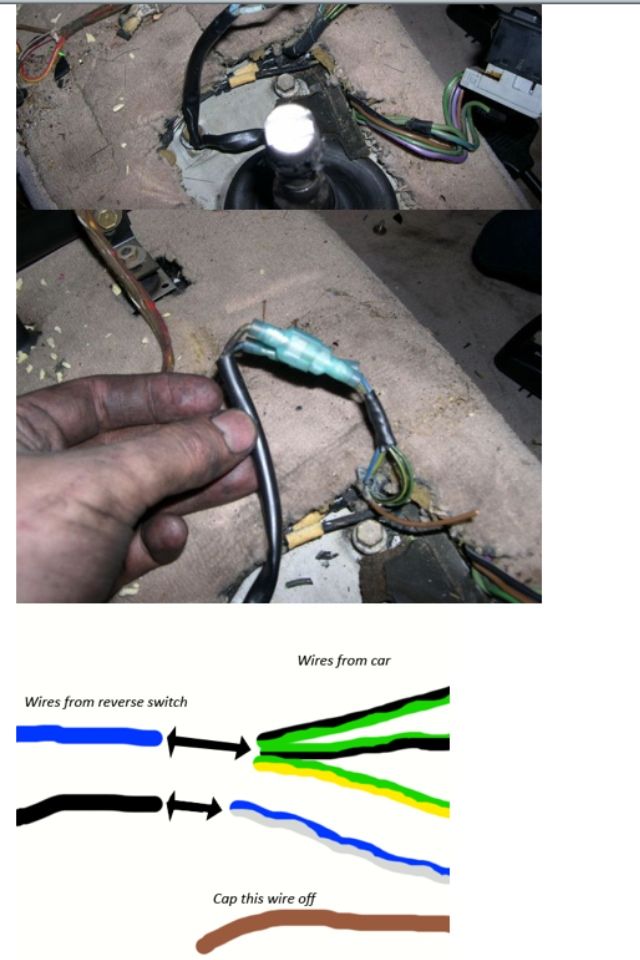

This might help you with the reverse switch as well. I was going nuts trying to figure out what was what until i found this pic. BTW that hand is not mine, lol might be an off topic reply but it will help you.

[taiden]

http://www.amazon.com/Diagnose-Autom.../dp/0760320993

[nando]

I haven't seen yoshi's writeup but if you do the wiring the traditional way, your CC won't work anymore. Removing the auto wiring junk is the only way to deal with that.

[shiboujin]

I never checked if the CC still worked. I've never owned an E30 where it worked lol.

[nando]

yeah, if you don't need CC, then it's not worth removing the wiring. I never did, as once I converted to MS I didn't need the auto harness jumpered at all to start the car, I just put it back to stock and now my CC works again.

[j0nny5]

i quickly browsed the thread but when doing my auto to man swap... i had a nuetral safety switch relay under the dash i had to jump to start the car. Mine is a 91 tho,the relay is near the headlight switch under there somewhere. good luck

[dreamer420]

what is this CC you speak of?
OP, do you even have the reverse switch wires that connect to the trans?

[6gen91]

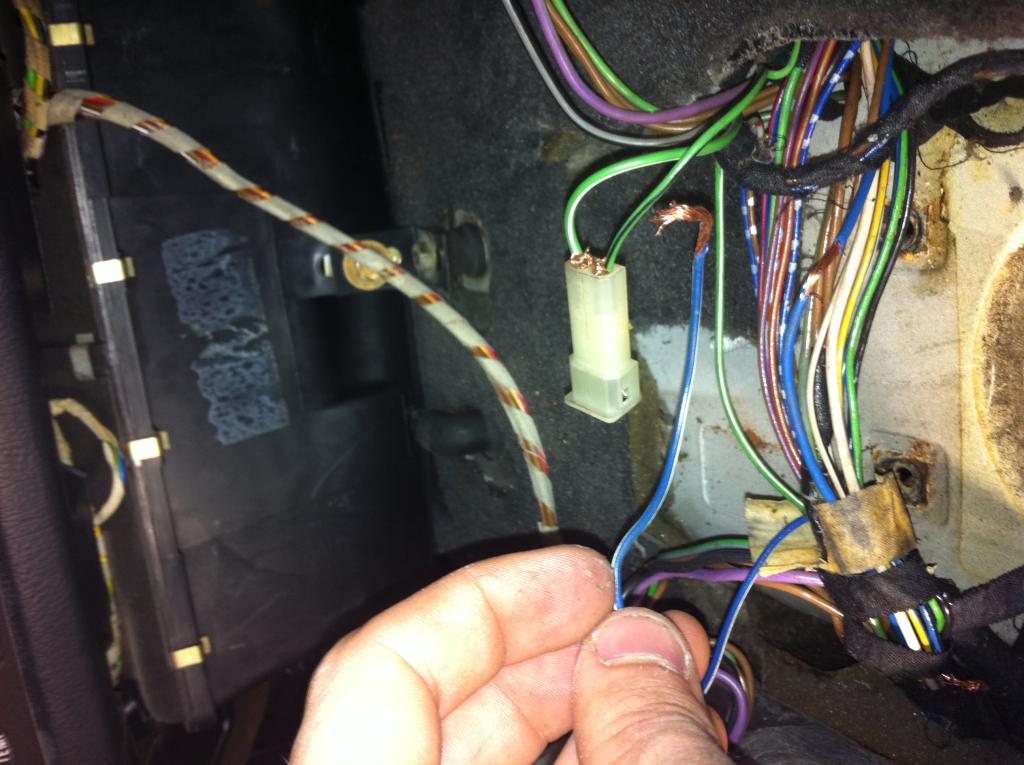

like i said, i love yoshis writeup, just doesnt help me in my case, heres the pic i took this morning with my iphone, don't hate on the quality!! Theres this little connector with the 2 green wires, and the stray blue wire. On the other side theres 2 more strays, a green/black and a brown

[shiboujin]

you seem to be missing the reverse switch wiring.

[6gen91]

in all honestly, i can care less if my reverse lights work haha, i just want this badboy to run!!

[shiboujin]

I'm fairly sure the blue/white wire is for the reverse switch. I think you need to connect all the green wires together but I'm not 100% sure. Prob pop a fuse or two lol.

[dreamer420]

yea looks like you dont even have the wiring. the reverse wiring is 2 wires that you should have plugged into the side of the trans and lead in through the shifter hole. that would be the blue and black wires. ( mine were blue and blue/white)

[6gen91]

this is such a bitch. this is why i was confused when reading your writeup lol

[shiboujin]

well yea. the manual trans should have wiring with it. If not, half the diagram makes no sense.
