agent's 24v build thread

[agent]

not sure that those rear stays are going to anything resembling structural sheet metal. I know it's a prebuilt cage and all, but all the serious cages I've seen (quite a few) go down to the rear frame rails.

what do your main hoop and front downtube spreader plates look like?

You're right - they just go to the rear wheel wells. I'll be taking some more pics when the harnesses, the seats and their mounts arrive, hopefully this week.

[Ether-D]

You're right - they just go to the rear wheel wells. I'll be taking some more pics when the harnesses, the seats and their mounts arrive, hopefully this week.

I would say that the rear wheel wells certainly resemble structural sheet metal.

[agent]

I made a little progress over the weekend, though it wasn't nearly as much as I'd hoped since I was sent two different styles of floor mount adapters. Note the disparity between the number of bolt holes on the outer brackets in the first and second pictures:

Needless to say, I was pretty miffed when I made this discovery yesterday while trying to figure out why the passenger seat simply would not bolt in; I used the driver side outer as the template for lining up the side mounts. Once the correct passenger outer bracket arrives I'll be able to do final fitting and placement on the seats, then drill holes to mount the eye bolts and backing plates for the six point harnesses.

[kronus]

I would say that the rear wheel wells certainly resemble structural sheet metal.

you'd be wrong..

in a rollover or a major rear collision the rear stays will punch through the wheel wells without much hesitation.

an example of structural sheet metal is something with a box section, like the frame rails that hold the rear upper spring perches and rear bumper shocks.

[agent]

Finished up the install of the quick release, pedals, seats, harnesses and roll bar padding today.

[Ether-D]

you'd be wrong..

in a rollover or a major rear collision the rear stays will punch through the wheel wells without much hesitation.

an example of structural sheet metal is something with a box section, like the frame rails that hold the rear upper spring perches and rear bumper shocks.

I get it bro. I was being hilarious using your wording about it not "resembling" structural metal.

[kronus]

I get it bro. I was being hilarious using your wording about it not "resembling" structural metal.

:up:



seat install looks good. pool noodles?

[agent]

seat install looks good. pool noodles?

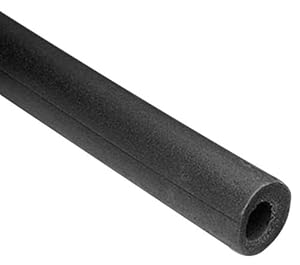

Thanks, and negative. It's offset roll bar padding, similar to this:

[Ether-D]

They resemble pool noodles...

Couldn't resist. I'm truly sorry.

[kronus]

Thanks, and negative. It's offset roll bar padding, similar to this:

neat! didn't know they made it offset.

[warshark]

that was a quick build how does she run

[2mAn]

Where did you get the offset pool noodles?

[agent]

Where did you get the offset pool noodles?

Sorry Simon, just saw this. I got them from Summit Racing.
