The Official Engine Bay Photo Thread

[F34R]

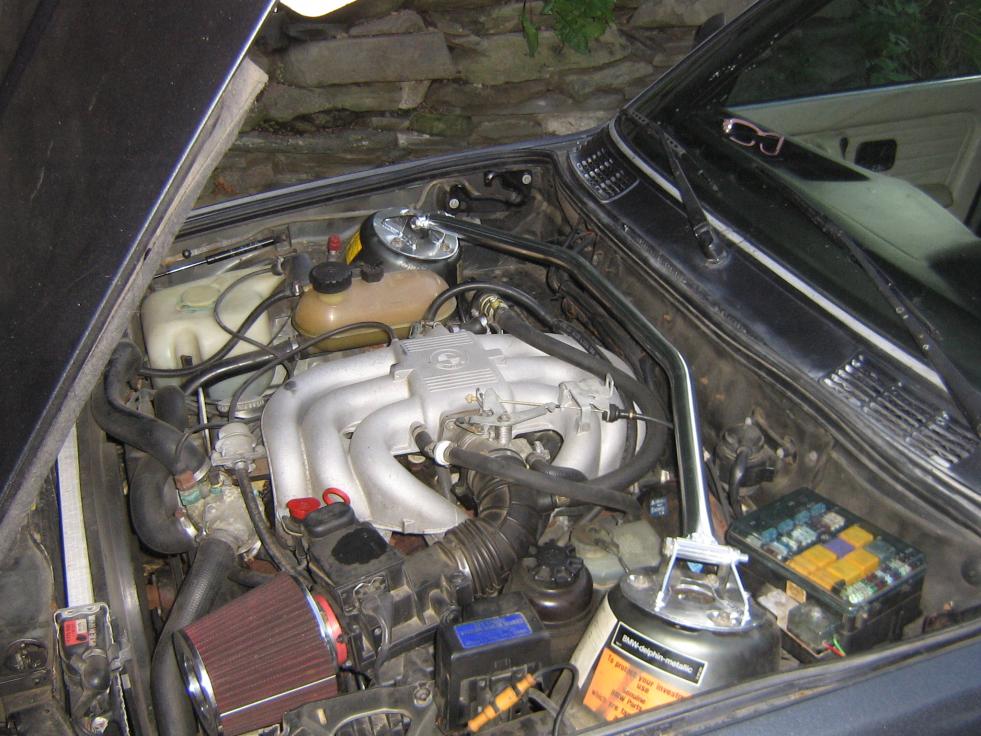

My clean M20, soon to be changing into the M50.

[F34R]

This is the only one I have yet, to date the pan has been swapped and new gaskets. Ready for a wash and black engine paint.

[riftaxqua]

It so great. Thanks a lots.

[Colorlesss]

[ubernasty]

Nice lookin man! ^^

That pic makes your bay look like pearl paint.

[Colorlesss]

Nice lookin man! ^^

That pic makes your bay look like pearl paint.

thanks.

super glare on the freshly painted side. gonna pick up an m42 rad so i can remove the overflow tank. then shave and repaint the drivers side. the drivers side is all yellowed with patchy spots from stickers bieng removed.

[ColdAccord]

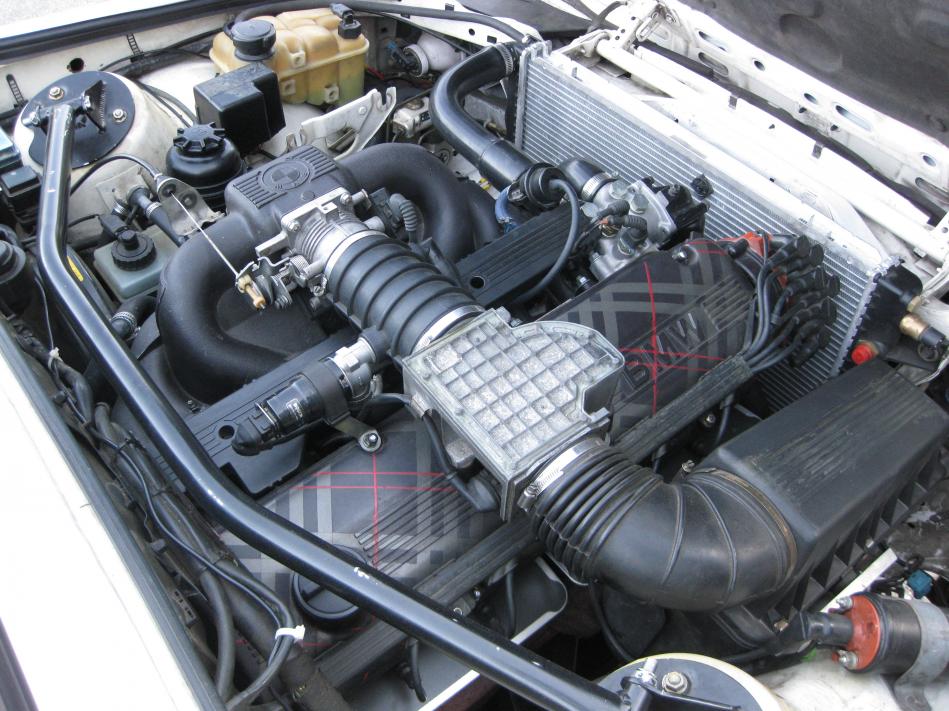

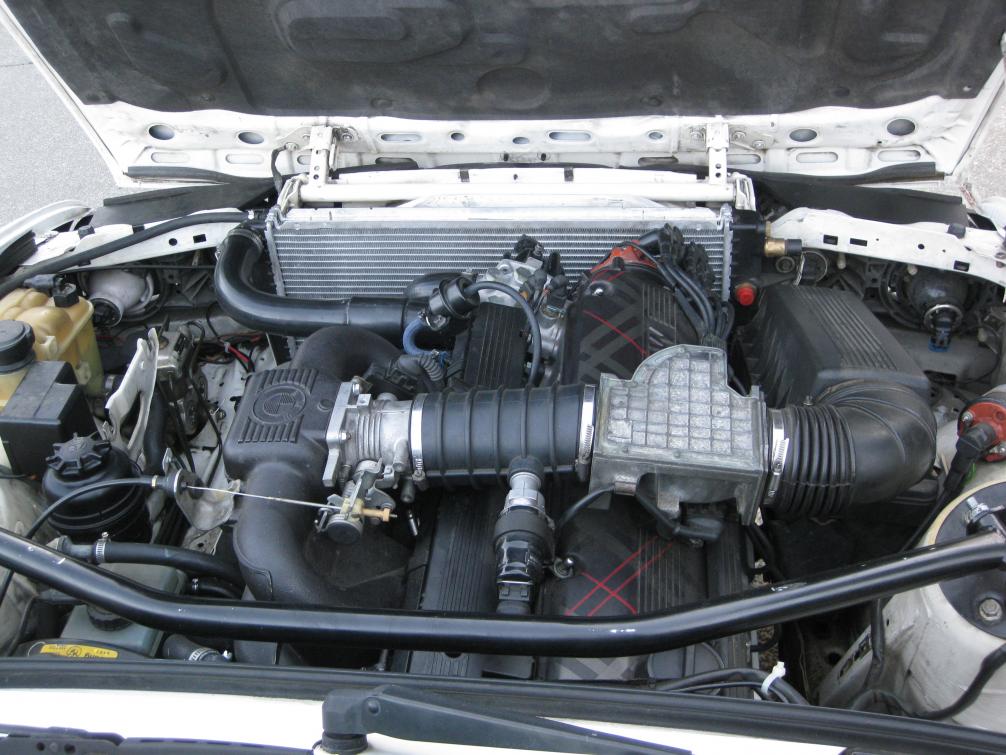

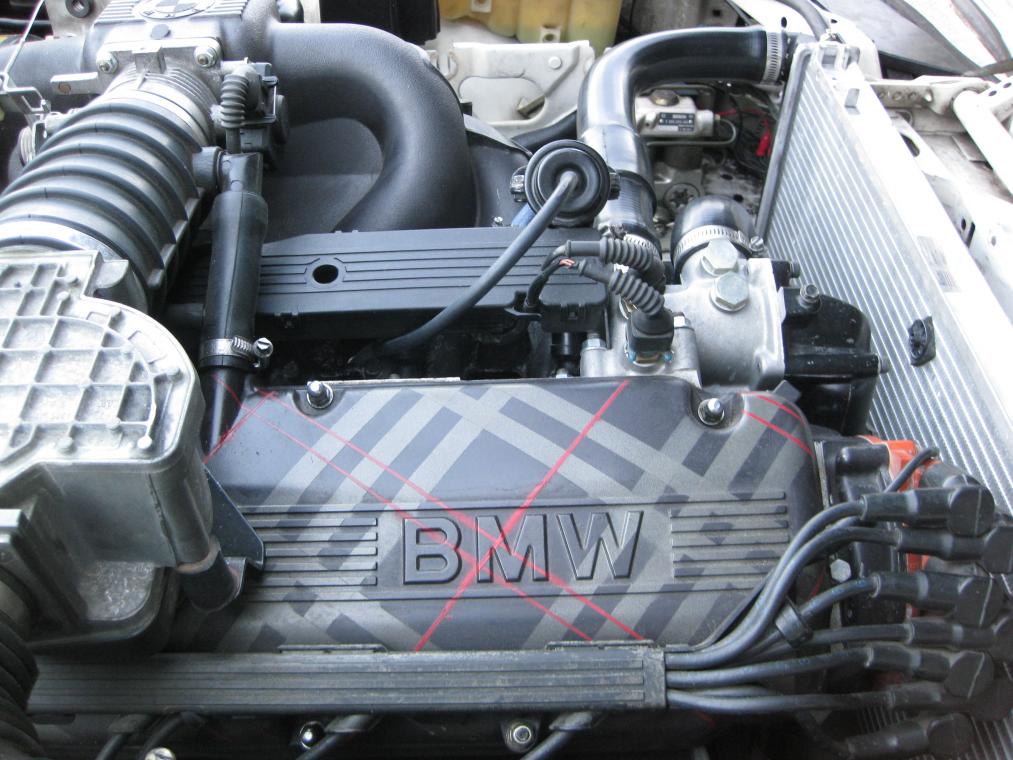

me now

[Pino]

please guys tell me this part bmw´s original part number.
i have noticed that it´s not so rare part,so please could somebody take it off and look the part number and post it here or in privat message it to me.:)

i just cant find it anywhere.

i would appreciate it.

yeah if anyone knows anything about that firewall cover piece I'd appreciate a PM or post :)

[Pino]

thanks man

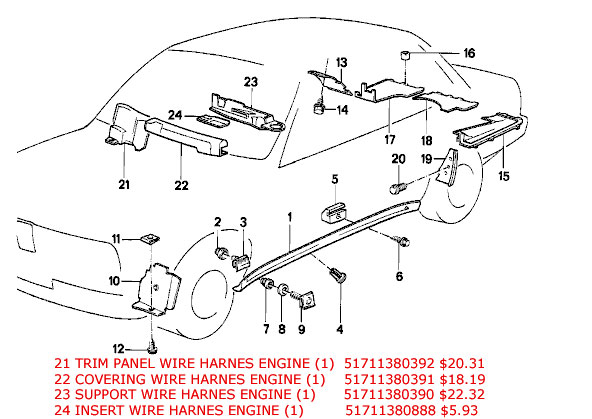

i found this picture also, and apparently the 318 can use them too, but does anyone know if they can fit the m20?

[Pino]

someone else posted that picture on here back in 2006 so i dunno about those prices

[kylekrueger]

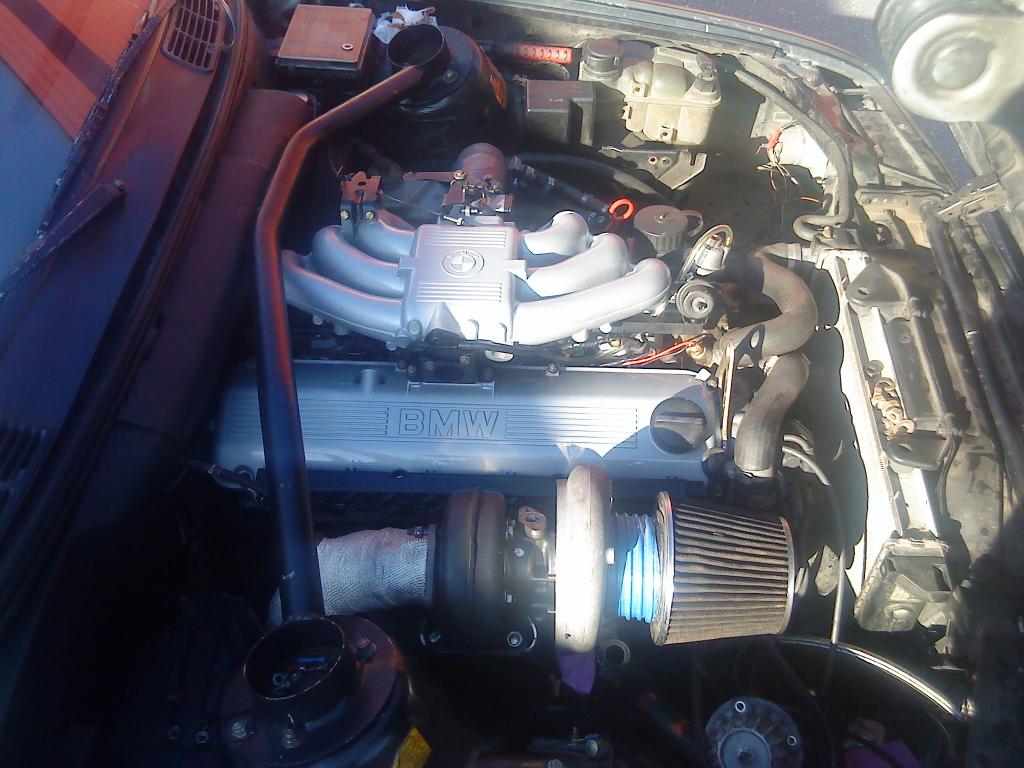

here is another. my m30b35 :D:D

[anza(kla)]

thanks man
i found this picture also, and apparently the 318 can use them too, but does anyone know if they can fit the m20?

here´s my engine bay with that wiring harness fitted with M20.

http://www.r3vlimited.com/board/attachment.php?attachmentid=22794&d=1253474663

i know shitty picture.

and i had also "transverse bar" witch make installing that harness a lot harder than it would be.:(

installing that harness is very easy. that that old wiring "holder"/harness off and fit that new on his place and i have to cut few "bolts" on fire wall,to get it fit proberly.:)

PS: i use that ///M-3 harness.

[Osku]

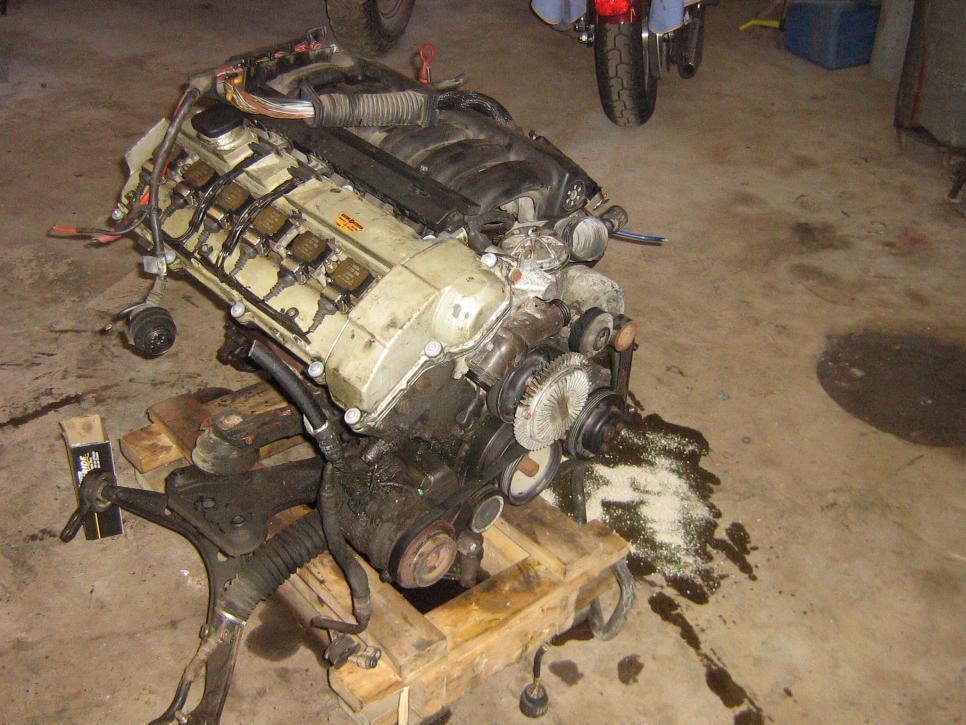

M50 inside

[kamotors]

[1991 e30 bmw 318is]

my 318is...
