The Official Engine Bay Photo Thread

[c4ls7]

Nice work Garey!! m60b44? did you have to swap the timing chain gears and chain?

[bmwmech1]

Nice work Garey!! m60b44? did you have to swap the timing chain gears and chain?

And heads, too... yup. Should be the best of both motors, we'll see what it dynos when it's done. Thanks man,

Garey

[White325is]

Clearly my style and I love it. :p
Looks fuckin amazing dude...

work in progress....

[bmwmech1]

Thanks man... slowly inching towards completion, lol!

Garey

[MR 325]

That looks great in there! Seems like it sits nice and low too.

[bmwmech1]

That looks great in there! Seems like it sits nice and low too.

Yeah, it's funny how normal it looks, even though it was never offered in this chassis. Should be a fun ride when I get it rolling...

Garey

[lambo]

Yeah, it's funny how normal it looks, even though it was never offered in this chassis. Should be a fun ride when I get it rolling...

Garey

How is the oil pan going to hang, considering the engine looks like it's sitting rather low? I've never looked under an M6x car, so I wouldn't know. Just curious... I love the massive amounts of work you have put into that thing!

[bmwmech1]

How is the oil pan going to hang, considering the engine looks like it's sitting rather low? I've never looked under an M6x car, so I wouldn't know. Just curious... I love the massive amounts of work you have put into that thing!

The pan is a front sump, like the M20 or M5X E34 pans everyone uses for their swaps. It fits like it was made to be there. The pan doesn't even hang below the lowest part of the front subframe... it's pretty cool how OEM it looks, even from underneath. Custom mounting arms and it all sits on OEM mounts, both motor and transmission. Maybe the guys who designed the V8s "knew" how it would fit into the E30 chassis, lol! It's been a ton of work, but it'll be a blast when it's done...

Garey

[IRUNEDM]

Almost done...

[ak-]

Awesome man! ^^

[IRUNEDM]

Awesome man! ^^

Thanks, it took long enough haha. Are you going to Dock?

[65Matt]

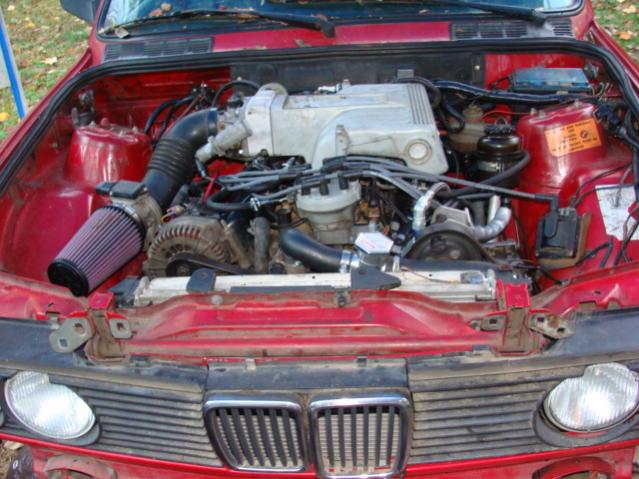

Ford 5.0 in my E30

[White325is]

niiice, Im about to put a 5.0 ho in a e36 318ti.
With some goodies of course. :)

[ak-]

Thanks, it took long enough haha. Are you going to Dock?

Yess. I might be rolling out late depending what shift I get at work that day.

[robiniscool]

i can finally post mine

during process

Now
