This is Simone...

[Trptguy]

wow!!!! i need my vert to look like this

[vlad]

I love the new choice in wheels, simply transformed this car into an amazing drop top!
very nice :up:

now maybe finish it off with the side skirts?

[MC Hammered]

I'm in love with this car, when is she going in for paint? Are you going to take to any shows and enter her? Magazines? She needs to be in pictures.

I might send her in for paint in the Spring, after that I don't see why she can't take down some show events the way she looks.

Which mags do you think I should hit up?

I love the new choice in wheels, simply transformed this car into an amazing drop top!
very nice :up:

now maybe finish it off with the side skirts?

The new wheels did give her a whole new look. I saw the picture of how low your skidplate is to the ground and don't know how your get over speedbumps.

I might have a lead on some sideskirts and am still hunting for some Mtech 1 pieces before I send her in for paint. They are the last piece of the puzzle.

[Motorsports]

Those are the wheels this vert really diserves. Looks great, and with the MT1 skirts will be perfect. Out of curiosity, what suspension do you have on. And how low were you before going lower. Am assuming those are 16x9 all around.

[MC Hammered]

I have Ground Control coilovers with 440/650 springs and Ground Control Camber plates maxed out at around -2deg camber.

The previous ride height with the 225/45/16 tires on q 16x8 wheel would be 23.75" front, 23.0" rear

I dropped the front perch 1.0" and rear 0.5" and with the 215/40/16 tires on a 16x9 wheel is 22.25" front and 22.0" rear

So an overall drop of 1.5" front and 1.0" rear, the front will come up a bit when I adjust the camber when I get the alignment done.

[MC Hammered]

Last August I decided to finally replace the OBC with the analog clock that has been sitting on my desk for over a year.

Well that took a whole day and, I got the car back together at 1am and proceeded to drive home from the office... then I noticed that the bulb that illuminates the HVAC sliders was not lit.

So I decided that if I am going to have to pull apart the HVAC again I might as well install the oldschool Nakamichi CD player I have...

then I realized I can just cut and splice it up to the stock radio wiring...

then I proceeded to take the interior apart to get at all the wiring...

I realized afterwards that being OCD, a perfectionist, not searching online BEFORE doing the work, reading up on said research made an afternoon install turn into a 5 day and night ordeal.

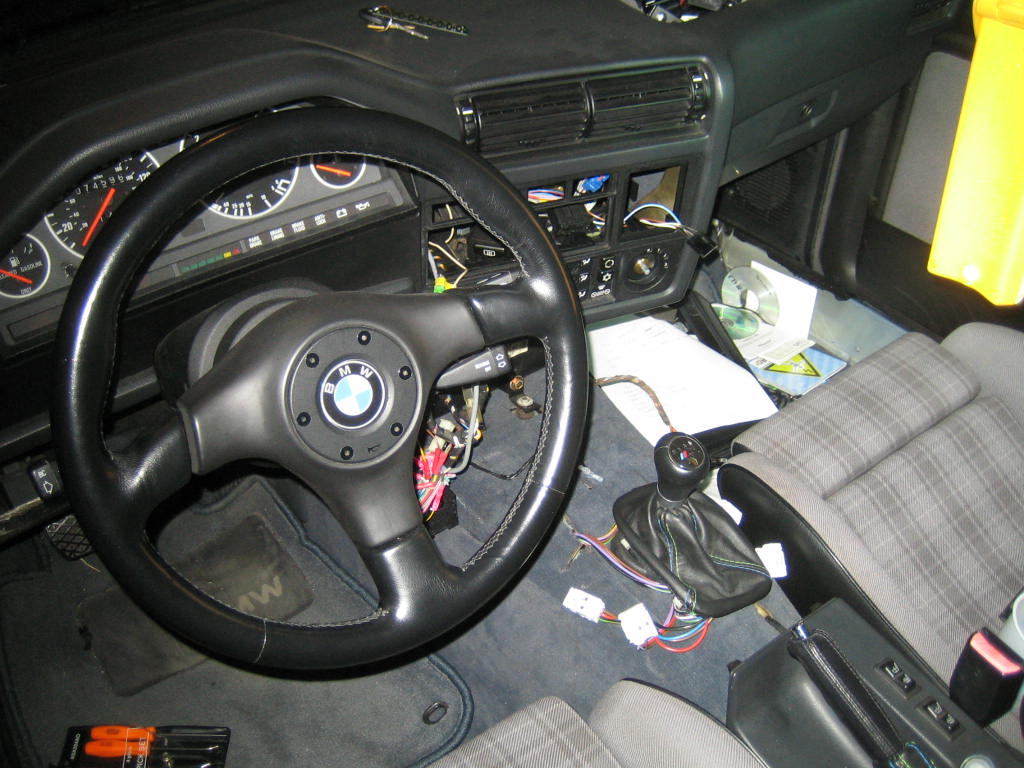

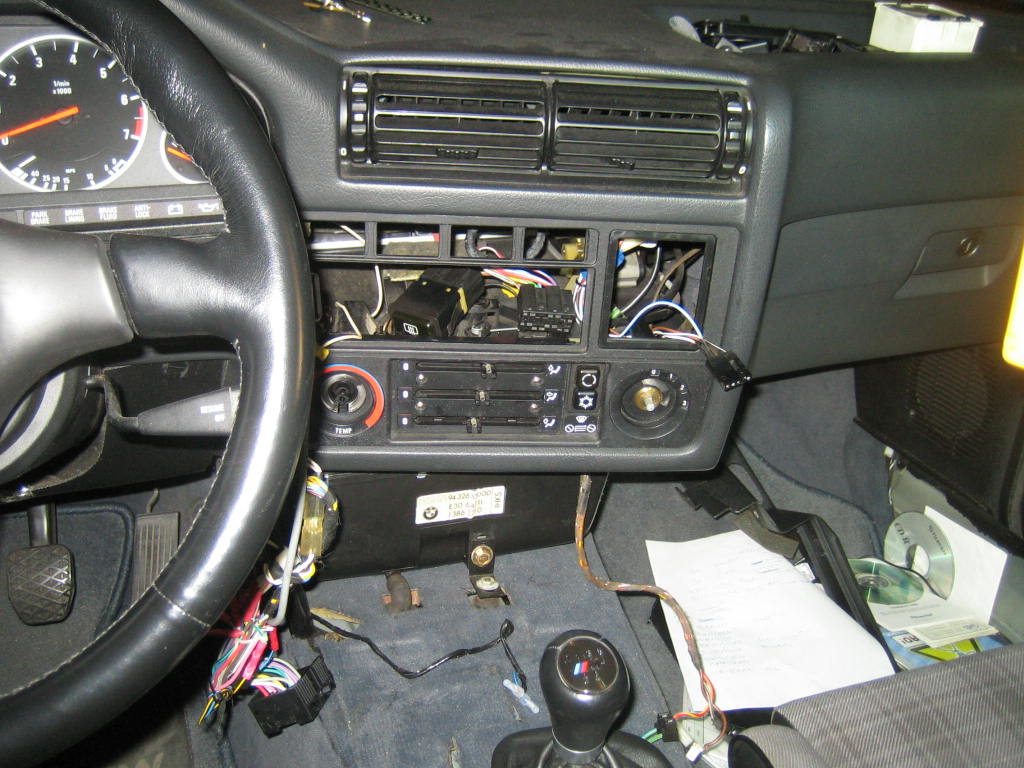

So in the middle of the night I started removing the center console to take the HVAC panel out

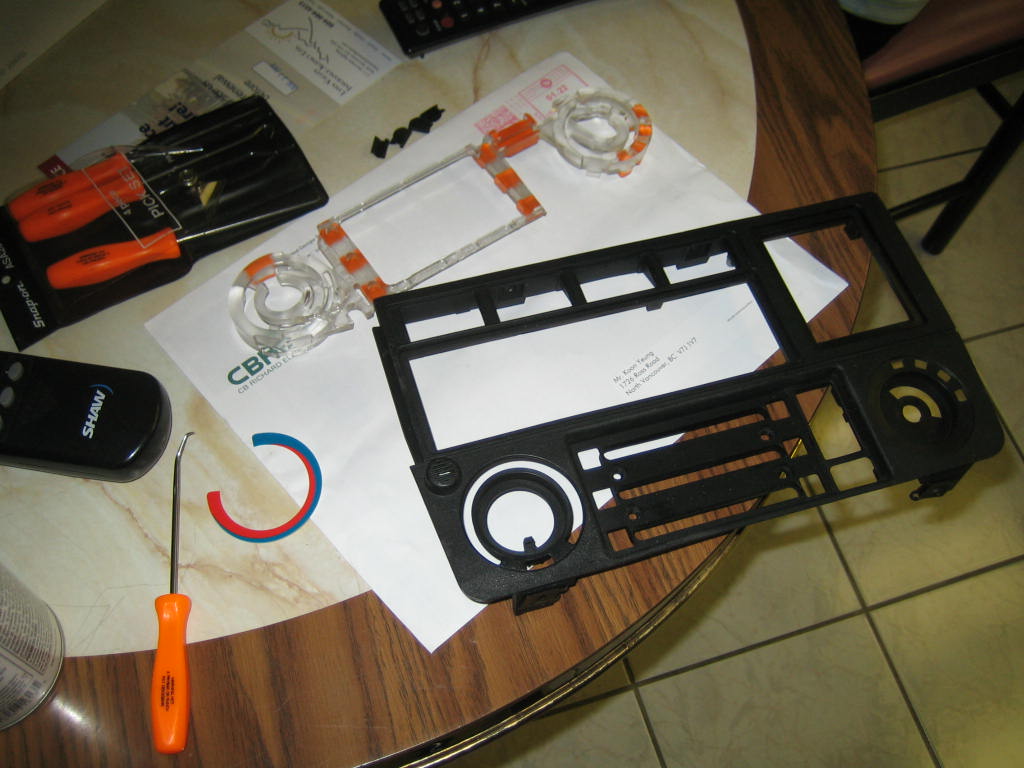

While the panel was out I decided to detail it

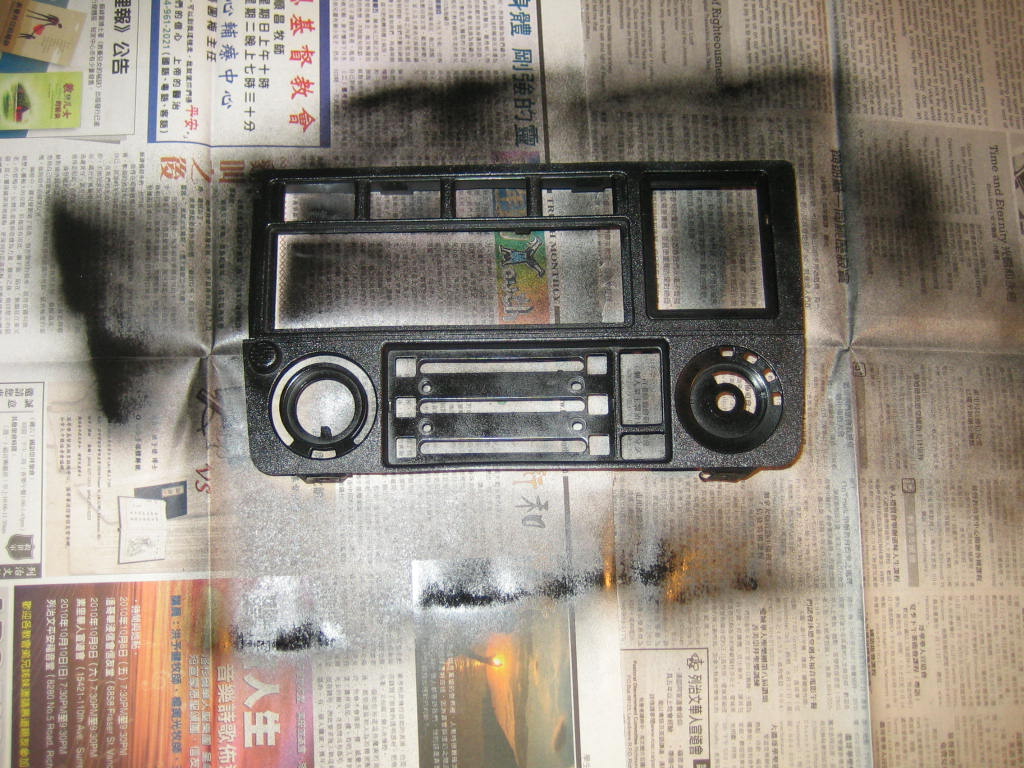

Black spray paint is your friend for touching up the interior

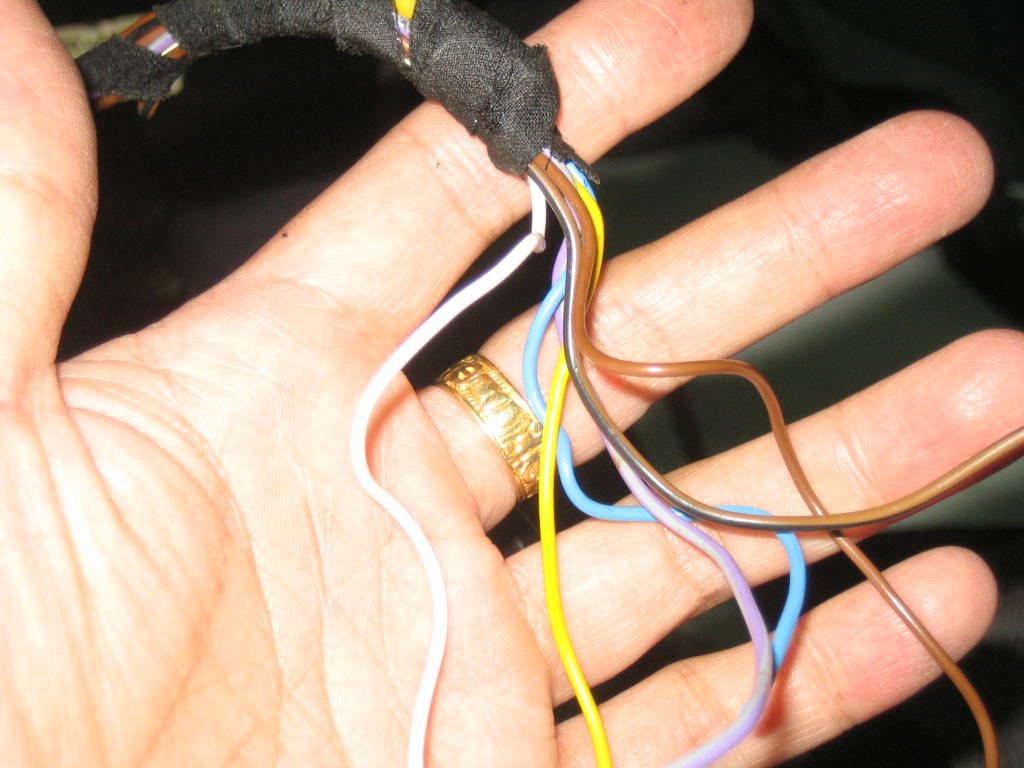

I love the random wires I would later decode

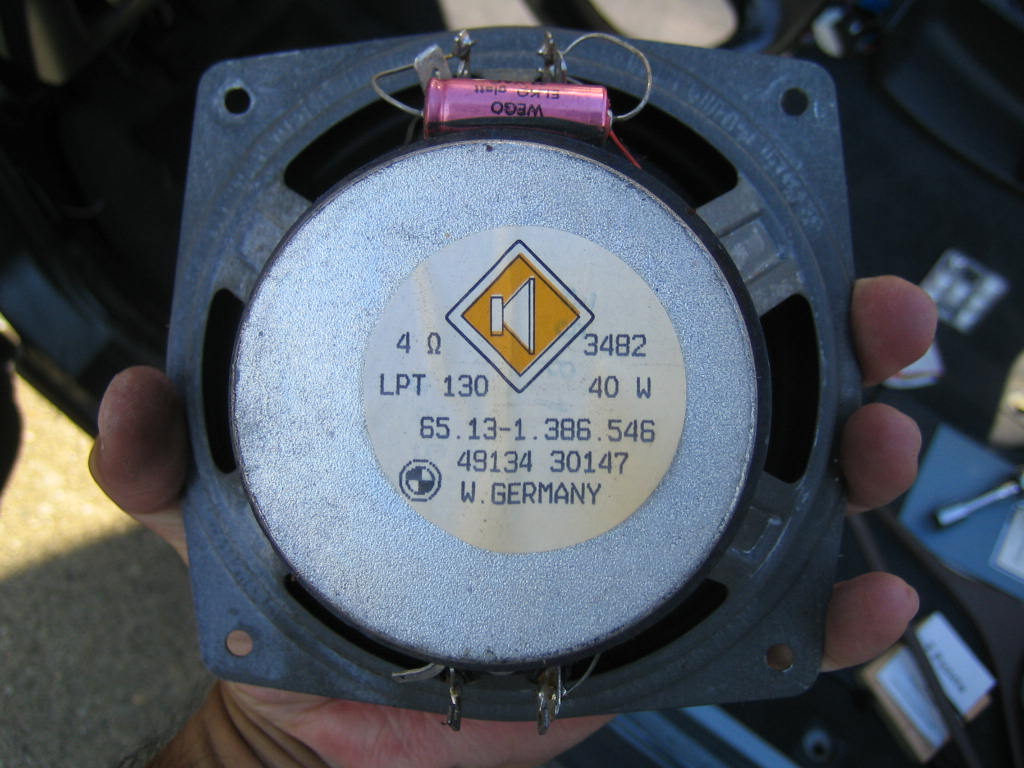

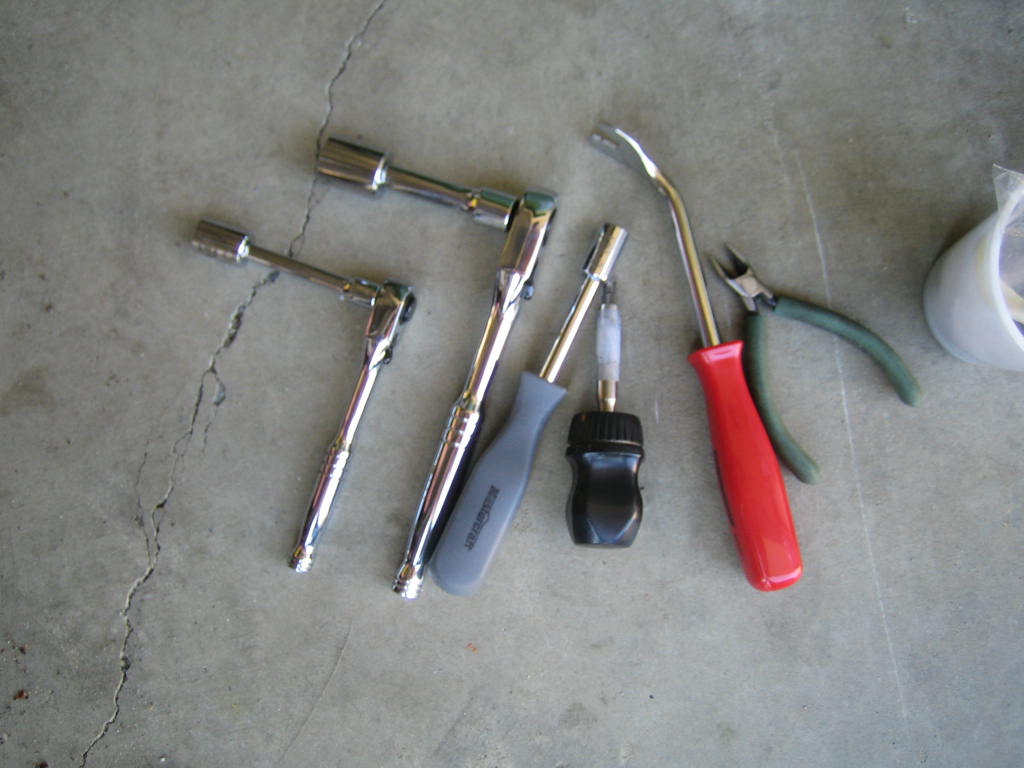

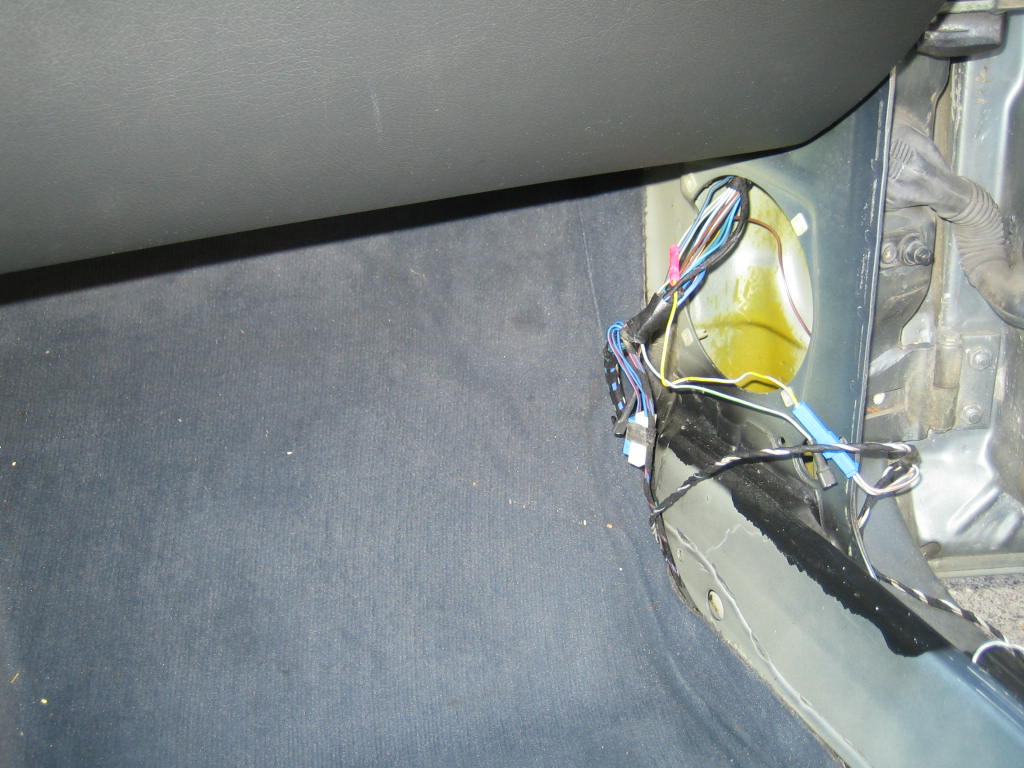

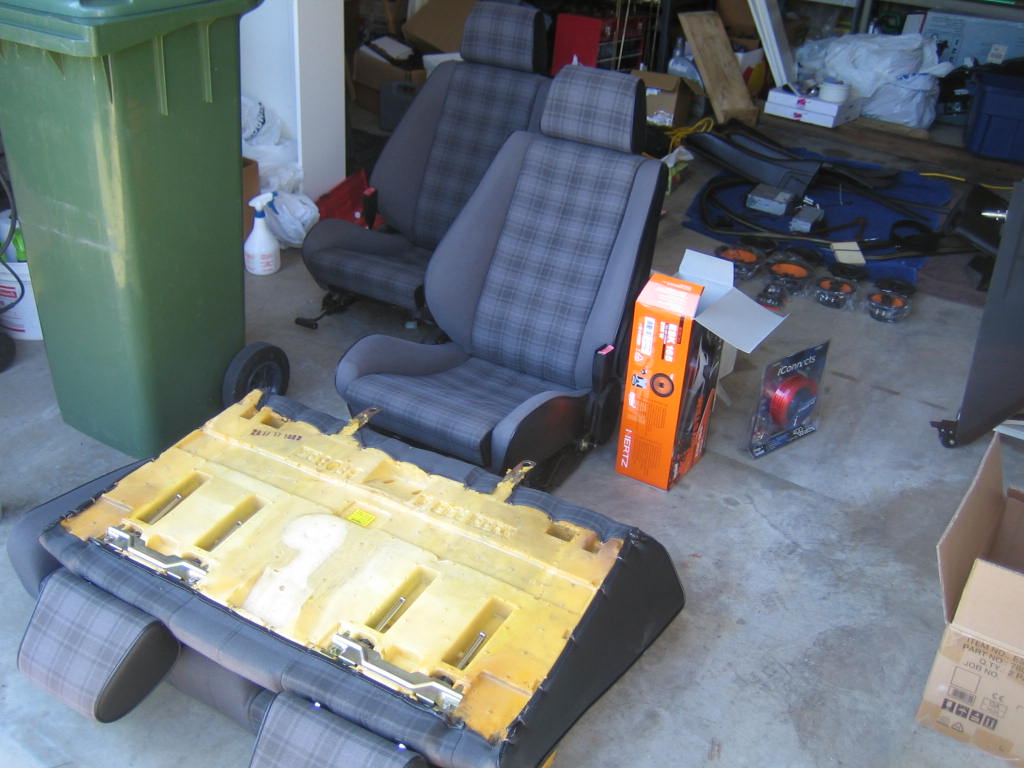

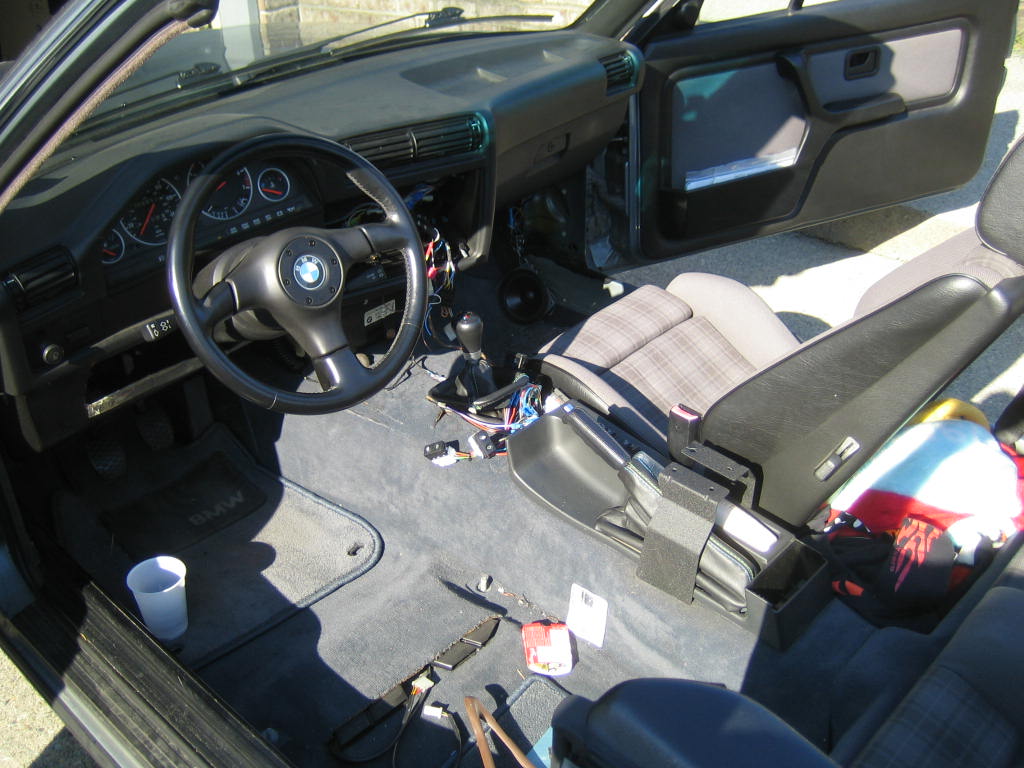

The next day I start removing the interior and pull out the speakers, having the right tools to remove trim pieces makes things a lot easier

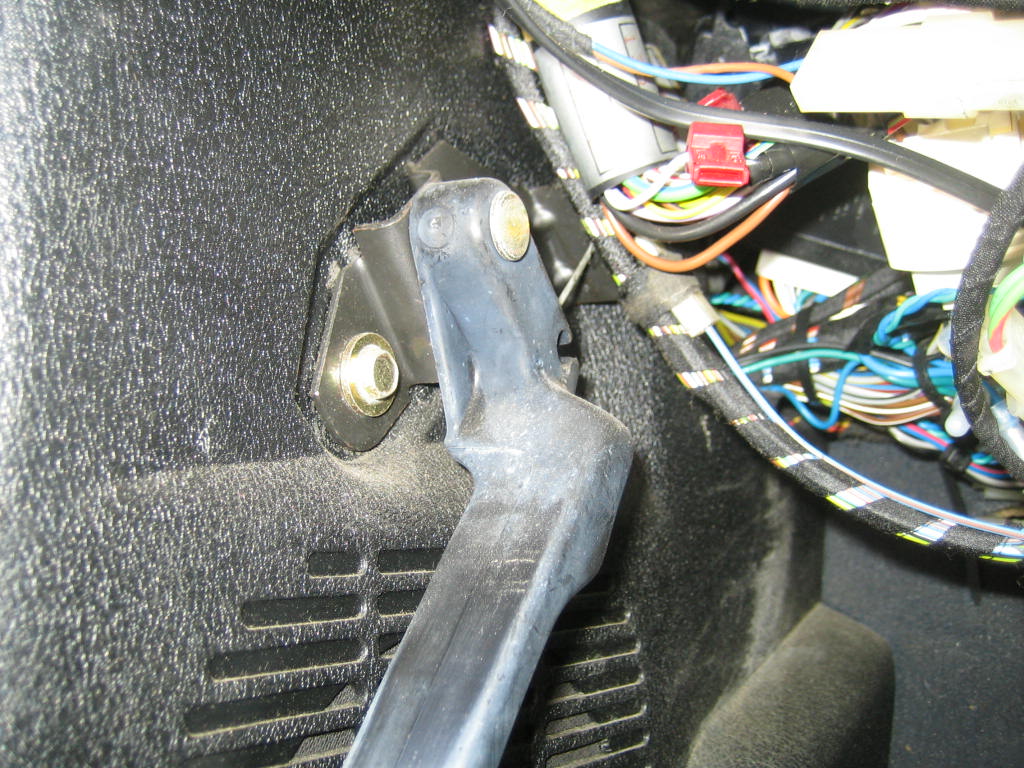

Hood release gets in in the way on the driver side





Passenger side

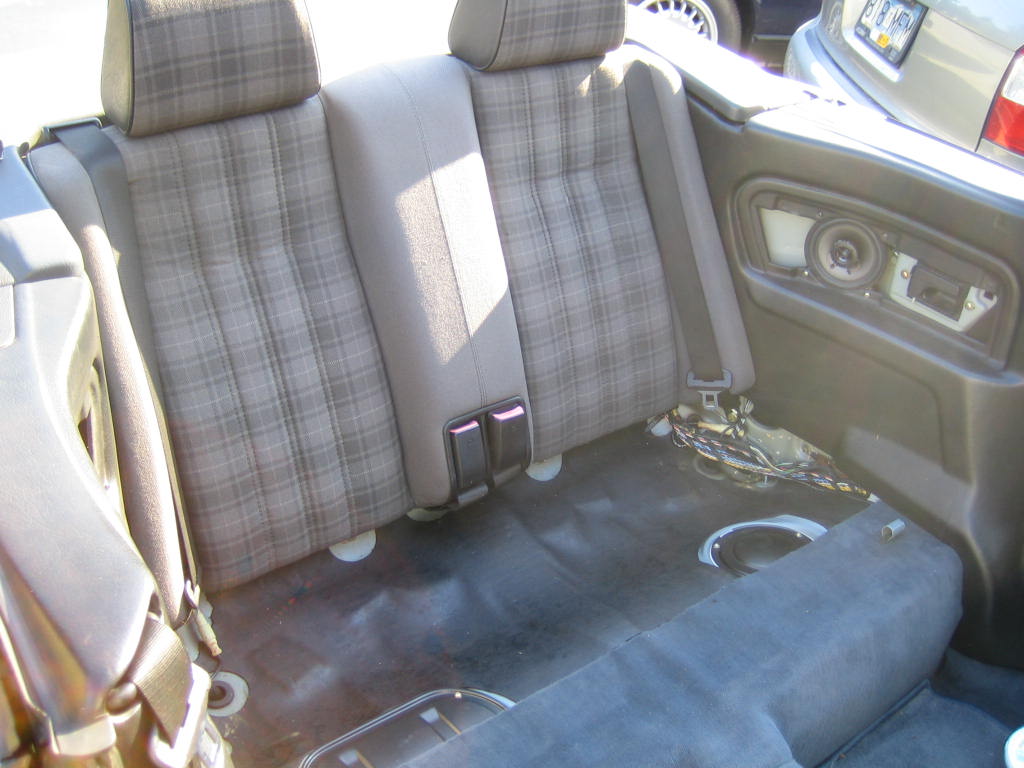

Rears

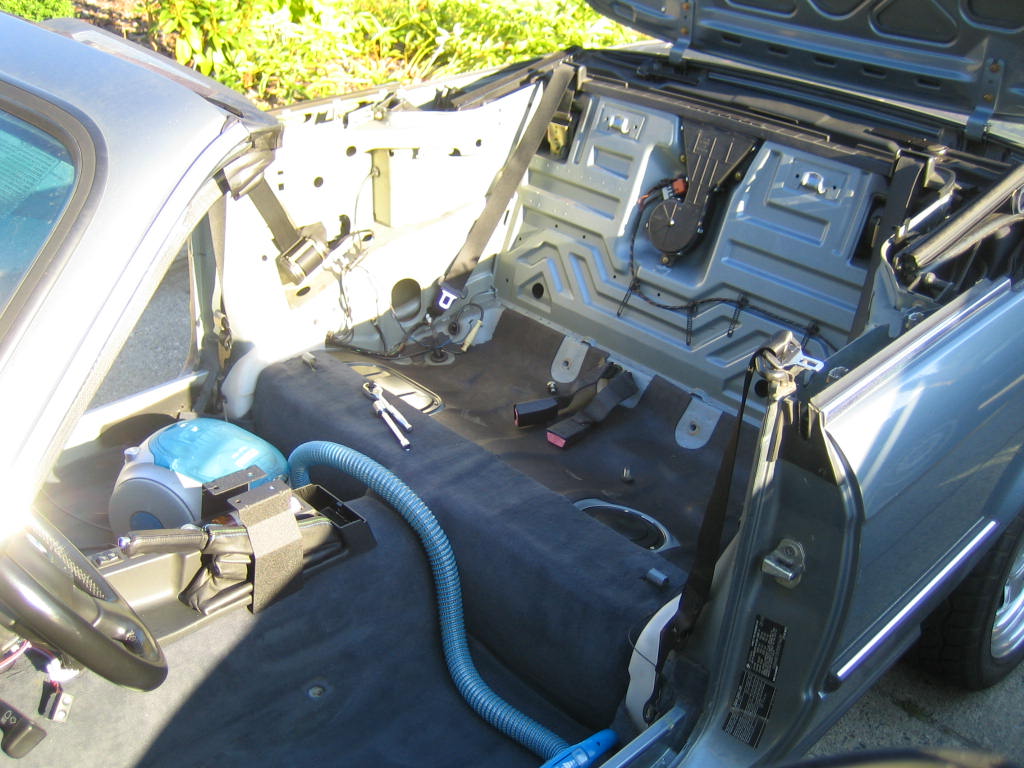

Might as well clean things up before making a mess

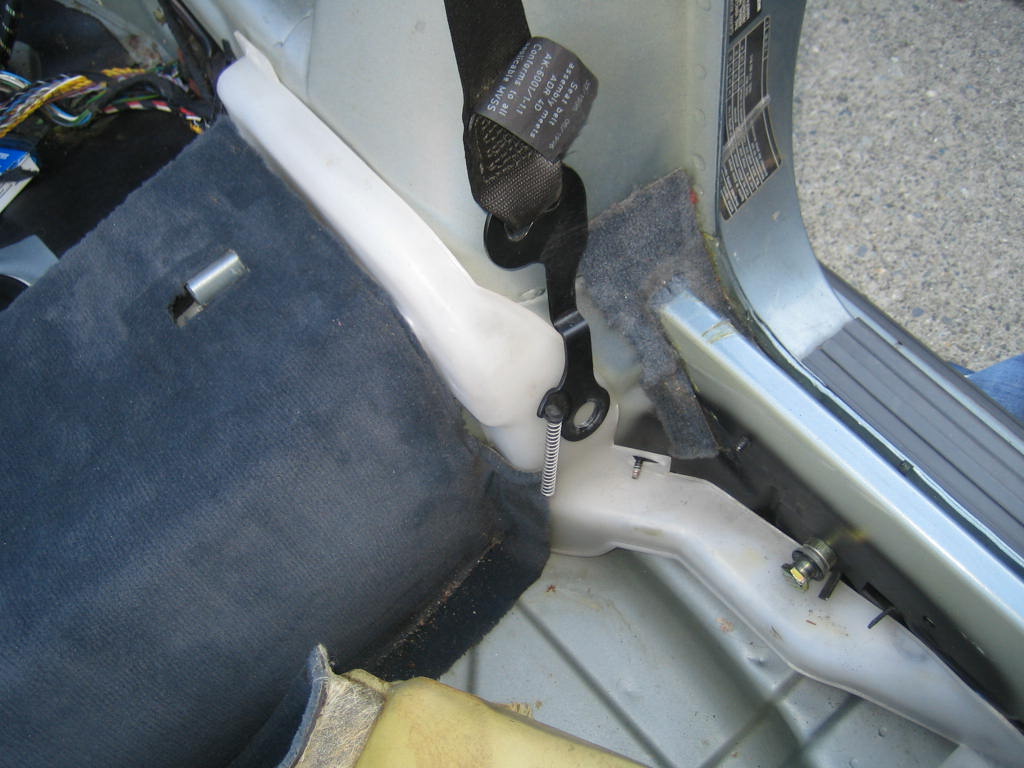

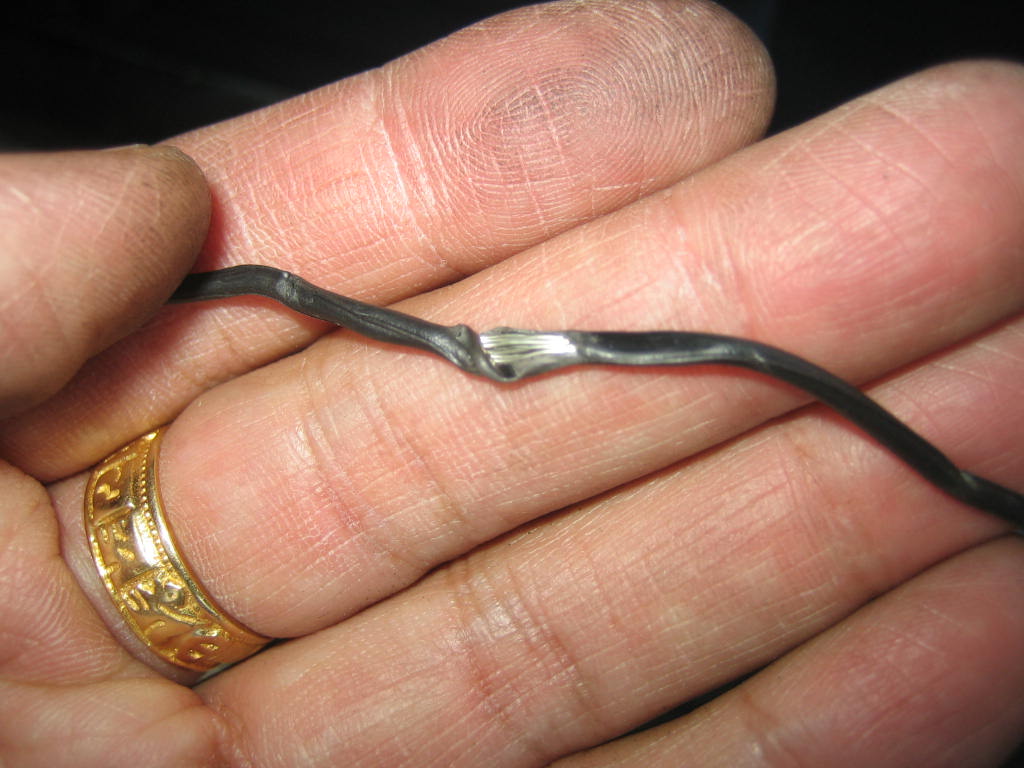

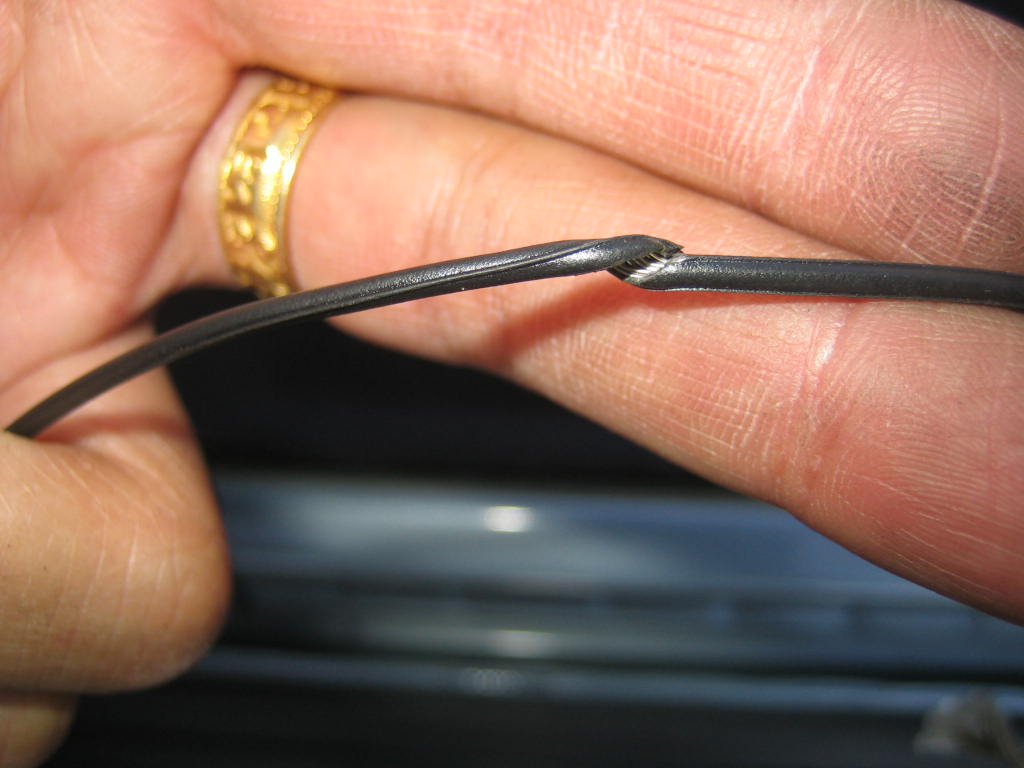

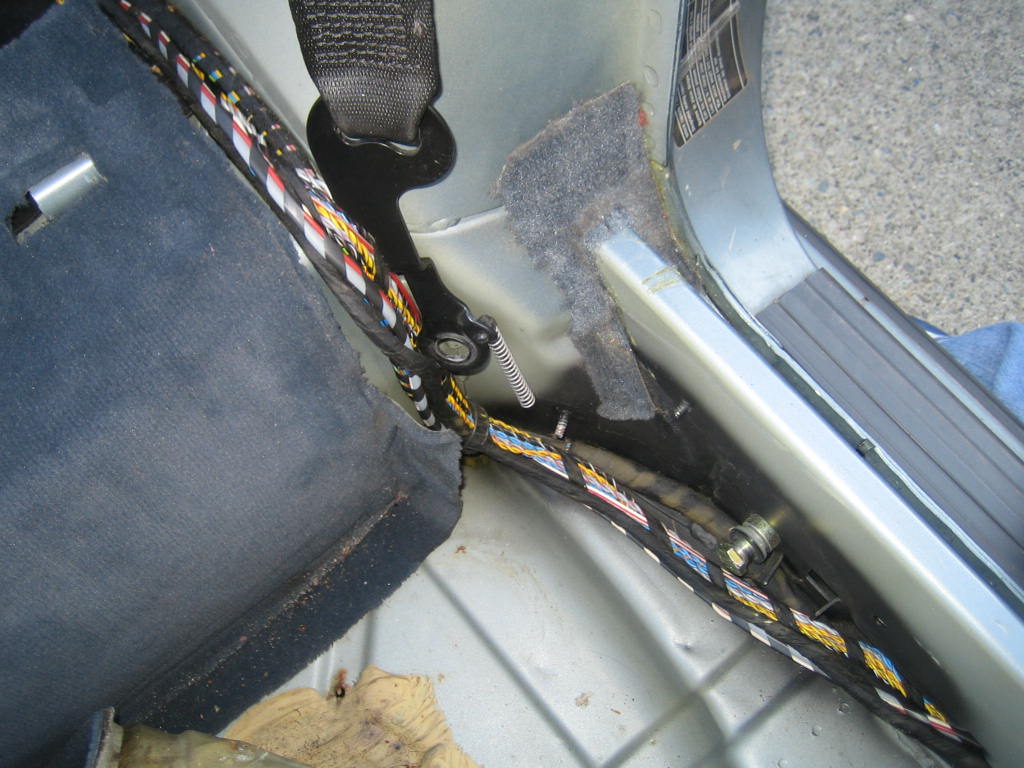

When I removed the door sill trim pieces I found this long black wire



I traced it and it was connecting the trunk switch pin to the alarm. As you can see in these pictures the insulation got pinched open and the wire was grounding to the chassis and causing the false alarms I was getting for a very long time.

[MC Hammered]

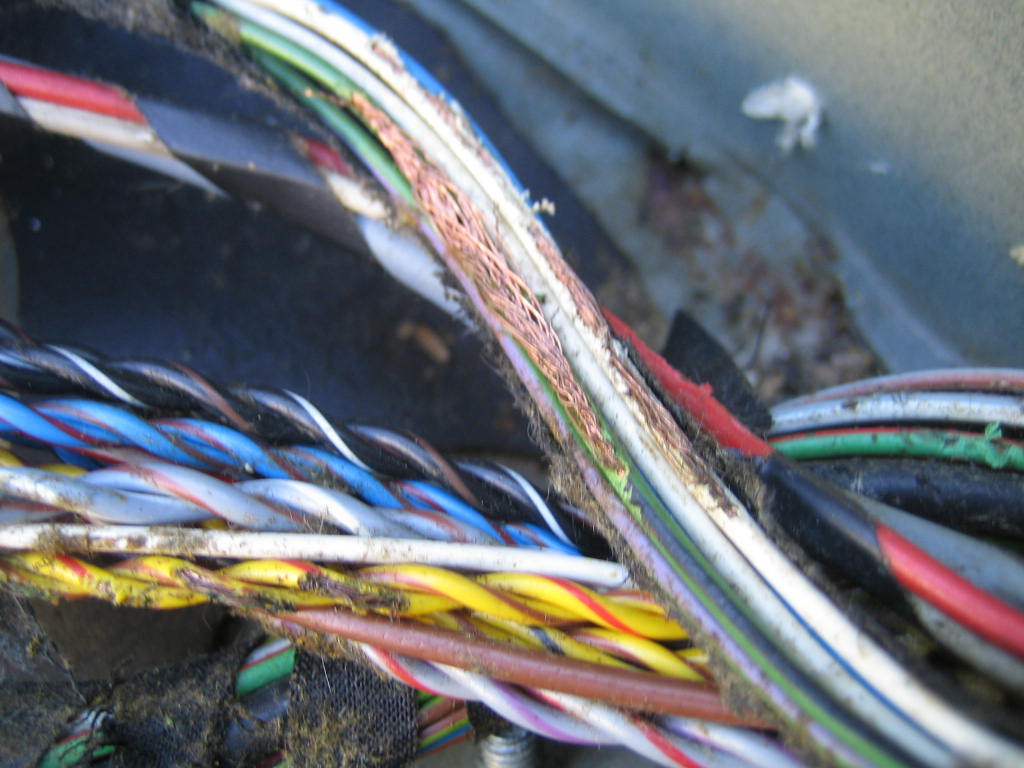

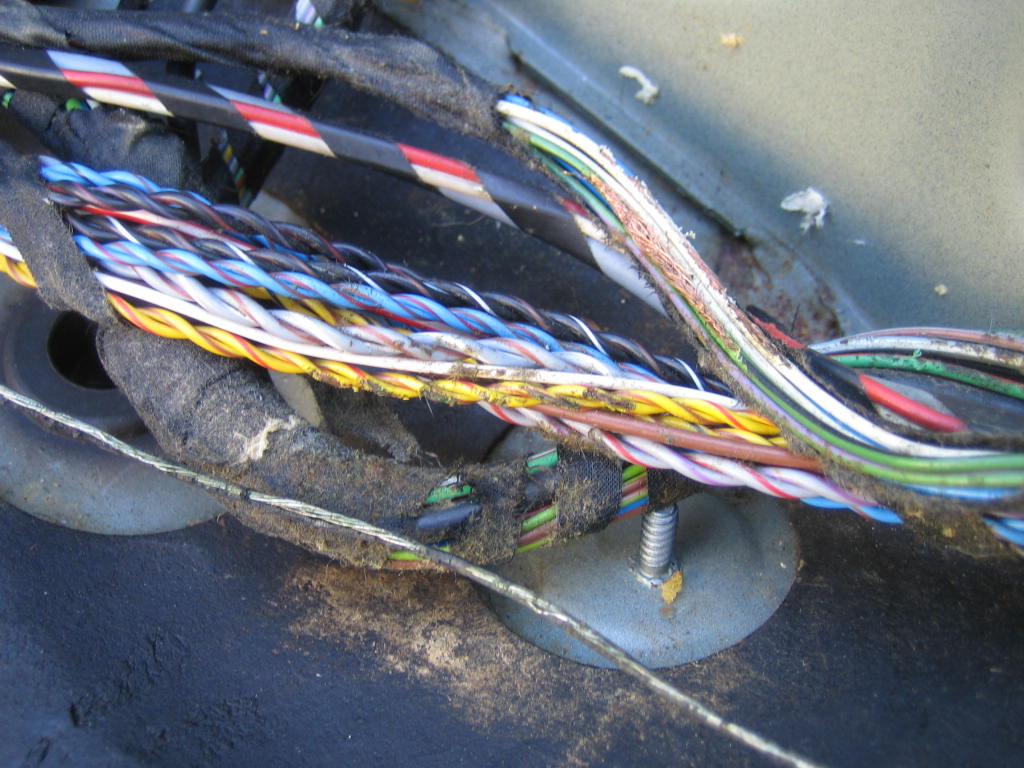

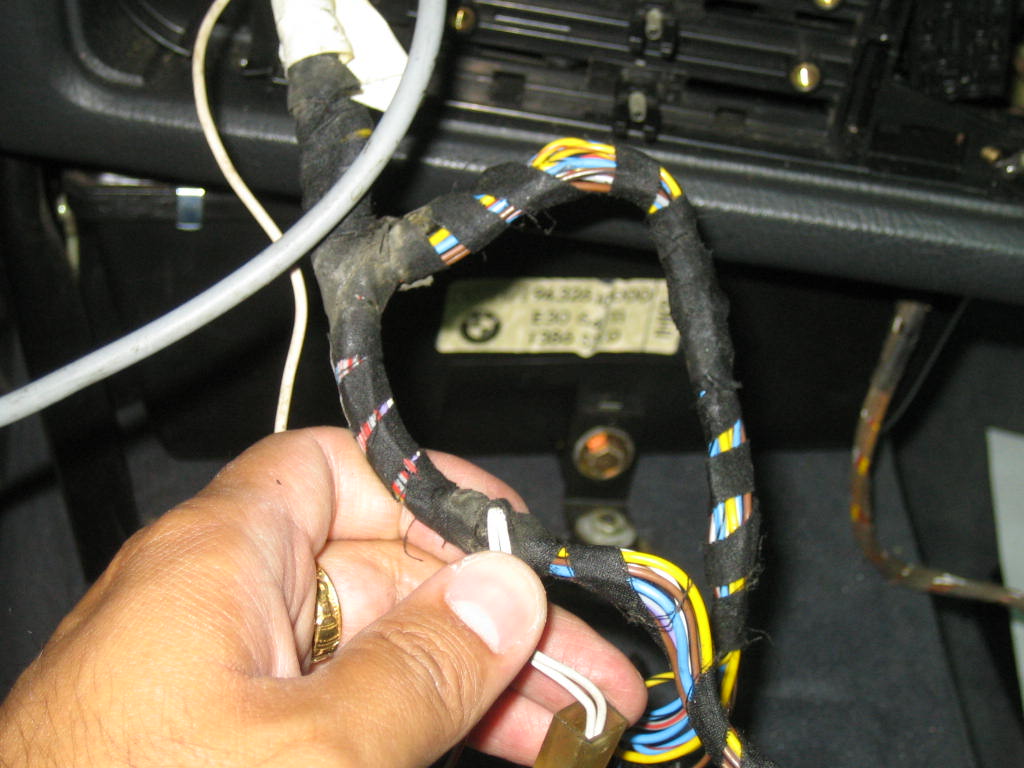

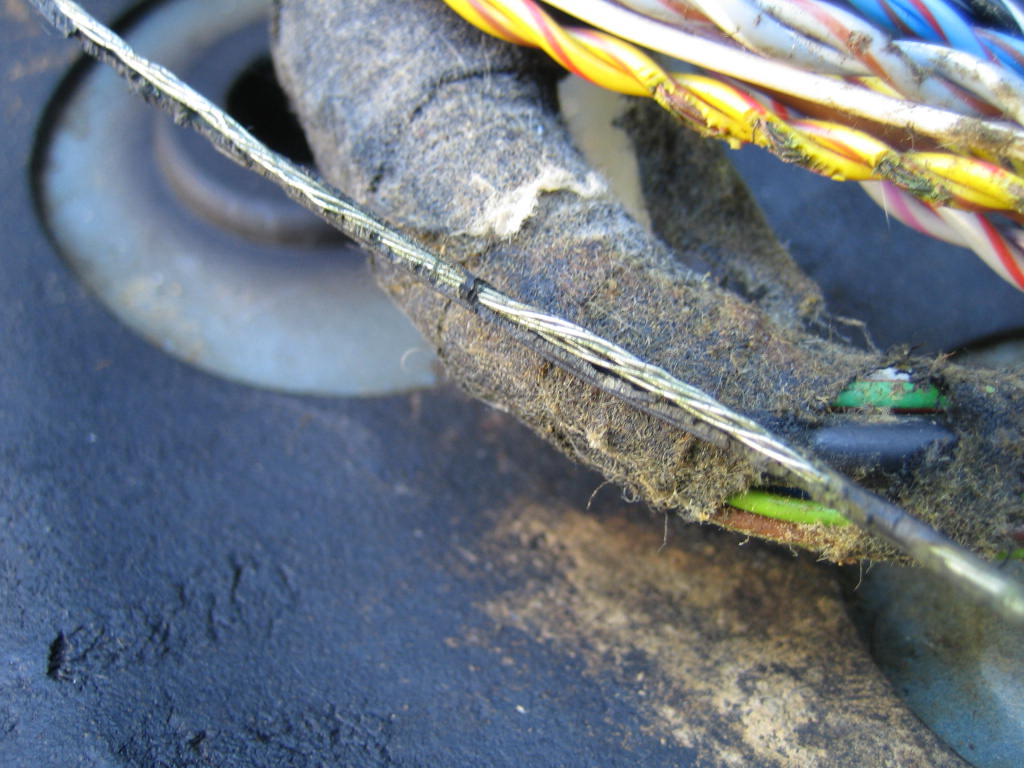

Here is a bunch of wires that were exposed after rubbing against the metal post in the background, so had to do some quick patchwork.

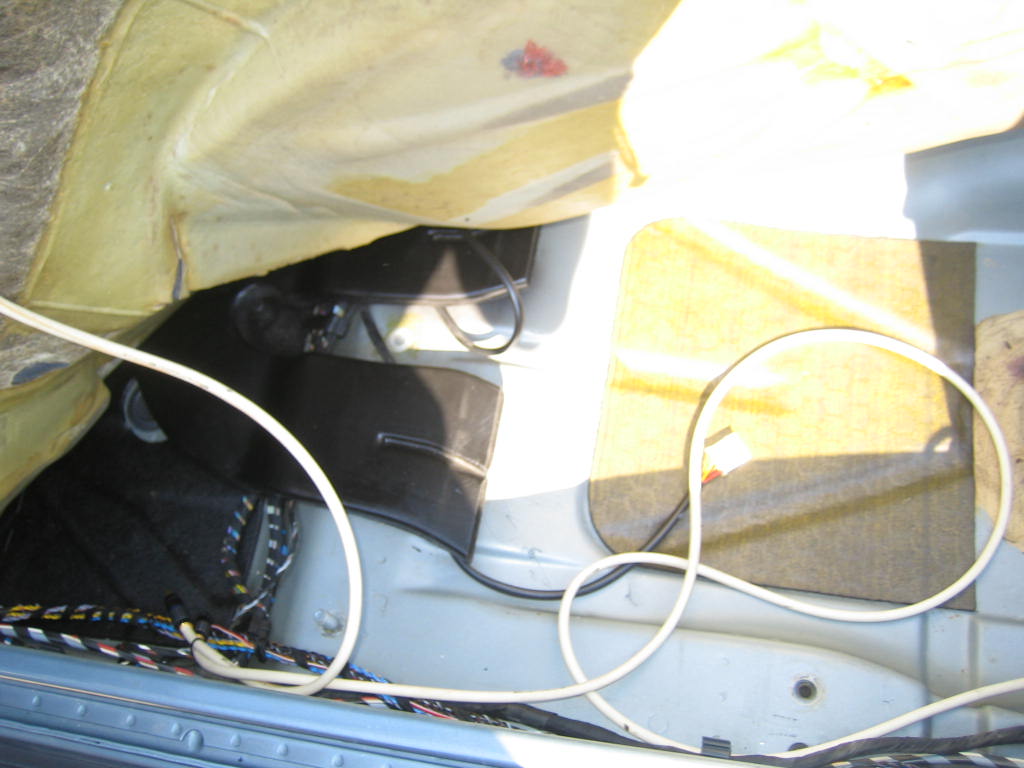

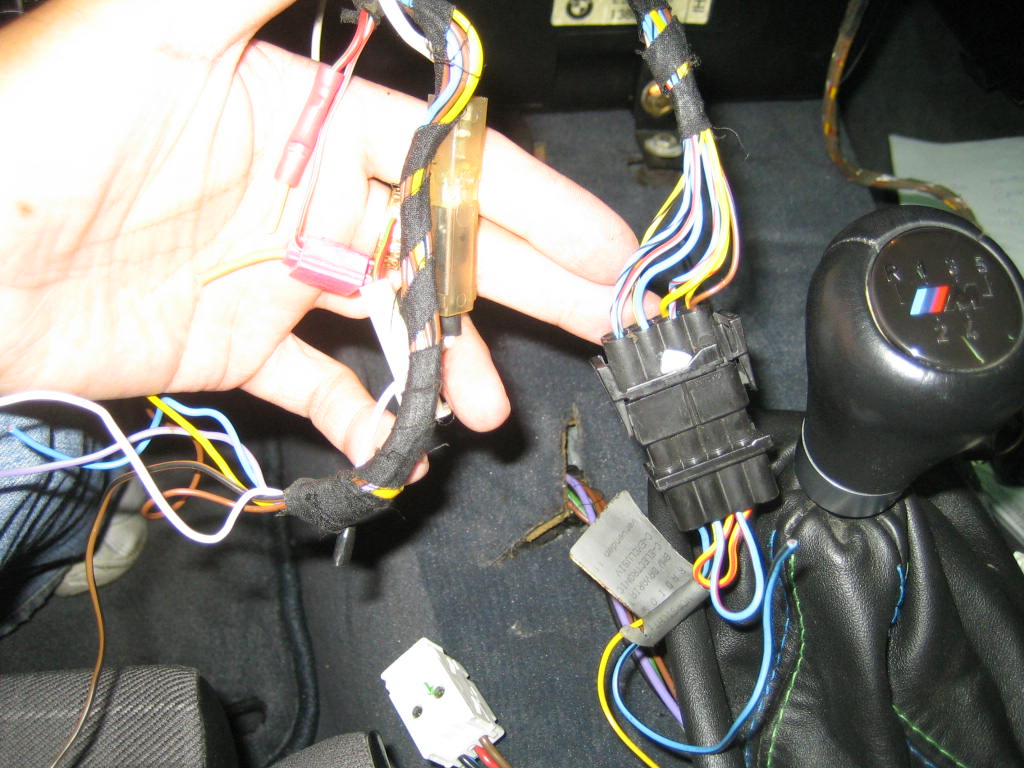

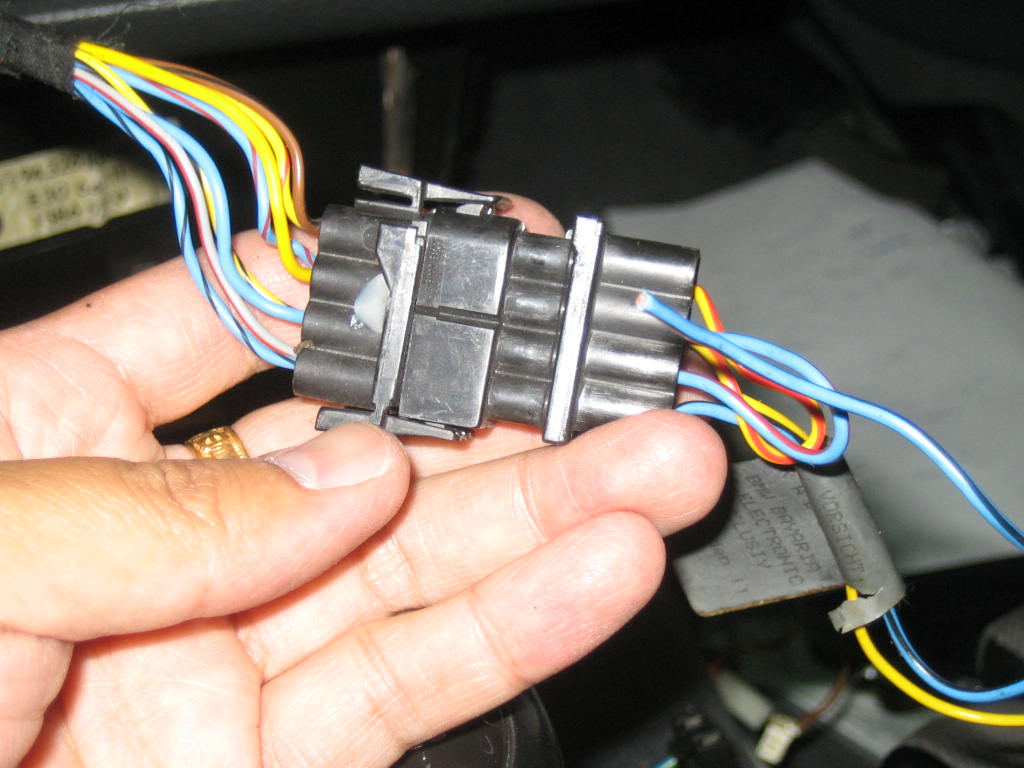

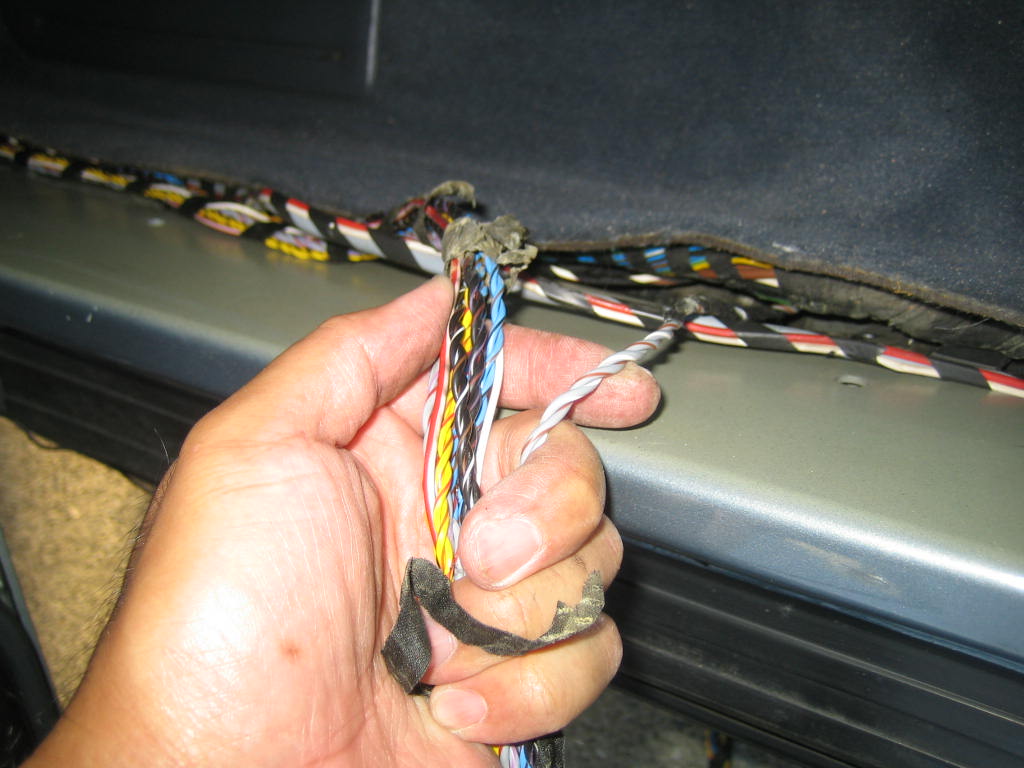

So this is where I wish I did some research, took a look at the electrical diagrams and mapped out what these wires were before I started pulling them out





Turns out they are the speaker wires that go to the stock speakers. I decided to reuse the wiring instead of running new speaker wire and found out afterwards it is much harder to put the wiring back into their snug locations than pulling them out.

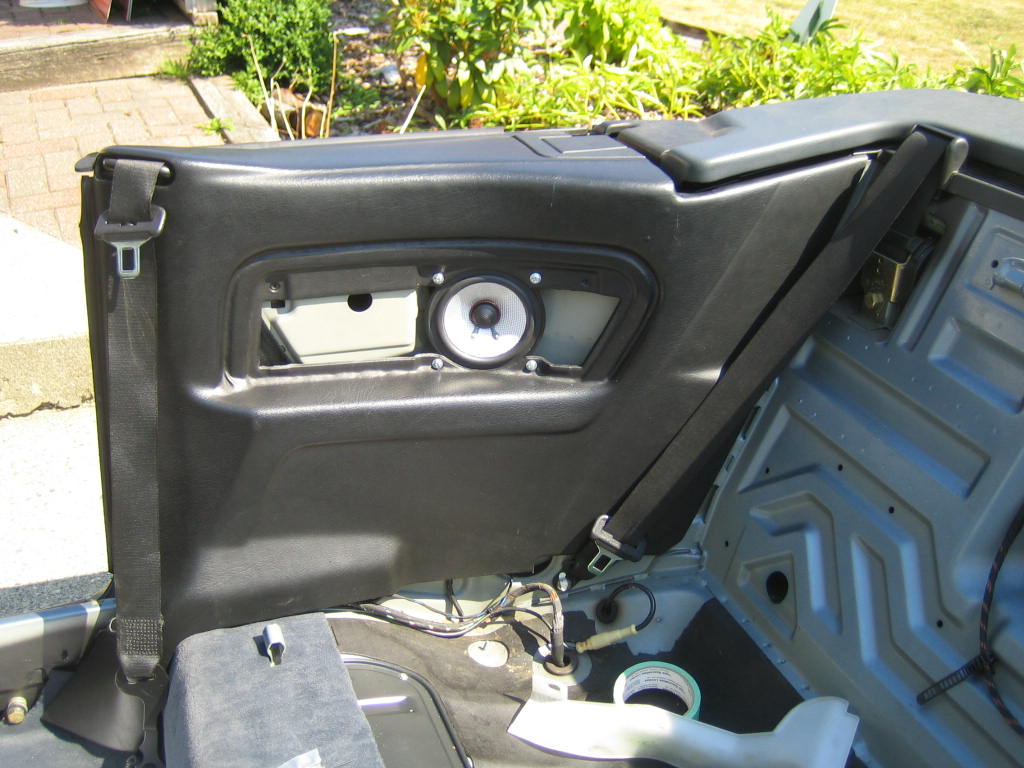

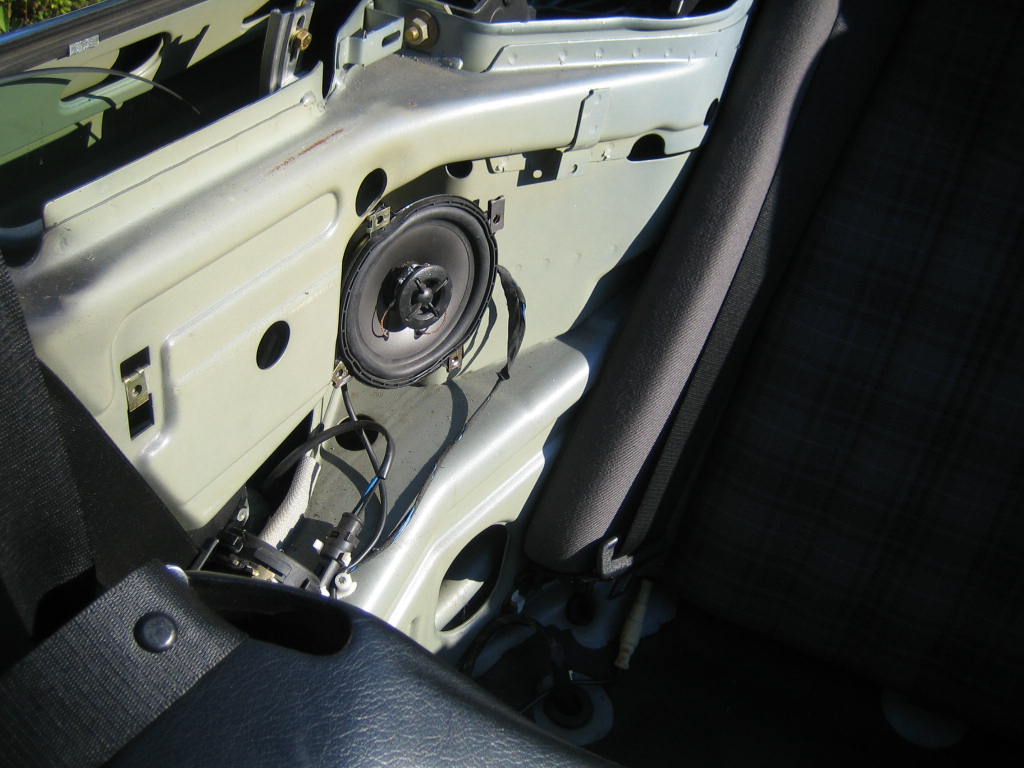

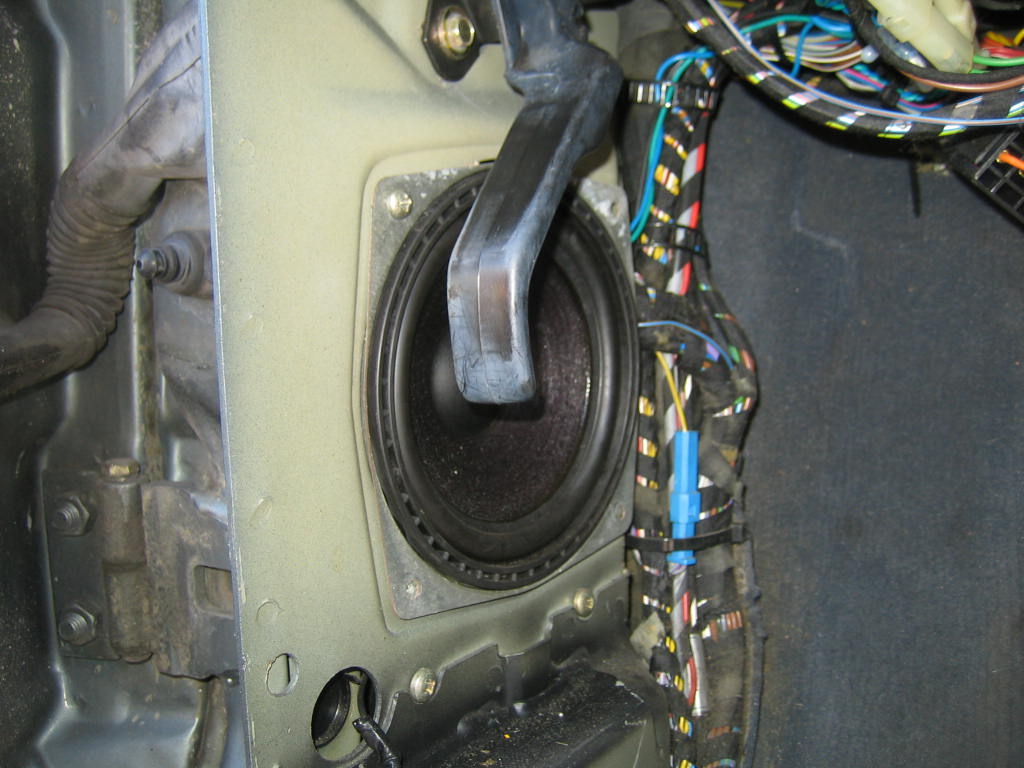

Installed a set of Clarion coaxials in the rear.

Beware that just because a speaker fits on the passenger side it MAY NOT fit on the driver side due to the top cover release handle being located there. The speaker was too deep and some metal needed to be cut from in order to clear the magnet.

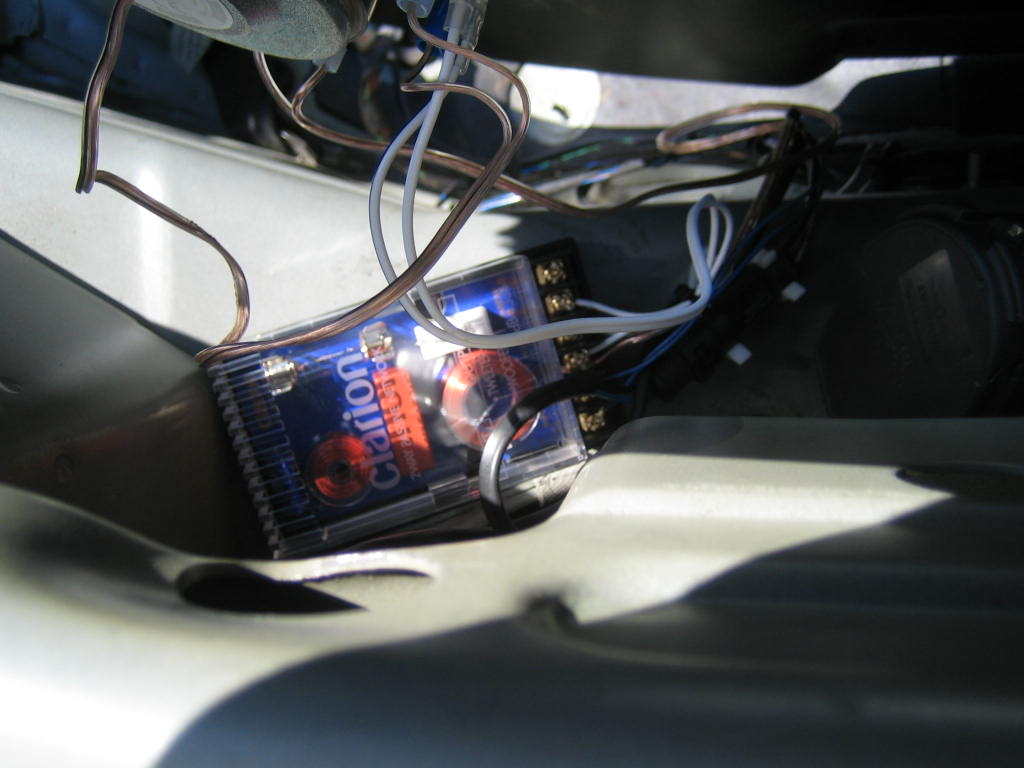

Crossover is hidden behind the factory trim panel

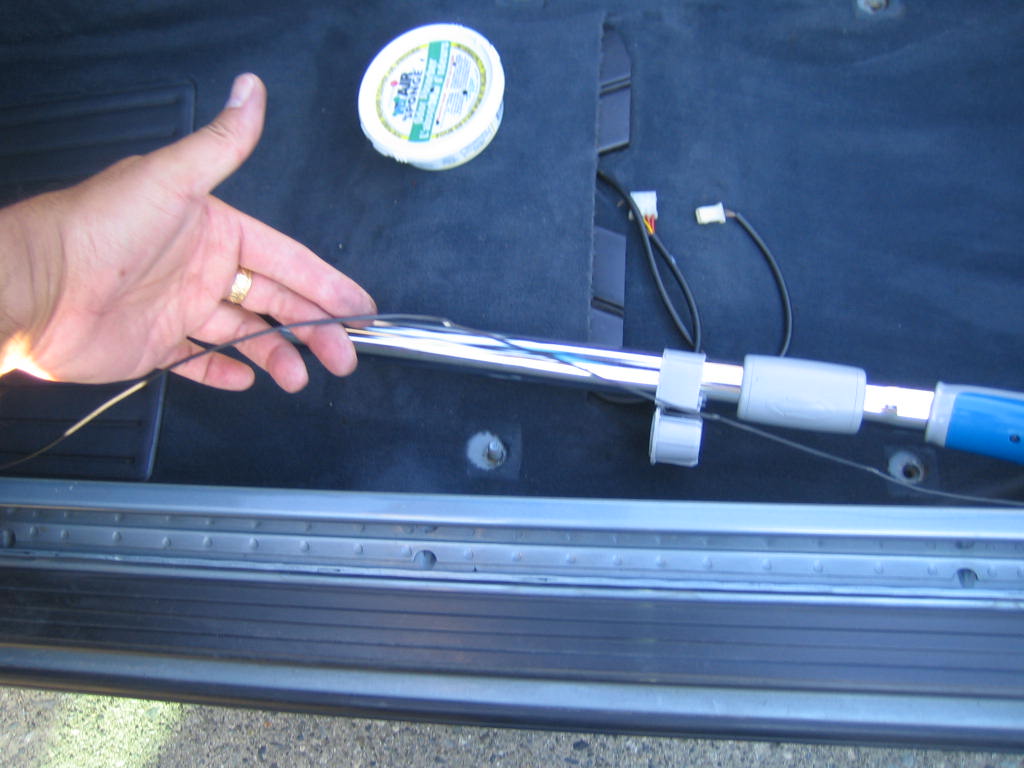

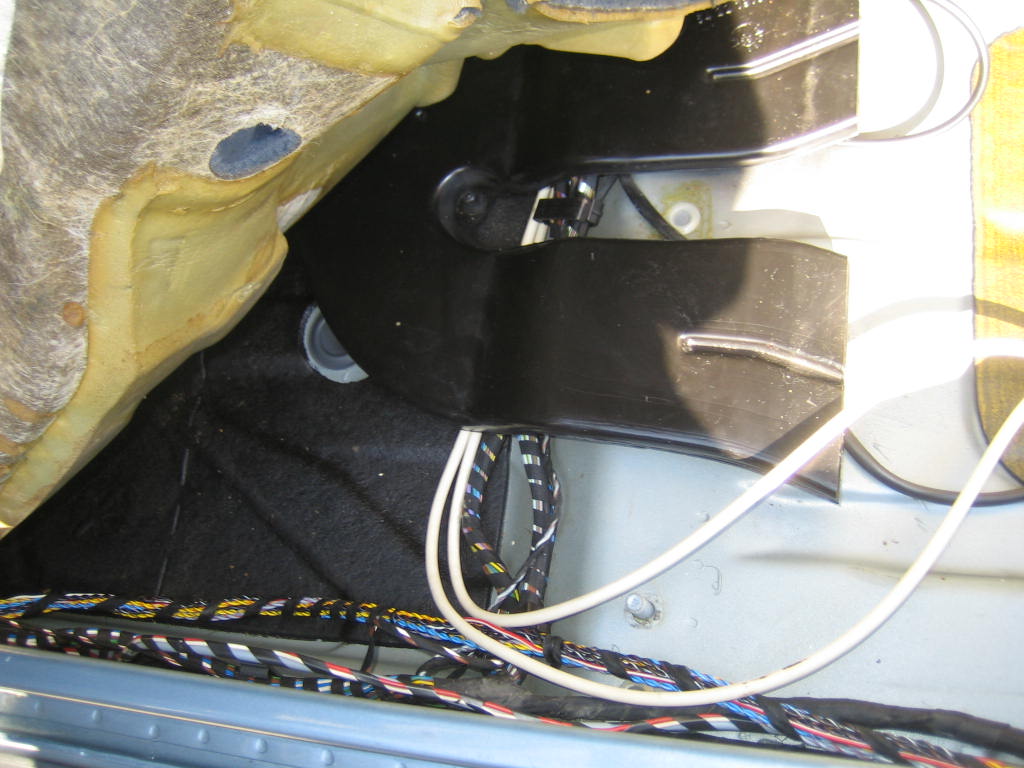

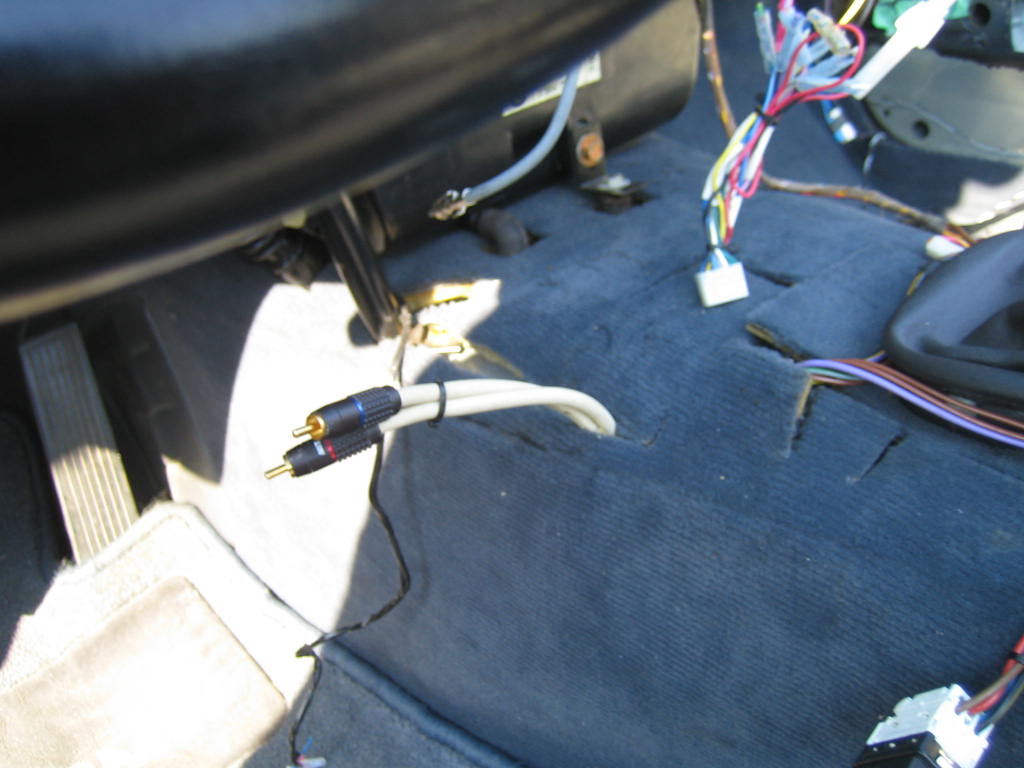

Running the RCAs... pulled them out, laid them again... this is where being OCD sucks. I did this 5 times and ended up laying the RCAs just like I did in the first attempt.

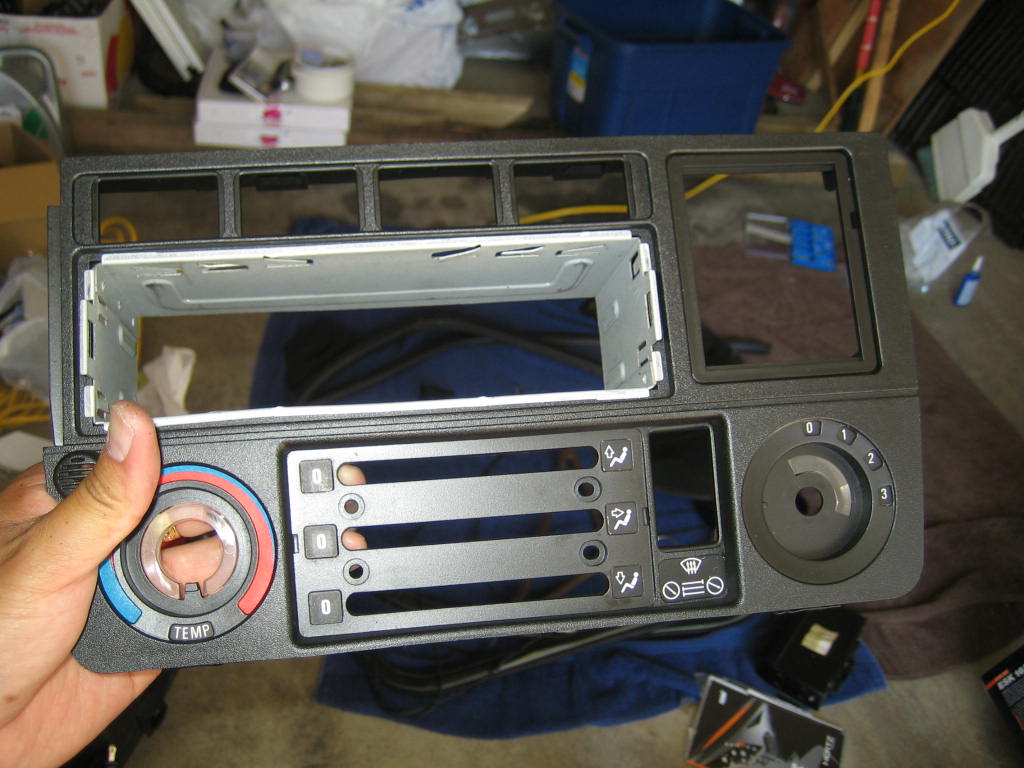

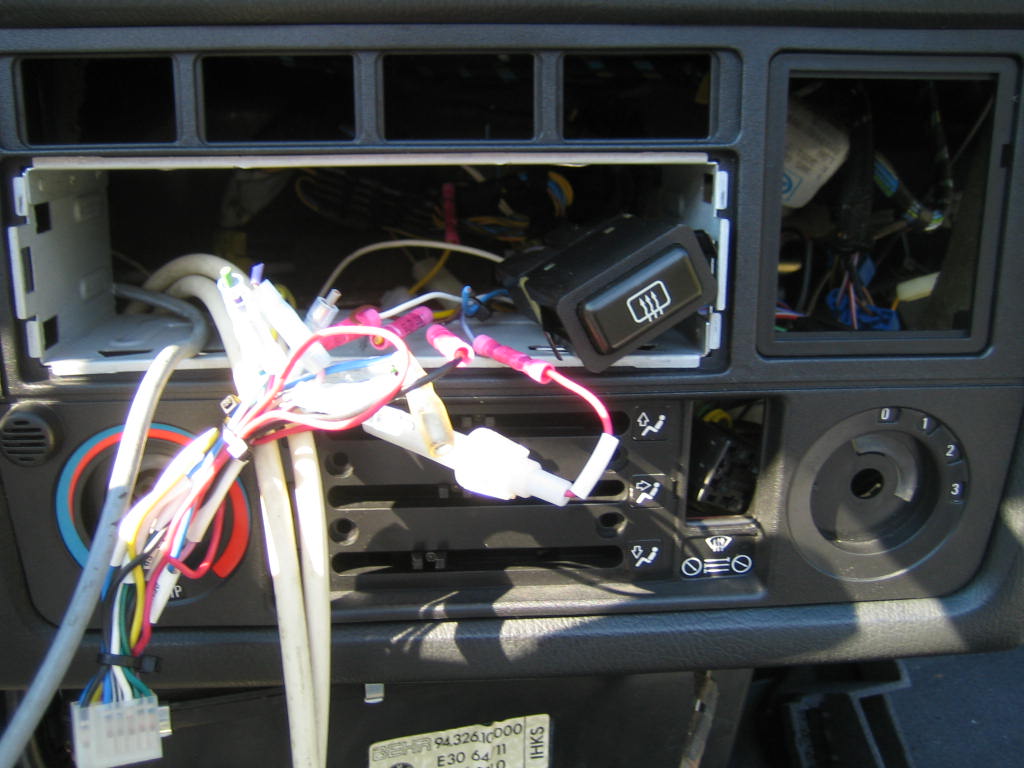

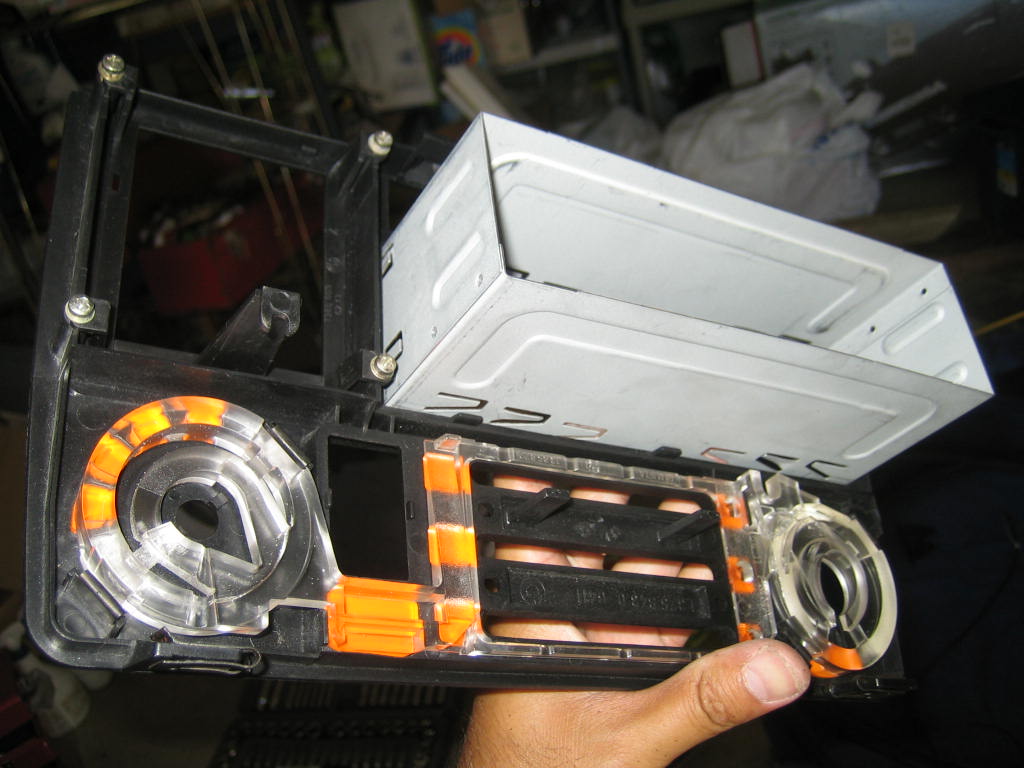

Installing the cage for the Nakamichi CD-45z




HVAC panel back in

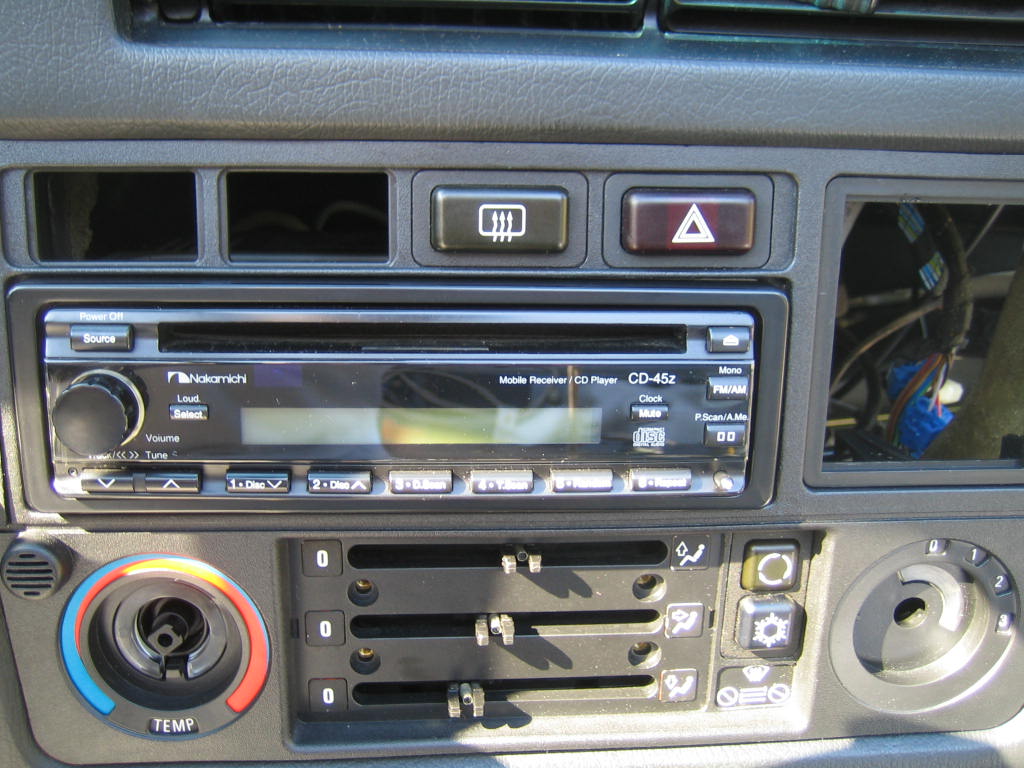

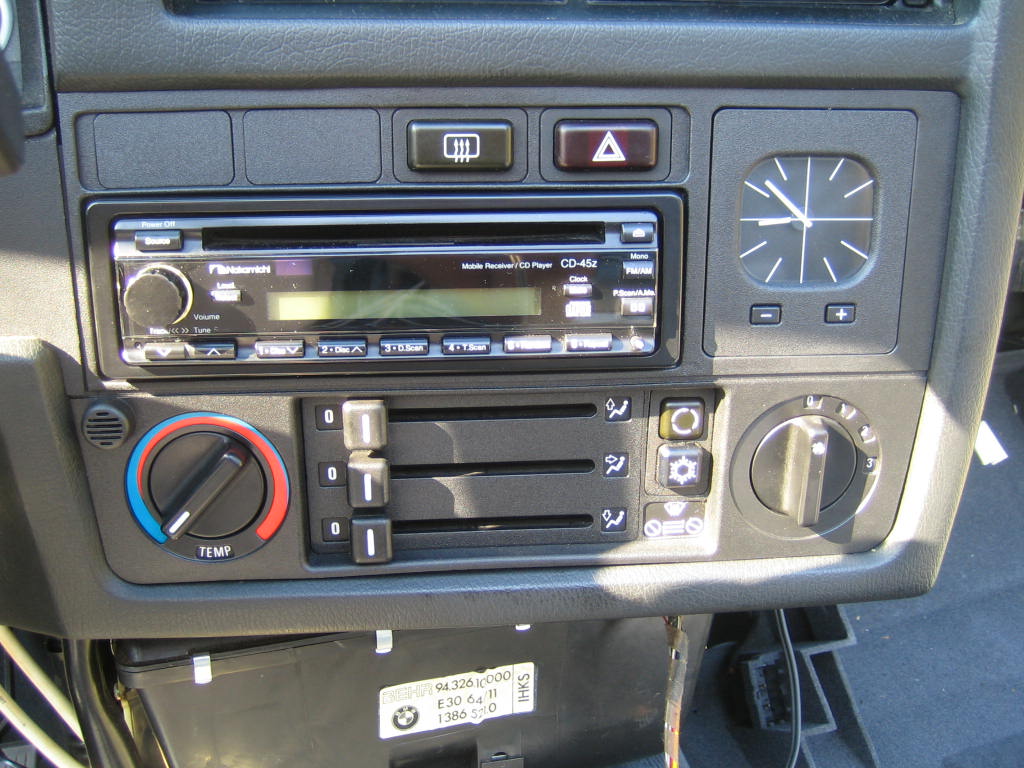

Nakamichi deck, clock and freshly painted trim pieces installed

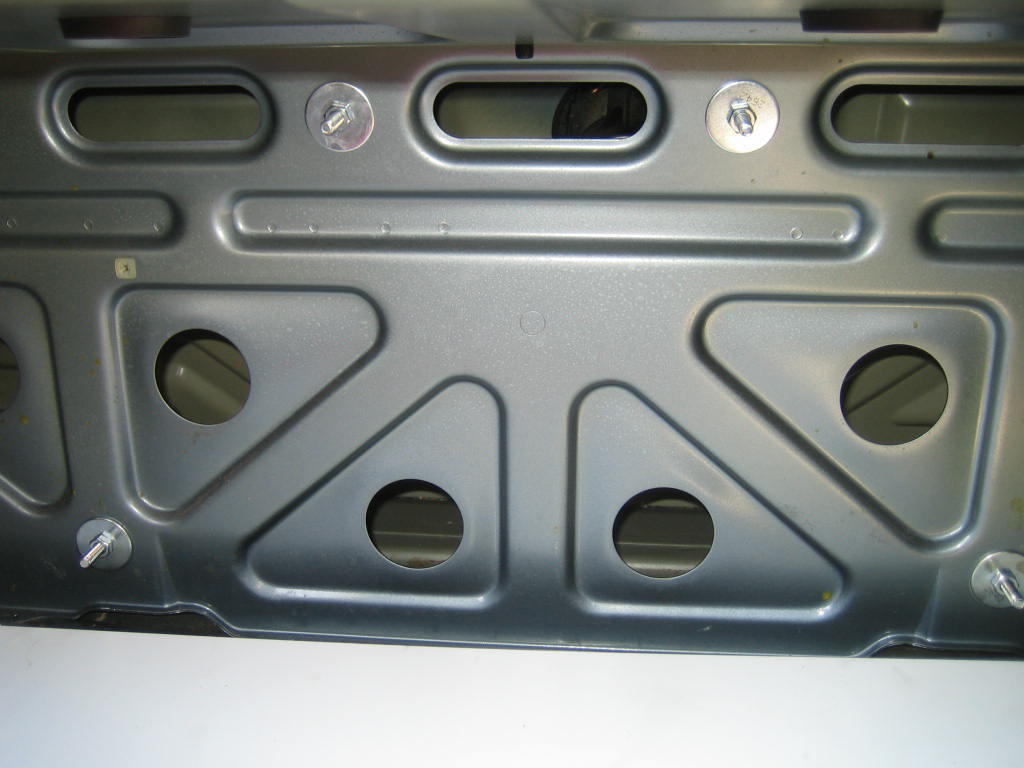

I decided to build a simple rack to hold up the amp and used some stock locations on the metal for mounting



The idea is to hide the amp between the rack and a removable front trim piece

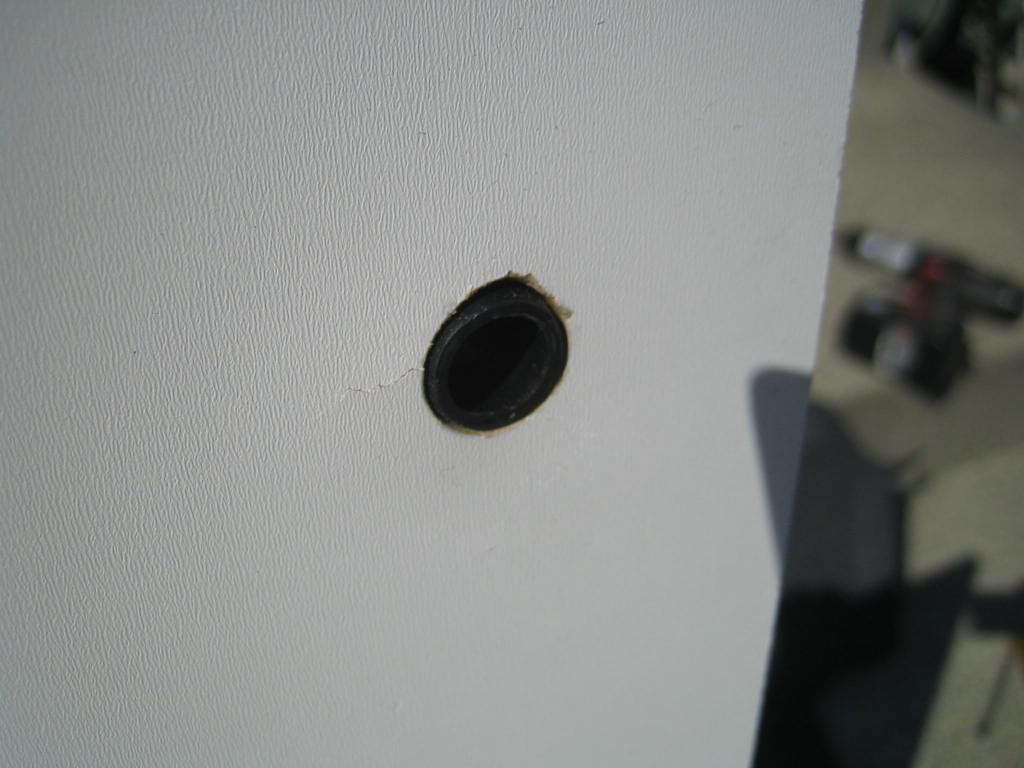

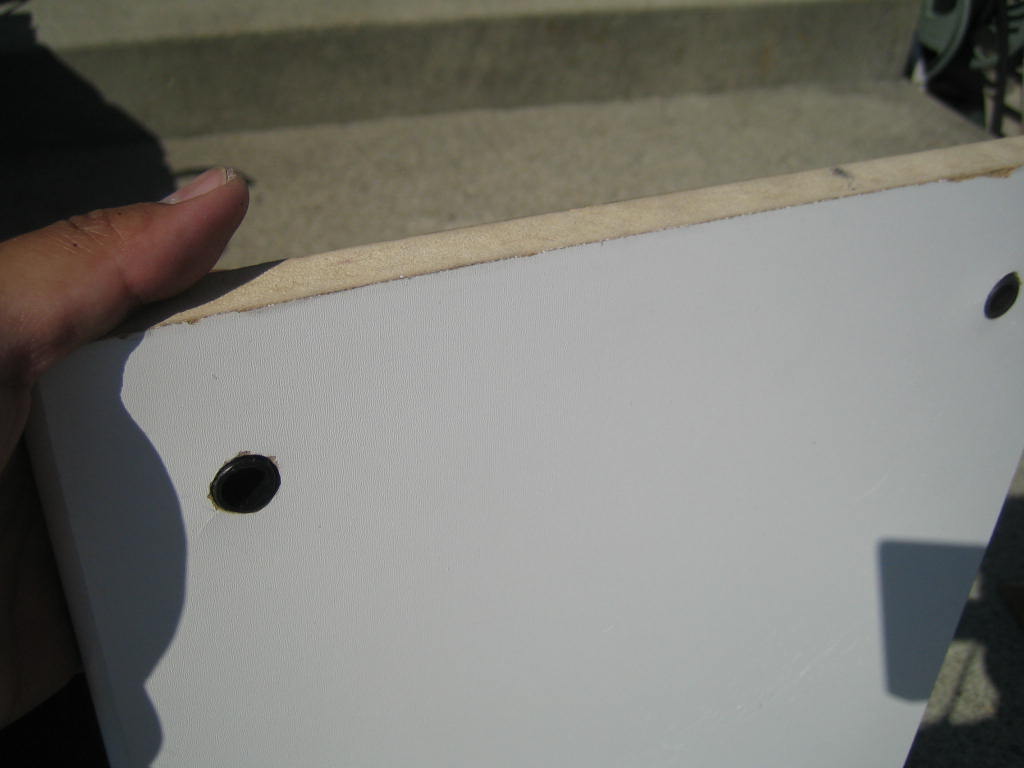

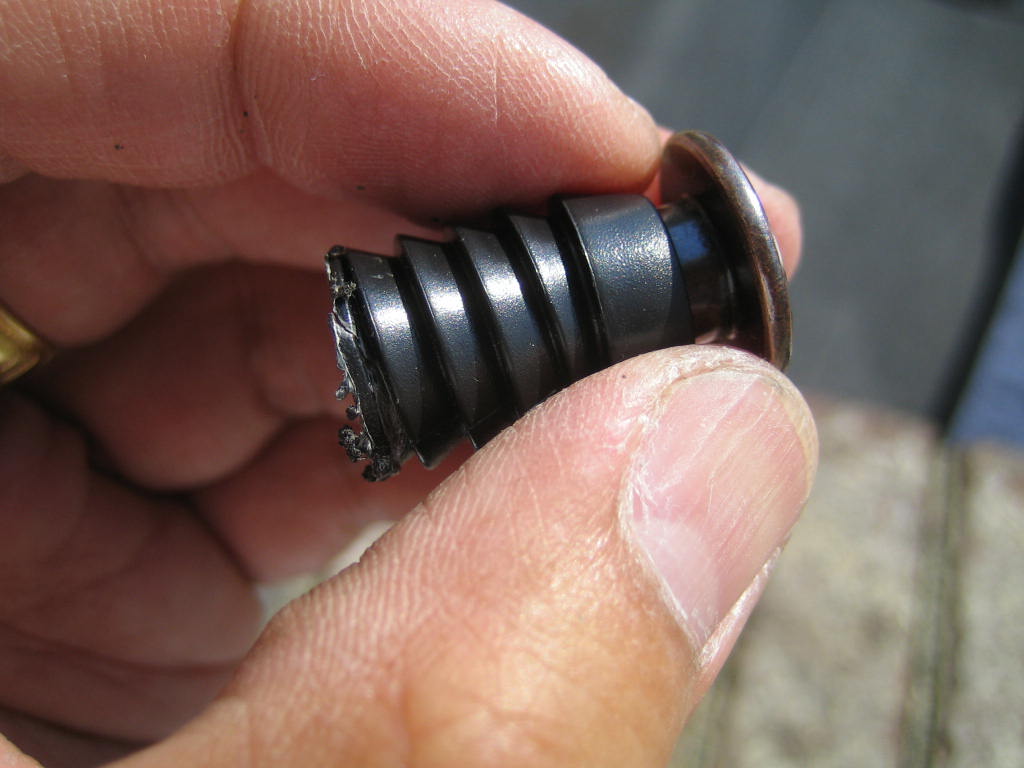

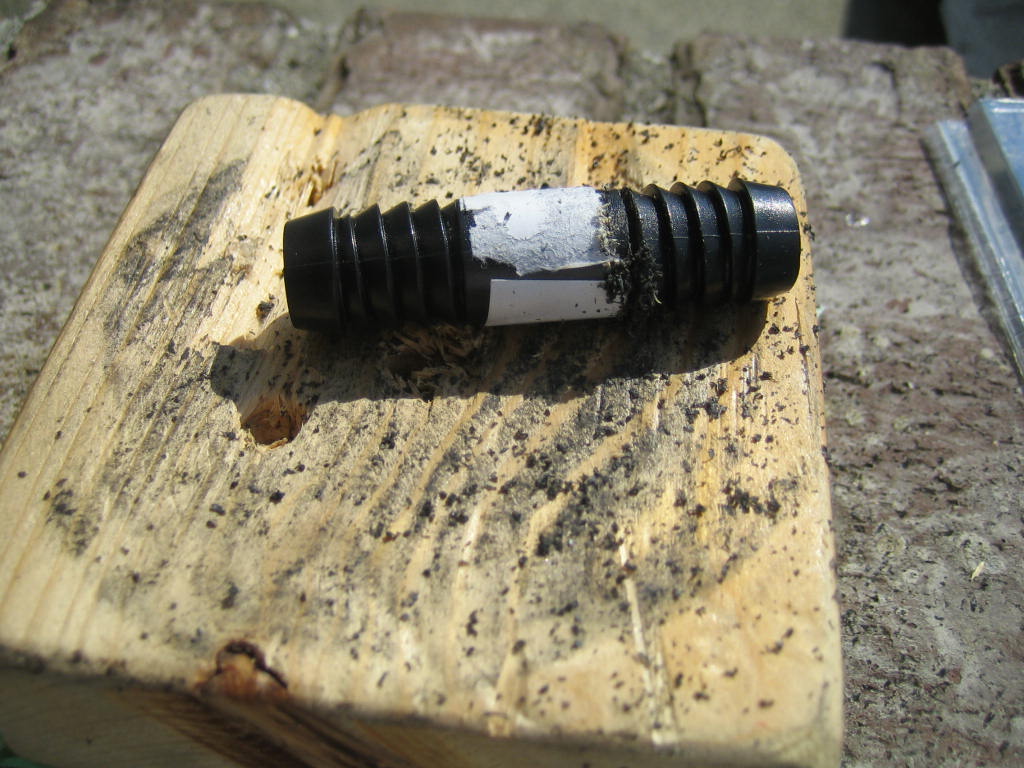

These are the inserts I made to press into the top piece in order to isolate the MDF from the threaded metal bolts

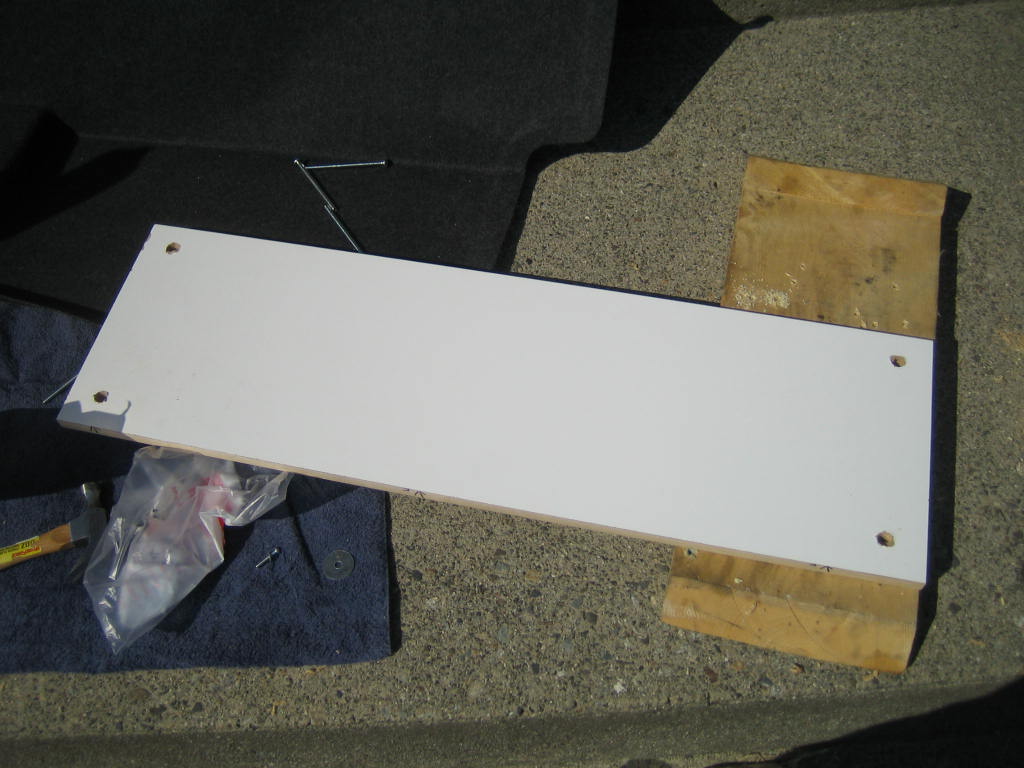

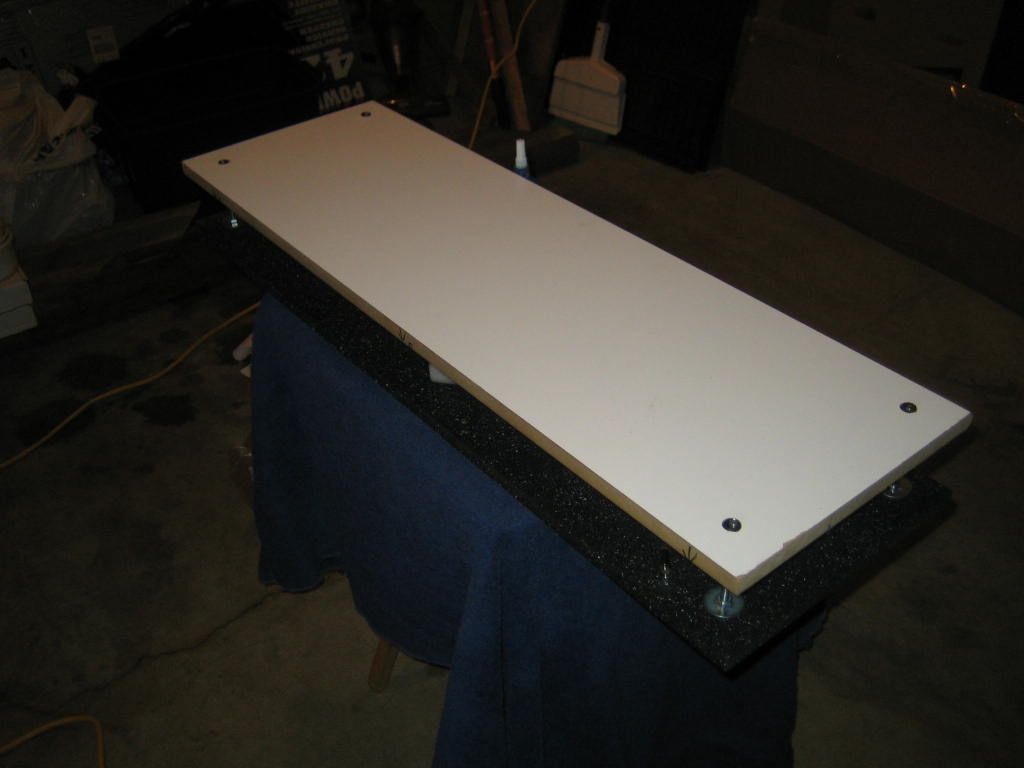

Test fit the top

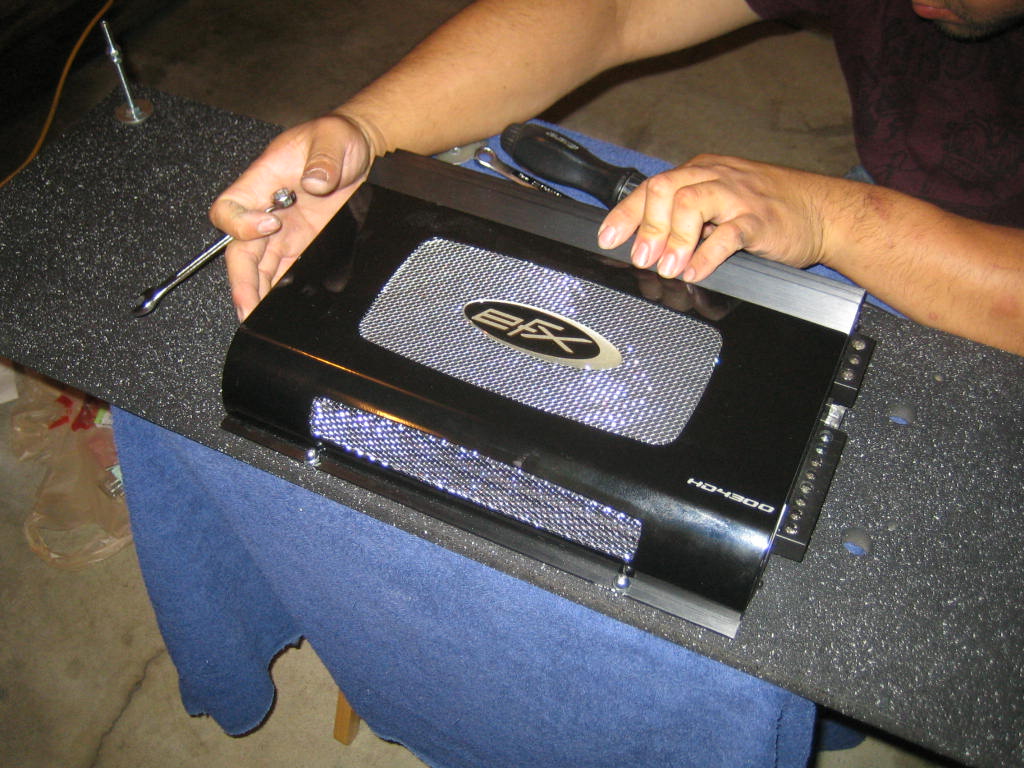

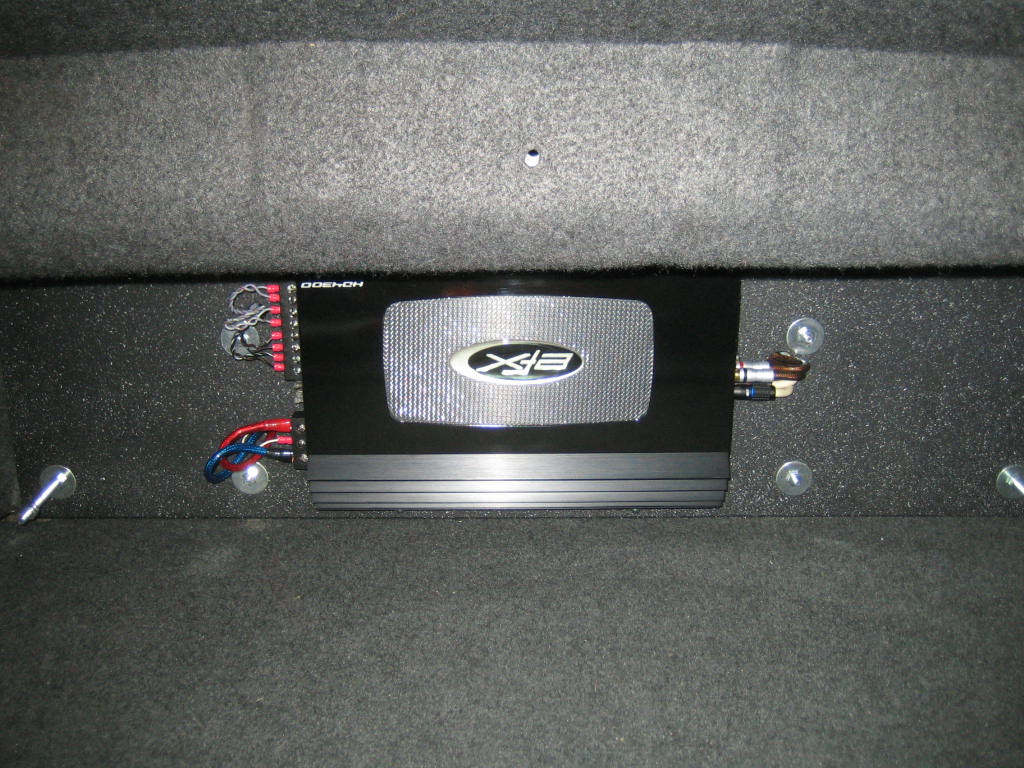

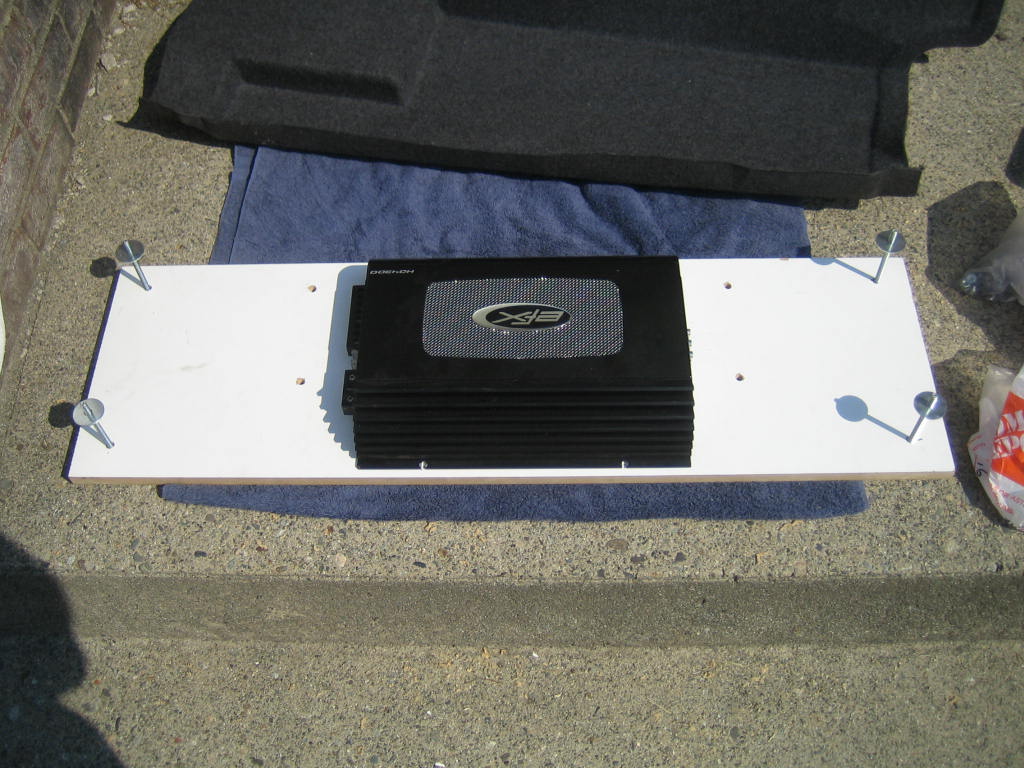

Bolted down the amp

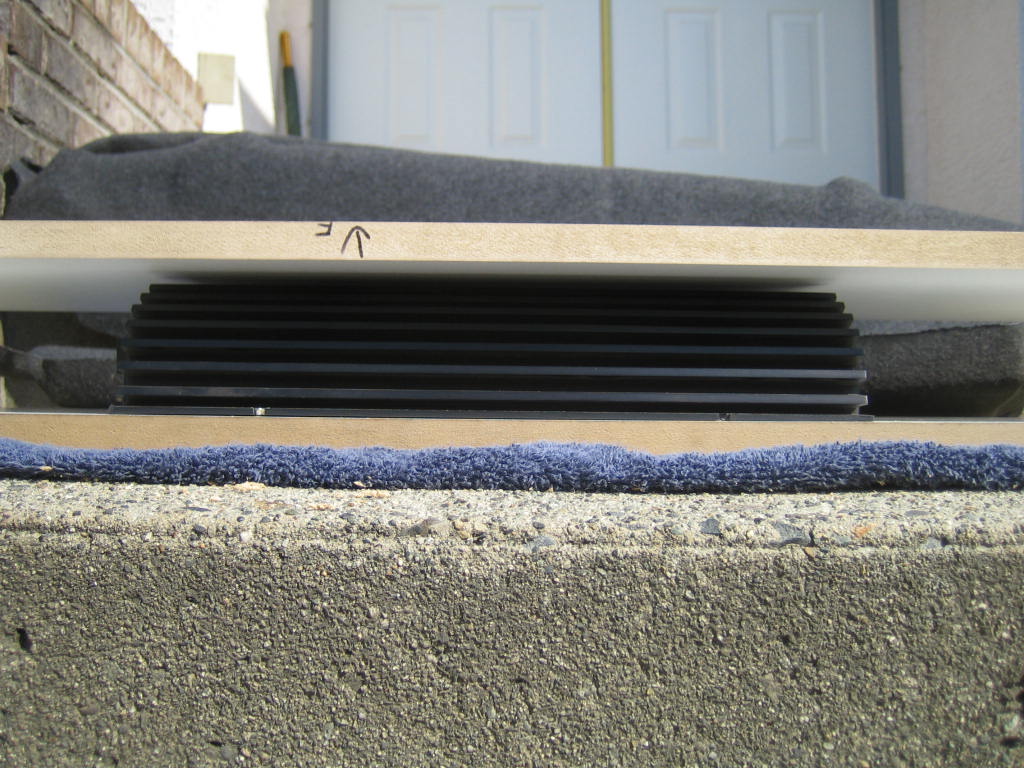

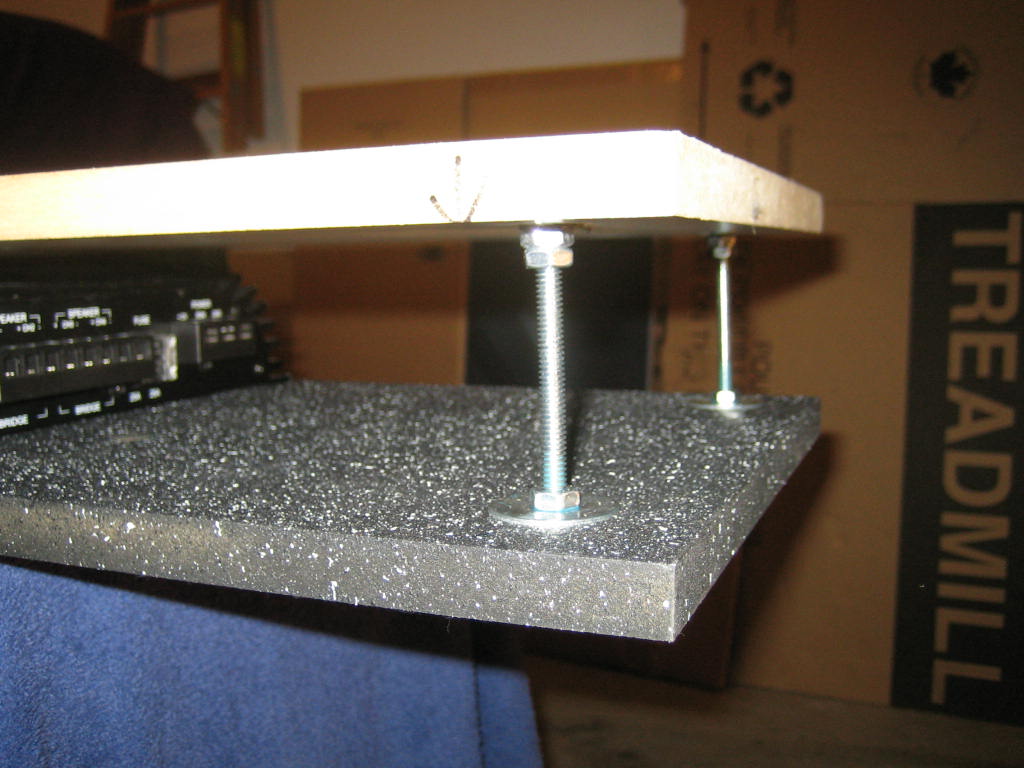

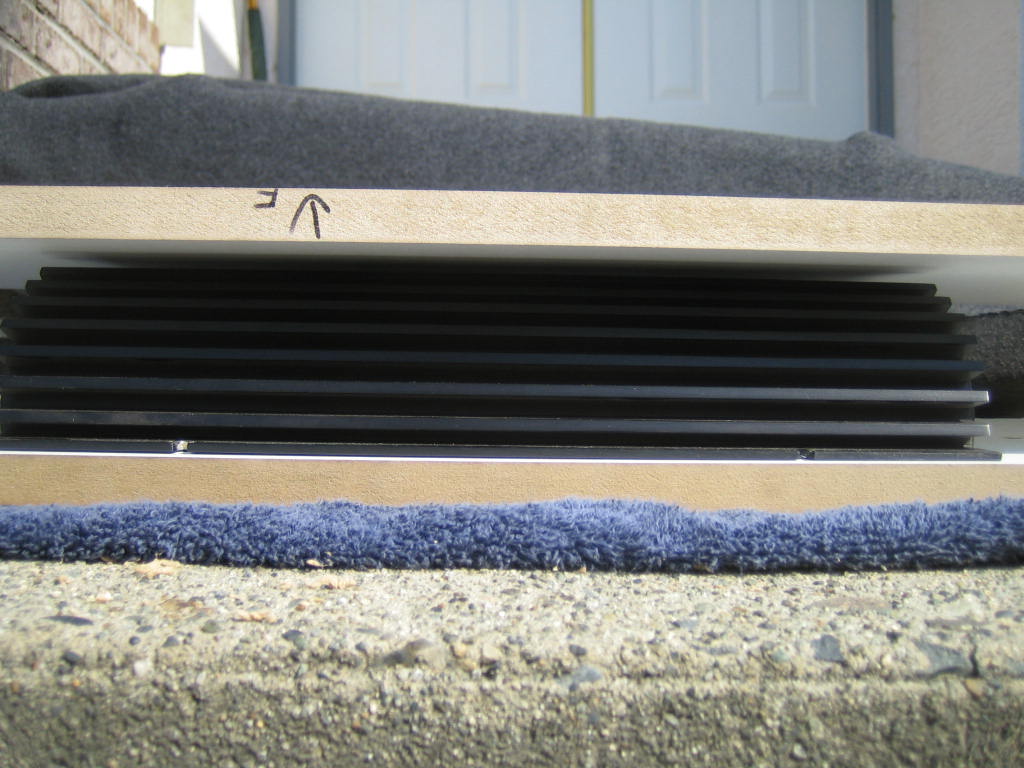

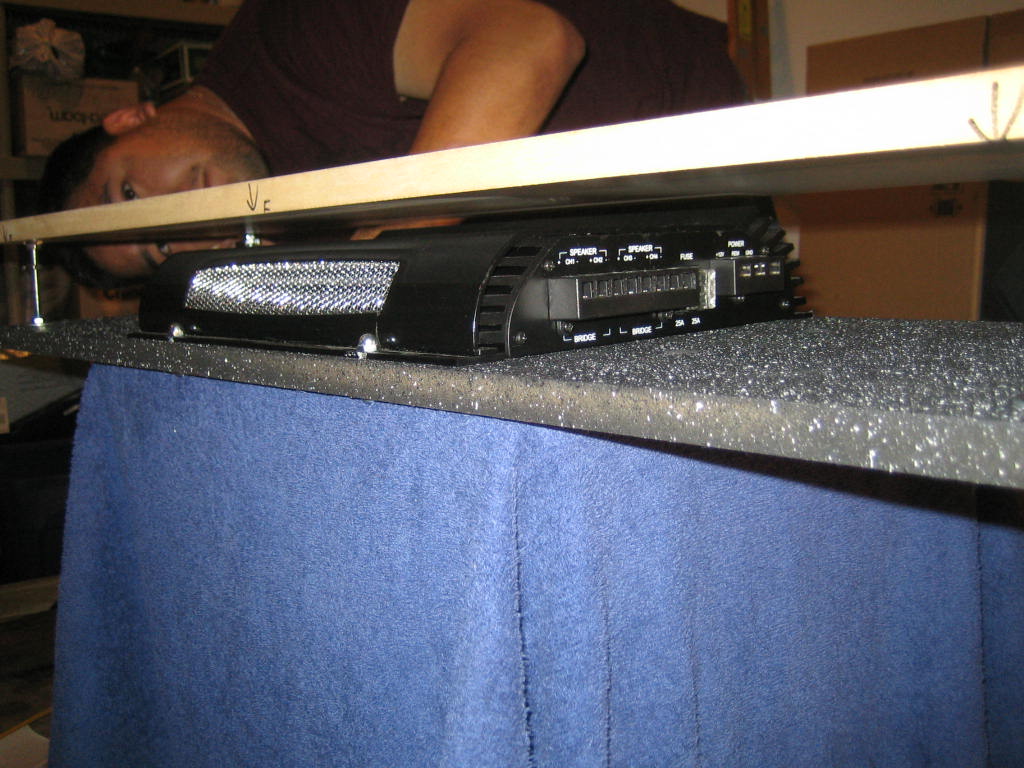

Setting the height of the cover

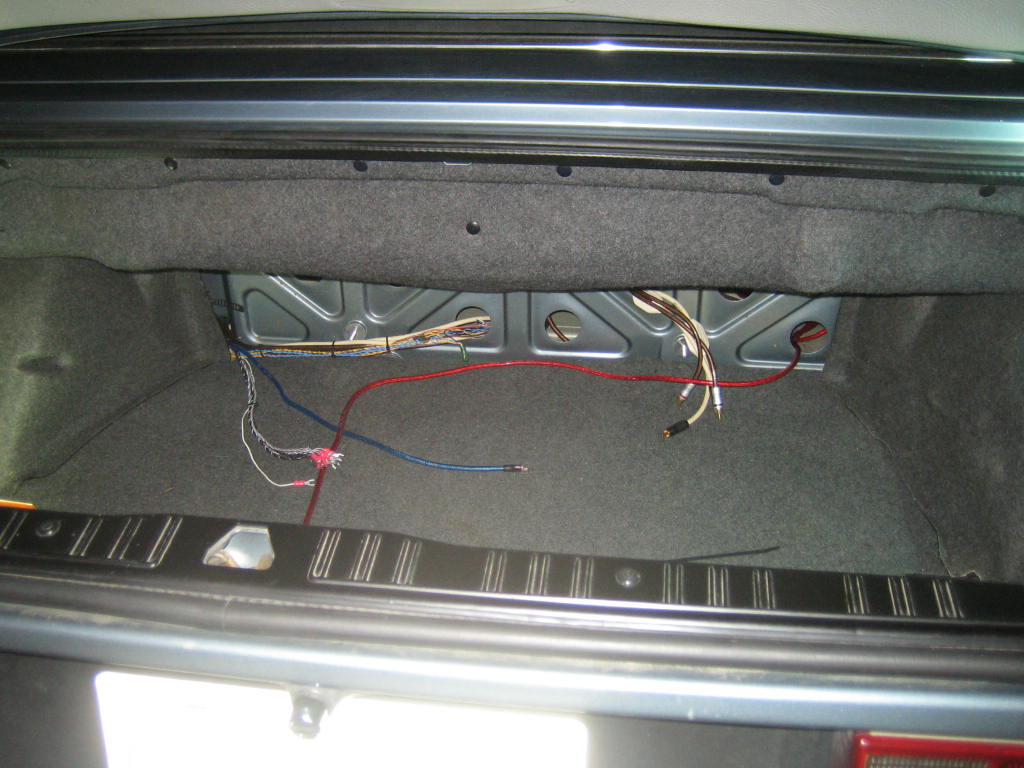

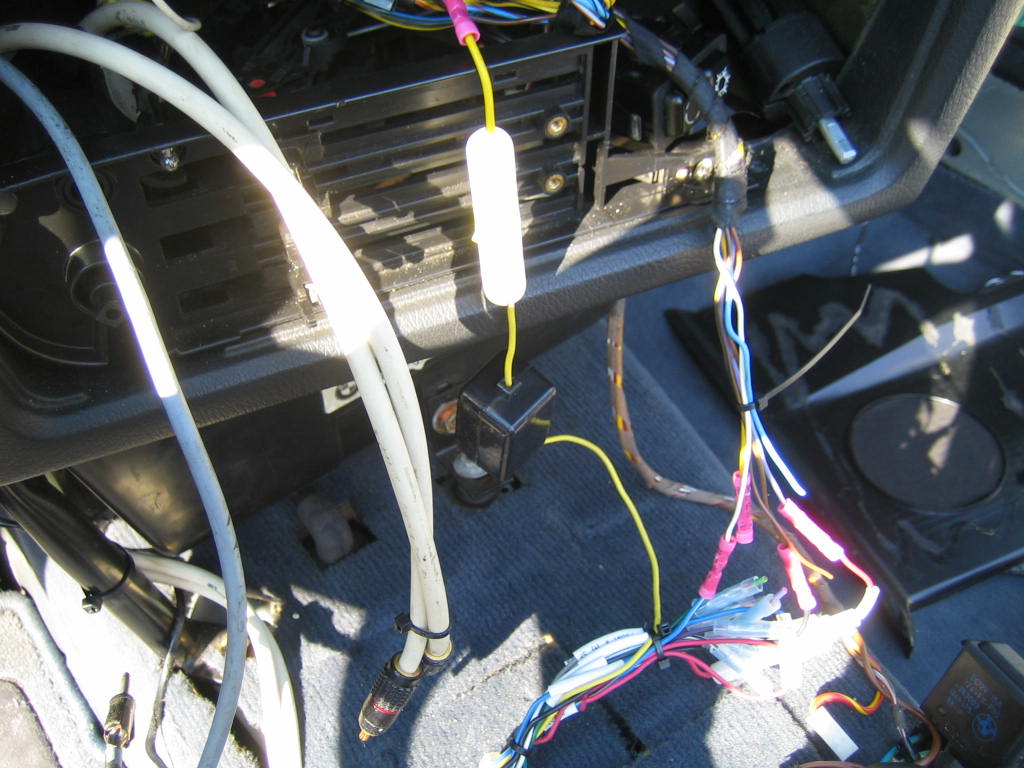

Wires waiting to be connected

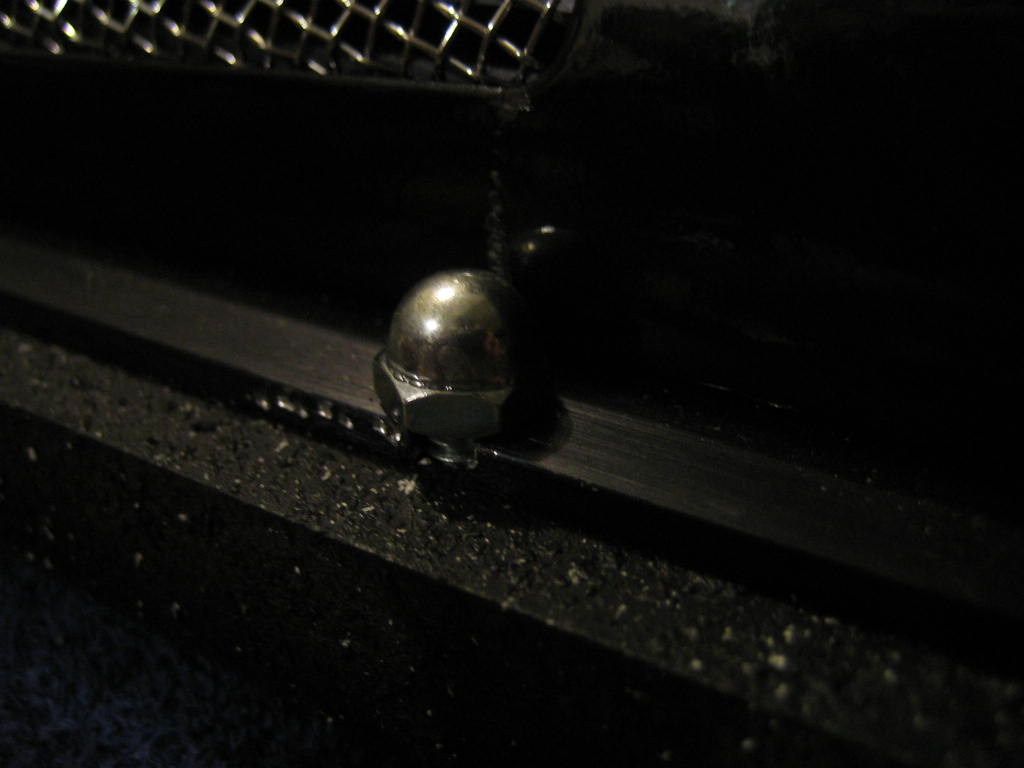

Everything screwed down

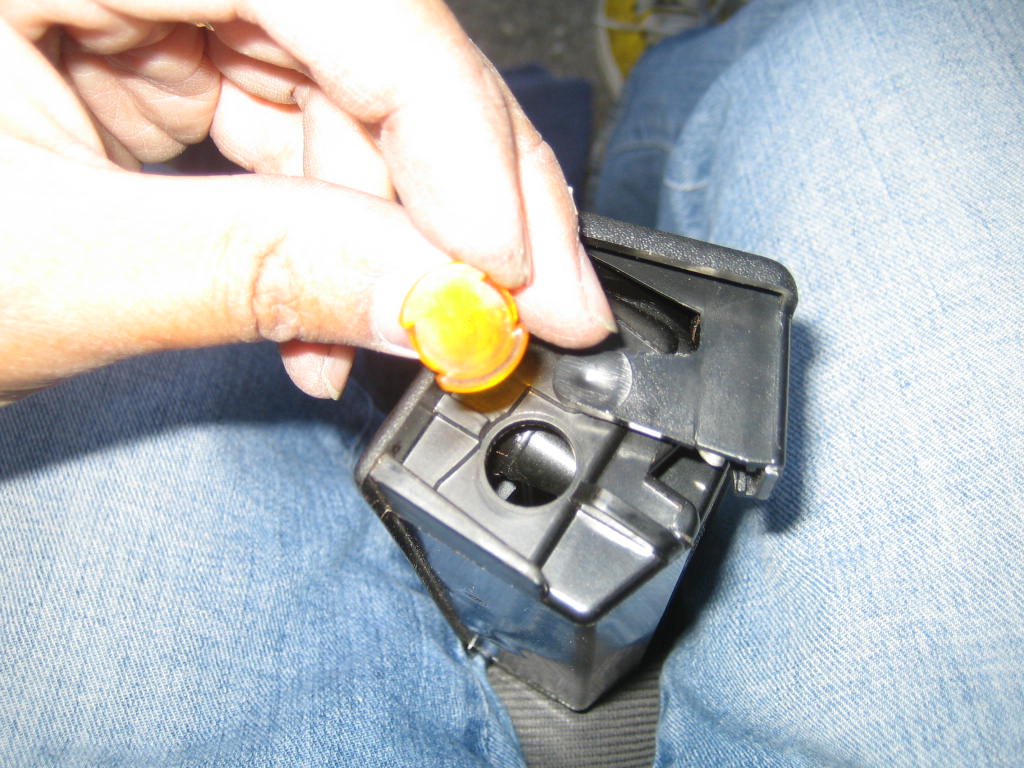

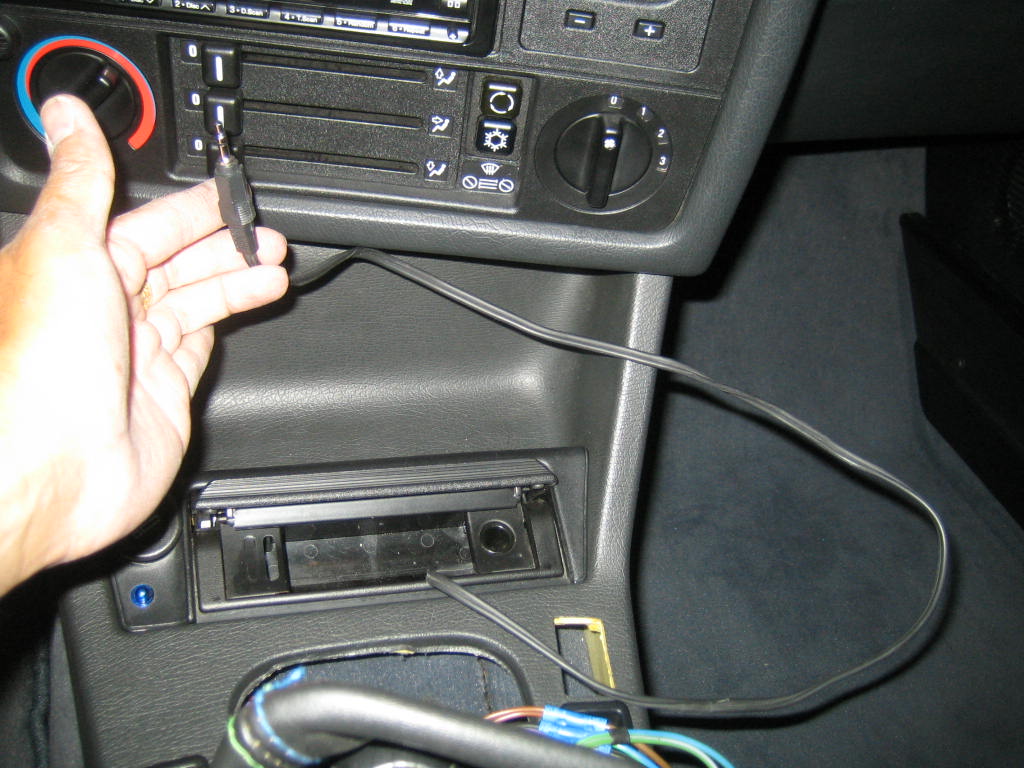

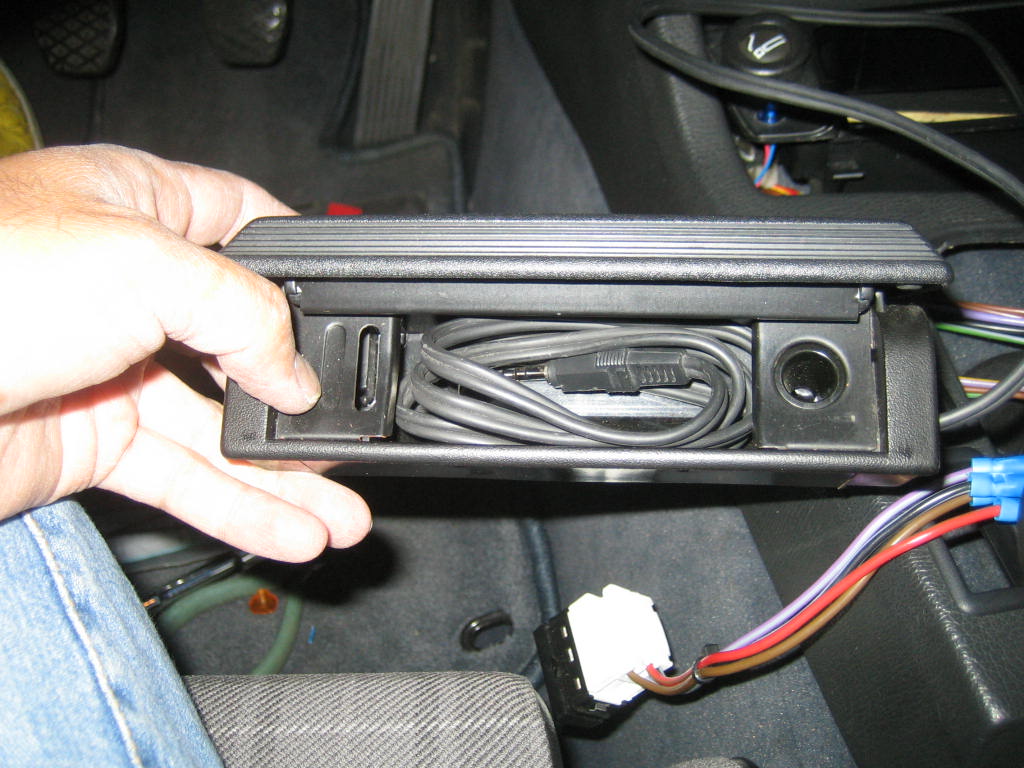

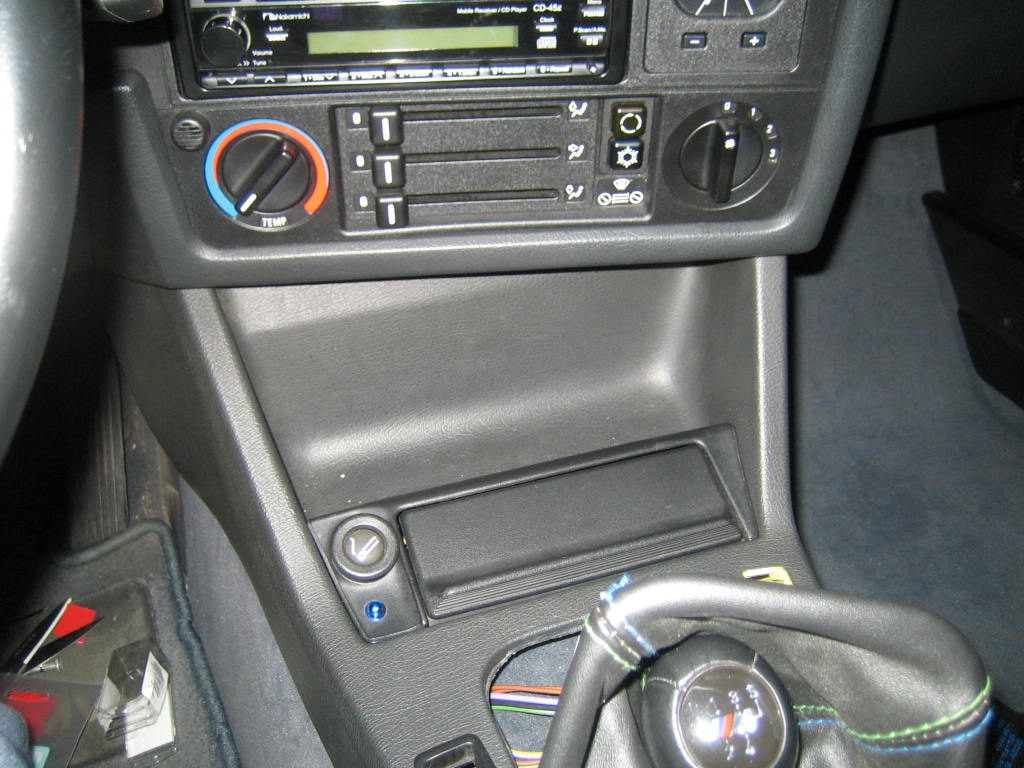

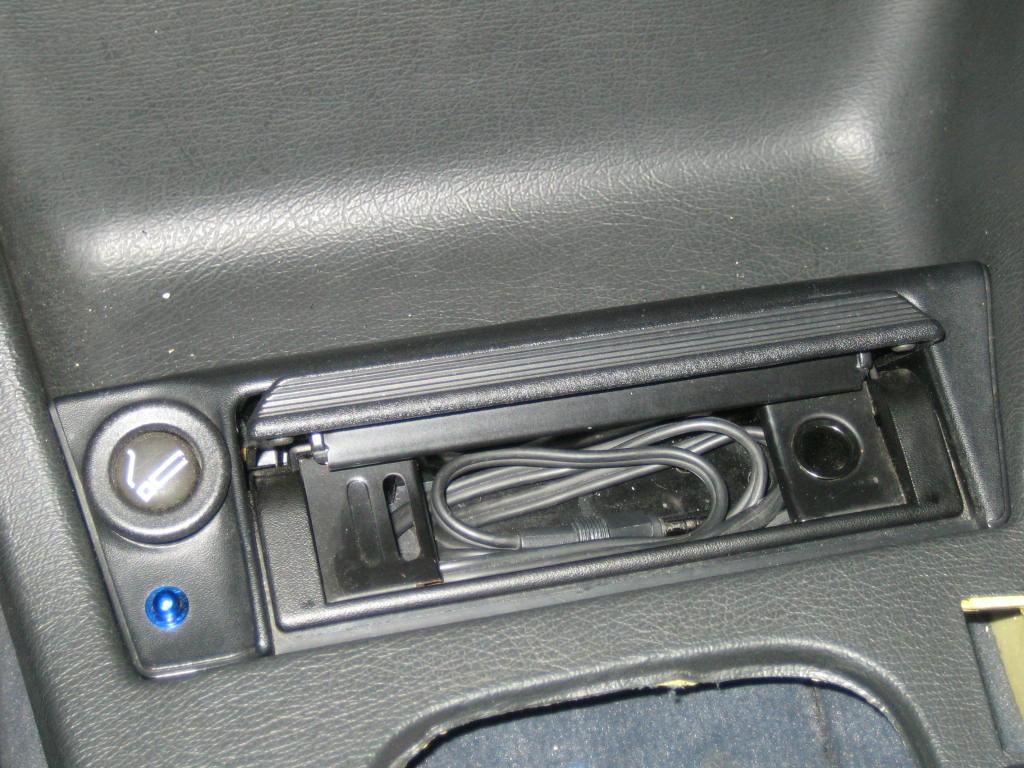

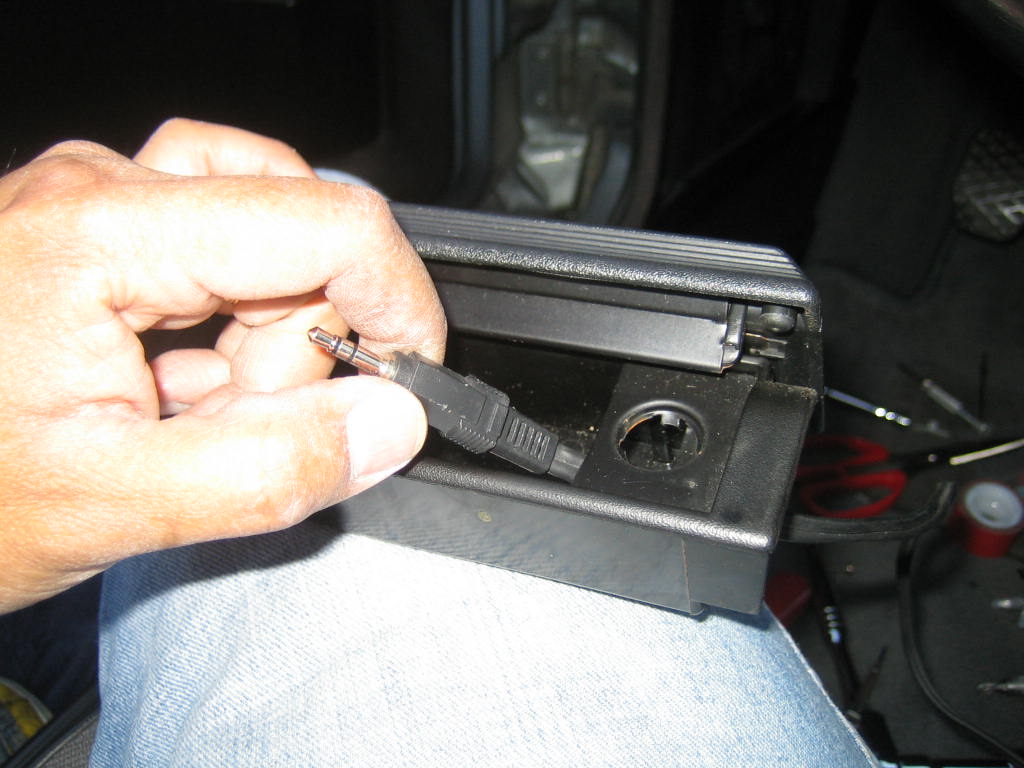

The last thing I needed to do is wire up a mini RCA input jack so I can plug in an iPod. I decided to use the ashtray as it would double as a storage space for the cable when I am not using it

[nickflic3]

Holy attention to detail :crazy:

THE best vert out there; good job tackling the audio your self :)

[J3M93]

WOW! perfect place for the ipod cable!!!

[Turd]

Nice job!

[Name]

I just sat and read through this whole thread and holy attention to detail, and I saw Winston laboring on you old wheels so you must know it is not just you that the OCD has affected its you friends too.

[JeST]

Blue Devil ... Nina, couldn't have gone to a better home. Your OCD rivals my own, lol. She looks beautiful. Love the borbet b's so much I ordered a set for my own.

ps. bracelet and ring screams Chinese (oh the newspaper also, lol). ;)

[MC Hammered]

I have an itch to scratch so Nina is up for sale: Click here for details

[Puma]

So I was debating between chasing after an E30 'vert or a coupe, and this car cemented it for me. Absolutely wonderful work, and it's got a wicked stance. If only I had the cash for it...

[Sailor37]

I've never said this about any E30 (as they all look basically the same)... that is a niiiiiccccce lookin car rite der.
