Finally back into an e30: ‘88 Alpine on Blue 325ic cruiser build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

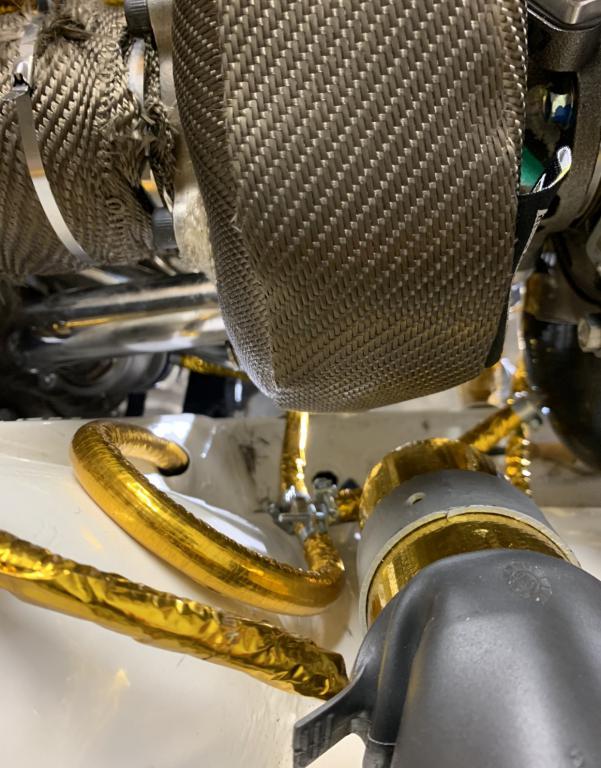

    Finishing up the Wastegate plumbing for the tru boost setup and positioning of the downpipe and Wastegate outputs.

    Click image for larger version

Name:	81B02175-83B1-457C-B389-57CE474DF10F.jpeg
Views:	245
Size:	79.5 KB
ID:	9899142

    Comment

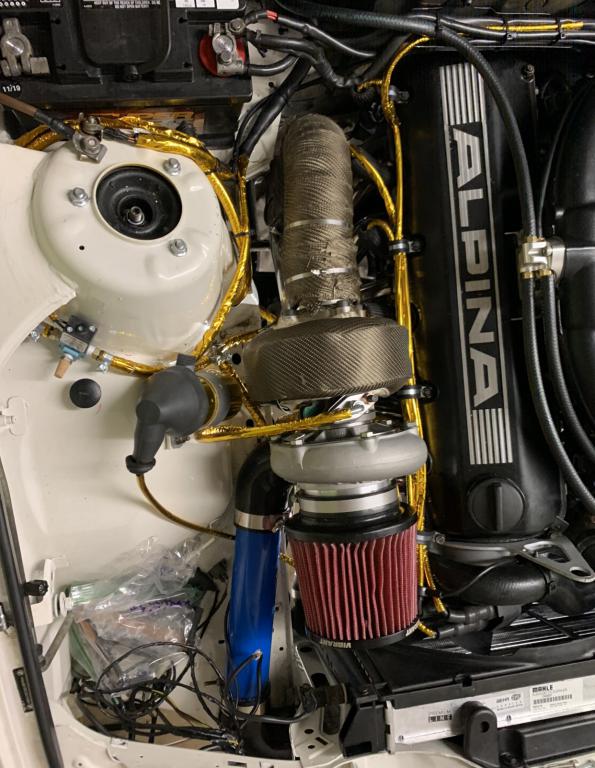

      All fully wired and plumbed. The front end and motor are done! Now just need to run gauges to power/ground and finish up ECU install. On the the rear!

      Click image for larger version

Name:	4D61BCD9-EDD5-4227-B67B-D0F44D709F4A.jpeg
Views:	241
Size:	83.6 KB
ID:	9899292

      Comment

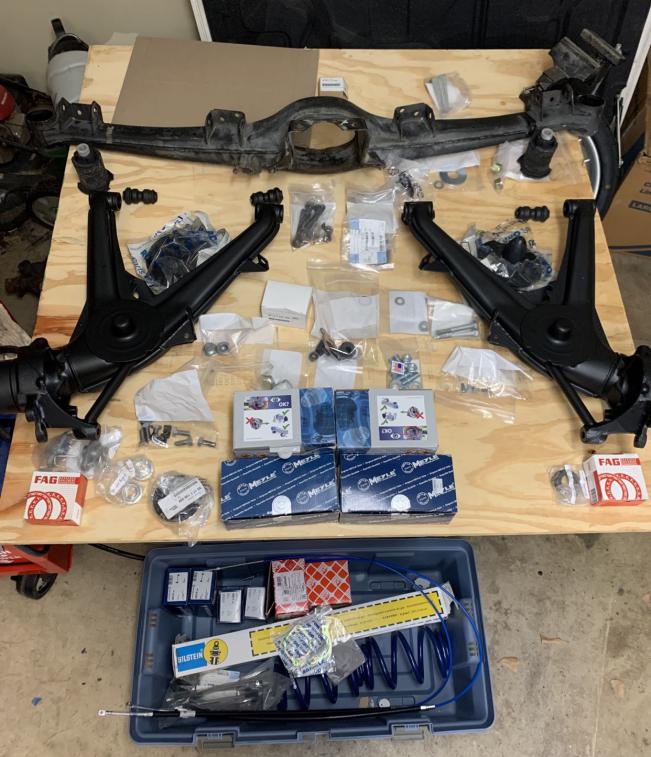

        Rear end rebuild - let’s get at it. Need to get subframe to powder first.

        Click image for larger version

Name:	CDF167C6-387F-4A05-83A2-660C7A6F3732.jpeg
Views:	214
Size:	88.5 KB
ID:	9899501
        Attached Files

        Comment


          I don’t see a fuel filler hose in that smorgasbord of parts! I’d replace that while you have the subframe out if you haven’t already.

          Getting close!

          Comment


            Originally posted by zwill23 View Post
            I don’t see a fuel filler hose in that smorgasbord of parts! I’d replace that while you have the subframe out if you haven’t already.

            Getting close!
            Oh it’s in there haha. It’s in the hutch thing.

            Comment

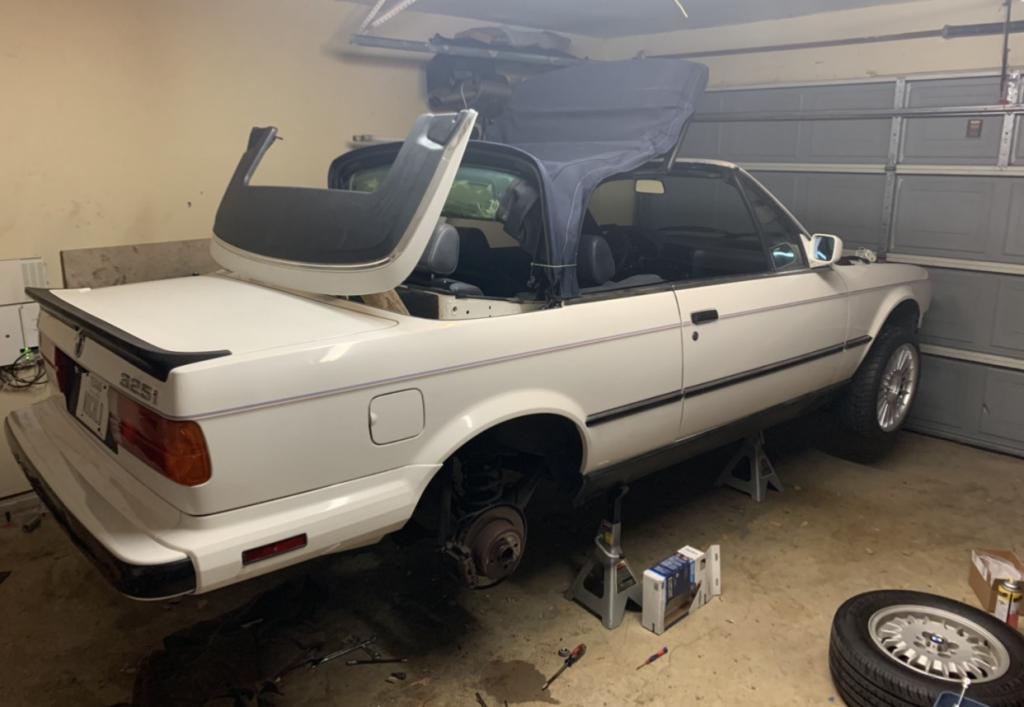

              Started the deconstruction of the rear. It’s been going pretty well until I got to the passenger side axle shaft. Won’t budge with heat, beating the crap out of it and other methods.

              Click image for larger version

Name:	6C5506DF-6C32-47F2-A4E4-C8F3EC2931C8.jpeg
Views:	182
Size:	65.5 KB
ID:	9901282
              Attached Files

              Comment

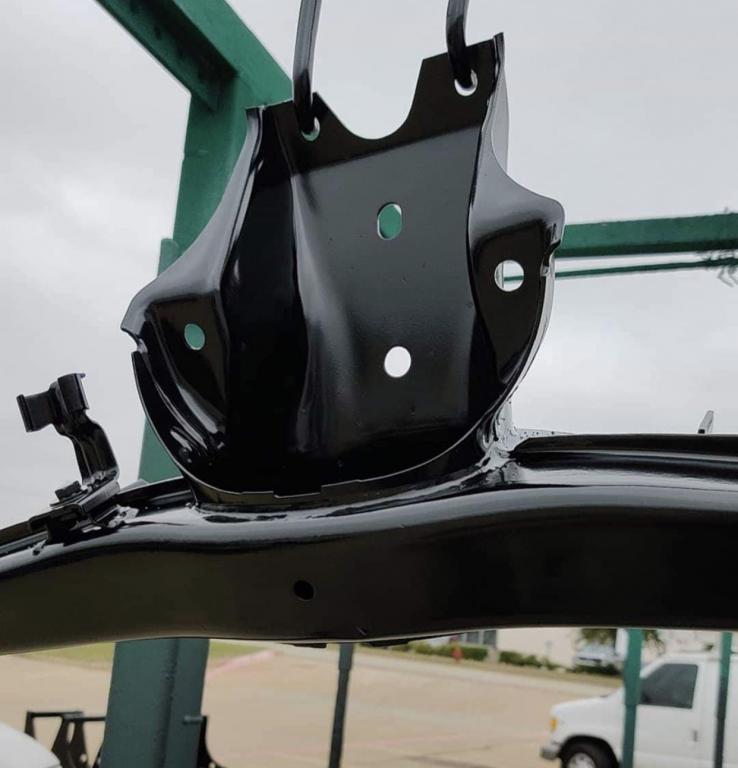

                Got the subframe powdered and will put it together this weekend. I have all new parts and am working on getting the original rear subframe out of the car. It’s getting there!

                Click image for larger version

Name:	925BEBC3-037C-4A75-99BC-F3B707E4E1BC.jpeg
Views:	177
Size:	47.0 KB
ID:	9902587

                Comment


                  The rear subframe looks incredible. Going to be a beauty to see anytime you're under the car - is it going to stay that "shiny"?
                  clutchCTRL!
                  Move with a purpose.
                  - 1991 325iX 4dr/5spd
                  - 1976 2002 SlickTop/2.7i M20/G260
                  - 2000 323i AT
                  2016 Mazda CX3 Sport AWD

                  Comment


                    Originally posted by kid325e View Post
                    The rear subframe looks incredible. Going to be a beauty to see anytime you're under the car - is it going to stay that "shiny"?
                    I hope it all stays shiny.

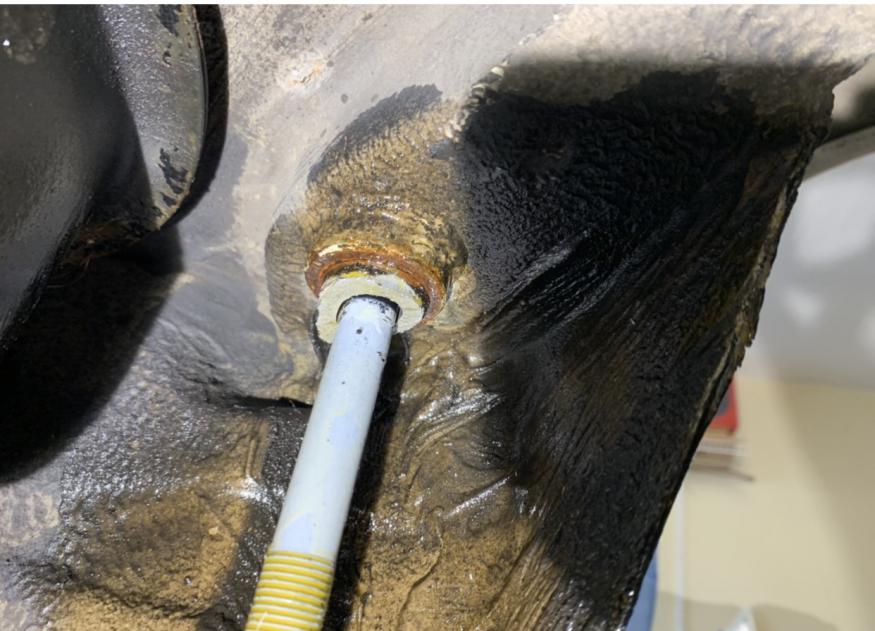

                    Got the original subframe out and it was a pain in the ass. Had a piece of the bushing break into the chassis so need to chisel it out.

                    Click image for larger version

Name:	392DDB50-A539-459D-BC85-64BC10B35216.jpeg
Views:	171
Size:	78.2 KB
ID:	9902918

                    Comment


                      All new hardware, paint, speed sensor for the diff. Have the wires for the rear all newly wrapped. Getting there! Subframe will go back in this weekend.

                      Click image for larger version

Name:	E477F13E-5B23-488C-B81C-4CF12435EC4B.jpeg
Views:	152
Size:	82.4 KB
ID:	9903145

                      Comment


                        Finally was able to continue to work on the car. Some progress this weekend.

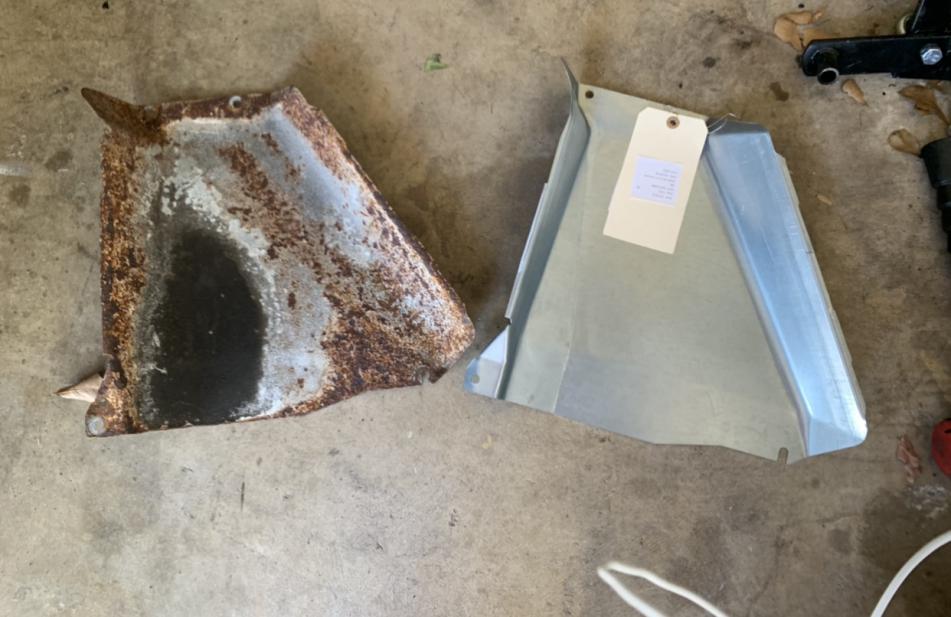

                        Got a new heat shield in to get rid of all the nasty rusted stuff.

                        Click image for larger version

Name:	457D7247-12D6-473B-8871-91591B8821E0.jpeg
Views:	149
Size:	74.9 KB
ID:	9904381

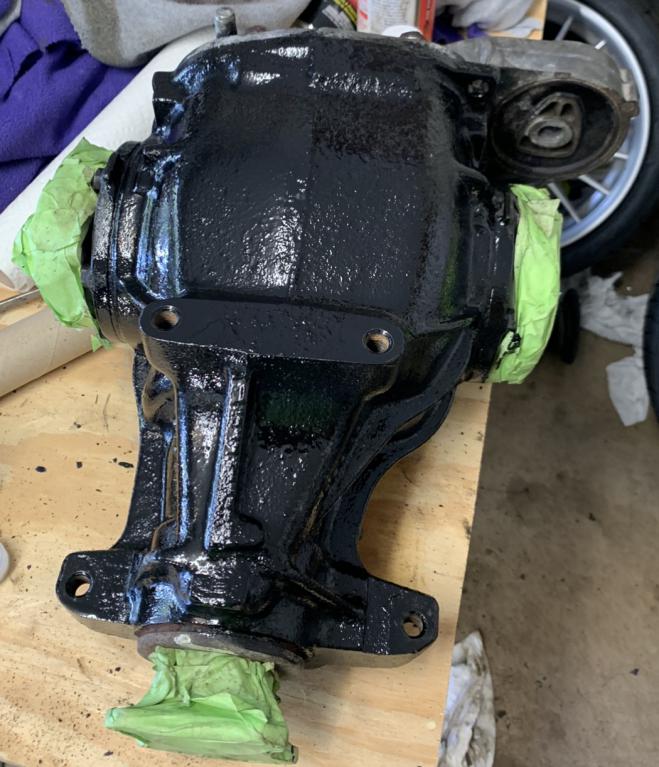

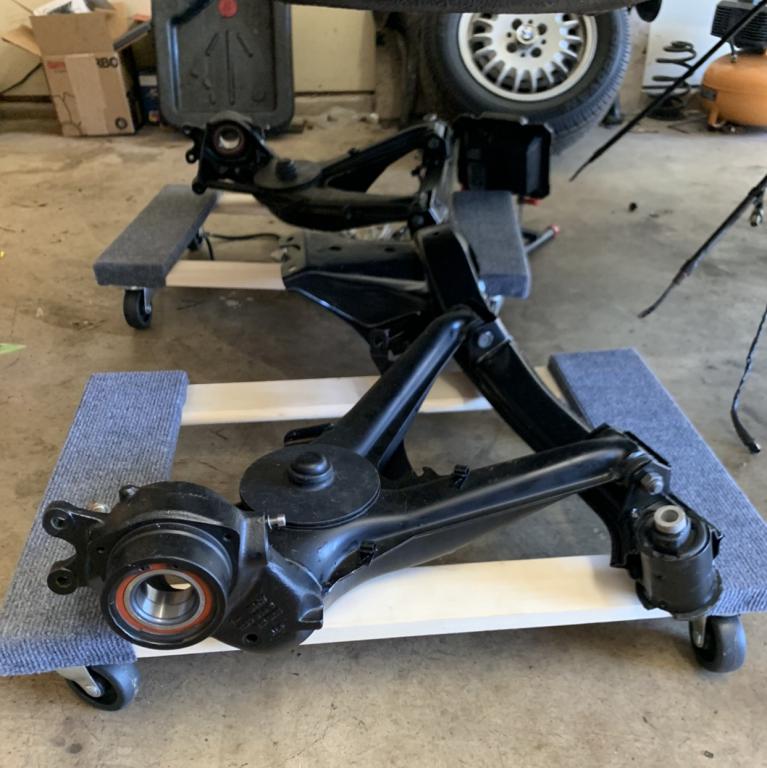

                        Got the diff done and the subframe ready to go back in. Didn’t because I need some new brake hard lines.

                        Click image for larger version

Name:	380A2CBF-5DB1-4CF8-A515-02411094FED5.jpeg
Views:	139
Size:	76.7 KB
ID:	9904382

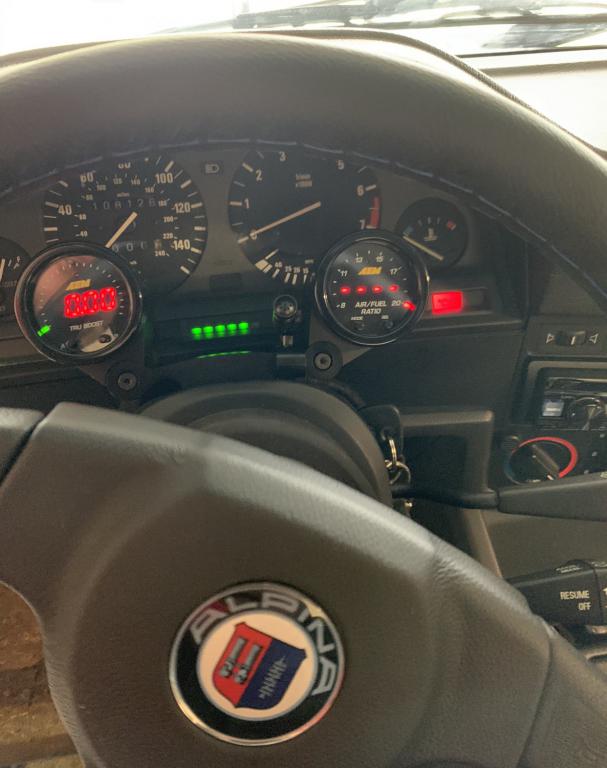

                        Had a mobile car audio guy come out and hooked up the gauges and the new head unit.

                        Click image for larger version

Name:	9BEF40FA-F995-4708-AEAC-20FD76C30F3D.jpeg
Views:	140
Size:	50.1 KB
ID:	9904383

                        Comment

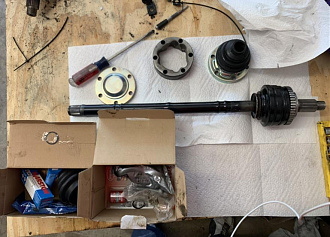

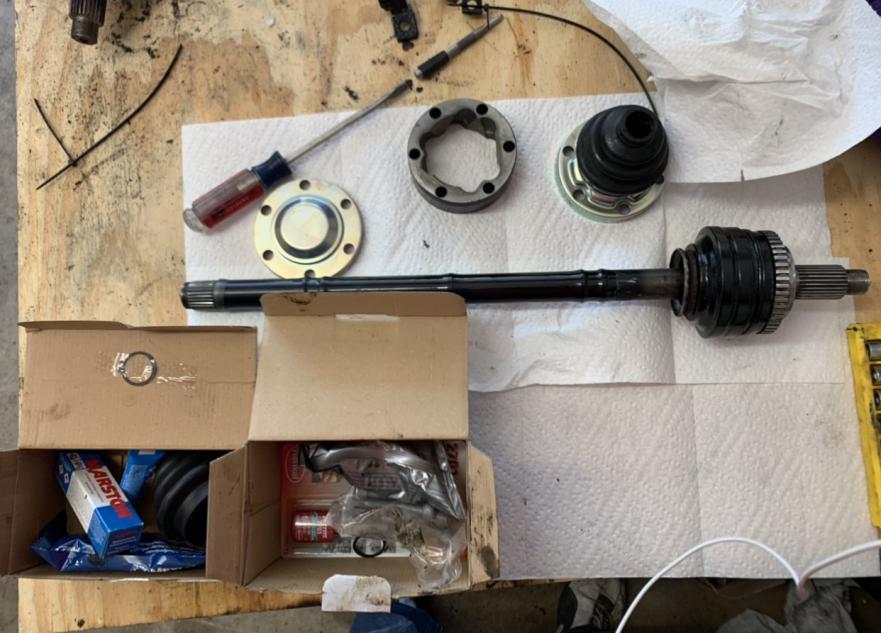

                          Rebuilding the axle shafts. Need to source one since I mushroomed the end of one of mine while removing it.

                          Click image for larger version

Name:	09ECC2A8-6A30-4A12-8BE0-D76C0B950B95.jpeg
Views:	147
Size:	80.6 KB
ID:	9904385

                          Comment

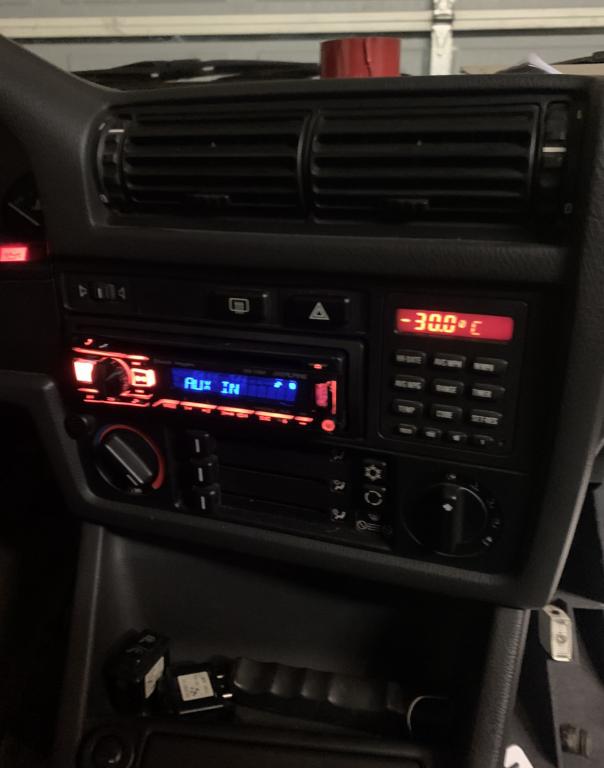

                            Alpine installed. Alpine has customized colors so I think I got it matching!

                            Click image for larger version

Name:	1F2F4C5C-A275-4F82-91A0-8AE8DE2E7E84.jpeg
Views:	134
Size:	38.1 KB
ID:	9905058

                            Comment


                              must be chilly there!

                              I have a kenwood head unit that has the same deal, the color is just about right, but I wish the lcd wasn't blue..
                              "In God we trust. All others must bring data." -W. E. Deming

                              /// 1987 325is /// Project Thread
                              Past: 87 is, 88ix, 88 i, 87 ic, 89 ix, 17 others.

                              Comment


                                Originally posted by Conrad311 View Post
                                must be chilly there!

                                I have a kenwood head unit that has the same deal, the color is just about right, but I wish the lcd wasn't blue..
                                Yes it is haha. Front end isn’t on yet so not temp sensor installed.
