R3Vlimited/BBQ2U PRO3 build/Journal

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    #16
    Nice work so far especially on that sunroof.

    Originally posted by Roysneon
    $5 shipped?
    Originally posted by MarkD
    You are a strange dude, I'n not answering any more posts from you.

    Comment


      #17
      Ditto on the sunroof that is superb work. One day.

      Comment


        #18
        how much were the new calipers?
        sigpic
        91' MtechII AW/SW BAR'd S52/SC

        Comment


          #19
          Originally posted by FunfGan View Post
          Awesome so far! also just gave me an idea for a cleaner looking sunroof delete... I assume that compound can be bought for noncommercial use?
          Yeah, I got mine from single source but any paint/bodyshop supplier can get it for you.

          Originally posted by KoKoSe7eN View Post
          how much were the new calipers?
          If I remember right, I think the rears were $37 dollars with a $20 core and the fronts were $40 with a $15 core.

          1987 PRO-3 car /1990 325is (2.7i Concours)

          Comment


            #20
            Front suspension

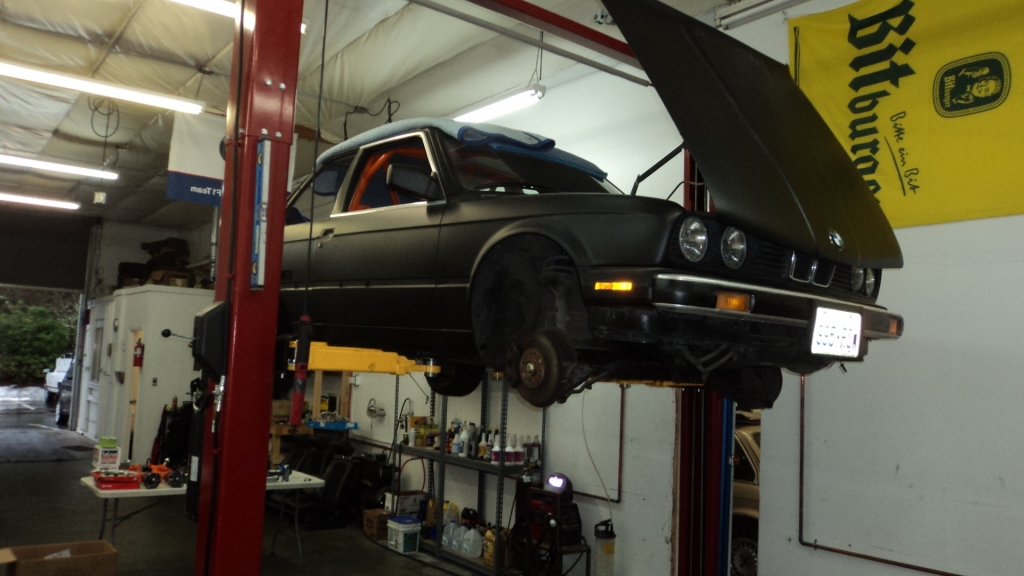

            reassembled and up on the lift

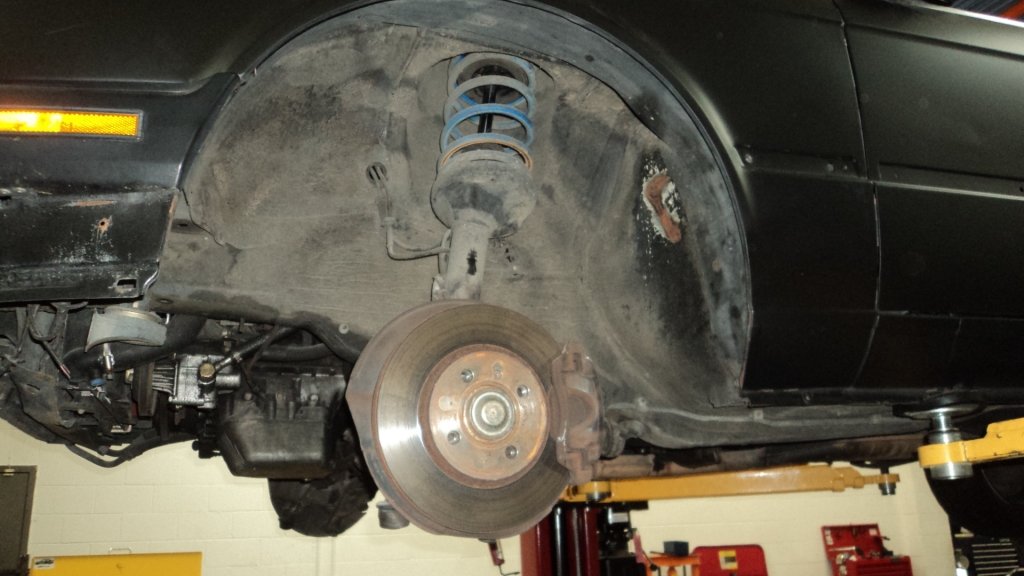

            before shot


            Front goodies


            Dirty


            Clean and freshly undercoated

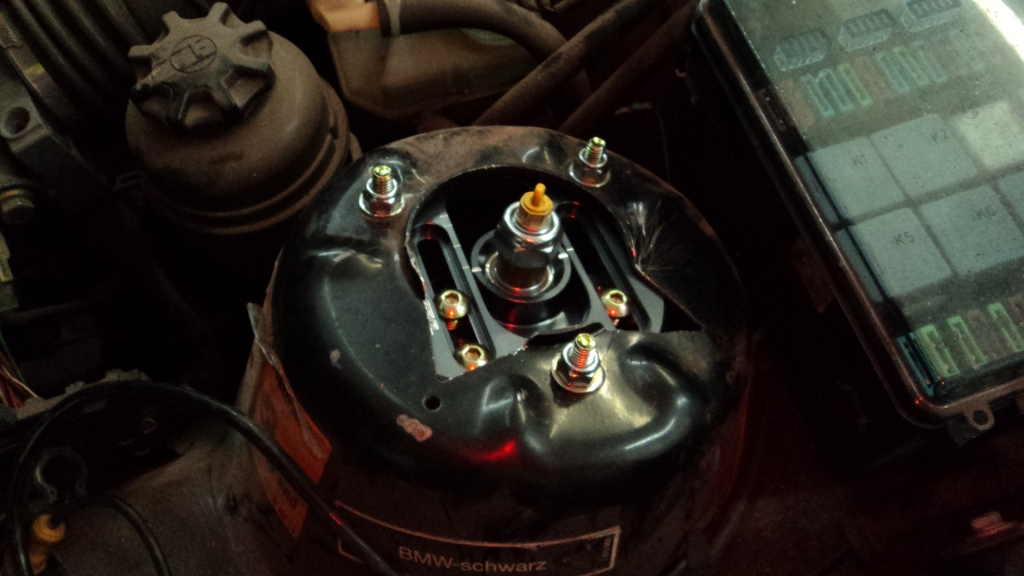

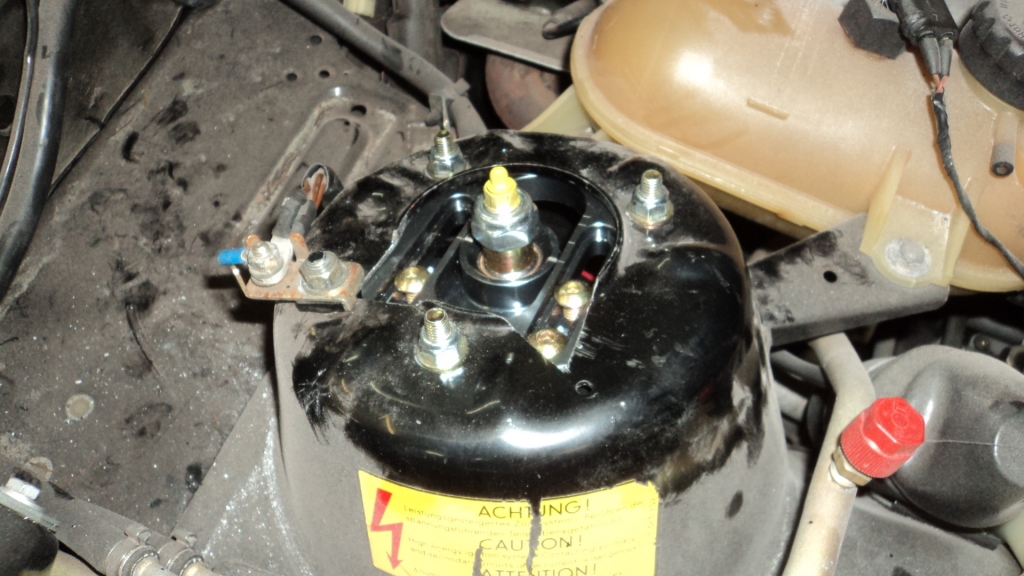

            Cut for the camber plate


            Girlfriend filling down the sharp edges

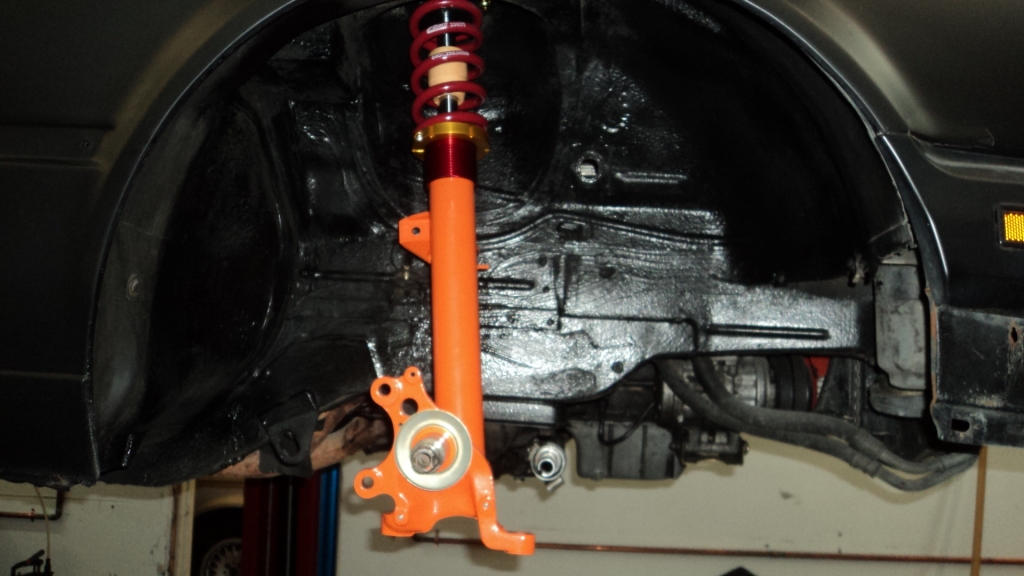

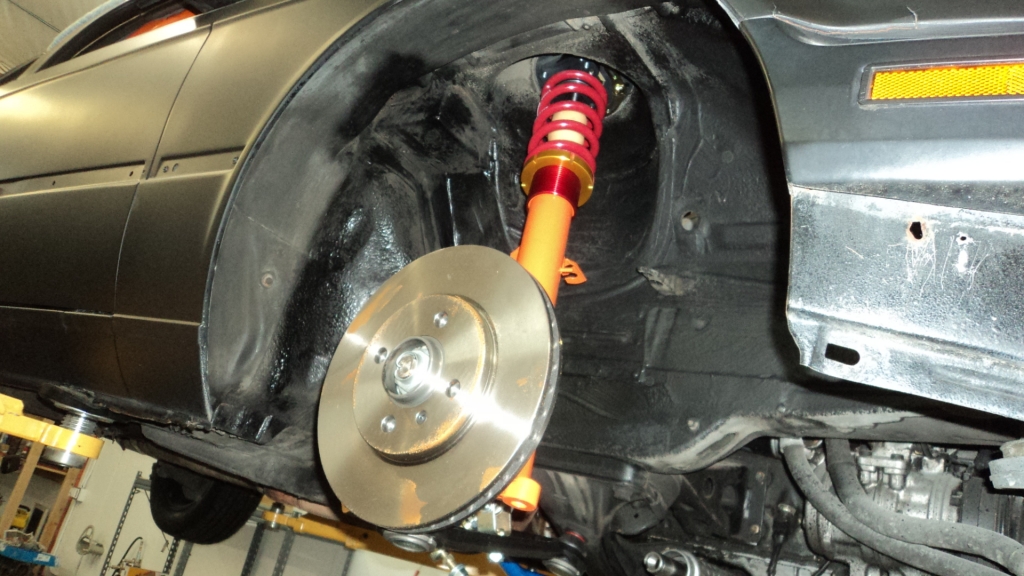

            Strut assemblies installed

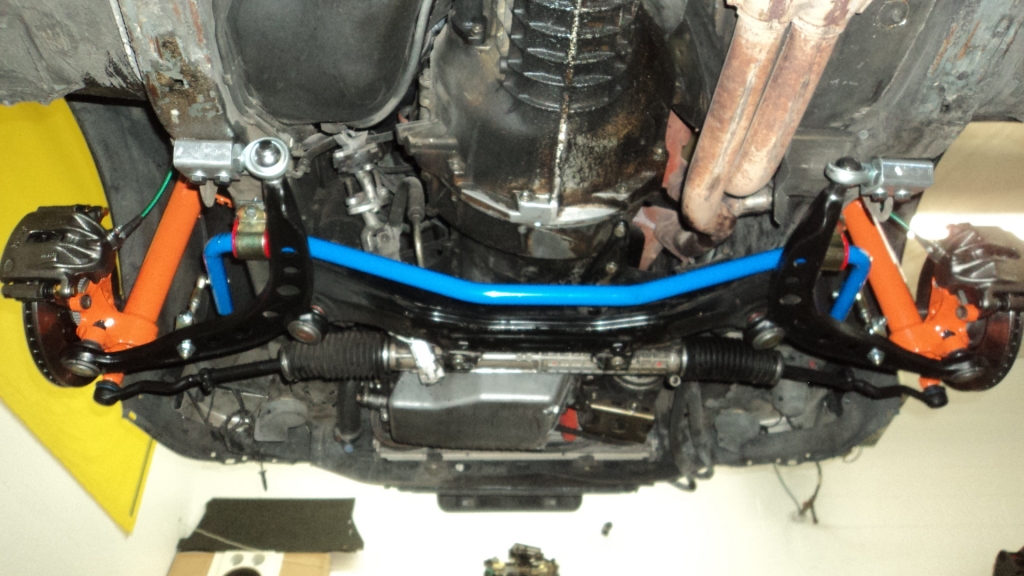

            Sway in, control arms in.


            AKG adjustable caster CAB


            Getting it done, my Dad looking at the progress


            Bearing and hub installed

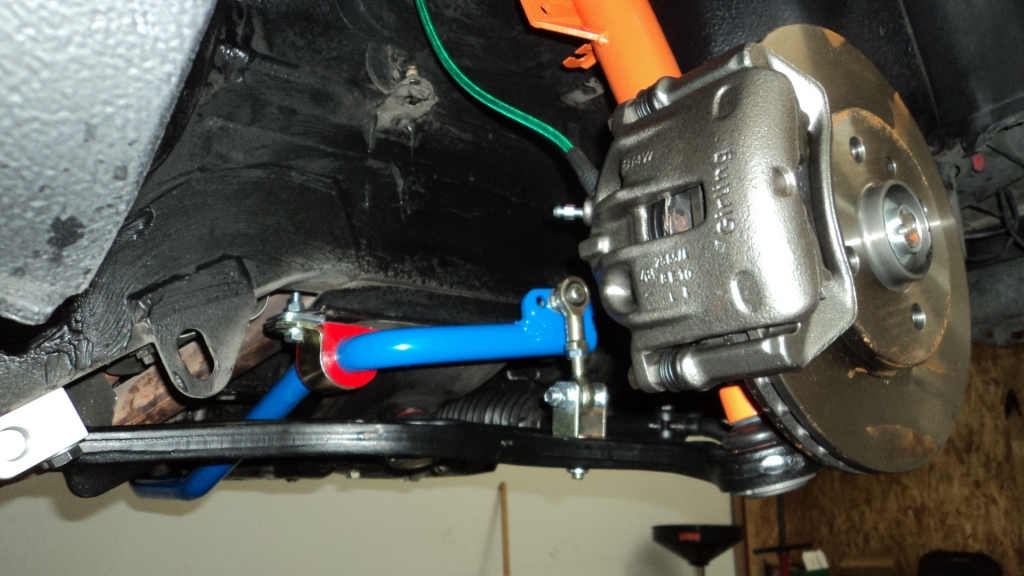

            Brakes in, Sway hooked up


            Tie-rods in


            Fronts done.

            Rear suspension

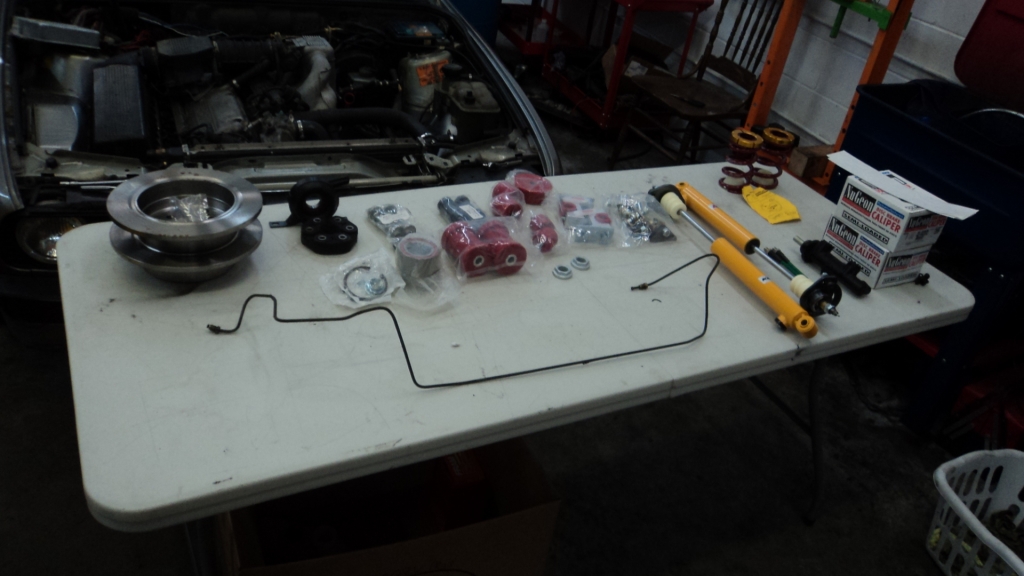

            getting some of the parts ready

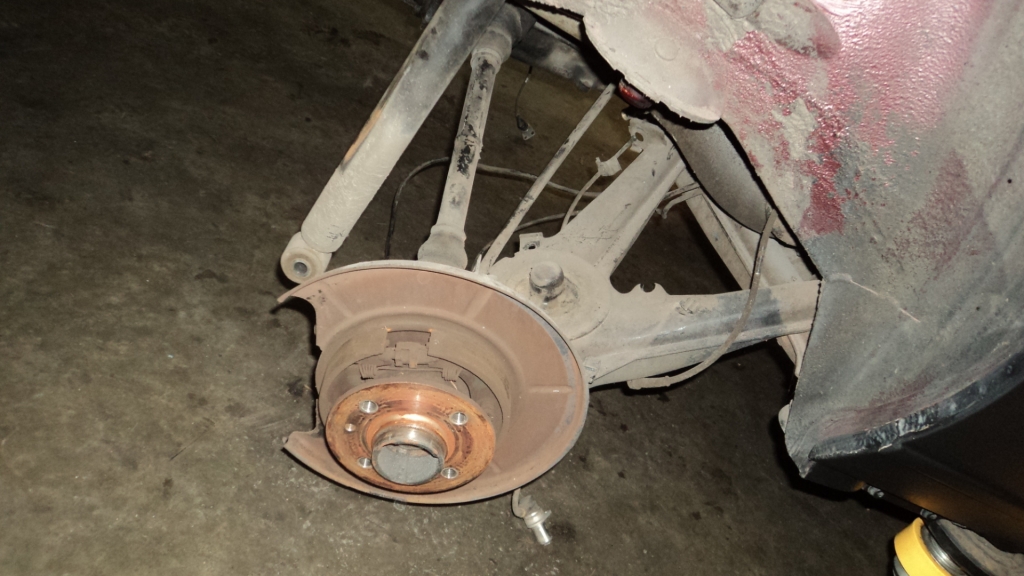

            Disassembling


            Subframe out


            Chassis before


            bye bye diff, it went to James' car

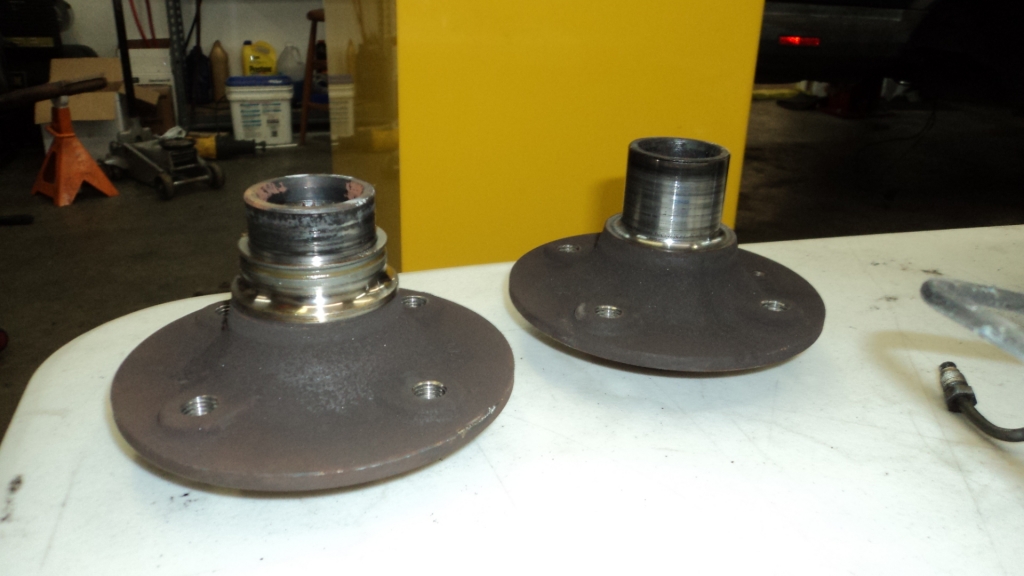

            Pulled apart subframe and pulled hubs from bearings


            Damn. Well one inner race stuck on is better than two.

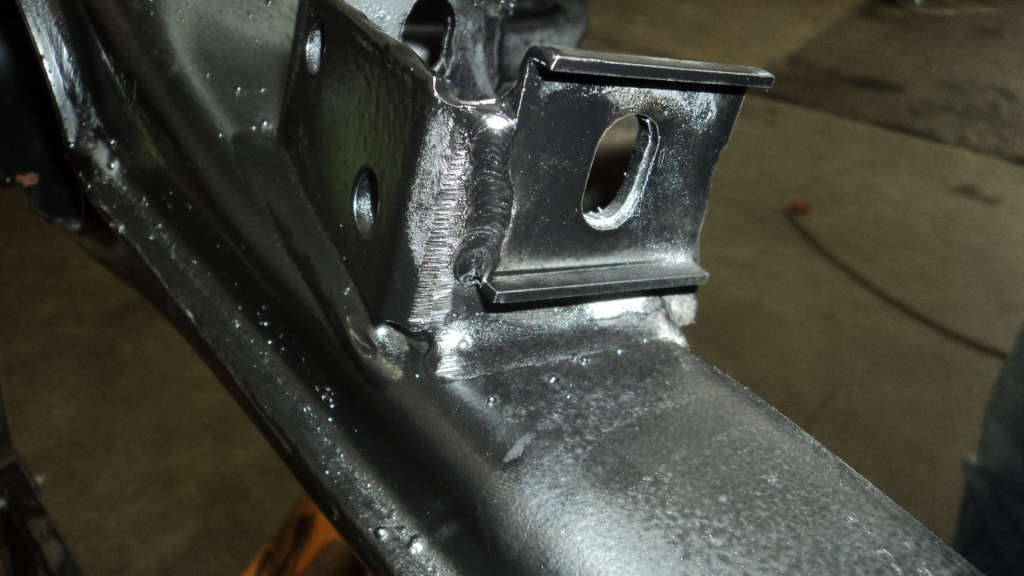

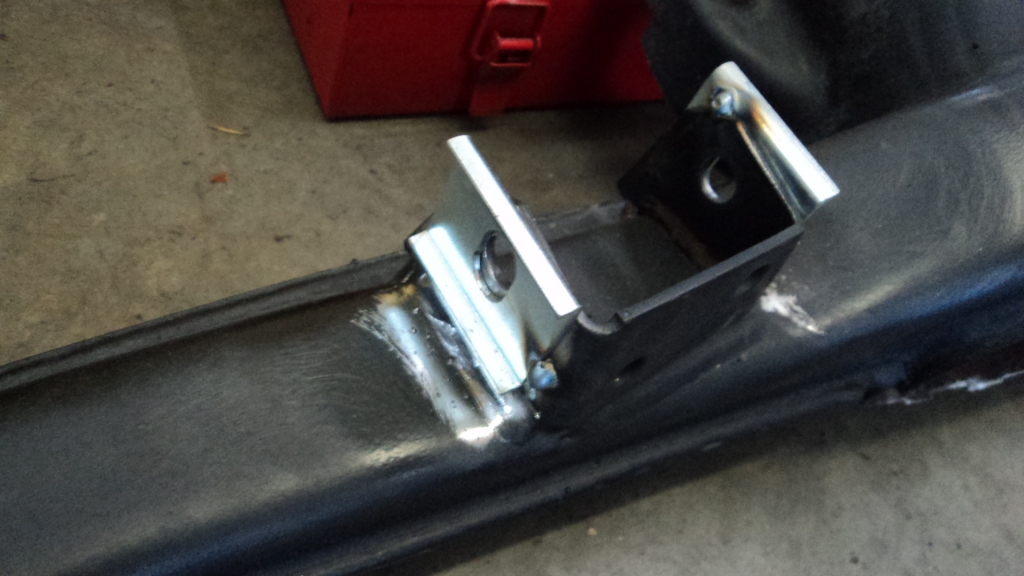

            Pressure washed the subframe and tacked on the toe adjustment plates


            Tacked up the camber plates


            Welded, painted, and ground out camber plate


            Toe plates done.


            This was my work bench for welding and painting


            Trailing arms clean painted and ready for reassembly

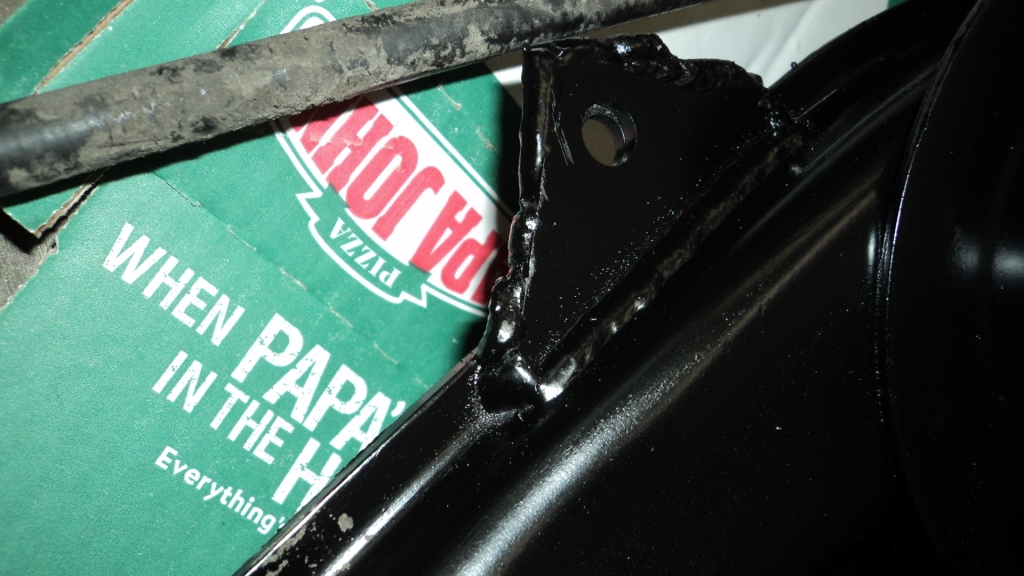

            Re-enforced sway bar mount.


            Wheel bearing time


            Bearings in


            Hubs pressed back in

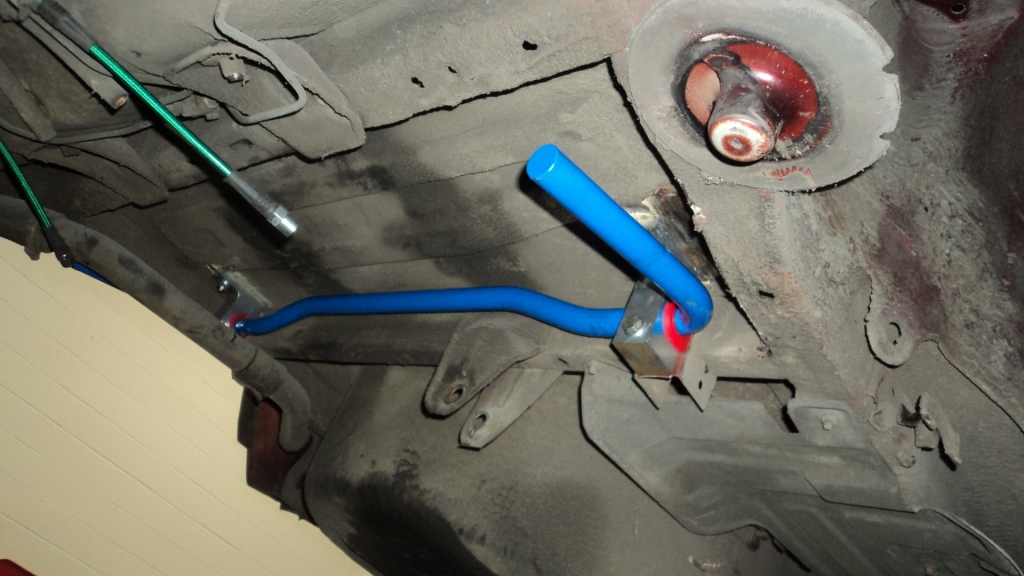

            Got the sway fitted in, then took it out to undercoat.


            Reid welding up the diff mounts to re-enforce them.




            Undercoating

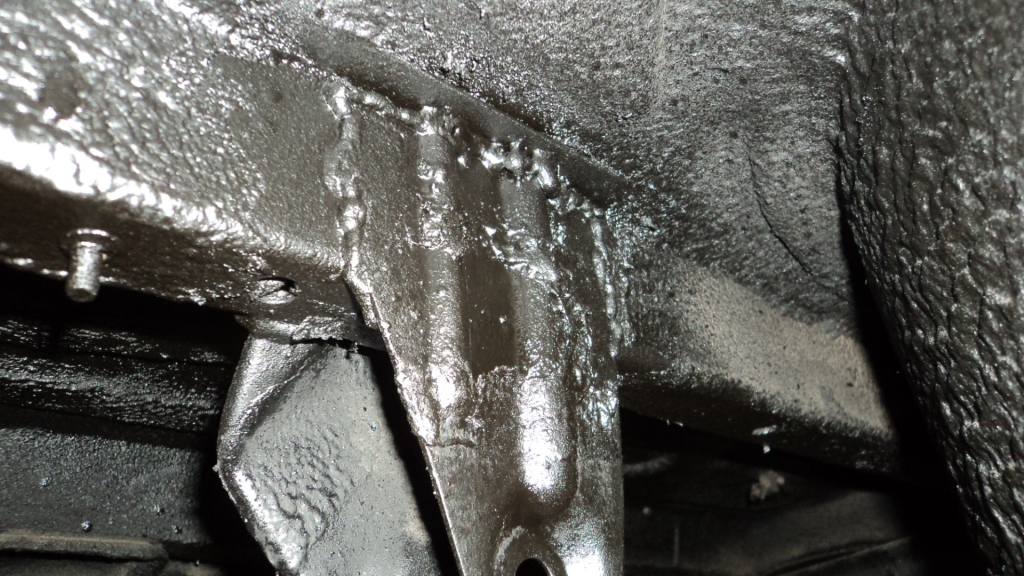

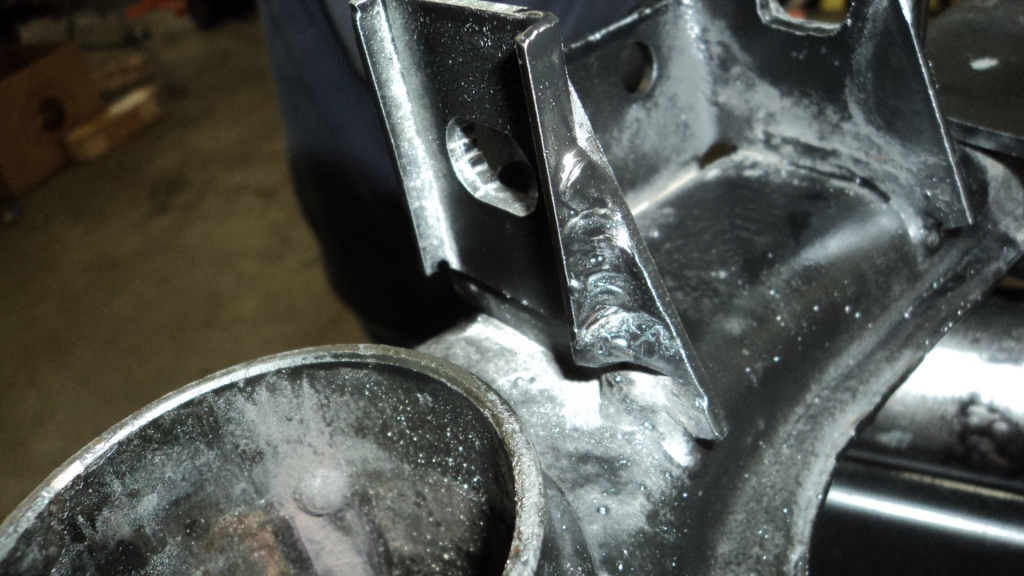

            Diff mount toughened up


            Fitting the subframe, I had to see how much of the bushings to shave off. It need to be done to get to the nuts on the outside of the toe adjustment plates.


            Assembled and ready to go in.




            In, and sway hooked up.

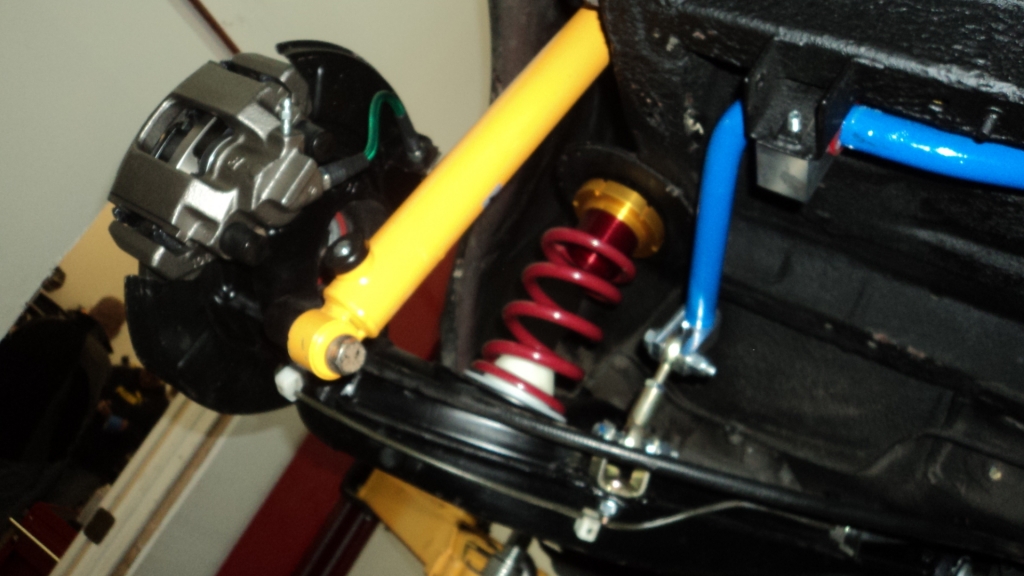

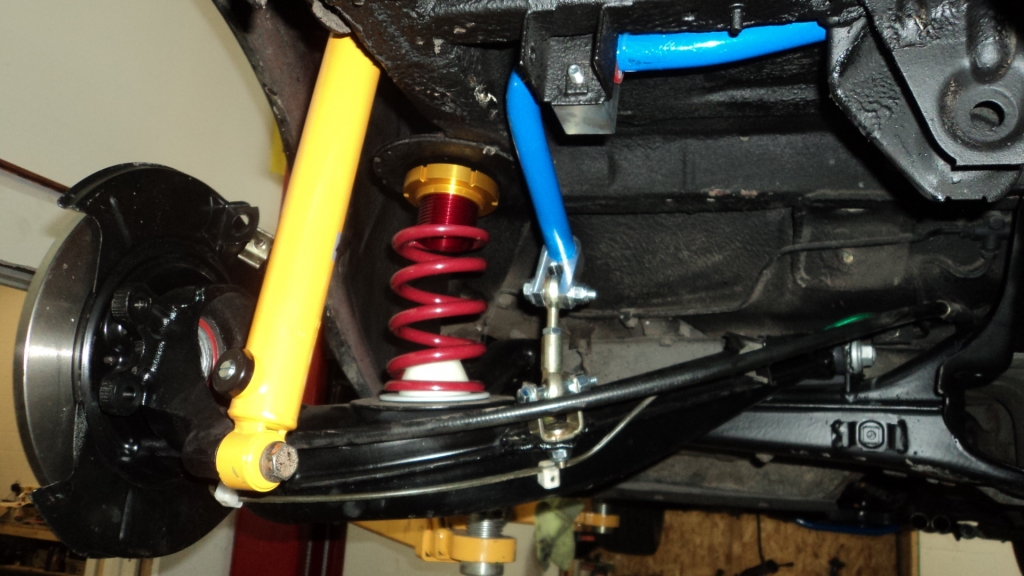

            Shocks and springs installed


            Assembled, time to do the brakes

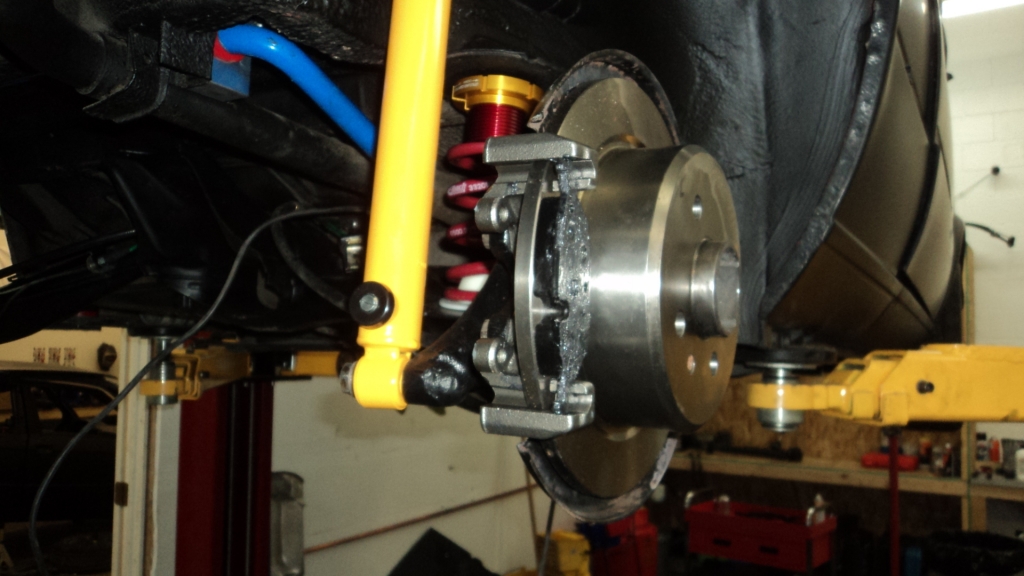

            Brakes! Hooray!


            Stance be damned! this car does real work!
            Last edited by Jparkr; 03-06-2012, 08:15 PM.

            1987 PRO-3 car /1990 325is (2.7i Concours)

            Comment


              #21
              So proper!

              Comment


                #22
                Can't wait to see this complete!
                Continuous For Sale Thread
                323i s50

                Comment


                  #23
                  Looking nice! I would be concerned about cutting the strut towers. I guess you don't see it as a source of more flex/weakness?
                  S50'd

                  Originally posted by TDE30
                  What is this faggy shit I have happened upon?
                  Originally posted by slammin.e28
                  I can always live in a M3. Can't M3 a house.

                  Comment


                    #24
                    Originally posted by Lof8 View Post
                    Looking nice! I would be concerned about cutting the strut towers. I guess you don't see it as a source of more flex/weakness?
                    No, It may be a tad bit weaker when broke down on paper, but it is unnoticeable and completely safe. I have a sparco front strut bar to install as well.

                    1987 PRO-3 car /1990 325is (2.7i Concours)

                    Comment


                      #25
                      do you think you'll be running this year? so many PRO3 builds happening this year. i hope to be out on the track, but Im building a Club Rabbit car. It fits in my budget and i have a shit-ton of spare vw parts so it made more sense than a PRO3. hope to see the BBQ2U out there
                      Simon
                      Current Car:
                      -2000 330i Estate, the dad-mobile
                      -1975 Alfa Romeo Giulia Nuova Super 1300, the never-ending name & project



                      Make R3V Great Again -2020

                      Comment


                        #26
                        Parker... when can I come down and help out? I feel like I've missed far too much already!
                        Need a part? PM me.

                        Get your Bass on. Luke's r3v Boxes are here: http://www.r3vlimited.com/board/showthread.php?t=198123

                        Comment


                          #27
                          Nice job Parker, looking great!
                          Kevin Doyle
                          KD Motorsports
                          KD.Motorsports@yahoo.com
                          9175 Willows Rd NE
                          Redmond, WA 98052
                          (425)556-9076

                          Comment


                            #28
                            Wow. That looks like a ton of fun man! That cage is beautiful!!

                            I've never really delved into the differences between PRO3 and SpecE30 but boy oh boy, seeing this I can definitely see that you guys can run nicer suspension setups.
                            IG: deniso_nsi Leave me feedback here

                            Comment


                              #29
                              Originally posted by Jparkr View Post
                              Yeah, I got mine from single source but any paint/bodyshop supplier can get it for you.
                              Awesome, thanks for the info. Good luck!


                              Go here be happy!

                              Ratchet Garage e30 V8 build.

                              Comment


                                #30
                                I like The Color of the cage Too
                                http://youtu.be/aOhYdZfY9QY
                                https://vimeo.com/40801938
