    #61
    how have i missed this thread!?


    i love what you're doing. please continue.

    Comment


      #62
      Originally posted by evandael View Post
      how have i missed this thread!?


      i love what you're doing. please continue.
      Thanks! I do what I can, i'm only a 20 year old college student haha.


      Started on the exhaust last night and finished it this afternoon. 1 V band after the first muffler and flanges on the 2 pipes near the Y Pipe.





      Ebay Headers -> OBD1 Y Collector -> 2.5" SS -> Borla XS Muffler -> Vibrant Muffler

      Installed





      I will get pictures from the rear once I get it rolled out of the garage. The exhaust is much quieter than I thought it would be. I'm very surprised, i'll get some videos soon.

      Spent the time after that bleeding the brakes and clutch. Took about 2 hours because one of the bleeder screws was rusted in. Then it took a while to bleed the clutch but it all works now! Hopefully it will be on wheels tomorrow, if I can get the stupid cooling system to bleed itself.


      s50 86 325e Project

      S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

      Feedback Thread

      Comment


        #63


        s50 86 325e Project

        S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

        Feedback Thread

        Comment


          #64



          GF had a bit of a derpy face going in so I blurred it lol. She'd kill me if I didn't.



          Ghetto Fab :)



          I know it needs to be washed and painted but it felt so amazing to drive it. Still waiting on the bolts from the plating place to get here so I can put the wheels together, hopefully the get here on time. :/


          s50 86 325e Project

          S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

          Feedback Thread

          Comment


            #65
            I still need to rotate the left light just a little bit to make it perfectly straight but I couldn't find my stupid stubby phillips screwdriver since my ABS pump is in the way.





            Also wired up the wideband today and put some 93 in her after basically running out of gas haha.



            Things accomplished in the last two days
            -Installed battery
            -Put wheels on it
            -Power steering
            -Reverse Lights (Took almost 3 hours! One of the wires had broken/torn but the casing somehow didn't)
            -Wideband Wired up
            -o2 sensor rewired and installed
            -Bosh Icon Wiper Blades installed
            -Bled the cooling system
            -Drove it twice (:))

            All that's left before inspection is installing the back bumper and the cover for the heater core. I also need to put the hood back on and fix the temperature gauge. My Innovate gauge works fine, but I'd like to have the stock one working too. Do I need to swap out the s50's coolant temp gauge with the m20 one? I might have mixed up the wires on the harness when plugging them in.


            s50 86 325e Project

            S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

            Feedback Thread

            Comment


              #66
              Here's a couple quick pictures. I'll be out of town until friday for work but here is a few more pictures.







              I was scratching my nose, I think haha. I put ~40 miles on her tonight after it passed inspection and no problems!

              Since I will be out of town my dad will put on the skid plate for me.


              s50 86 325e Project

              S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

              Feedback Thread

              Comment


                #67
                Didn't over heat whatsoever. I didn't get the wheels mounted until 7pm friday night, then I lowered the car and finished adjusting it at about 10pm, so I didn't drive on the wheels/suspension setup till the morning of the event haha. I didn't have time to put the skid plate on either but luckily it didn't crack. I made it to Bimmerfest and back without any problems ~400 miles other than the rears rubbing the fender.


                DSC_0102 by yahh-, on Flickr

                DSC_0111 by yahh-, on Flickr

                DSC_0001 by yahh-, on Flickr

                BBS RS003 16x8.5 et3 square setup wrapped in 205-45-16 AS-03's on BC Coils.


                s50 86 325e Project

                S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                Feedback Thread

                Comment


                  #68
                  Love what you've done so far the car looks great with the wheels on there.

                  Comment


                    #69
                    This post is a status update of the car.

                    Mod List:

                    Exterior:
                    Euro Grills
                    Front Late Model Bumper
                    Front Late Model Valance
                    "i" Lip
                    Late Model Foglights

                    Engine:
                    Condor Speed Shop 24v Swap Motor + Tranny Mounts
                    S50 Motor and a ZF Transmission from a 95 M3
                    e34 Throttle Cable
                    e34 Oil Pan
                    e34 Dipstick / Pickup Tube
                    Mishimoto Intake Boot
                    SiliconeIntakes Intake Filter
                    2.93S LSD Differential
                    OE BMW Differential Axle Seals
                    OE BMW Drain + Fill Plug Gaskets
                    OE BMW Differential Gasket
                    Rebuilt Axles with GKN Boots
                    SPAL Fan + Radiator Gasket + Mounts
                    Mishimito Z3M S54 Radiator
                    UUC Stainless Steel Clutch Line
                    UUC Magnetic Drain Plug
                    Deka ETX20L Small Battery
                    XS Power Brass SAE Posts
                    "REDE30" 24v Skid Plate - Not installed
                    Hartge front Strut Bar - Not installed
                    Garagastic Delrin Rear + Shifter Bushings
                    OE BMW Shifter Cup
                    OE BMW Shifter Carrier
                    ECS Aluminum Water Pump Pulley
                    Pelican 80* Fan Switch
                    Bimmerworld 80* Thermostat
                    Meyle HD Driveshaft Center Bushing
                    Redline D4 ATF Transmission fluid
                    Redline 75-90 Differential Fluid

                    Exhaust:

                    Ebay "Supersprint" Exhaust manifolds
                    OBD1 Y Pipe
                    6" Stainless Flex Pipe
                    Borla XS Muffler
                    2.5" Stainless Steel Piping
                    Vibrant Dual Exit Rear Muffler
                    2.5" Godspeed Vband


                    Brakes:

                    944 Porsche Booster
                    UUC Stainless Steel Brake Lines
                    Centric Double Slotted rotors (Front+Rear)
                    Hawk HPS Pads (Front+Rear)
                    Rebuilt Rear Calipers
                    ATE Super Blue Brake Fluid
                    Febi E-Brake shoes
                    OE BMW E-Brake Hardware


                    Supension/Steering:

                    BC Coilovers (10k Front 14k Rear)
                    Revshift 95A "Red" 12mm Reaw Subframe Riser Kit
                    Revshift 95A "Red" M3 Offset Control Arm Bushings
                    Revshift 95A "Red" Rear Trailing Arm Bushings
                    Revshift 95A "Red" Differential Bushing
                    E30Tech "Dungeon Motorsports" Toe/Camber rear Subframe Kit
                    E36 Steering Rack
                    E30Tech Rack Swap Kit
                    "White325is" Rear Strut Bar
                    Lemforder Lower Control Arms
                    FAG Wheel Bearings
                    OE BMW Wheel Bearing Clips

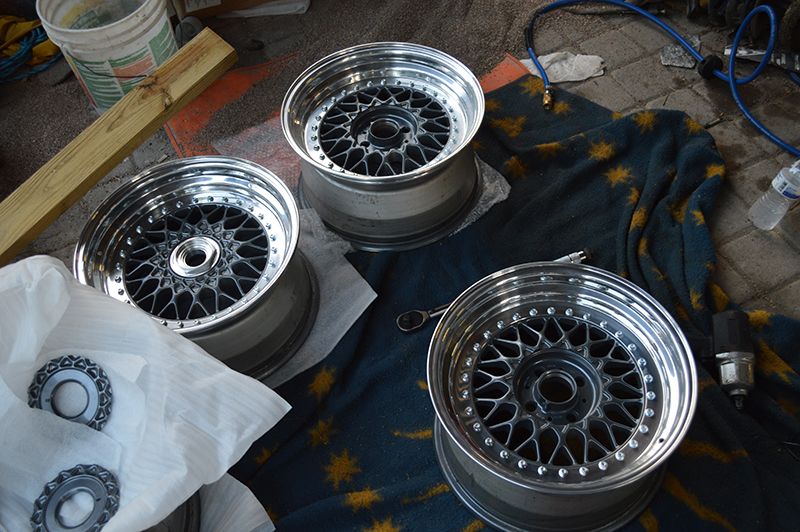

                    BBS RS003 16x8.5 ET3
                    -4x 2.5 Felgenfuchs Stepped Lips
                    -Gunmetal Powdercoated Centers
                    -Elefant Supply 1/4 Height Center Caps
                    -BBS 70mm Center Caps
                    -Re-coated BBS Bolts (Cobalt Zinc)
                    205/45/16 General GMAXX AS-03

                    Exterior/Interior/Electronics

                    Morimoto H1 retrofitted Depo Smileys
                    Morimoto 3FIVE Ballasts
                    Morimoto XB35 Bulbs
                    Euwerks Gauge Pod
                    Innovate LC-1 w/ XD-16 Wideband
                    Innovate Oil Pressure Gauge
                    Holden Oil Sensor Adapter
                    Innovate Boost Gauge
                    Innovate Coolant Temp Gauge
                    Mishimoto Coolant Temp Housing
                    Nokya 2500 fog light bulbs

                    Front:



                    Rear:



                    Interior:



                    Suspension/Wheels:








                    Engine Bay:





                    I'm Sure I missed some things that I've replaced but i'll edit it in when I go through my spreadsheet.

                    Still Need:
                    Crack Free Dash
                    Install Skid Plate
                    Install GE Keyless Entry
                    Install Rear Plastic Bumper
                    Re-key The locks to match
                    Front Seats need to be recovered
                    Paint


                    s50 86 325e Project

                    S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                    Feedback Thread

                    Comment


                      #70
                      I've put about 600 miles on it now since the swap and I love it more and more everyday. The 2.93 feels perfect with the zf/s50.


                      s50 86 325e Project

                      S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                      Feedback Thread

                      Comment


                        #71
                        this build is so awesome. kind of inspirational. haha.
                        sigpic

                        Comment


                          #72
                          I love this build! Keep me updated if you ever sell those wheels ;)


                          Comment


                            #73
                            Same center muffler I want to go put in. I have just a Vibrant stealth at the rear and it is obnoxiously loud. I have been saying I was going to put another one in for the past ~year....lol. Looks like fun man.

                            Comment


                              #74
                              Originally posted by florida_dirt View Post
                              this build is so awesome. kind of inspirational. haha.
                              Thanks for the kind words!

                              Originally posted by lambo View Post
                              I love this build! Keep me updated if you ever sell those wheels ;)
                              They're always for sale :)

                              Originally posted by DREWHALL View Post
                              Same center muffler I want to go put in. I have just a Vibrant stealth at the rear and it is obnoxiously loud. I have been saying I was going to put another one in for the past ~year....lol. Looks like fun man.
                              I'm glad I did. It's pretty throaty when stepped on but it's not bad with normal daily driving.




                              Everything is still good other than a stupid power steering leak that I need to fix.

                              Finally found a set of red/gold BBS centers for a reasonably price and put them on today. Also since the last set of pictures I've got the trim around the windows back on and real plates.



                              DSC_0001 by yahh-, on Flickr

                              DSC_0002 by yahh-, on Flickr

                              DSC_0003 by yahh-, on Flickr


                              New BBS Caps 4 by yahh-, on Flickr

                              New BBS Caps 2 by yahh-, on Flickr

                              New BBS Caps 3 by yahh-, on Flickr


                              Think i'm going to swing by the yard one of these days and grab a set of focus skirts and a late model rear apron.


                              s50 86 325e Project

                              S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                              Feedback Thread

                              Comment


                                #75

                                DSC_0027 by yahh-, on Flickr

                                DSC_0014 by yahh-, on Flickr

                                DSC_0019 by yahh-, on Flickr

                                DSC_0023 by yahh-, on Flickr


                                s50 86 325e Project

                                S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit
