wow looks great
-
-
Nice work!1986 911 Supercharged Frakenstrat/Stripped
1987 325is Delphin/Black (Olga)
1988 M3 Zinno/Natur (Elsa)
Manual or STFU
E30 Chapter of BMW Car Club of America
E30 Oktoberfest 2017Comment
-
Amazing work - can't wait to see your progress.Comment
-
I know it's been a while since I've posted any updates, that's because there hasn't been many...

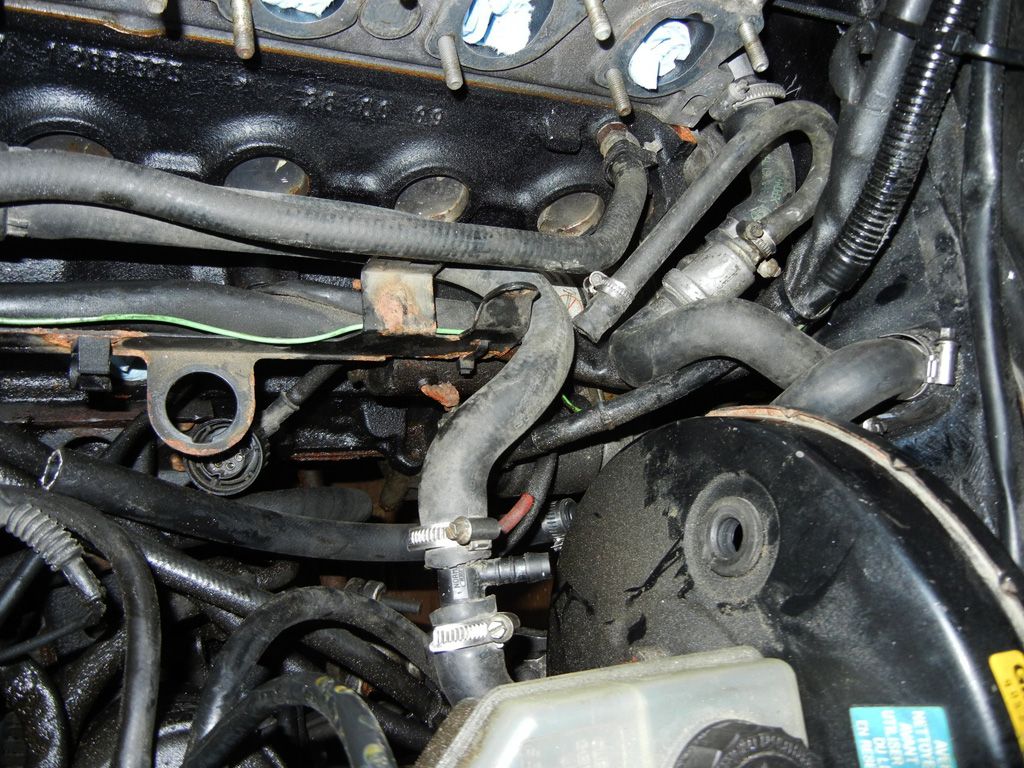

I was able to squeeze a hose behind the booster, it involved cutting the hard line from the heatercore back a bit. There's not much for the hose clamp to squeeze on, but it hasn't been leaking so it should be good...

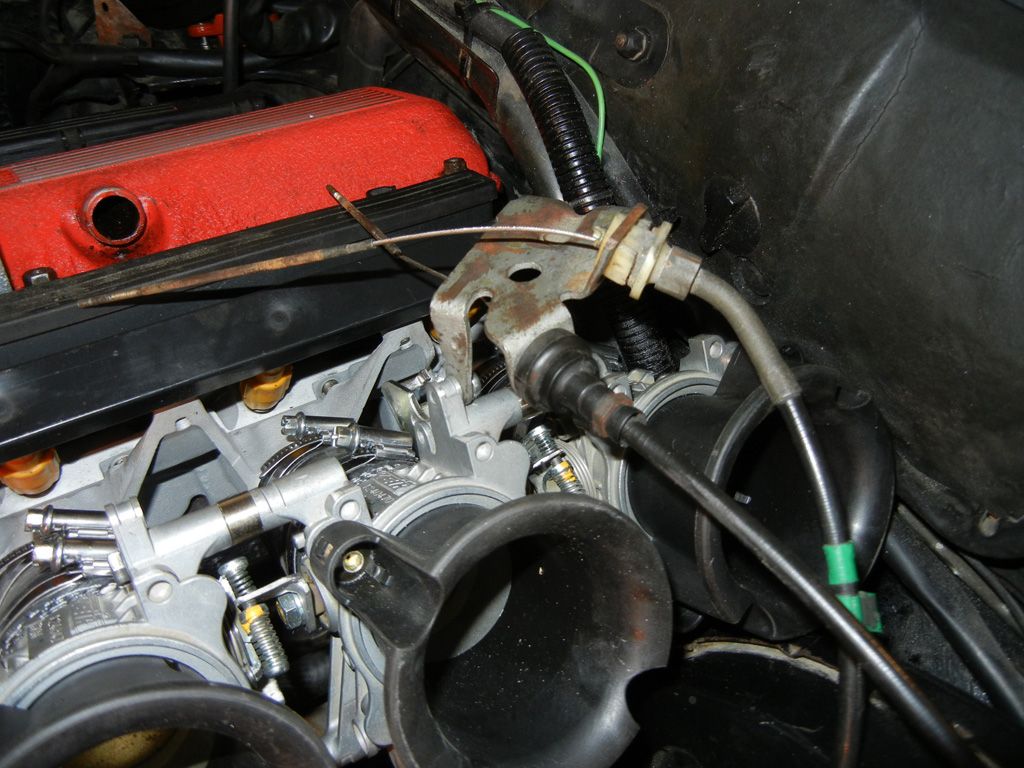

I also figured out that the throttle cables will roughly reach where the bracket for the throttle body cable screws on, so I'll be able to modify that bracket to hold onto the throttle and cruise cables....
I'm still in the process of designing the mechanism I'm going to use to join the cables.
And finally, the manifold has been fully welded...
Comment
-
Looks good so far!
318iS Track Rat :nice: www.drive4corners.com
'86 325iX 3.1 Stroker Turbo '86 S38B36 325
No one makes this car anymore. The government won't allow them, normal people won't buy them. So it's up to us: the freaks, the weirdos, the informed. To buy them, to appreciate them, and most importantly, to drive them.Comment
-
1+Originally posted by downforce22 View Post~ Puch Cafe. ~ Do business? feedback ~ Check out my leather company ~
Instagram: @BWeissLeather
Current cars:
~ '87 325 M30B35 swap
~ '87 535
~ 01 540 Msport 6spd
~ '06 X5 4.8isComment
-
-
Any more on this? Nice project.
I've had 2 sets of Triump triple throttles sitting in a box for 2 years now waiting to do this same thing.
Also to get the best from the ITB's I would recommend moving them much closer to the head by milling the flange almost all the way down. Having very little air between the throttle blade and the back of the valves is what will give awesome response. Maybe see about a DCOE manifold for the M20 and mill that way down and just use the Triumph injector bungs.Comment
-
They aren't quite done yet.
I have made a few revisions to my throttle linkage design and will be starting to build it as soon as I collect a few more pieces. I need to go to some local bike or small engine shops to see if I can get some cable adjusters and ferrules to customize my cables.
And I still need to get to the dyno to do a baseline before I swap over.
Unfortunately I've got too many other things on the go currently. It's been hard to find any time to work on this project.
The manifold is more or less milled as far down as it can be while retaining the fuel rail mounting tabs and the throttle bodies are as close to the head as they can be as there's no way to make those silicone reducers any shorter. The only way to move the throttles closer to the head would be to have a custom flange plate CNC machined to match up with the couplers that are used on the bike as they are much shorter...
But that's a lot of time and money just to move the throttle bodies an inch or so closer.Comment
-
If I was going to bimmercruise I'd definitely be trying to have them done. Unfortunately I'm going to have to miss it this year, I'm pretty bummed out about it because the DDT autoslaloms are the best events of the year.Originally posted by craz azn View PostComment
-
Great thread. I was wondering what information you found on intake runner length. How long will yours be?
Keep up the good work.Comment
-
There's a lot of information out there regarding runner size and length. To start I'm just going to work with the what I've got. Then I'd like to make up some custom v-stacks and play with some different lengths.Originally posted by 6cyl View PostComment
-
