E30 #2: 1990 Delphin: RHD ITB M20

[bradnic]

More details please Keith. Always looking for FI friendly plenum info :-)

[whodwho]

I don't see them but you should have a set of these as well?

Nope, for this setup you cut the trumpet down to 3", which still fits within the box. See the install pdf link above, it gives you a good idea of what's involved with the whole setup.

PS - Taking a page out of your book and polishing the aluminum back plate this go around . You thinking about getting a box?

ahh, that makes sense

Man I spent waaay too much time on all that 8^)

Probably not, it's not boost friendly so looking to use this one



I

[digger]

what about the cone filter the same spot as Miller PSIK?

[318aye]

Took some measurements this evening. Not a whole ton of room for the filter/intake setup. I really don't want to slap a cone filter on a call it done. I also would like to leave the stock airbox bracket alone, as it currently mounts my catch can and I hate cutting factory metal. I'd like to end up with something similar to the castro box, but ultimately a lot more shallow. Plan will be to fabricate from ABS (think designing the box to be made from sheet metal) using a laser table. Also bought a high beam intake duct from KAMotors. Will be interesting to log IAT's with and without the ricer duct. Also knocked out the trumpets this evening. Here's some of the stuff I'm considering.

Here's an old thread where Chris325ix documents his IAT improvements with a high beam intake: http://www.e30tech.com/forum/showthread.php?t=78269

[318aye]

So much win with these pics :-)
Airbox is a lot larger than I expected, but it lets you keep those long trumpets .. more win

It's really tall! That hood clearance pic is amazing!

Love the notch in the back of the airbox for the strut bar :-)

You running a MAF or headed a diff route? I know you were running the trumpets with screens so maybe you had an alpha-n thing going already? Sorry need to read back a bit in your thread

Take some vids soon :-)

The trumpets are actually cut down, but the spacers are longer to make up for it. I think this was done to get the mounting plane where he needed it in relation to the booster, etc.

On the hood clearance, all I know right now is that it shuts :). I might start it up tonight after I button up a few more things and play find the noise.

I was really scratching my head about the indent towards the back, but you might be right! It isn't necessary for hood clearance and it's certainly the right shape. Although when I tried the garagistic bar it didn't clear even over the trumpets themselves.

I'm already on Keith (whodwho)'s plug and play MS box. The car has been alpha-n for some time now. I know a MAF has other advantages, but this will work well for my application.

I don't see them but you should have a set of these as well?

Nope, for this setup you cut the trumpet down to 3", which still fits within the box. See the install pdf link above, it gives you a good idea of what's involved with the whole setup.

PS - Taking a page out of your book and polishing the aluminum back plate this go around :). You thinking about getting a box?

[whodwho]

I don't see them but you should have a set of these as well?

[bradnic]

So much win with these pics :-)
Airbox is a lot larger than I expected, but it lets you keep those long trumpets .. more win

It's really tall! That hood clearance pic is amazing!

Love the notch in the back of the airbox for the strut bar :-)

You running a MAF or headed a diff route? I know you were running the trumpets with screens so maybe you had an alpha-n thing going already? Sorry need to read back a bit in your thread

Take some vids soon :-)

[318aye]

Finally got my hands on the box today, my initial thoughts:

Finish is nice, but don't expect exterior automotive quality. Again, I'm looking at this stuff from the pickiest possible perspective. The seam line is very visible from the driver's side, but I'm sure it's necessary to be able to manufacture them at his current cost. I don't think you could do any better for the price.

Machining on the spacers is just as nice as when I purchased the first set. These longer spacers also have an additional o-ring groove, but I didn't receive any o-rings. I'll follow up on that later. The back plate for the box is aluminum, and there's a touch of "slag" on the inside from where it appears to have been plasma cut.

The only fitment snags so far are the booster clearance and the C101 connector. Bear in mind that I've mocked this up somewhat roughly, and as his instructions call for, there's a good bit of tweaking involved with getting this fitted up correctly. I'm pretty sure I'm juuuust touching the booster as of now, but I'll update after I get everything jiggled correctly. I also had to bend my dipstick another 1/2" to the passenger side of the car, and scoot my catch can down on its bracket 1/2", and I'll need to change the filter out for a smaller one.

I'm thinking about using a KAMotors high beam inlet for the intake, and building a heat shield behind the headlight assembly that will mate to a filter. Still up in the air.

Here's the install link:http://racehead.com.au/wp-content/up...asem-notes.pdf

Trumpet trimming instructions: https://www.youtube.com/watch?v=Af3b...ature=youtu.be

[318aye]

Would you mind if I sent you a couple quick dimensions to check when you get it mounted? I don't think it will clear on the 2002, but two rough rear dimension checks would make that conclusive. Awesome looking box!

Happy to help. Describe the measurements you're after.

[SkiFree]

Would you mind if I sent you a couple quick dimensions to check when you get it mounted? I don't think it will clear on the 2002, but two rough rear dimension checks would make that conclusive. Awesome looking box!

[318aye]

You gonna dyno at some point?
We should ride each other's cars at the Vintage and compare...

The car will get back on the same dyno that it was tuned on after the ITB's were installed for a retune, so we'll have semi-consistent comparison numbers. My only regret is that the dyno that I baselined the car on I wasn't able to tune on.

And... Please get that plenum mounted and shoot pics!!! There are no public photos of that setup online and Rama didn't have any either

I know, I think this may be one of the first. Plenty of pictures and comments next week.

[bradnic]

And... Please get that plenum mounted and shoot pics!!! There are no public photos of that setup online and Rama didn't have any either

[bradnic]

You gonna dyno at some point?
We should ride each other's cars at the Vintage and compare...

[318aye]

going with a vortech supercharger after the motor is stroked and headers added. whodwho tried a serpentine m20 setup a while back. that's my target.

Keith's setup is pretty cool. Another great guy to learn from!

Won't be able to start fiddling for a few more days, but here are a few introductory pictures. Intake is still TBD.







:D:D:D

[bradnic]

going with a vortech supercharger after the motor is stroked and headers added. whodwho tried a serpentine m20 setup a while back. that's my target.

check out whodwho's serpentine+SC M20 incredible work. serpentine makes a lot of sense with this application since you'd have the SC, AC, PS and alt all hanging off the crank.




EDIT: found this pic too later in the thread. Man this really looks terrific. He mentioned having to swap out the intake boot (or at least heavily reinforce it so it doesn't balloon or split).

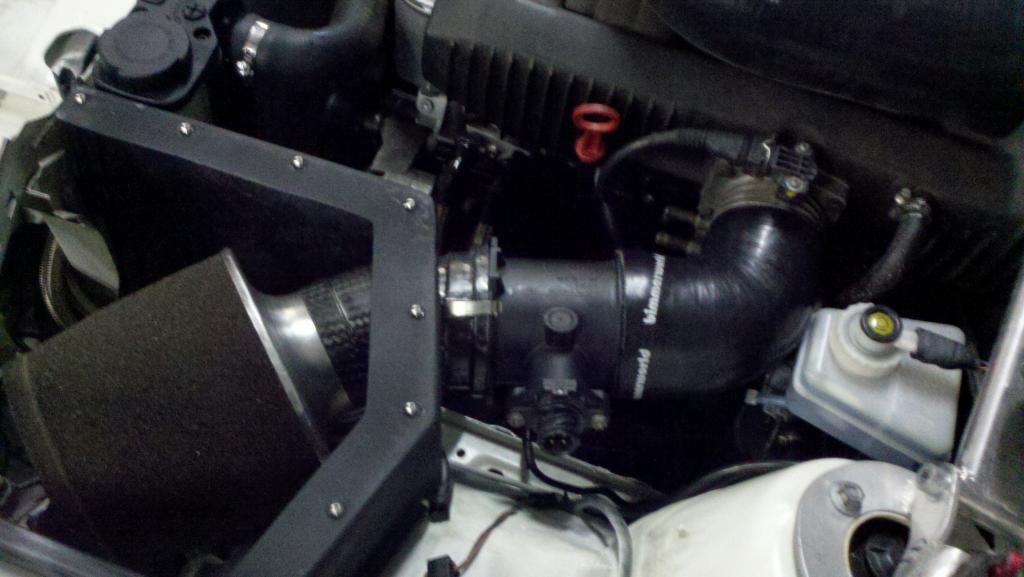

updated setup with boot replaced
