    Happy to see i'm not the only puss out there still using a hot finger!
    "Socialism is a philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery." - Winston Churchill

    "People sleep peacefully in their beds at night only because rough men stand ready to do violence on their behalf" -George Orwell

    Comment

    • silnc
      Member
      • Feb 2015
      • 90

      #17
      Originally posted by Sirotto
      Happy to see i'm not the only puss out there still using a hot finger!
      It's a must have!

      Sent from my Moto G (5) Plus using Tapatalk

      Comment

      • E30 Wagen
        No R3VLimiter
        • Jul 2005
        • 3425

        #18
        This is really cool, can't wait to see how it turns out.
        My Feedback

        Comment

        • silnc
          Member
          • Feb 2015
          • 90

          #19
          Update: the manifold is done. Not my prettiest welds but the production one will be a lot nicer with sch. 10
          Just gotta figure out everything else lol.

          Sent from my Moto G (5) Plus using Tapatalk

          Comment

          • mbonder
            R3VLimited
            • Feb 2004
            • 2255

            #20
            Looks cool, not sure if anyone in the US has tried to make a bottom mount for m20. What's the clearance like near the strut tower reinforcement? Looks tight...

            You going to be making a kit around this manifold or just selling the manifolds for others to fab up a kit?

            Comment

            • silnc
              Member
              • Feb 2015
              • 90

              #21
              Originally posted by mbonder
              Looks cool, not sure if anyone in the US has tried to make a bottom mount for m20. What's the clearance like near the strut tower reinforcement? Looks tight...

              You going to be making a kit around this manifold or just selling the manifolds for others to fab up a kit?
              Clearance is a little too close but will be adjusted for production. We will probably be going with both options but probably a good idea for the engine mount to come with the manifold.

              Sent from my Moto G (5) Plus using Tapatalk

              Comment

              • efficient
                No R3VLimiter
                • Feb 2012
                • 3312

                #22
                damn that thing looks clean

                Comment

                • ak-
                  R3V OG
                  • May 2009
                  • 12422

                  #23
                  Looks awesome! What's the wastegate and oil drain solution going to be?

                  1991 325iS turbo

                  Comment

                  • silnc
                    Member
                    • Feb 2015
                    • 90

                    #24
                    Originally posted by ak-
                    Looks awesome! What's the wastegate and oil drain solution going to be?
                    Wastegate should be able to route to the downpipe and the turbo sits higher than the oil line so I think so far so good.

                    Sent from my Moto G (5) Plus using Tapatalk

                    Comment

                    • silnc
                      Member
                      • Feb 2015
                      • 90

                      #25
                      Taking a brief hiatus from the turbo to add gussets and rebuild the bulkhead. More updates to come soon as we will be building this bottom mount kit on a customer car. Sent from my Moto G (5) Plus using Tapatalk

                      Comment

                      • silnc
                        Member
                        • Feb 2015
                        • 90

                        #26

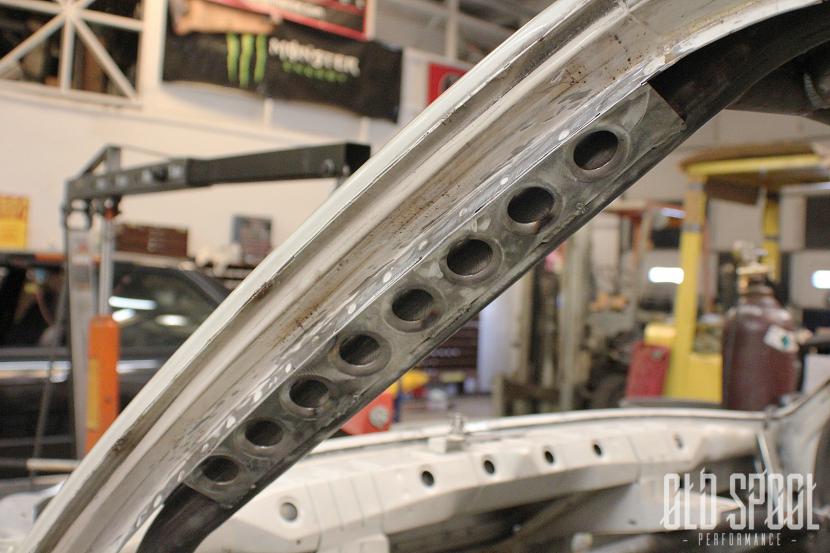

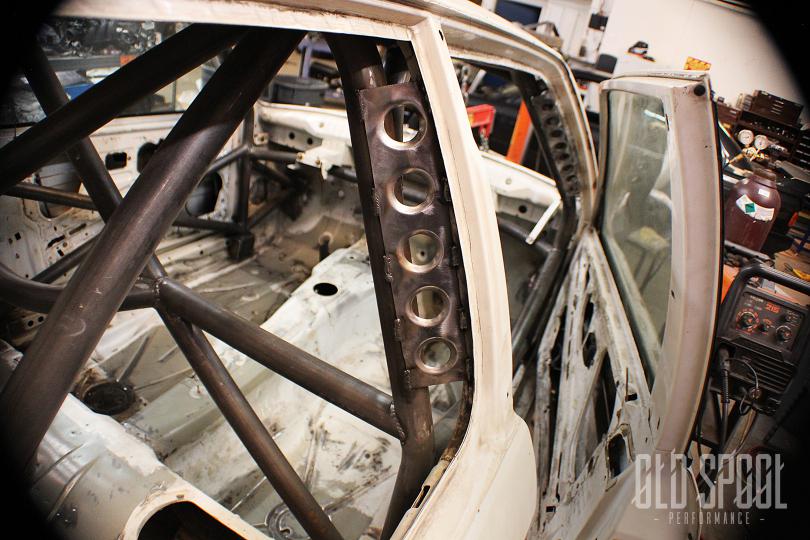

                        detail shots on the gussets
                        Click image for larger version

Name:	IMG_8381.JPG
Views:	416
Size:	81.2 KB
ID:	9860054 Click image for larger version

Name:	IMG_8382.JPG
Views:	403
Size:	66.1 KB
ID:	9860055
                        Attached Files

                        Comment

                        • silnc
                          Member
                          • Feb 2015
                          • 90

                          #27
                          Also, modified the turbo a little to fit a tight bend. Sent from my Moto G (5) Plus using Tapatalk

                          Comment

                          • efficient
                            No R3VLimiter
                            • Feb 2012
                            • 3312

                            #28
                            can't wait to see some videos of this in action

                            Comment

                            • moatilliatta
                              R3V OG
                              • Feb 2005
                              • 6121

                              #29
                              Hmm, Tim Bell racing 370Z?

                              Enjoy seeing progress, I would have preferred a X or something as the roof bars. Triangles Rule.

                              I was up above it, Now I'm down in it ~ Entropy - A Build thread.
                              @Zakspeed_US

                              Comment

                              • silnc
                                Member
                                • Feb 2015
                                • 90

                                #30
                                Originally posted by moatilliatta
                                Hmm, Tim Bell racing 370Z? Enjoy seeing progress, I would have preferred a X or something as the roof bars. Triangles Rule.
                                Correct, that's my boss. Sent from my Moto G (5) Plus using Tapatalk

                                Comment
