    Euro Pre-Facelift 318i 1983

    Hi guys!
    I want to tell you a story of my E30.
    I bought it last year. It had semi-dead but still smothly running m10b18 with oil consumption of 1 quart per 60 miles if you push the pedal to the metall hah. Also this engine was converted to EFI from Lada( ECU called January 5.1)by previous owner because of worn out Jetronic system. But this ECU wasn't adjusted properly and fuel consumption was around 10mpg. But accleration was quite ok, maybe because of oil compression(15 bar in each cylinder). Still remeber the smell of oil after drag races between traffic lights.
    Now it has aluminium block m52b28 btw
    I did some ordinary mods, i will try to write about them here, but my english is not as good to write big good text. Sorry for it.

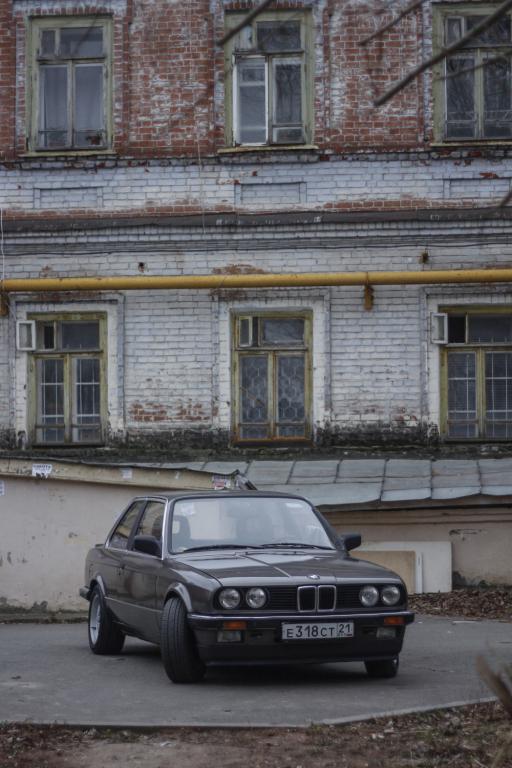

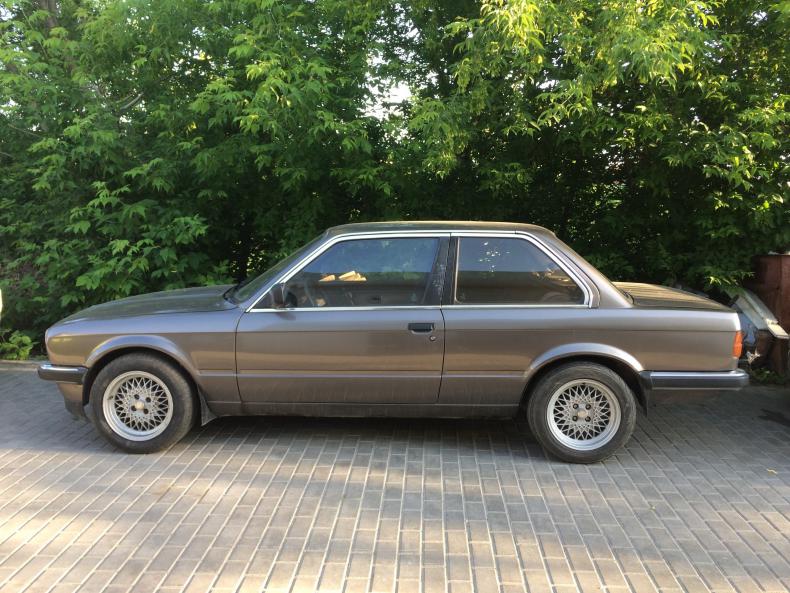

    Attached some photos
    Thank you for reading

    The current spec is
    Engine
    M52B28 aluminium block
    M50 intake manifold
    M50TU valve cover
    Deleted M52 CCV (m50 system is more reliable)
    M50 coilpacks
    NGK BKR6EK sparks
    Stock MS 41.0 with added OBD2 interface( Euro spec don't have it in stock)
    Transimission
    Getrag 220
    3.25 welded diff
    Custom short shifter
    Suspension
    Stock 45mm struts with upside down shocks
    Stock 318i springs
    KYB Excel-G rear shock
    Lesjofors rear springs
    Brakes
    Was solid front disc-now vented front discs brakes
    rear drums, just fresh brake shoes
    Body
    Front struts brace, rear shocks mounts brace, X-brace between subframe and body.
    Bronze windows except windshield
    Custom front lip
    Stock rubber ducktail
    Wheels
    Summer- Melber R15 ET12 7J with 205/55 S.drive(rear) and 195/60 Formula energy(front)
    Winter- stock bottlecaps with 175/65 Nokian Hakkapeliita 8
    Interior
    M-tech 380mm steering wheel without leather
    Recaro LS(?) seats from Opel Omega A with power lift and without folding mechanism
    BMW Reverse RDS
    Lada shifter knob with stainless steel shifter stick
    Early tach without econometer

    Click image for larger version  Name:	resize.jpg Views:	0 Size:	65.0 KB ID:	9893994 Click image for larger version  Name:	WfZ92-v1nnA.jpg Views:	0 Size:	47.5 KB ID:	9893993 Click image for larger version  Name:	xfTzIuu7bGI.jpg Views:	0 Size:	100.9 KB ID:	9893995
    Last edited by Alan; 12-23-2019, 03:29 PM.

    #2
    is that zobelbraun metallic?


    1989 325is l 1984 euro 320i l 1970 2002 Racecar
    1991 318i 4dr slick top


    Euro spec 320i/Alpina B6 3.5 project(the never ending saga)
    Vintage race car revival (2002 content)
    Mtech 2 turbo restoration
    Brilliantrot slick top "build"

    Comment


      #3
      Originally posted by ThatOneEuroE30 View Post
      is that zobelbraun metallic?
      Hi
      No, it's color from lada color palette. I don't know the true color name, but "Dark beige-brown" is written on the paint can
      Originally, my car was bronzetbeige, but everything is re-painted

      Comment


        #4
        Today i would like to write about Russian EFI system- January 5.1

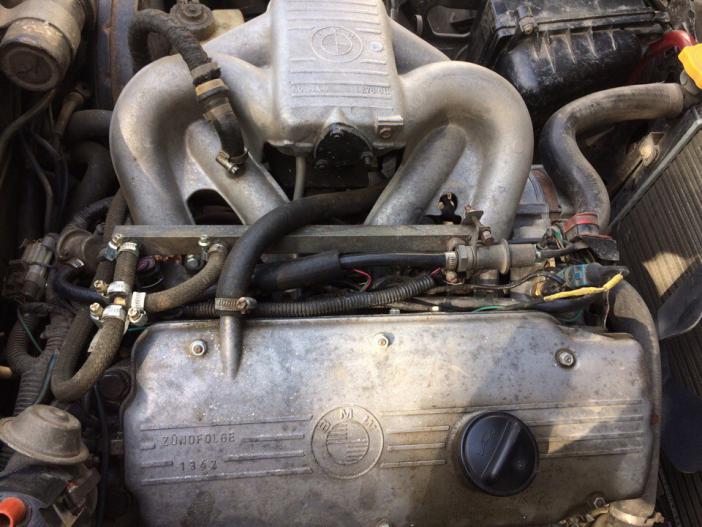

        Previous owner converted m10b18 to this EFI instead of Jetronic. This system is very popular in Russia because every EFI Lada has it and it's cost about 60$ with ECU and complete engine loom with maf and all the sensors( all you need to do with the loom is to lengthen some wires and fix ECU in glove compartment)

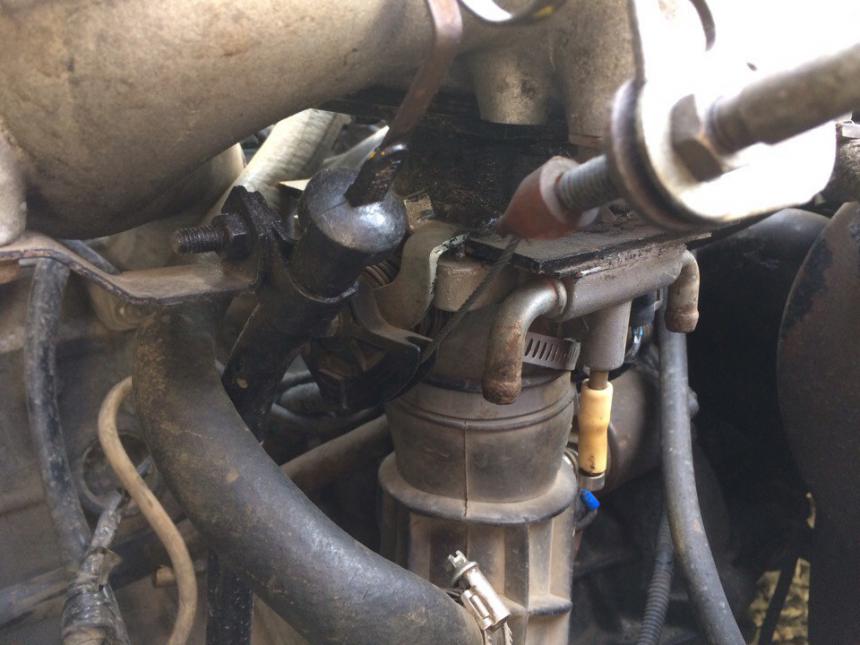

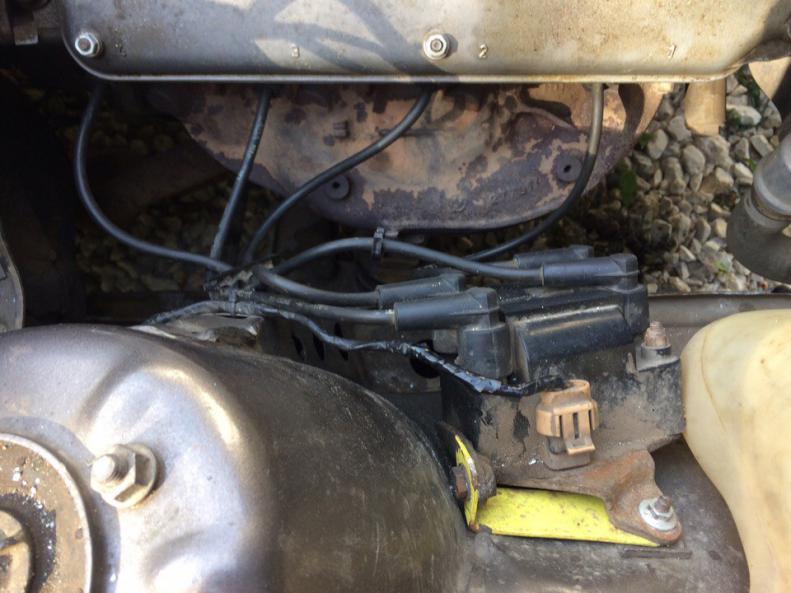

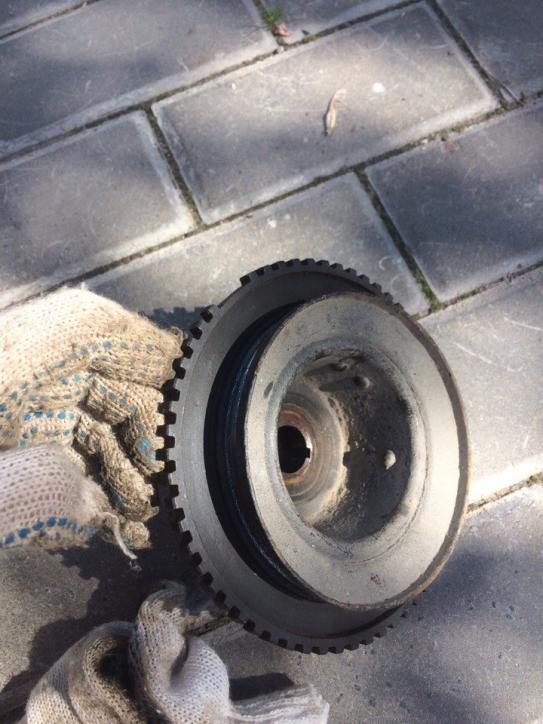

        Then you need to wire stock fuel injectors, fuel pump relay and make custom throttle body to install J5.1 TPS or install lada throttle body with its original tps(very simple). After that you need to weld a piece of lada crankshaft pulley(with reference plate, don't know how to translate it) to M10B18 crankshaft pulley to make CPS work(also need cps sensor bracket, but it's can be made from 1mm metall sheet). Finally, you should fine a place with good ground signal to fix ignition module.

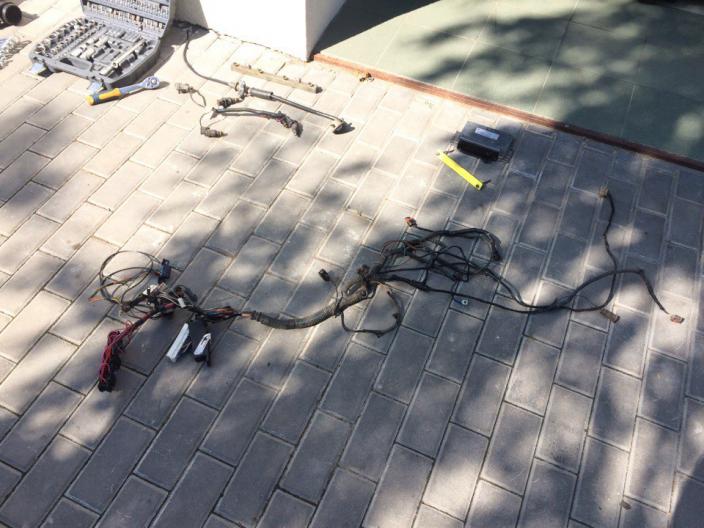

        You still have all your jetronic wiring in the car, but if you unplug jetronic ECU nothing happen and car still runs and starts.
        The benefits of this ECU is
        Cheap
        Reliable
        Easy to install
        New sensors cost nothing(TPS cost 5$, CPS cost 3$, MAF 30$)
        If you set up it very well and engine is ok, stock m10b18 with this ECU can produces up to 120hp hah
        Everyone here know it and can easily adjust it and add new features (launch control, antilag, shift light etc)
        You can convert it to APS+intake air temp sensor if you want forced induction.
        Attached Files

        Comment


          #5

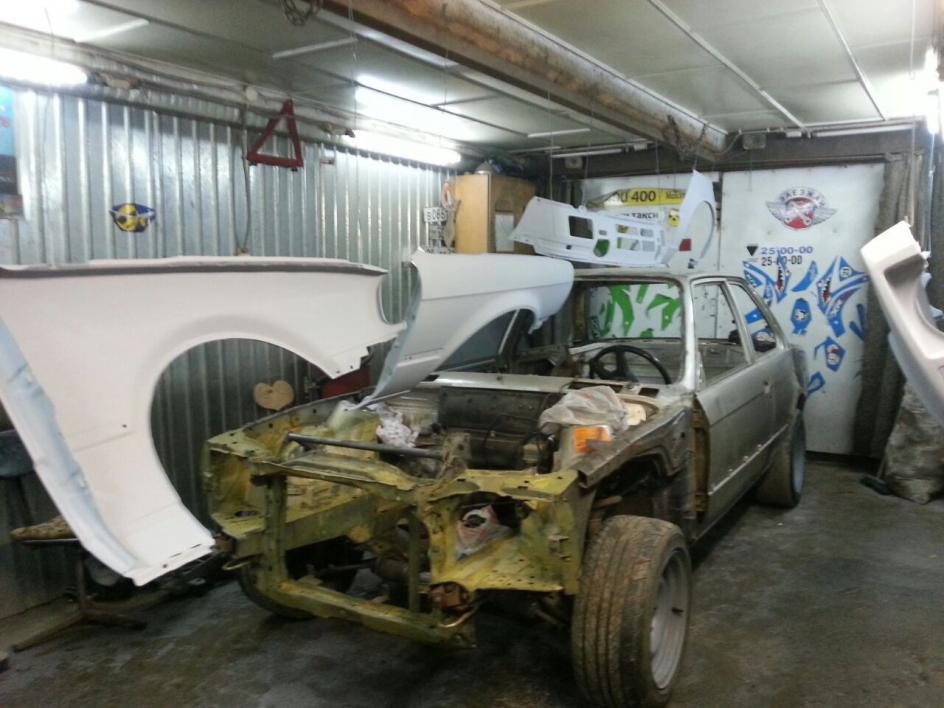

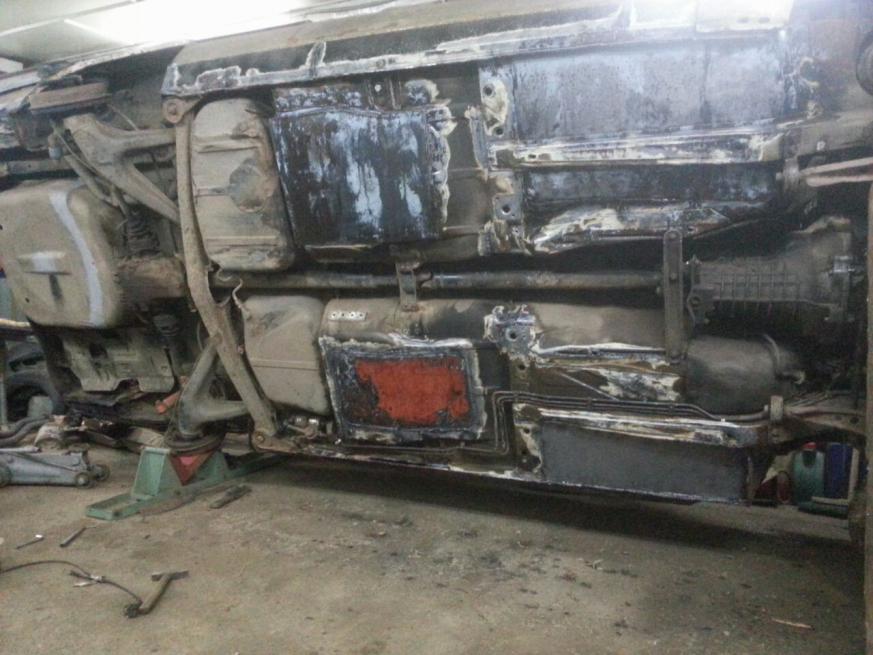

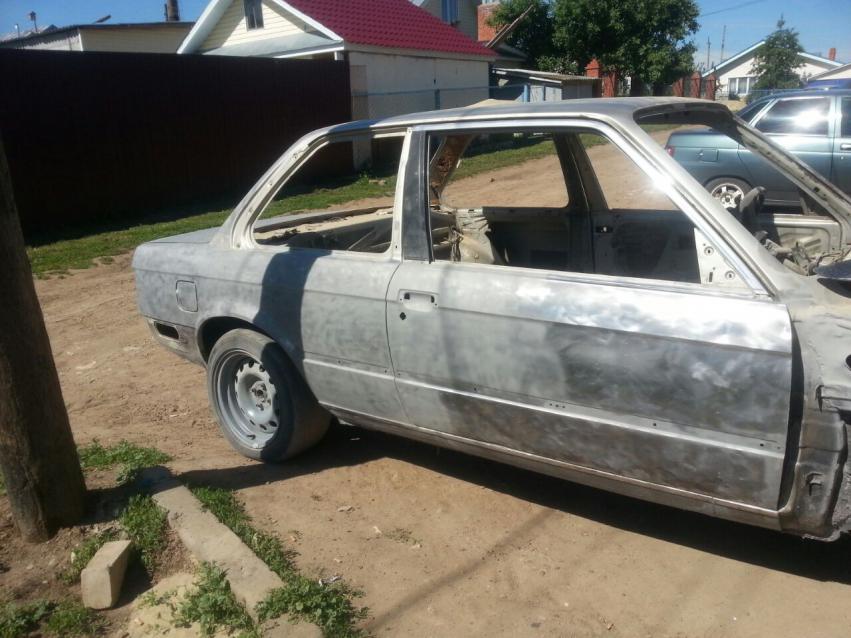

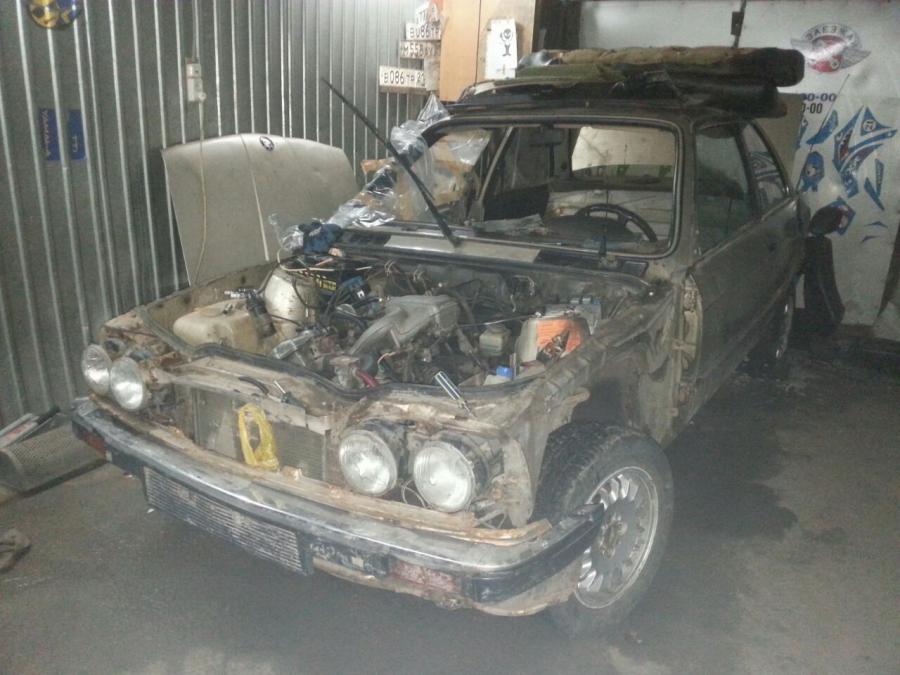

          I found some photos of my car that was made 3 years ago by previous owner.
          He bought the body with engine for 300$ and restored it as he could.

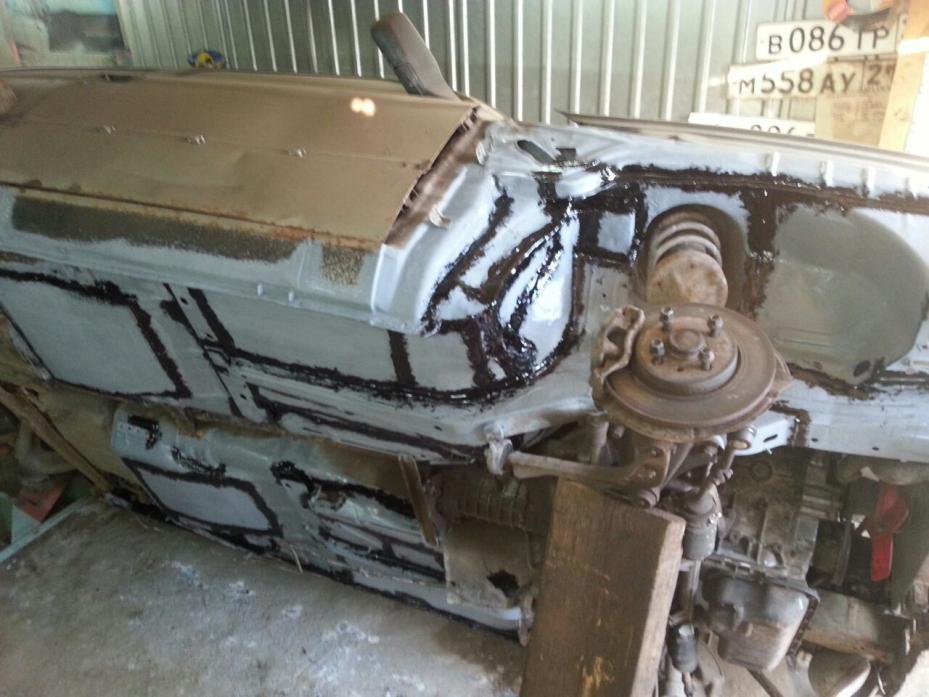

          As i mentioned before, we suffer from salt on our roads in winter and body of cars become rusty very quick, if you don't use anti-rust coatings
          Click image for larger version  Name:	b3bac886-3cd5-4633-b41f-a10a52ca8615.jpg Views:	0 Size:	83.0 KB ID:	9896445 Click image for larger version  Name:	ce0133cc-cd8d-41ad-9dea-2b8e7adde9dd.jpg Views:	0 Size:	82.2 KB ID:	9896446 Click image for larger version  Name:	1d4ea514-4193-43c4-b7c7-86a3a7bd8a3d.jpg Views:	0 Size:	79.1 KB ID:	9896447 Click image for larger version  Name:	1122c2c1-d5d5-48d9-9580-f5a5801b0559.jpg Views:	0 Size:	79.9 KB ID:	9896448 Click image for larger version  Name:	1dde0a86-bb75-4424-b0e9-d974e70bdfd9.jpg Views:	0 Size:	79.8 KB ID:	9896449
          Last edited by Alan; 01-05-2020, 03:21 PM.
