    E30 instrument cluster pattern

    Hi everyone,
    I have been working on the E30 custom cluster I just finished replicating the original speedometer pattern it took me weeks to find the exact font and to align everything to the original size
    I finished the speedometer only now and I will be working on the other plates (tachometer, temp, fuel, etc..) and I would like to share it with you guys if you would like to use it you can!
    keep in mind the circle diameter is 104 mm if you plan to cut it with a vinyl cutter or send it to be printed on a clear label material
    I used (Adobe Photoshop CS6)+(Adobe Illustrator CS6)

    here is a link for download

    https://drive.google.com/file/d/11E0...ew?usp=sharing

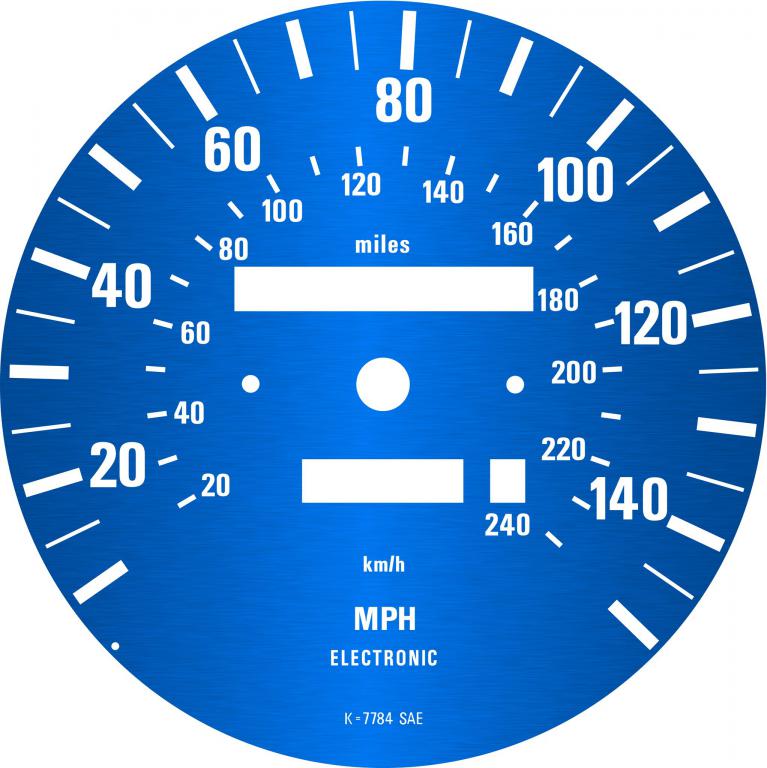

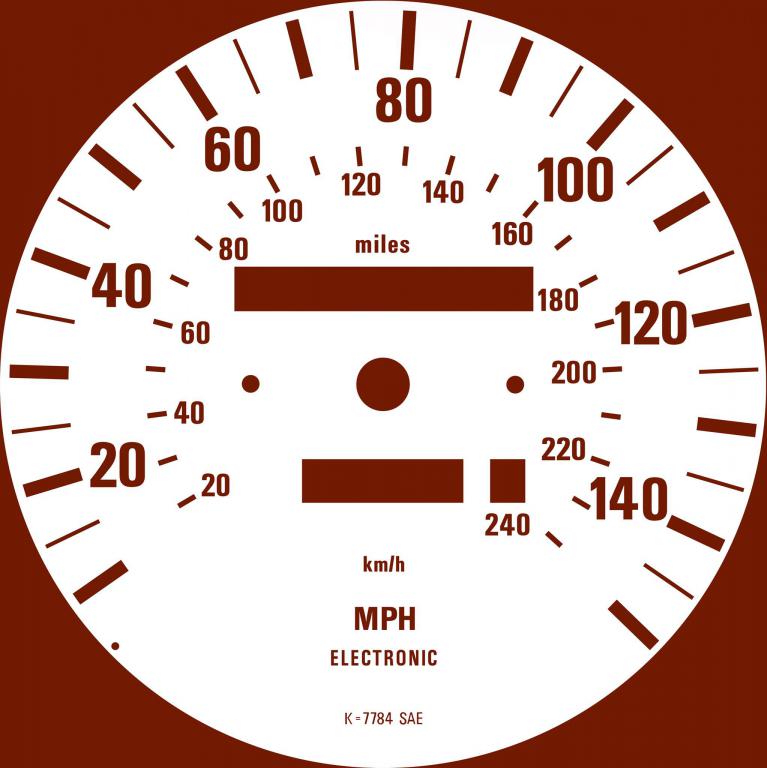

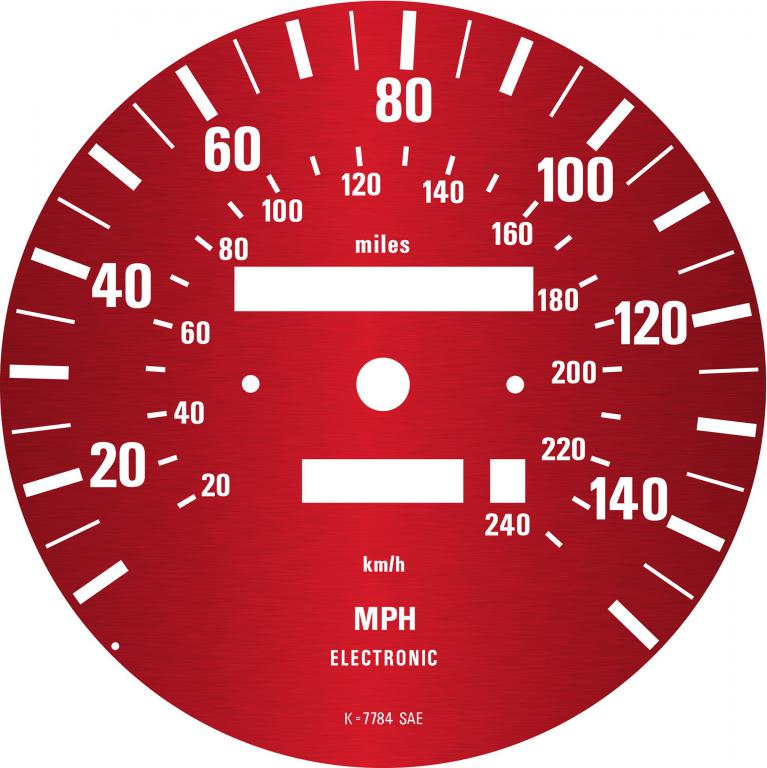

    and here examples of what you can do with it





    image widget
    Attached Files

    #2
    this is fantastic, thanks for posting!

    Comment


      #3
      that is the biggest PNG file size i've ever encountered. but thank you for sharing, downloaded.
      sigpic

      Comment


        #4
        That's a pretty good one! Nice
