Laser Cut Gauge Panels --- new styles!

[phenryiv1]

I can, yes. I'll have to make sure it will fit though. Is there enough room on the backside to fit 4 switches?

Just to clarify on my belief that 4 switches would fit in the OBC location:

While there is space for the bases, the bezels make it a bit too large. Looks like 2 window switches are the max in the OBC location.

[constantproject]

I would like a left vent, center vent, ashtray, and obc all in 2-1/16 and the switch hole on the obc one. Pm me shipped to 19022 please

[jaywood]

Can you do an OBC panel with 2 window switches side-by-side like this?

I can. I'm not sure it'll fit though. The bezels might be too large.

Just to clarify on my belief that 4 switches would fit in the OBC location:

While there is space for the bases, the bezels make it a bit too large. Looks like 2 window switches are the max in the OBC location.

Ok. Thank you for double checking on that. If you are interested in a 2 window switch OBC let me know. Or if you are interested in a 4 switch panel somewhere else (radio maybe?) I can do that for you.

I would like a left vent, center vent, ashtray, and obc all in 2-1/16 and the switch hole on the obc one. Pm me shipped to 19022 please

You got it. Sending pm!

[vpilarrt]

I can. I'm not sure it'll fit though. The bezels might be too large.

I'll do some measuring and cyphering tonite and see if its possible.

[jaywood]

I'll do some measuring and cyphering tonite and see if its possible.

Cool! Thanks.

Let me know!

[Gregs///M]

How are these panels held into place?

[vpilarrt]

Actually it looks like all 3 window switches (2 up-down switchws + the breaker) can fit in an OBC panel. The dimensions in red (if they're not readable) are all .30" and are from the panel edges to the cutout edges. All cutouts (shown in white) are to be centered and symetrical. I'll leave it to you to figure the cutout dimensions. The gray represents the switch bezels/surrounds. So what would be the price for 1 of these and a blank (no holes) radio panel shipped?

[jaywood]

How are these panels held into place?

Pressure fit. A few dabs of super glue is a good idea as well

Actually it looks like all 3 window switches (2 up-down switchws + the breaker) can fit in an OBC panel. The dimensions in red (if they're not readable) are all .30" and are from the panel edges to the cutout edges. All cutouts (shown in white) are to be centered and symetrical. I'll leave it to you to figure the cutout dimensions. The gray represents the switch bezels/surrounds. So what would be the price for 1 of these and a blank (no holes) radio panel shipped?

Sending you a pm!

[jaywood]

Bump!

[jaywood]

Bump ;)

[FLG]

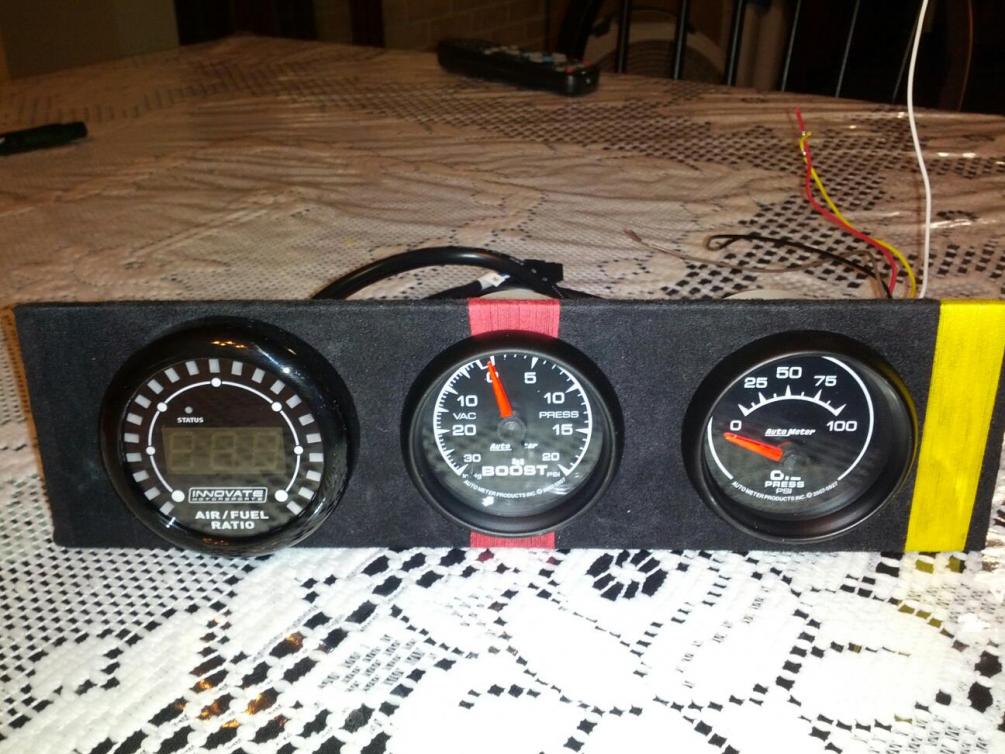

Nice to see someone took over! (might be needing an ash tray one soon, need to get an oil temp gauge), i got mine from a friend who had one but accidentally wound up snapping it in pieces, glued back together and wrapped in alcantara with a little German spin on things.

[jaywood]

Looks nice man!!!

Shoot me a PM when you would like one ;)

[jaywood]

Bump ;)

[jaywood]

ttt!

[jaywood]

Bump ;)
