sharksforthecup s52 11:1 je pistons sunbelts

[sharksforthecup]

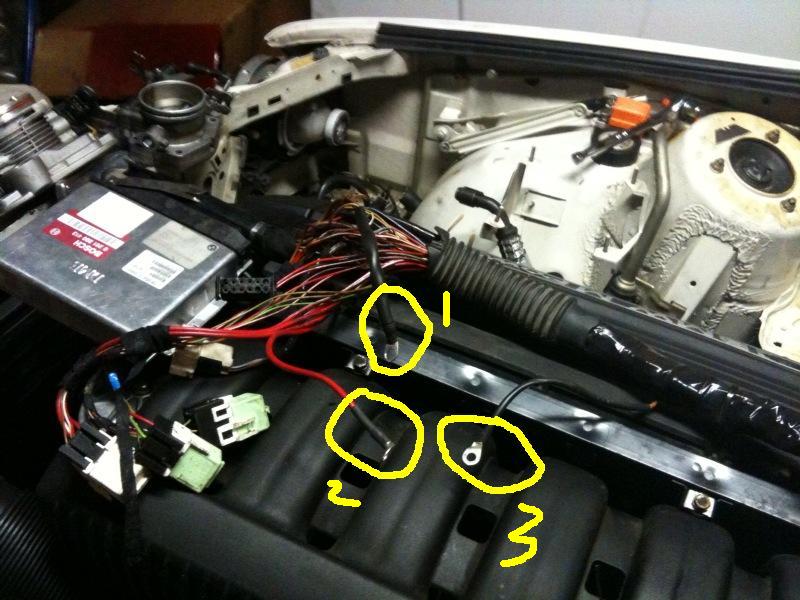

Alright looks like I may need some help here with wiring the terminal.
I have a harness that looks completely different than harnesses I've used in the past.

Im unsure where each of these three wires go.
I hooked up wire 1 to the terminal and got power in the cabin. When I went to turn the key the starter clicked, but didn't crank.
I've tried a couple different configurations to no avail.
Any help would be appreciated.

[ahriley91]

Make sure there is main power to your starter. Ask me how I know. One of my stupid moments of my swap. haha.

[briham89]

I'm looking on my iPhone so it's hard to see, but it looks like 1 and 3 are brown which means they are ground and 2 should be power.

[briham89]

Come to think of it IIRC #2 hooks up to the fuse box on the e36 and isn't used in the swap. Just ground 1 and 3 and see if that works.

[sharksforthecup]

Make sure there is main power to your starter. Ask me how I know. One of my stupid moments of my swap. haha.

Good man, somehow I missed that.

I'm looking on my iPhone so it's hard to see, but it looks like 1 and 3 are brown which means they are ground and 2 should be power.

Thanks, I tried this too after finding this thread

http://r3vlimited.com/board/showthread.php?t=116573&highlight=power+wires

So the car is cranking, but I'm not getting fuel. One of the relays on the harness is making a funny noise when the key is in the on position. Even tried jumping the relay and still no fuel. Just in case your wondering the fuel lines aren't switched, I unplugged them and have them in a cup. At this point I'm thinking maybe a bad dme?

[briham89]

I'm not up on the obdI swap but if it uses a obdI dme you can borrow mine. I have a silver label 413 with an EWS delete chip.

[sharksforthecup]

I'm not up on the obdI swap but if it uses a obdI dme you can borrow mine. I have a silver label 413 with an EWS delete chip.

Thanks for the offer. I used a buddies red label just 10 min ago and I now have fuel! hooked it up to the front of the manifold (silver supply), but I am not getting spark because it wont fire......

Im gonna try a different crank sensor real quick....

[sharksforthecup]

Alright scratch that!

spotted a leak at the end and had to shut her off real quick (plus
Its late). I'll take a better vid tomorrow!

ENJOY!

http://www.youtube.com/watch?v=tkXma8zkKQA

[Danny]

Did you get it figured out? Where are you in the Bay?

[sharksforthecup]

Did you get it figured out? Where are you in the Bay?

South Bay, and yes I did!

[Danny]

Good to hear, I was hoping I wouldn't have to offer to take a trip out there ;)

[surebimmer]

Glad you got it worked out. Next up 6 speed mods, good luck!

[sharksforthecup]

Driveline complete. Need to hit the exhaust shop. Runs a little funky under load. Pretty sure I just need to finish the exhaust with an O2 sensor and finish the intake.

http://www.youtube.com/watch?v=Ecoz9okplVE

[surebimmer]

BBS RK + 6 speed = very nice.

[jrdeamicis]

Cool to see my driveshaft going to a good use.

MAN, takes me back to the good ole days when my car had no exhaust.
