    Open trumpet ms3 s52 vs obd1 epic off the shelf tune

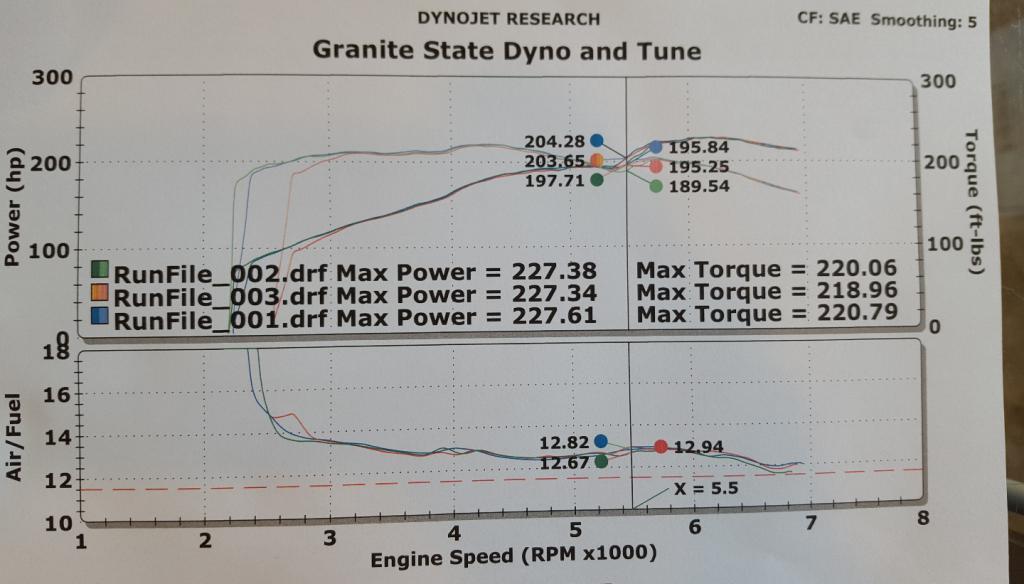

    Odb1 s52. 68mm throttle body. Euro maf. 21.5 I injectors. 13lb flywheel. Looks how it should or you think I can get more out of it? Epic tune. I got 2 revisions left
    Attached Files
    Last edited by richardkeith97; 06-13-2018, 05:45 AM.

  • f4tj0n
    E30 Addict
    • May 2013
    • 411

    #2
    I wanted to post the same thing a few days ago but forgot. Here is mine for comparison.

    Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.


    This was with a freshly rebuilt S52 bottom end, fresh S50 top end, 540i MAF, 21.5# Pink Injectors, ebay headers, 2-to-1 2.5" to the back with two straight two mufflers and a Turner Motorsports chip.
    Last edited by f4tj0n; 07-21-2017, 01:25 PM. Reason: I think imgur doesnt work well with forums.

    Comment

    • richardkeith97
      E30 Mastermind
      • Jun 2009
      • 1693

      #3
      Nice numbers. I think i can get more hp but I don't want to lose all my low end torque. This is a street car So I spend a lot of time in 3k-4500 area

      Originally posted by f4tj0n
      I wanted to post the same thing a few days ago but forgot. Here is mine for comparison.

      Discover the magic of the internet at Imgur, a community powered entertainment destination. Lift your spirits with funny jokes, trending memes, entertaining gifs, inspiring stories, viral videos, and so much more from users.


      This was with a freshly rebuilt S52 bottom end, fresh S50 top end, 540i MAF, 21.5# Pink Injectors, ebay headers, 2-to-1 2.5" to the back with two straight two mufflers and a Turner Motorsports chip.

      Comment

      • f4tj0n
        E30 Addict
        • May 2013
        • 411

        #4
        Originally posted by richardkeith97
        Nice numbers. I think i can get more hp but I don't want to lose all my low end torque. This is a street car So I spend a lot of time in 3k-4500 area
        I basically daily drive my car and is completely fine, but its always more fun being higher in the RPMs :)

        Also, I have no idea what the graphs should look like, but at least now I do see that my torque numbers are low-ish in the low end.

        Comment

        • 328ijunkie
          Forum Sponsor
          • May 2007
          • 3961

          #5
          Should make more and why the dip at 5500?

          Check Us out on Facebook
          Needing a harness adapter or wiring help? Check it out: also have 24v motor mounts, E30 M3 covers and E36 ECU mounts!
          Full Product Line Tuning
          OBD2 Tuning Available! OBD2 E36, S54 Swap, S62 Swap, etc: tuning@MarkertMotorWorks.com Dyno Thread

          Comment

          • 2mAn
            Moderator
            • Aug 2010
            • 20015

            #6
            My S52 cam'd OBD1 M52 made 225whp, this should make more I think. you do have 20 more ft/lb of torque than I do though
            Simon
            Current Cars:
            -1966 Lotus Elan
            -1986 German Car
            -2006 Volkswagen Jetta TDI

            Make R3V Great Again -2020

            Comment

            • ed94r
              Grease Monkey
              • Mar 2004
              • 382

              #7
              Don't want to alarm...

              I've seen this dip before...make sure (100%) that you do not have 2.8 cams in the motor.

              This looks exactly like mine did when I was sold a S50 with 2.8 cams in it.

              Ed
              1988 E30/S50...now with S52; Track
              1994 Miata R; ES Solo2
              1998 Lexus LX470; Wife (Slee'd anyway)
              2002 BMW 530i; A+ Commuter
              2002 BMW 325iT; Sport/Premium 5-speed
              2011 21' EconoTrailer

              Comment

              • richardkeith97
                E30 Mastermind
                • Jun 2009
                • 1693

                #8
                This is what Randy at epic told me.... I'd rather have it like this in a street car though even if this is the case. I love all the low end torque

                Originally posted by ed94r
                Don't want to alarm...

                I've seen this dip before...make sure (100%) that you do not have 2.8 cams in the motor.

                This looks exactly like mine did when I was sold a S50 with 2.8 cams in it.

                Ed

                Comment

                • 328ijunkie
                  Forum Sponsor
                  • May 2007
                  • 3961

                  #9
                  Originally posted by richardkeith97
                  This is what Randy at epic told me.... I'd rather have it like this in a street car though even if this is the case. I love all the low end torque

                  M52 cams would cause a more dramatic dive after 6k

                  Check Us out on Facebook
                  Needing a harness adapter or wiring help? Check it out: also have 24v motor mounts, E30 M3 covers and E36 ECU mounts!
                  Full Product Line Tuning
                  OBD2 Tuning Available! OBD2 E36, S54 Swap, S62 Swap, etc: tuning@MarkertMotorWorks.com Dyno Thread

                  Comment

                  • 328ijunkie
                    Forum Sponsor
                    • May 2007
                    • 3961

                    #10
                    Originally posted by richardkeith97
                    This is what Randy at epic told me.... I'd rather have it like this in a street car though even if this is the case. I love all the low end torque
                    Also, if you turn the vanos off ~600 RPM sooner and power increases significantly and the dip smooths out then this will confirm you have M52 cams.

                    Check Us out on Facebook
                    Needing a harness adapter or wiring help? Check it out: also have 24v motor mounts, E30 M3 covers and E36 ECU mounts!
                    Full Product Line Tuning
                    OBD2 Tuning Available! OBD2 E36, S54 Swap, S62 Swap, etc: tuning@MarkertMotorWorks.com Dyno Thread

                    Comment

                    • ed94r
                      Grease Monkey
                      • Mar 2004
                      • 382

                      #11
                      Originally posted by richardkeith97
                      This is what Randy at epic told me.... I'd rather have it like this in a street car though even if this is the case. I love all the low end torque
                      Well...It's been a long time (and a new motor) but going from the M52 cams to proper S50 cams, the motor went from 227/226 to 238/230, but that was not the largest gain. The largest gain was around 6800, where the S50 cams were making almost 40 horsepower more. The peaks were not alarmingly different (227 to 238), but 40 horse at 7K is a big deal. The M52's just lay down around 6K, dramatically falling off.

                      I'll have to dig up the sheets at home...

                      Ed
                      1988 E30/S50...now with S52; Track
                      1994 Miata R; ES Solo2
                      1998 Lexus LX470; Wife (Slee'd anyway)
                      2002 BMW 530i; A+ Commuter
                      2002 BMW 325iT; Sport/Premium 5-speed
                      2011 21' EconoTrailer

                      Comment

                      • richardkeith97
                        E30 Mastermind
                        • Jun 2009
                        • 1693

                        #12
                        Originally posted by 328ijunkie
                        Also, if you turn the vanos off ~600 RPM sooner and power increases significantly and the dip smooths out then this will confirm you have M52 cams.

                        Anything is possible I guess. It was from a 95 m3 with a Turner chip. No one ever said anything to the previous owner about it being an s52 or having a Turner chip (previous owner was a friend) I noticed the pink injectors and obd2 plug under the starter then realized it was an s52 while doing the swap. I guess I'll find out when I eventually do the cans someday

                        Comment

                        • 328ijunkie
                          Forum Sponsor
                          • May 2007
                          • 3961

                          #13
                          This is on a 2.8 with m50 manifold before and after S52 cams for reference....

                          Check Us out on Facebook
                          Needing a harness adapter or wiring help? Check it out: also have 24v motor mounts, E30 M3 covers and E36 ECU mounts!
                          Full Product Line Tuning
                          OBD2 Tuning Available! OBD2 E36, S54 Swap, S62 Swap, etc: tuning@MarkertMotorWorks.com Dyno Thread

                          Comment

                          • richardkeith97
                            E30 Mastermind
                            • Jun 2009
                            • 1693

                            #14
                            Originally posted by ed94r
                            Well...It's been a long time (and a new motor) but going from the M52 cams to proper S50 cams, the motor went from 227/226 to 238/230, but that was not the largest gain. The largest gain was around 6800, where the S50 cams were making almost 40 horsepower more. The peaks were not alarmingly different (227 to 238), but 40 horse at 7K is a big deal. The M52's just lay down around 6K, dramatically falling off.

                            I'll have to dig up the sheets at home...

                            Ed

                            Next is vanos and riot racing cams. I'd be curious to see those dyno sheets if you find them

                            Comment

                            • richardkeith97
                              E30 Mastermind
                              • Jun 2009
                              • 1693

                              #15
                              Originally posted by 328ijunkie
                              This is on a 2.8 with m50 manifold before and after S52 cams for reference....
                              At least I know I don't have an m52!!
