    Where do these wires go?

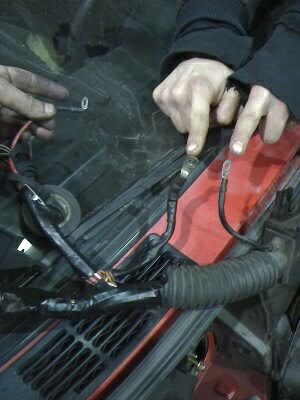

    Hey guys can you tell me, where do these wires go? There is three of them coming from my wiring harness close to the ecu plug end. 1 is red the other 2 are black.( this is for my m52 obdI swap )

    Thanks

    Loghan
    Attached Files
    Last edited by logger; 01-09-2009, 07:17 PM. Reason: ah
    sigpic I HATE SPEED BUMPS !!!!!

    #2
    peel back the heat-shrink to see what colour the wire really is...

    There both grounds and hot in that same area...

    And what harness is that originally from?

    Comment


      #3
      Ya I do not know what car it is orig. from? Only that it is a manual. The grounds I can figure out what to do with but wire to hook up the power?
      sigpic I HATE SPEED BUMPS !!!!!

      Comment


        #4
        Originally posted by logger View Post
        Ya I do not know what car it is orig. from? Only that it is a manual. The grounds I can figure out what to do with but wire to hook up the power?
        The red one is battery +...

        One or both of the other 2 are ground wires... I think... that is if that's an e36 harness...

        Need to know the color code of the actual wire.

        Comment


          #5
          Attached Images

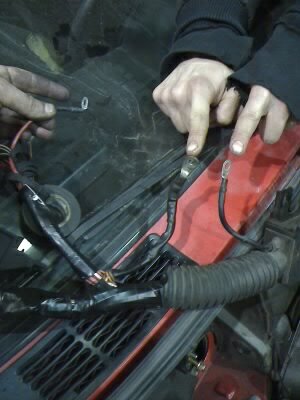

          Wire on the left to power.
          Wire on the left ground.
          Wire in the centre where does it go? It is made up of 6 brown wires.


          Also when I have the power hooked up the the fuse box I do not have any power to the car. ie: when the key is to on position nothing lights up. Any ideas?
          sigpic I HATE SPEED BUMPS !!!!!

          Comment


            #6
            Brown is ground and red is pos.

            Comment


              #7
              Just run a bolt through the body for the ground. The positive can be bolted straight to the battery cable junction point on the firewall. There is a fusible link there as well as the main constant power. I'd probably wire it to the fusible link if it's the ECU power wire...
              85 325e m60b44 6 speed / 89 535i
              e30 restoration and V8 swap
              24 Hours of Lemons e30 build

              Comment


                #8
                Alright all wires hook up and.... NO fuel comes out? What gives.
                sigpic I HATE SPEED BUMPS !!!!!

                Comment


                  #9
                  I should have fuel when key is on the ON position right?
                  sigpic I HATE SPEED BUMPS !!!!!

                  Comment


                    #10
                    no crank = no fuel pump. It might prime but it will not just run when the key is in the on pos.
                    www.classicdaily.net
                    1970 m42 swapped 2002
                    1985 LS1/T56 Swapped e28 (557e)

                    www.blunttech.com - For all your parts needs

                    Follow me on Instagram for constant build updates @classicdaily
                    https://www.facebook.com/ClassicDailyLLC

                    Comment


                      #11
                      You have one of your hot lines grounded.
                      '89 325is S50 Track Montser
                      '04 X5 Daily/Tow Vehicle

                      http://www.avarestoration.com

                      http://www.myspace.com/brendanfiddle


                      Click here if you want to be my zombie slave...

                      http://www.youtube.com/user/Fidhle007

                      Comment


                        #12
                        Wait, don't you own a big machine shop? Why is this so hard for you?


                        Originally posted by logger View Post
                        I have quite a large selection of cnc machines milling and turning , when you own a machine shop these are usally in them . OK so if I have drawings with specifications ( mesurements and material specs ) I will be able to manufacture them . I currently manufare Oil tools , sawmill equipment , aero space , aviation , blood transfusion machine componets , and automotive parts for large auto motive manufacturers . I think camber plates will be not to difficult . I do not need to make a profit as I allready have alot of money . I can sell them to you guys for cost . If you want more info on my background i will answer any of you questions if they are not to personal .

                        Thank you for your input though .
                        '89 325is S50 Track Montser
                        '04 X5 Daily/Tow Vehicle

                        http://www.avarestoration.com

                        http://www.myspace.com/brendanfiddle


                        Click here if you want to be my zombie slave...

                        http://www.youtube.com/user/Fidhle007

                        Comment


                          #13
                          Originally posted by Fidhle007 View Post
                          Wait, don't you own a big machine shop? Why is this so hard for you?
                          Different skill sets.

                          Some people might expect that your phenomenal abilities to orally satisify male truckers would translate over to pleasuring a woman, but you can see that the skill sets are different.
                          -OVULATOR (as named by jflip2002)

                          Past Cars: Schwarz 1990 325i-2 (crashed), Calypsorot 1991 325i-2 Sport (rear ended)
                          Now: Blake-stitched mediocrity :(

                          Comment


                            #14
                            Originally posted by Fidhle007 View Post
                            Wait, don't you own a big machine shop? Why is this so hard for you?
                            LOL

                            Originally posted by Optimator View Post
                            Different skill sets.

                            Some people might expect that your phenomenal abilities to orally satisify male truckers would translate over to pleasuring a woman, but you can see that the skill sets are different.
                            and LOL again
                            1989 cirrisblau-metallic 325i

                            Comment


                              #15
                              Originally posted by Fidhle007 View Post
                              You have one of your hot lines grounded.
                              What hot line?
                              sigpic I HATE SPEED BUMPS !!!!!
