    S54 Swap Muffler Suggestions

    Hey all, I'm finally at the point where I'm ready to fab the back half of my exhaust for my S54 swap. Here's what I have so far:

    -Megan racing headers
    -E46 M3 section 1, chopped off at the resonators and stepped up to 2.5
    -Two Stainless Bros round mufflers http://www.stainlessbros.com/25-SS30...ish_p_403.html

    What comes next:
    -2.5" H pipe
    -Dual 2.5: back to a muffler in the stock location

    I'm looking for input/suggestions on a muffler for the last section.

    Current candidates are:
    Borla Pro XS
    https://www.summitracing.com/parts/bor-400286?rrec=true

    Flowmaster Super 44
    https://www.summitracing.com/parts/flo-8425454

    I'm actually looking for whatever is the more quiet option. The Borla is obviously a larger muffler, but it's a flow through glass pack design, whereas the Flowmaster is a chambered muffler, so I'm wondering if it's possible that the Flowmaster would be quieter. The two Stainless Bros "mufflers" that are on there now are really just more or less glass pack resonators, similar to the one on the stock E46 M3 exhaust. I think they will help quite a bit with the rasp, but they are still really loud right now. I really don't like rasp and TBH I don't think the S54 exhaust really ever sounds that great no matter what you do to it, so I'd rather hear the induction noise.

    My requirements for the muffler are:
    -Must be dual 2.5" in/out
    -The quieter the better, I want zero rasp if possible
    -stainless (304 preferably, but I'd do 400 series. The other requirements are more important)


    Also to address a couple other things that will probably be asked:
    -why not 3"? Ground clearance mostly. I know .5" isn't that much but it's already very low around the rear subframe, so I'll take any little bit that I can get. Noise also played a smaller role in the choice, since I don't want a lot of drone.
    -why dual 2.5"? Yes, I know it's overkill for a stock S54 and 2.25 would be adequate. I opted for 2.5" simply because there are a lot more muffler/resonator options at that size. Plus, if I ever do cams/airbox on the S54 there will actually be some gains from the 2.5" vs. a 2.25".


    So that's it folks, any suggestions on other muffler options I should consider? There seem to be lots of options very similar to the Borla, but I guess my ideal muffler would be something in 304 stainless that is about the size of the Borla, but chambered rather than glass pack. Does such a thing exist?
    Last edited by R3VM3UP; 10-05-2020, 09:37 AM.

    #2
    I'm in the same boat as you... except I built a 2.25" all the way to the subframe merged to a 3" single. The drone and overall volume has really made the car not pleasant to drive on long trips.

    I have 2 cats, 2x 18" magnaflow mufflers going to a vibrant 1047. Looking at just BMW exhaust systems overall I notice that they do most of their silencing in the rear muffler. Big multi-pipe muffler boxes that really dampen the noise levels. Personally I'm leaning towards having Stromung build me a custom muffler with as much material packed into it as possible because it seems that the E36 guys that do S54 swaps rock the stromung or supersprint stuff and they sound relatively tame inside (from the few vids out there). I'm also going to get rid of the 3" Y and swap out for an X pipe to a dual all the way. Hopefully that shuts this thing up lol.
    IG: deniso_nsi Leave me feedback here

    Comment


      #3
      Interesting that the volume is still an issue even with a setup with so many mufflers. Do you have any videos of it?

      I ended up just ordering the Borla 400286, which is 19" X 4" X 9.5". So overall it will be pretty similar to your setup, minus the cats. The Borla muffler is a little bigger than the Vibrant 1047, so I sure hope that it helps. I guess I expect that mine will be pretty loud no matter what, but I really hope it's not too raspy.

      Comment


        #4
        I have a few vids but none of them really highlight how loud it is to be honest.

        https://www.youtube.com/watch?v=lMPa6AnPB48
        https://www.youtube.com/watch?v=HtirE9tgRj4

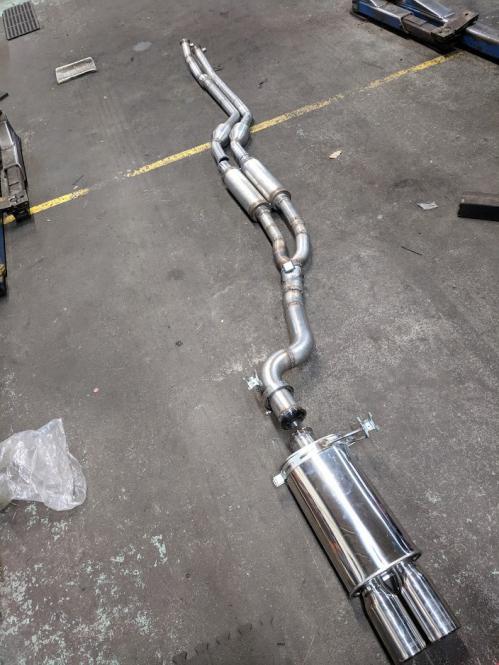

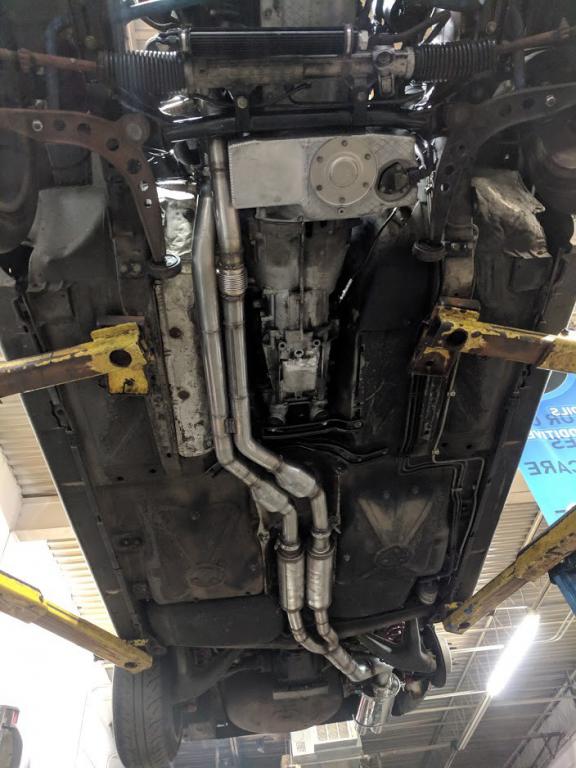

        Here's what the system looked like the first time around with the two smaller magnaflow mufflers:

        Click image for larger version

Name:	vq8a05eHgOMDe5L54hplWXXCHnwTtuCIO02n5Aqk2sAJmIvWDfVbuEs4FuY_Fl4sbPE5SElJGhBCCVAYBctkMsMRqWqXaHlU_xxj_uXwfv8ZO5aY1uqoSIrD8iKWy3jkVjo6VRRoxw41l4_HvCLkohCck29YQf2YXVFSj9JKHVMDQMBYxxNZEwO2yVMV1e8ZN5nLOLrVu5FIDsZVBVAolgjJCL3STZ2HShuUUe2-b8hxCDP4cCTuUOpOTcfKgO0
Views:	271
Size:	65.2 KB
ID:	9954099

        Click image for larger version

Name:	aQbyuVIpOZloyNcfdrtED_gxY3nQlg-JazzRAoWUnXyjHQMze51Hvezdk0i87fzMqENolu6O0_HXtgrV9wpf0CpMBTsodJCwYQavzyxtYDREB-upwqrbePWSO6XrEn9sA2sMaoAn-vvOI72uXI2QRrarDfBd8HSRviNPg55u_RoixRAzEKJa_IBrgBhRTrmg5YFGAh86_l-MxKmzwIZBI6bcJsS29G1k09JtiXfd3l6Rhx5qFakal9g8dfRihfd
Views:	257
Size:	55.1 KB
ID:	9954100



        Very interested to see how it turns out for you man! Please check back in once you get around to changing things around :)
        IG: deniso_nsi Leave me feedback here

        Comment


          #5
          Ah, I did run across your videos on youtube and I think your car actually sounds pretty awesome, bummer that it's too loud. Maybe you can figure out a way to keep the same sound but just tone it down a tad. I wonder if the 3" section is a big contributor.

          I've been practicing stacking dimes with the TIG and my H pipe is in progress. I'm waiting on a couple more parts but I hope to have this thing fabbed within the next month or so and I'll report back on the progress.

          Comment


            #6
            Looking forward to seeing how things work out for you!! Would love to keep the setup but I think my best bet is configuring an E36 catback to work because they're the only ones out there with large enough mufflers that actually soak up noise!
            IG: deniso_nsi Leave me feedback here

            Comment


              #7
              The borla, magnaflow, and most aftermarket generic mufflers tend to be loud. Dynomax super turbo is a bit quieter.

              Comment


                #8
                Interested in hearing your setup.

                I ran Stattus Groupe headers to E46 section one with N54 Cats, to a magnaflow X Pipe into an E36 M3 exhaust all 2.25. I wanted mine to be quiet and have no drone. Also the E36 Exhaust is heavy, couple that with the heavier battery I put in it helped me balance the weight out of the S54.

                Anyway I dont really have a sound clip behind the exhaust but here is one from in the car.

                https://www.youtube.com/watch?v=BBxf-1PoF0U
                Euro Delivery Thread///E30 Project Klaus

                Comment


                  #9
                  I'm making progress on this. H pipe is fabbed, and s bend through the rear axle area is fabbed and it's all tacked at this point. I'm doing everything in 304 stainless. I'll post photos and some sound clips when it's all done.

                  My borla muffler is on backorder, which is holding up the fitment process a bit. I need to see if I can find one in stock from somewhere else.

                  Comment


                    #10
                    Originally posted by Staszek View Post
                    Interested in hearing your setup.

                    I ran Stattus Groupe headers to E46 section one with N54 Cats, to a magnaflow X Pipe into an E36 M3 exhaust all 2.25. I wanted mine to be quiet and have no drone. Also the E36 Exhaust is heavy, couple that with the heavier battery I put in it helped me balance the weight out of the S54.

                    Anyway I dont really have a sound clip behind the exhaust but here is one from in the car.

                    https://www.youtube.com/watch?v=BBxf-1PoF0U

                    That actually sounds pretty good! No drone at all right? Do you have any photos of the exhaust layout?


                    Originally posted by R3VM3UP View Post
                    I'm making progress on this. H pipe is fabbed, and s bend through the rear axle area is fabbed and it's all tacked at this point. I'm doing everything in 304 stainless. I'll post photos and some sound clips when it's all done.

                    My borla muffler is on backorder, which is holding up the fitment process a bit. I need to see if I can find one in stock from somewhere else.
                    Awesome! Glad to see that you're making progress on this :)



                    IG: deniso_nsi Leave me feedback here

                    Comment


                      #11
                      Originally posted by dude8383 View Post


                      That actually sounds pretty good! No drone at all right? Do you have any photos of the exhaust layout?




                      Awesome! Glad to see that you're making progress on this :)


                      Zero drone at all, I kinda do I added the x-pipe after these pics were taken, Take the pic below and add the x-pipe after the Cats and that is my current setup.



                      Euro Delivery Thread///E30 Project Klaus

                      Comment


                        #12
                        Wow that E36 muffler is massive, your car sounds really nice with that setup. I see that you were able to keep that underbody chassis brace with your setup. It looks like mine is not going to be able to fit with my setup.

                        Comment


                          #13
                          Originally posted by R3VM3UP View Post
                          Wow that E36 muffler is massive, your car sounds really nice with that setup. I see that you were able to keep that underbody chassis brace with your setup. It looks like mine is not going to be able to fit with my setup.
                          Yep, its not light, so its not the route to go for lightweight racer. The guy who did my exhaust setup actually mounted the E36 hangers to make it feel more OEM.

                          Euro Delivery Thread///E30 Project Klaus

                          Comment


                            #14
                            Wow that system is well done! I might reconsider my whole setup because you have just two cats and the E36 muffler because I just want to shut the thing up. BUT I will wait to see how @R3VM3UP makes out. I really want to enjoy the car on long distance drives.
                            IG: deniso_nsi Leave me feedback here

                            Comment


                              #15
                              Originally posted by dude8383 View Post
                              Wow that system is well done! I might reconsider my whole setup because you have just two cats and the E36 muffler because I just want to shut the thing up. BUT I will wait to see how @R3VM3UP makes out. I really want to enjoy the car on long distance drives.
                              Dont forget I do have an X Pipe too its just not in that pic I put it in after.
                              Euro Delivery Thread///E30 Project Klaus

                              Comment
