E30 cabrio ONLY - M dead petal

[cactusjacks1]

Because of the frame stiffening the factory did on the e30 convertibles, the left-foot rest, where the dead pedal mounts, is @ 1" narrower than all the other models. It seems that all the different dead pedals that are made for the e30, are made for the models with the wider foot rest pad. It also seems that no one makes a dead-pedal for the narrower cabrio foot rest pad & if you wanted one you had to hack up what was available & normally that had questionable results.

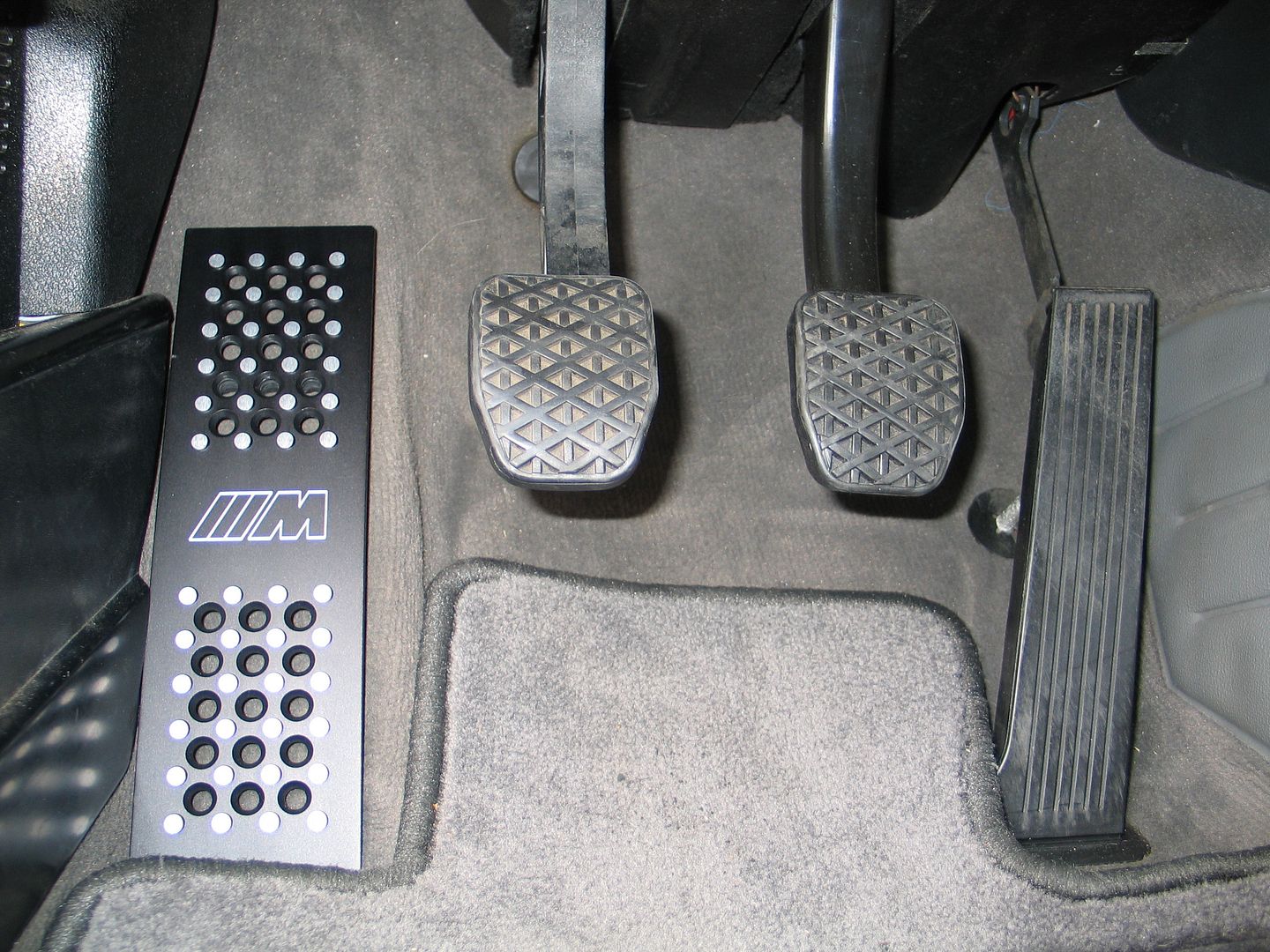

I am trying to determine if there is enough interest in an e30 cabrio specific dead pedal to do a limited manufacturing run of 40 to 50. This would be cabrio ONLY, @ 1" narrower that the regular size. The example shown below is pretty close to the design of the finished product.

This thread is only to see where the interest level is ....................if there is enough interest we can firm up quantities, finish, price & timing on putting together a group buy. Cabrio owners please comment.

Thanks,

Jack

[robrez]

Looks good Jack.

[reelizmpro]

Perfect timing Jack. Raul pointed out that ACS had a vert designed pedal but I have never seen one in person. looks like they notched the left side of it to clear that running board. The big question is how does the pedal in the pic attach?

[cactusjacks1]

Perfect timing Jack. Raul pointed out that ACS had a vert designed pedal but I have never seen one in person. looks like they notched the left side of it to clear that running board. The big question is how does the pedal in the pic attach?

Barry,
How to attach it, is one of the answers we are working on. You & the others close to this have suggested a number of solutions. If you've got More info on Raul's pedal or a pic of the ASC version would you mind PM'g it to me?

Thanks!
Jack

[ZoomZoomBoom]

I'm interested.

[Todd Black 88]

http://www.r3vlimited.com/board/showpost.php?p=3665602&postcount=7

[Roysneon]

Interested pending more details.

[Wishno87]

In.

[reelizmpro]

i still wonder if that ACS pic is accurate because it doesn't look like a vert running board in that pic but it's hard to tell. No idea how it attaches either.

[cactusjacks1]

http://www.r3vlimited.com/board/show...02&postcount=7

Todd, thank you for the link!!

Jack

[cactusjacks1]

i still wonder if that ACS pic is accurate because it doesn't look like a vert running board in that pic but it's hard to tell. No idea how it attaches either.

I don't think the pedal is trimmed, It looks like it might be slid behind the plastic stiffener cover?

Raul, could you chime in & perhaps verify??

[e30m3s54turbo]

:up:Here are some pics of my two AC Schnitzer catalogs.



Here is pic of the ACS dead pedal in the catalog and part numbers.

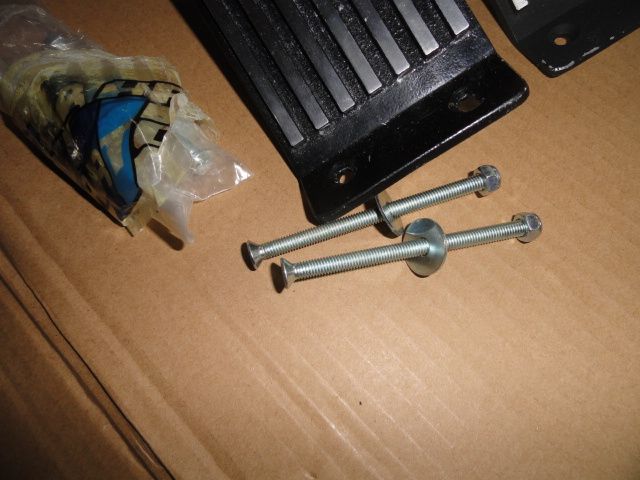

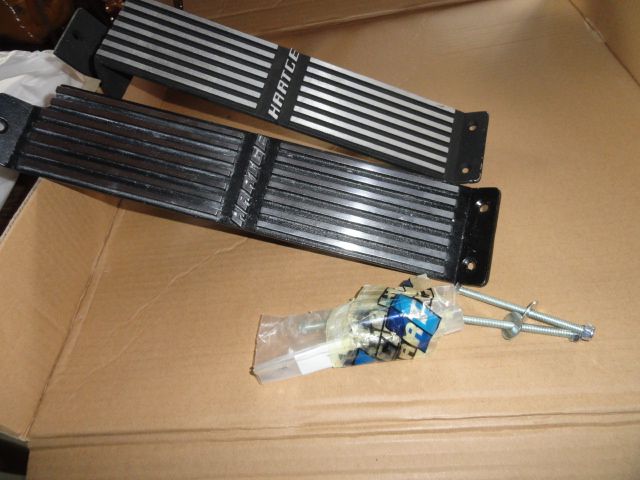

Hartge and Alpina kit used long bolts to secure the dead pedals floor panel. That means you had to drill threw the carpet and the floor panel. Here I have a Hartge dead pedal with bolts it came with.

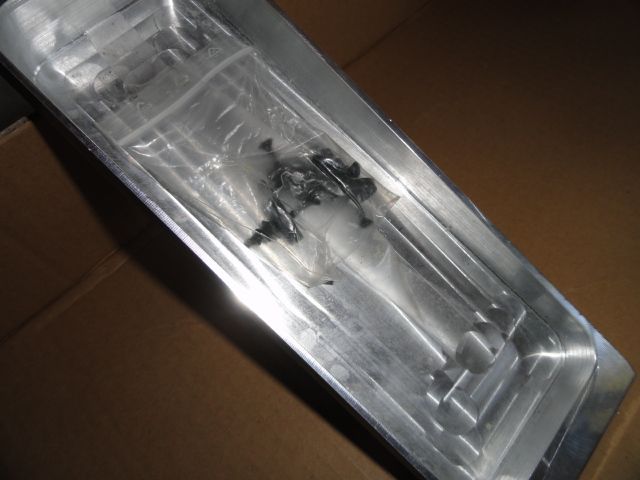

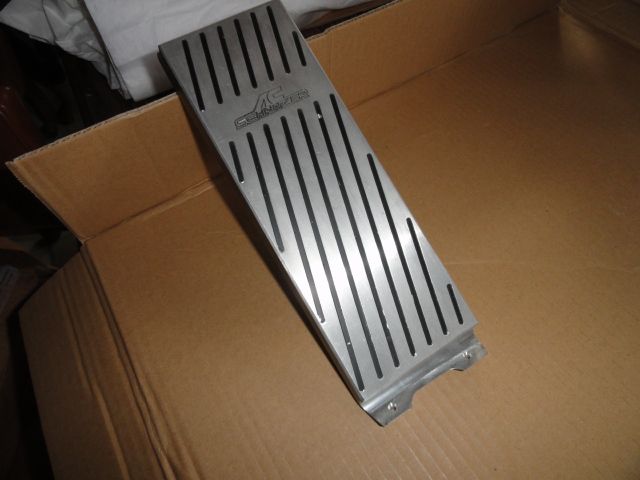

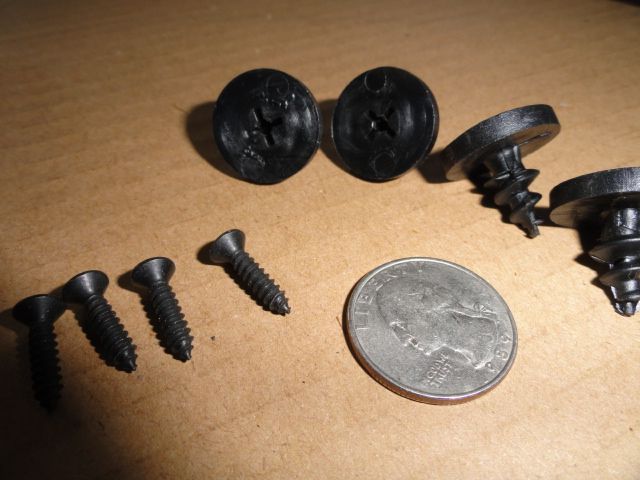

Here is pics of AC Schnitzer dead pedal with hardware. It come with metal black screws and plastic screws in to carpet. Not threw the floor panel like Hartge and Alpina.





I hope this help guys.

[cactusjacks1]

Raul,
Great photos & much help - thanks for opening the vault & getting out a bit of your stash!!

Is your ACS pedal shown for a cabrio - #1071 or the #1070??

Jack

:up:


Here is pics of AC Schnitzer dead pedal with hardware. It come with metal black screws and plastic screws in to carpet. Not threw the floor panel like Hartge and Alpina.


[

I hope this help guys.

[lobster rodeo]

I'd be interested in one

[e30m3s54turbo]

Raul,
Great photos & much help - thanks for opening the vault & getting out a bit of your stash!!

Is your ACS pedal shown for a cabrio - #1071 or the #1070??

Jack

Jack the number for AC Schnitzer cabrio is #5171 10 1071.
I sold a AC Schnitzer dead pedal to a friend with part number on the back side for a coupe. Here is pic. Some ACS black pedals do not have part numbers.
This is for a coupe.
