To each their own, but I've used them on several projects with zero issues over the past 20 years, lol. Of course, you always want to use the proper gauge tap for the wire your tapping into --- maybe that was your issue.
And I'll agree with you that a t-tap may not give you as much contact surface area as a barrel connector, the amount of current in this application is extremely small and would not impact performance.
At the end of the day, it's the right connection for the right application, if this was going to be a permanent installation, i would have likely used a barrel connector, but I may go back to the OBC at some point.
analog clock install
Collapse
X
-
T-Taps are the worst invention in wiring history. Do not use them. They create shitty connections that often damage the wire and can come apart very easily. A proper crimp with a decent pair of crimpers is the way to go.
I prefer to use uninsulated butt connectors and then shrink tubing over that. The uninsulated connectors are about the same size as the od of the wire jacket and make for a nice small connection.Leave a comment:
-
This install is well documented throughout this forum, but a few things I have not seen mentioned, that might help some of you out. This info is purely for those that are going from a 13 button OBC....
First, there are NOT two brown/white wires on the 13 button OBC harness that can get confused, rather a brown/white and a brown/grey lead. The brown/white lead is the one you want to use for the illumination/ground (31g). Be careful not to use the brown/grey lead, as this goes to the instrument cluster/fuel gauge light. Pretty sure any of you that have had SI board/speedo/gauge cluster issues is purely from making this mistake.
Also, the pigtail for the euro clock that I sourced had wire colors that were different colors than ANY I can find in these forums. That said, I've listed all possible colors below along w/ the corresponding lead you should tap into on the car's factory wiring loom. These possible color combos are listed as Harness A, B and C.
Euro/Analog Clock pins-----------Harness(A)---------Harness(B)-------Harness(C)---------------Factory Wiring
Power (30)----------------------------Black/White----------Blue/Black----------Green/Red--------------------Red/White
Illumination Ground (31g)-----------Brown-----------------Brown--------------Brown/Black------------------Brown/White(do NOT confuse with Brown/Grey)
Ground (31)--------------------------Blue/White------------Grey/Blue----------Brown-------------------------Brown
Illumination Power (58k)------------White/Black-----------Brown/Black-------Grey/Red----------------------Grey/Red
Given a lot of folks use a mirror motor harness (the connection fits the analog clock perfectly), these three possibilities are probably from right side, left side and the third being the proper analog clock pigtail. So which ever you wind up, just disregard the other two above during the install.
And lastly, just a reminder to never just start cutting wires when doing this. The OBC is tied into SEVERAL other electronics on the car (speedo, tach, fuel guage and door chime to name a few), it's always best to work with one lead at a time. Actually, I would recommend using t-taps instead of cutting splicing wires, as this will allow you to keep your factoring wiring/OBC plug in tact and more than likely prevent shorting any wiring.Leave a comment:
-
-

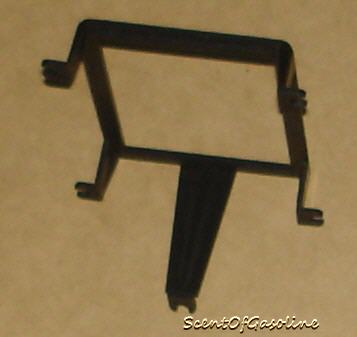

Thanks for the replys.... i just figured this crap out my self, lookie here :bow:
Leave a comment:
-
So do you just cut 4 wires from the green connector that goes in the 6 button OBC and leave the rest of the wires connected to the green connector for ease of re installing the 6 button? Also is there a adapter from 6 button female to a female analog connection? I hate splicing stock wires, like really hate itLeave a comment:
-
First I have heard of this. Did this in both my cars with no adverse effects. Just don't short anything out and make sure you are connecting everything correctly. Check twice, splice once.Leave a comment:
-
-
Back from the dead. Over a year!
Planning to do this to my 318is. Already have the clock and connector I will just be needing to splice! I am having second thoughts on doing this given that the SI batteries give out after installing this.Leave a comment:
-
You probably made a short when installing the clock and your cluster board is toast. Exactly what happen to mine. IDK how it happen but after I installed the removed the OBC my tach stopped working and it was the board that was burntLeave a comment:
-
I have a brand new si board batteries and everything worked perfect until I installed the stupid clock. I followed the instructions on this thread exactly. I wonder if I disconnect the clock if my tach will start to work again?Leave a comment:
-
Tach signal can be verified by probing the blue connector's black wire, pin 7 while the engine is running. Measure AC volts with a digital multi-meter. It should read 1.5-6V AC.
If tach signal is verified (from the ECM) then the problem most likely lies with dead SI board batteries. If batteries have been recently replaced, I would assume bad/cracked solder joints on the cluster main board, then bad tach motor assembly.Leave a comment:
-
im pretty sure your si batteries are now toast. it happened to me too when i first installed the clock but new si board fixed itLeave a comment:
