Turbo M42 done! Almost..

[Danny]

Oh yeah we talked on M42club, right right.

[Good & Tight]

Pulled the motor.
Sealed it up.
Stock everything, just new.
Good and tight manifold.
T3/T4 turbo, int. wg set at 9psi, HKS bov
2.5" exhaust system (cat still on)
m20 clutch and lightened flywheel (12lbs)
Dynotech MS PNP, still trying to get it to work.
4.10 lsd
fmic, 2.5 piping
Made 185whp on 8psi with a bunch of timing pulled to be safe because we a misfire for some reason. Should make about 240 with the correct tune.
Keeping it at 5psi until we get if working right.

Good to see you got it running, better to be safe on the tune.

[gsxrcop]

Anyone have any idea if you can take off the ICV while running megasquirt?

[Good & Tight]

Anyone have any idea if you can take off the ICV while running megasquirt?

Yes. I run my car with no ICV.

[iamsam]

videos, videos, we want videos!!! convince me to turbo my M42 instead of doing an S50 swap!

[rpm620]

videos, videos, we want videos!!! convince me to turbo my M42 instead of doing an S50 swap!

do the s50 swap you will love it so much more... think about it you put an s50 in your at 240 crank hp.


to the OP car looks good. would love to see a video of the car when you get it running 100%

[e30slut]

those wheels are hideous... not talking shit, just to be clear.... just pointing out the obvious.

[gsxrcop]

Update: Car is running great after installing new coil drivers. I have about 1500 miles on it now and all is good! I GPS the speed the other day and it hit 130 with no problem and was still pulling hard.

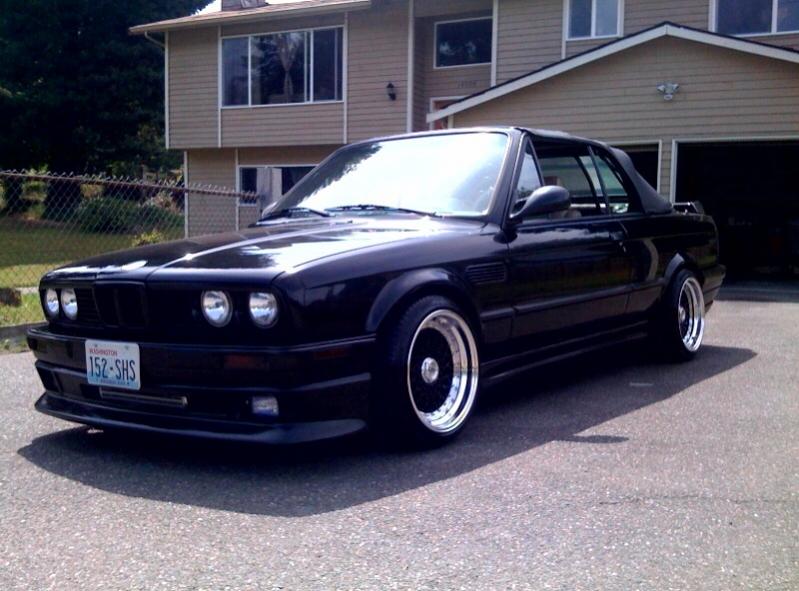

I put some new shoes on as well. Thanks to all who helped with advice.

[whiltebeitel]

Nice wheels, Got it on a dyno yet with the MS?

[Toms73NovaSS]

Those rims are a hella lot better!

[tonytony]

it's amazing how wheels change the look of a car. beginning of this thread i was like :weak: now i'm like :up: good job with the turbo

[nando]

Update: Car is running great after installing new coil drivers. I have about 1500 miles on it now and all is good! I GPS the speed the other day and it hit 130 with no problem and was still pulling hard.
I put some new shoes on as well. Thanks to all who helped with advice.[ATTACH]22141[/ATTACH]

so the high dwell you were running did kill the coil drivers.

glad to hear it. :)

[gsxrcop]

Thanks Nando, it was the dwell being way to high. Now the cheap e-bay turbo is leaking oil. I have a gt28r but was hoping I can find a name brand turbo with the same specs as the e-bay one. Any ideas? I would like to keep the down pipe and everything the way it is.

Here they are.

Consists of a T3 turbine section, (standard, Stage II or Stage III trim) and a T4 compressor section (T04 trim). 2 1/2" V-band outlet.

The turbo offers the low inertia and fast boost response of the light weight T3 Turbine wheel and the high airflow characteristics of the T4 compressor.

3" Inlet Diameter : 2" outlet

INTERNAL WASTEGATE

Wet Floating Bush Bearings : 1/8 NPT oil inlet

T3 Flange : Fits T3 and T3/T4 Manifolds

Specs:

. 50 a/r compressor

.63 a/r turbine

.57 trim

Turbine wheel:
Exducer: 2.48"
Mayor : 2.89"

Compressor wheel :
Exducer: 2.07"
Mayor : 2.36"

[Doughnut]

Your car is badass! Turbo m40/m42's FTW!

beginning of this thread i was like :weak:

That's a lot of things to be! Alas, I feel the same about the wheels, the new ones look heaps better!:)

[e30guydownunder]

if you have a gt28r rep then why not get the real deal, a garrett gt28r. Heres their website, you can have a look at the compressor and turbine maps and pick what suits best. You'll also have the opportunity to go for a ball bearing centre that way...more performance FTW!

Garrett Turbos

Glad to see your making great power with a similar build to what im about to embark on. Videos are required!!!

Do you have any idea what the kit is? the side grills are tne million times better black, but still ass if you ask me, the new wheels make up for it though ;)

GREAT WORK!
