    Valve marks in piston

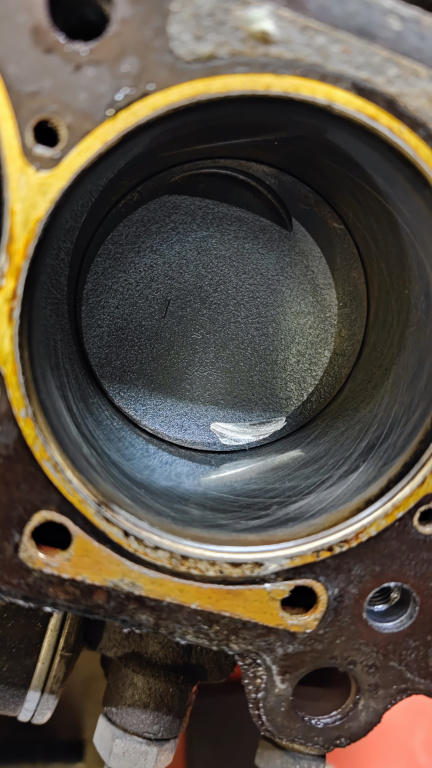

    I'm trying to figure out the root cause of why i have marks in my cyl 2 piston. Clearly the intake valve have met the piston.
    Click image for larger version

Name:	1675112380904.jpg
Views:	149
Size:	148.1 KB
ID:	10083395
























































    I bought the car a year ago. It has been sitting in a barn for 20 years. It has been driven less than 10 km by me due to different reasons. There was a valve "tick" on one cylinder when i bought it. Thougt it needed vave adjustment. I changed timing belt + tensioner and adjusted the valve clearance. Camshaft/crankshaft alignment was correct both before and after the belt was replaced. Inspected Camshaft and rockers, Couldn't find anything abnormal.
    Due to a oil leak from the head gasket i removed the cylinder head and found this.
    I have turned the crankshaft back with one finger on the piston, can't feel any play there. I have also turned the camshaft, the valve closes as it should.

    Someone got any ideas?

    #2
    OVERR3V, broken timing belt, or cam timing off. Chance someone could have had the valve adjustment way out of wack. Maybe got lucky on a dropped valve. Id check the rocker shaft holes for cracks.


    I was up above it, Now I'm down in it ~ Entropy - A Build thread.
    @Zakspeed_US

    Comment


      #3
      that's the exhaust valve. Valve could be sticking in the guide to.

      given you've done only a few km may be damage from a while ago
      89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

      new build thread http://www.r3vlimited.com/board/showthread.php?t=317505
