Does my super eta head need journals? (Pics inside)

[Sean]

I've done tons of research and have a b25 head here too. From what I can tell I may have the rare super eta head with the exact same casting and machines journals as an I-head.

Couple of pages I've found:

http://spece30.com/forum/46-oiling-system/80659-885-head-oiling-differences?limit=10&start=10

http://www.e30tech.com/forum/showthread.php?t=18722

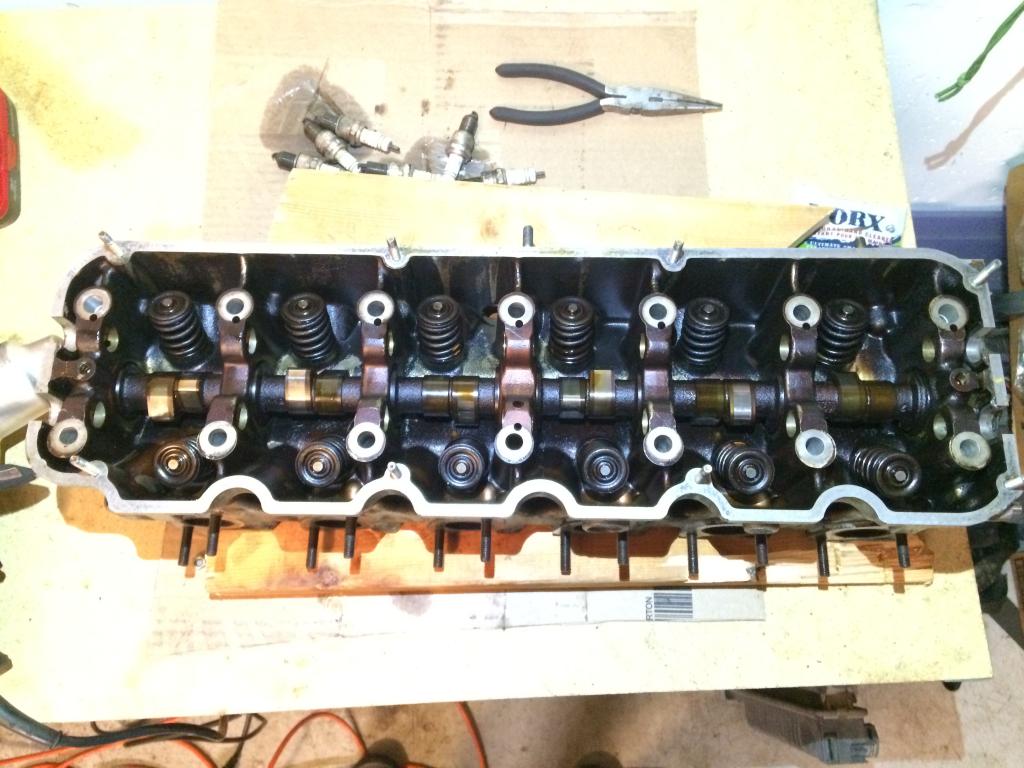

1: looks like my head pictures here has all the holes near the bolt hole locations (seems like all journals are present)
2: my head has a 2.5 stamped in it near the #2 exhaust valve. Sounds like it had to be blank if it didn't have the journals (see link 2 above)


Just wanted to get another opinion!

Thanks!
Sean

[digger]

holes are same the b25 head i have in front of me, whether its a seta or b25 doesnt matter if the oil holes are there just use a non eta/seta cam and double springs. all the heads have the 7 journals, its just some cams dont

[Sean]

Ok, awesome! That's what I was thinking too - just wanted to make sure I was thinking accurately. Appreciate it.

[TobyB]

Agreed-
the presence of all 7 oil holes means all 7 journals are oiled,
and you have to use the 7- journal (i) cam.

t

[achtung-e30]

How do u know it's not an actual I head ? Anyway to confirm Id on cam ?

[Sean]

achtung - well, the casting could be from an I-head but the guy I bought it from at 212k hadn't done any headwork to that extent - so from all I know the head was original.

I took the cam out last night, and it definitely only has one journal. Also, it is single valve springs - so looks to me to be a supereta head!

[digger]

1 journal, are you Sure? I see 7 in the pic.... But the single springs is a bit of a give away it's a seta. Might be some cam markings to help with cam ID
