    Coolant Temperature Switch - Early e30 45degC switch

    Does anyone have a source or or alternative for the 45C switch (2 prong exposed spade terminal switch)? This is no longer available from BMW.
    Part numbers: 12631279716, 12631279722

    #2
    I also should have asked about the function of this switch. Obviously, it's just a simple open/close temperature switch, but what specifically does it do? It looks like the circuit goes to the DME.

    Comment


      #3

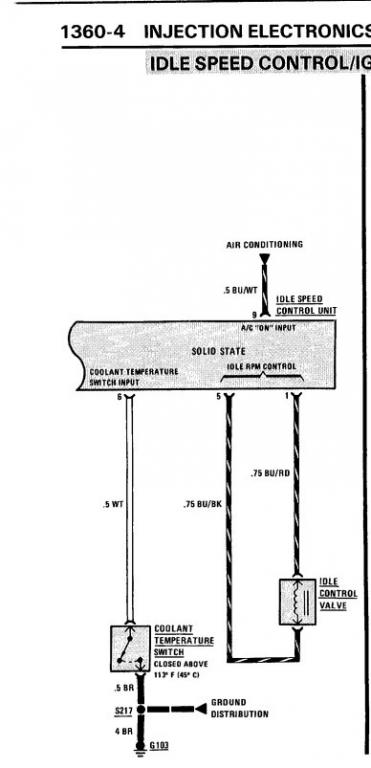

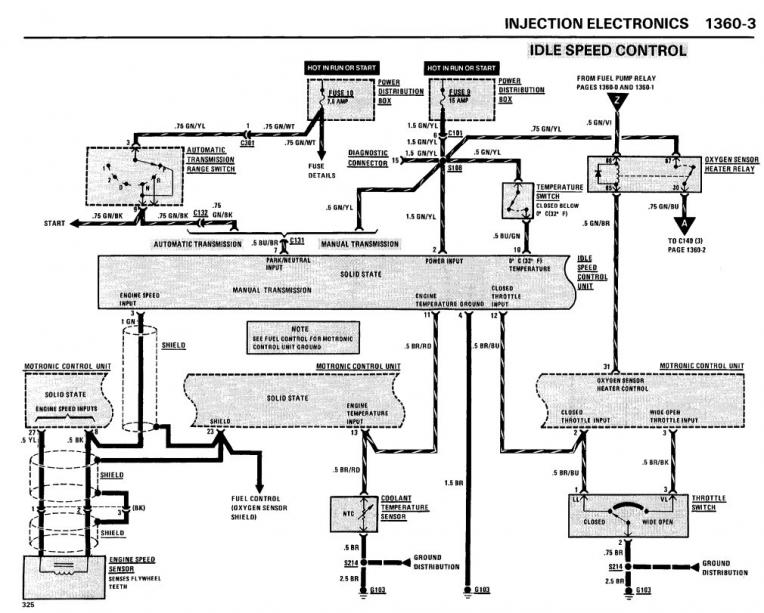

      Can't help you with the source but here it is in a wiring diagram to give you some idea about its function. I don't know precisely how the idle control unit responds to it, but if I had to guess I'd say it switches a stage of cold/fast idle off when it closes. I say a stage because there are other temperature inputs (0°C switch, coolant temp sender) which may be used for an even higher idle after true cold starts.
      Attached Files

      IG @turbovarg
      '91 318is, M20 turbo
      [CoTM: 4-18]
      '94 525iT slicktop, M50B30 + S362SX-E, 600WHP DD or bust
      - updated 3-17
