    Project Just the Tip: E30 M30B34/5 VNT Turbo Vert

    Just swap the motor they said...

    It will be easy they said....
    Click image for larger version

Name:	E30Rotisserie1.jpg
Views:	1
Size:	66.5 KB
ID:	7243256

    EDIT

    Below is a list of all planned/in progress modifications. This will (eventually) reflect the present status of each element:


    GENERAL
    FrankM E30's M30 Swap Guide (Bought)

    ENGINE

    M30B34 Block (On Engine Stand, awaiting assembly)
    M30 ARP Head Studs (Bought, not installed)
    M30B35 Head (Ceramic coated and assembled, awaiting installation)
    Cometic MLS Head Gasket (Not ordered)
    CeraKote Micro Slick Dry Film Ceramic Coating C-110HQ (Bought, awaiting application)
    Wiseco Forged Piston Set for Mitsubishi 3000GT F6555XA1 (Bought, waiting for ceramic coating)
    CeraKote V-136 Piston Coat (Bought)
    CX Racing 142.5mm "BMW S38" Forged Connecting Rod Set (Bought, inspected, oil groove machined, awaiting assembly)
    M30 Crank Scraper (Not ordered)
    GoodNTight M30B34 Engine Mounts (Bought, awaiting installation)
    Garagastic Engine Mount Reinforcement (Installed)
    CX Racing E30 Radiator (Bought, changing to Z3M radiator below)
    Speed Daddy 98-02 Z3M 3-Row All-Aluminum Radiator (Not ordered)
    Perma-Cool Remote Oil Filter Bracket (Bought, awaiting installation)
    M30B35 Intake Manifold (Bought, awaiting cleanup and paint)
    Audi A8L (D3) 85mm Throttle Body (Not ordered)
    Cartech M30 T04 Exhaust Manifold (Bought, awaiting ceramic coating)
    CeraKote InsulKote W-209Q (Bought, awaiting application)
    CeraKote Satin Silver V-119Q (Not ordered)
    Garrett GT3782va VNT Turbocharger (Bought, awaiting inspection)
    CeraKote V-171Q Turbine Coat (Bought, application)
    CX Racing Water to Air Intercooler (Not ordered, awaiting sale of previous intercooler)
    Injector Dynamics ID1000 Bosch EV6 Injectors (Not ordered yet, awaiting sale of old injectors)

    DRIVETRAIN


    Getrag 265/5 (Bought, awaiting installation)
    3.23 Z3 Rear Gear (Info Thread) (Bought, awaiting installation)
    E30/Z3 Hybrid Differential (Info Thread) (Bought, Awaiting assembly)
    Shortened Driveshaft (Parts on hand, awaiting shipping to specialist)
    TIG Welded Stock Shifter (Parts on hand, awaiting modification)
    Lightened E23 Flywheel (Completed, awaiting installation)
    SPEC Stage 3+ Clutch Kit for E23 SB193F (Not ordered)
    Garagastic Differential Reinforcement (Installed)
    XXR 527 17x8.25 +25 Flat Black (4) (Bought, not installed)
    Hankook Ventus R-S3 225/45ZR17 (4) (Installed)
    10mm Hubcentric 4x100 57.1mm Centerbore Wheel Spacers (2) (Installed)
    57.1mm to 73.1mm Adapter Rings (2) (Bought, not installed)
    66.1mm to 73.1mm Adapter Rings (2) (Not ordered)
    Turner Motorsport 12x1.5 Bullet Nose Wheel Stud (16) (Installed)
    17mm 12x1.5 Turner Silver Zinc-Coated Wheel Nut (16) (Bought, not installed)

    BRAKING

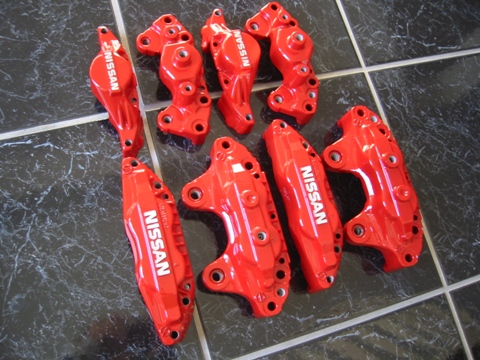

    1990 Nissan 300ZX (Z32) Front and Rear Calipers (Rebuild Thread) (Rebuilt, Rears Installed)
    2004 Hyundai Sonata Front Rotors (Bought, awaiting installation), Slotted to 4x100
    Custom-Machined 10mm Spacer/69mm/66.1mm Hub Adapter (Maching finished, Installed on car)
    1988 Izusu Impulse Rear Rotors, Hub bored out from 57mm to 62mm(Installed)

    SUSPENSION/STEERING

    Z3 1.9 Steering Rack (Info Thread) (Installed)
    Garagastic Front Sway Bar Reinforcement (Installed)
    DIY Adjustable Front Sway Bar Links (Rough fabrication completed)
    Garagastic M3 Sway Bar Mounting Tabs (Not being used)
    DIY Modified Front Strut Tube Housings (Info Thread) (Parts modified, awaiting further fabrication)
    KMAC Stage 1 Camber/Caster Plates (Bought, awaiting installation)
    Bilstein B8 or Koni Yellows (Not ordered)
    H&R Sport Spring Kit (Not used)
    Garagastic Rear Shock Mount Reinforcement (Bought, awaiting installation)
    IE Delrin Rear Subframe Bushings (Street) (Not ordered)
    Garagastic Rear Subframe Adjustment Kit
    (Camber and Toe) (Installed)
    Garagastic Rear Sway Bar Reinforcement

    CHASSIS

    Goof-Off Liquid Sprayable Stripper 1 gal.(Installed, awaiting stripping of secondary parts)
    Rustoleum Etching Primer 12 oz.(Installed, awaiting stripping of secondary parts)
    Rustoleum Filler Primer 1 qt. (Bought, applied to car body)
    Epifanes Monourethane Topside Yacht Paint (Fire Red) (Bought, applied to car body)
    Extreme Dimensions M-Tech II 6-Piece Bodykit for 84-87 2dr. E30 --modified sideskirts to fit Convertible-- (Bought, awaiting modification and installation)
    Smoked Euro-Style Tail Lights (Not Ordered)
    Custom Aluminum Front Splitter/Engine Undertray (Not fabricated)
    Wilson 1000 --Instead of power antenna-- (Not ordered)


    ELECTRICALS


    Walbro 450Lph E85-Compatible In-Tank Fuel Pump (Not ordered)
    Bosch ME 7.1 ECU 4B0 907 551 T from an Audi A6 2.7T - remapped to M30 specs (info thread, ME7.x tuning info site, pinout guide, freeware tuning program) - (Bought, modification in process, not installed)
    2002 Audi A6 2.7T Engine Harness (Bought, awaiting modifications)
    01-05 VW/Audi Electronic Throttle Pedal Assembly 8D1 721 523 E (Not ordered)
    97-05 VW/Audi Camshaft Hall Effect Sensor 058 905 161 B (Not ordered)
    VW/Audi Camshaft Rotor 078 905 234 F (Not ordered)
    Audi A6/VW Passat Brown (078 905 377)and Blue (06C 905 377) Knock Sensors (Not ordered)
    VW/Audi Crank Position Sensor 06A 906 433 C (Not ordered)
    Last edited by HappyPuppy; 05-03-2016, 02:34 AM.
    ...It's not road rage--it's simply preemptory defensive driving...:D

    1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
    1981 Porsche 924 S2 Turbo "Bast"
    1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
    1978 Dodge Tradesman B200 "Sasha"
    1966 Lincoln Continental "Gracie"



    #2
    To explain, this will be a live thread detailing the buildup of my long-abused 325i Convertible into...well I'm still not entirely sure, exactly. At the moment, it's veering towards overpowered, slidey street car that retains its creature comforts--mostly.

    And now Picture Time!

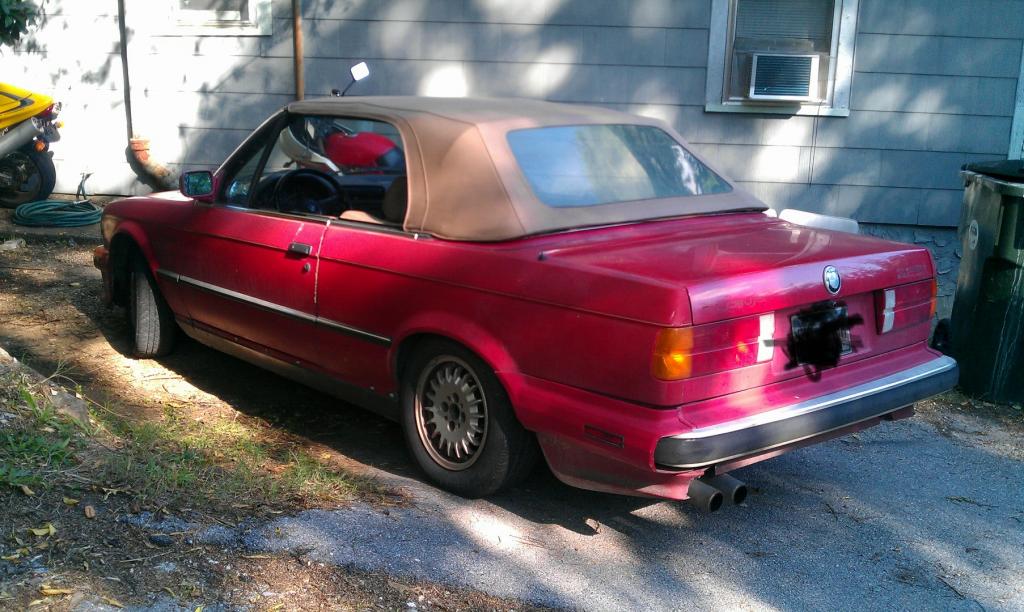

    This is how she was last seen by the general public:
    Attached Files
    ...It's not road rage--it's simply preemptory defensive driving...:D

    1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
    1981 Porsche 924 S2 Turbo "Bast"
    1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
    1978 Dodge Tradesman B200 "Sasha"
    1966 Lincoln Continental "Gracie"


    Comment


      #3
      She had been through the wringer far too many times: her suspension was worn out, her engine was threatening to overheat at any time, and ate coolant, and her bodywork had that "crackle" look that seems to be trendy now--in furniture!

      So, I went about pulling the engine and transmission out, which went pretty smoothly--then again, this is the third time we've been down that road, so I guess it should be no surprise ;)

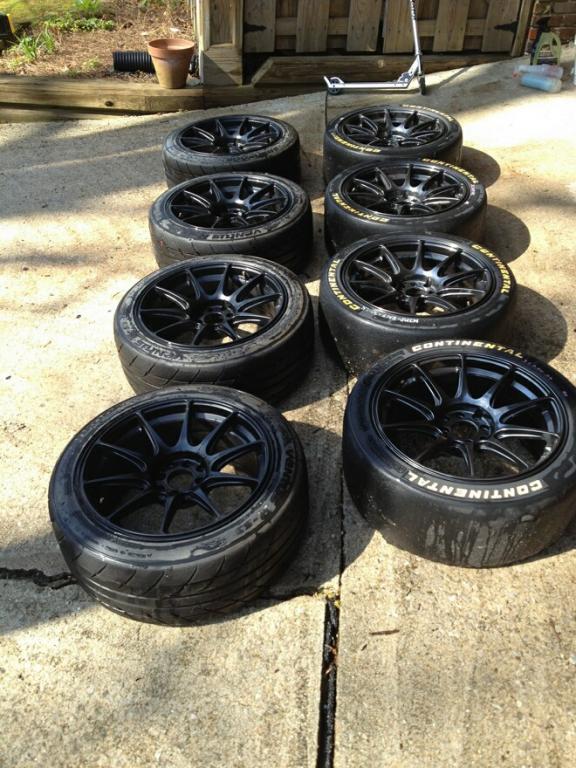

      Along the way, I scored a deal on some nifty wheels--I can't wait to try out the slicks...someday
      Attached Files
      ...It's not road rage--it's simply preemptory defensive driving...:D

      1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
      1981 Porsche 924 S2 Turbo "Bast"
      1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
      1978 Dodge Tradesman B200 "Sasha"
      1966 Lincoln Continental "Gracie"


      Comment


        #4
        Why blank out your face? I don't get it.
        Recent Rebranding!!
        Visit Garageaholic for all of your E30 Swap Needs!
        E30 SM62/S62
        E30 M60 V8
        E30 M30 Big 6!




        Check out this E36 N54 Swap Build
        Instagram.com/garageaholic
        Youtube.com/garageaholic

        Comment


          #5
          With the motor and tranny gone, I rolled the car out, and gave it some love in the engine bay with the pressure washer. Years of grime fell away, and I was finally able to see the condition of all the ancillary parts still attached--most notably the crumbling wiring harness.

          After a bit of discussion, I decided that the best plan was to simply pull out the "engine bay wiring harness", and rebuild it. Easy peasy, and that would ensure I wouldn't be chasing electrical gremlins later on.

          --If I had to pick the moment that would lead me to the first picture, that would be it. I had done a lot of things to this car, and over time had developed a certain well-known arrogance that befalls most enthusiasts: I know this car like the back of my hand--

          So, for anyone curious, the main harness goes from the headlights to the taillights in a single, unbroken section. That connector you spied under the dash? Do NOT confuse that with the kind of bulkhead connector we're used to seeing on American cars, or you will have a bad day.

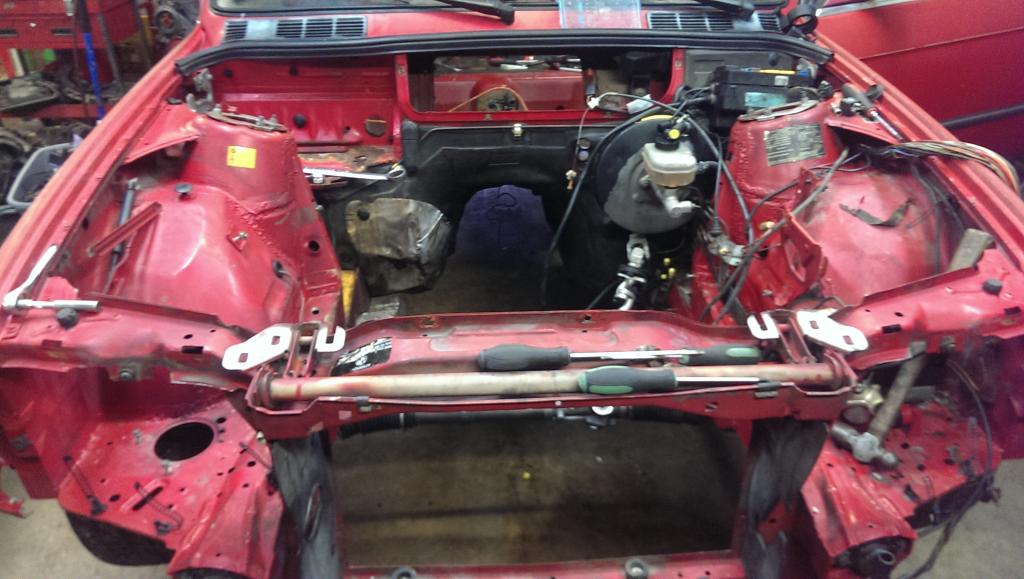

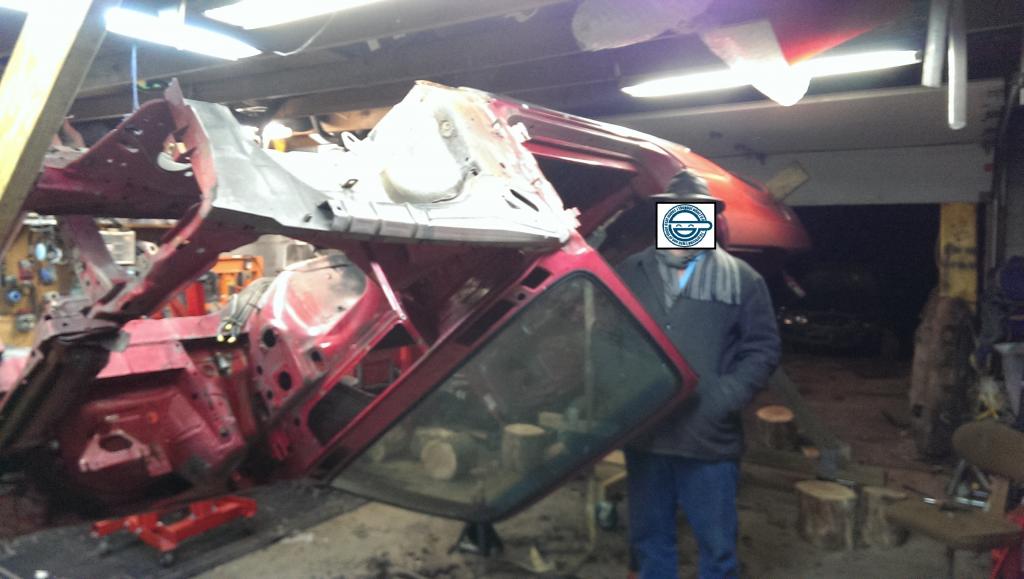

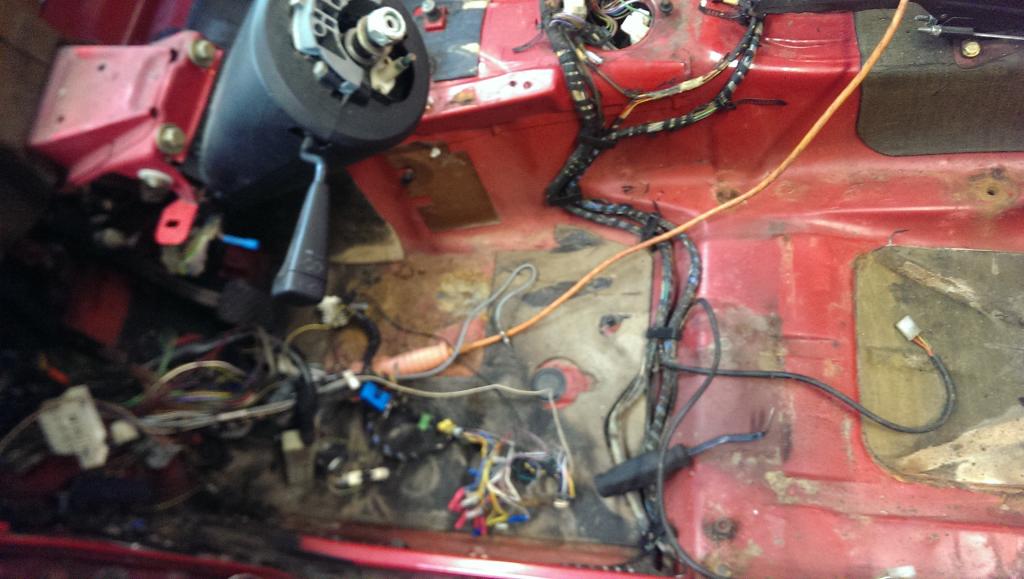

          This is me having a bad day (pics blurry due to tears):

          Click image for larger version

Name:	IMAG0269[1].jpg
Views:	1
Size:	78.4 KB
ID:	7175748

          Click image for larger version

Name:	IMAG0270[1].jpg
Views:	1
Size:	68.5 KB
ID:	7175749

          Click image for larger version

Name:	IMAG0278[1].jpg
Views:	1
Size:	90.1 KB
ID:	7175750
          ...It's not road rage--it's simply preemptory defensive driving...:D

          1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
          1981 Porsche 924 S2 Turbo "Bast"
          1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
          1978 Dodge Tradesman B200 "Sasha"
          1966 Lincoln Continental "Gracie"


          Comment


            #6
            Originally posted by FrankM E30 View Post
            Why blank out your face? I don't get it.
            Same reason I blanked out the license plate--people be crazy :crazy:

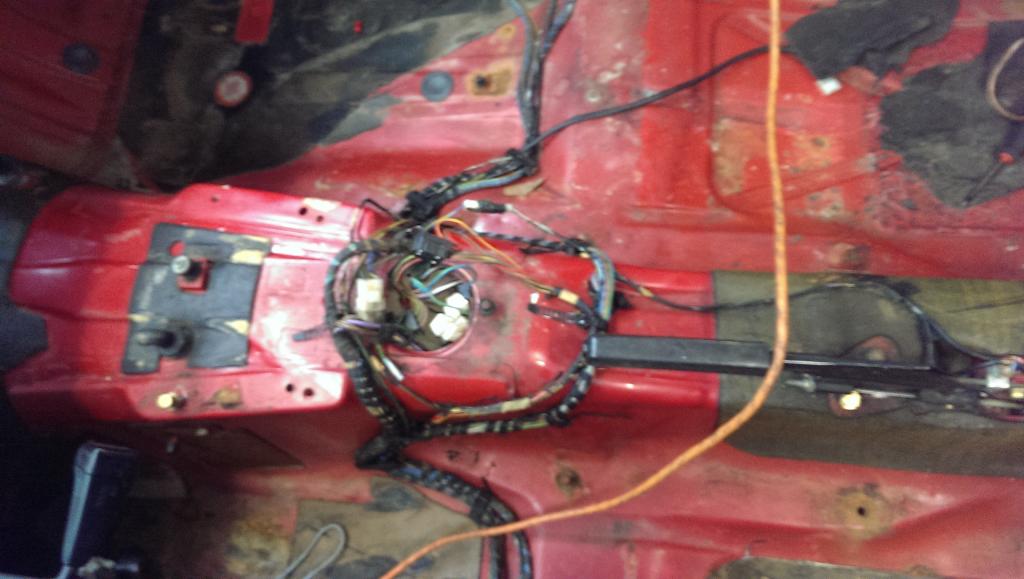

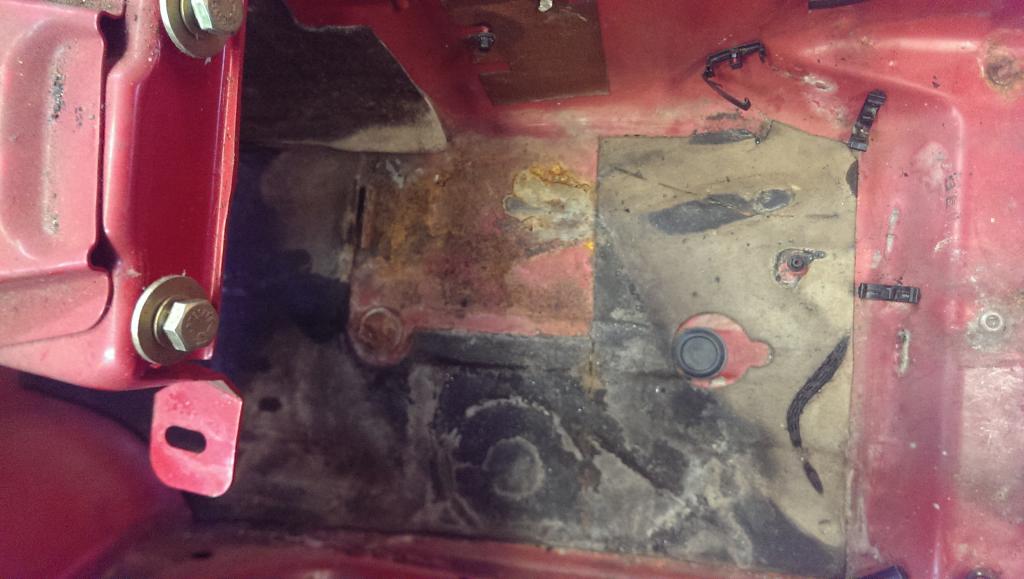

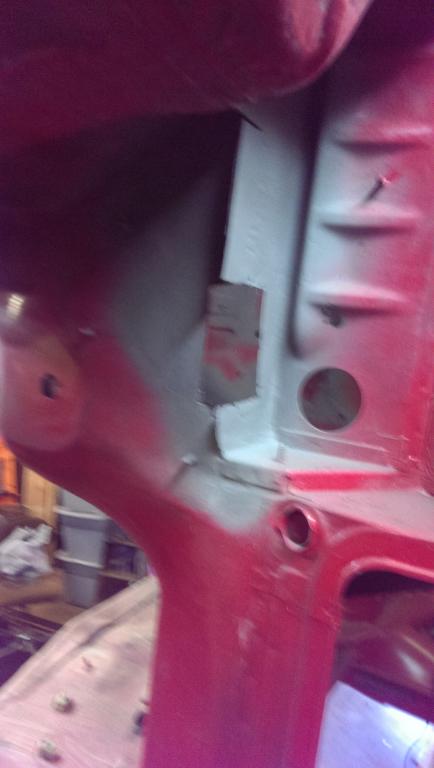

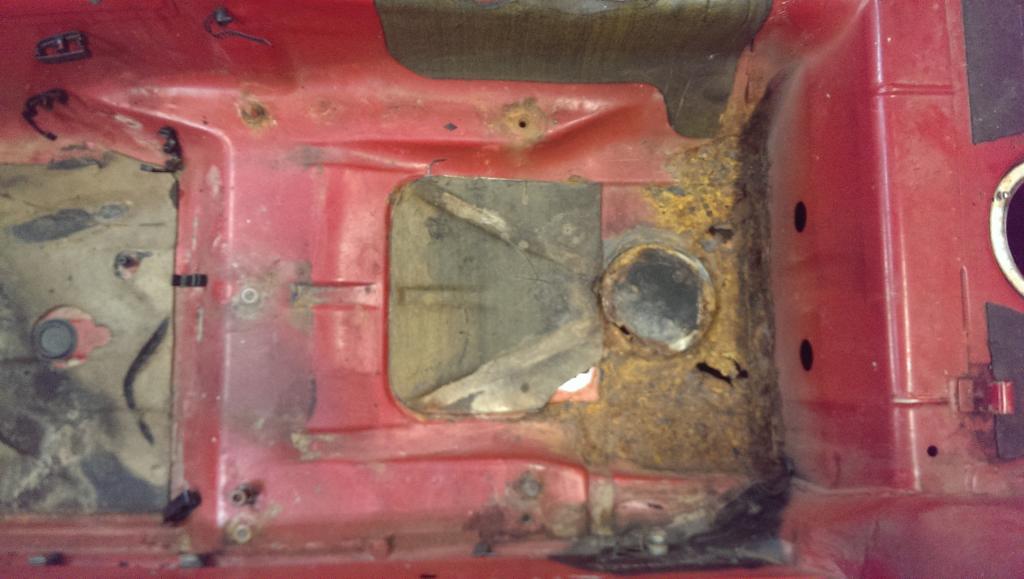

            So, as you can tell from the previous pics, the entire interior was (eventually) pulled in the process of discovering that the main harness was unbroken. This yielded yet more unpleasant surprises...
            Click image for larger version

Name:	IMAG0308[2].jpg
Views:	1
Size:	65.7 KB
ID:	7175751

            Click image for larger version

Name:	IMAG0307[1].jpg
Views:	1
Size:	69.6 KB
ID:	7175752

            Click image for larger version

Name:	IMAG0313[1].jpg
Views:	1
Size:	44.3 KB
ID:	7175753

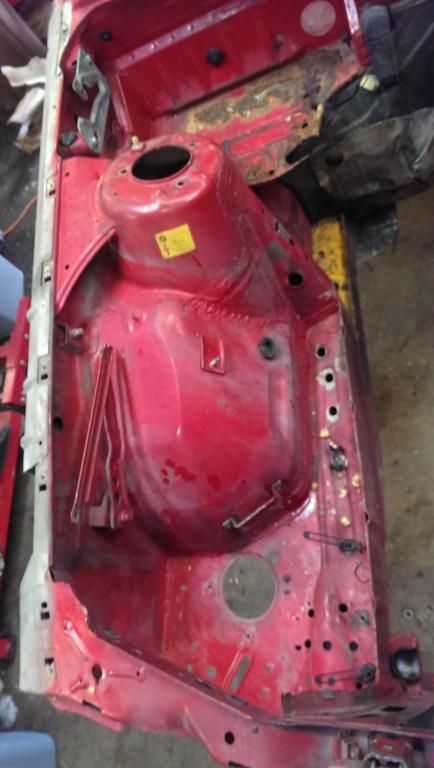

            If you own a vert, your top seals must not leak! Replace them if they do!

            Also, check your battery tray for missing paint and/or rust. As evidenced by the last pic, sulfuric acid will eat holes in your firewall :(
            ...It's not road rage--it's simply preemptory defensive driving...:D

            1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
            1981 Porsche 924 S2 Turbo "Bast"
            1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
            1978 Dodge Tradesman B200 "Sasha"
            1966 Lincoln Continental "Gracie"


            Comment


              #7
              Now, while my adventures in prepping the vert for its new motivation was being stymied by setbacks, the process of acquiring the needed parts was going pretty smooth...at least at first.

              A bit of background: when I first began this project, I was aiming for more of a junkyard dog kind of plan--M30B34 out of a e23 we had sitting around, a couple of b234 turbos mounted to adapters bolted to flipped exhaust manifolds, a tweaked Motronic, some adjustable suspension bits, and topped off with those sexy wheels.

              It started with the mounts. I am grateful that GoodNTight--obviously banking on me personally :)--had the uncanny foresight to predict that I might need B34 mounts, and to go ahead and design them for me

              I'm kidding a bit--but seriously, how many people have used a B34 in an E30?

              Next came stiffening up the various suspension bits, thanks to some nicely cut out bits of metal from Garagastic

              Originally, I had planned to just put put the motor in as is, then worry about forced induction at a later date. However, after finding the rust, fighting with the harness, and finding numerous other smaller issues, I was at a tipping point. After numerous discussions, I was (reluctantly) convinced of the superior logic in doing everything at once.

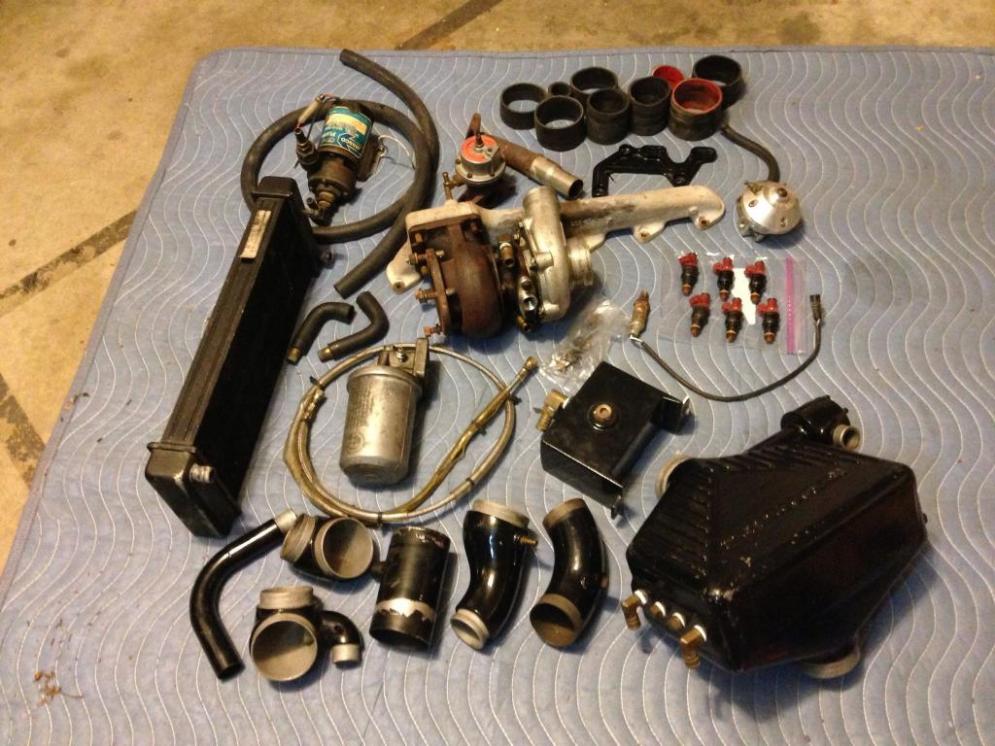

              As if to drive the point home, I came across a pretty amazing deal: A gentleman selling an original CarTech M30 kit, complete with the water-to-air intercooler!
              Click image for larger version

Name:	IMG_8618_zpsa1dde432.jpg
Views:	1
Size:	113.8 KB
ID:	7175754
              After a bit of good-natured wrangling, I managed to get it for 2 grand, which certainly hastened the expected completion date along--or so I thought...
              ...It's not road rage--it's simply preemptory defensive driving...:D

              1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
              1981 Porsche 924 S2 Turbo "Bast"
              1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
              1978 Dodge Tradesman B200 "Sasha"
              1966 Lincoln Continental "Gracie"


              Comment


                #8

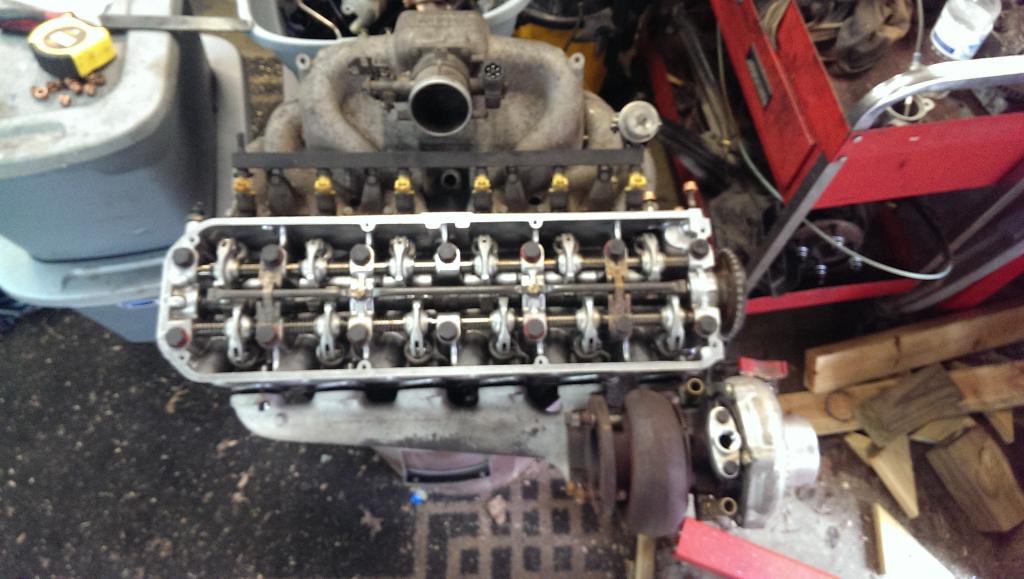

                As it turns out, the Cartech kit works perfectly on an M30...as long as it's in an E23, E24, E28, E32, or even an E34. When you try to stuff it in an E30, there just isn't enough room to fit the turbo the way it was designed (underhung in the back, FWIW)
                Click image for larger version

Name:	IMAG0346[1].jpg
Views:	1
Size:	83.8 KB
ID:	7175755
                As a side note, I will most likely be posting all the pieces that don't fit for sale soon :grin:

                I know it was a setback, but it had an unexpected upside--in the process of trawling the internets for inspiration, I discovered the magic of the variable vane turbo! :up:

                I could post all my findings here, but the quickest way to see where I'm going with this is to check out DNovak's excellent post on the Rennlist Forum.

                The Garrett GT3782va is the OEM turbo on 03-07 6.0 Powerstroke Fords, and can be had pretty cheaply. It uses V-band clamps on both sides of the turbine, and incorporates a novel electronic actuator that controls the flow of oil to adjust the vanes. It can be easily incorporated into a MegaSquirt ECU--or for the truly insane, something like this...
                Click image for larger version

Name:	IMG_0283__92956.1410089687.1280.1280.jpg
Views:	1
Size:	57.5 KB
ID:	7175756

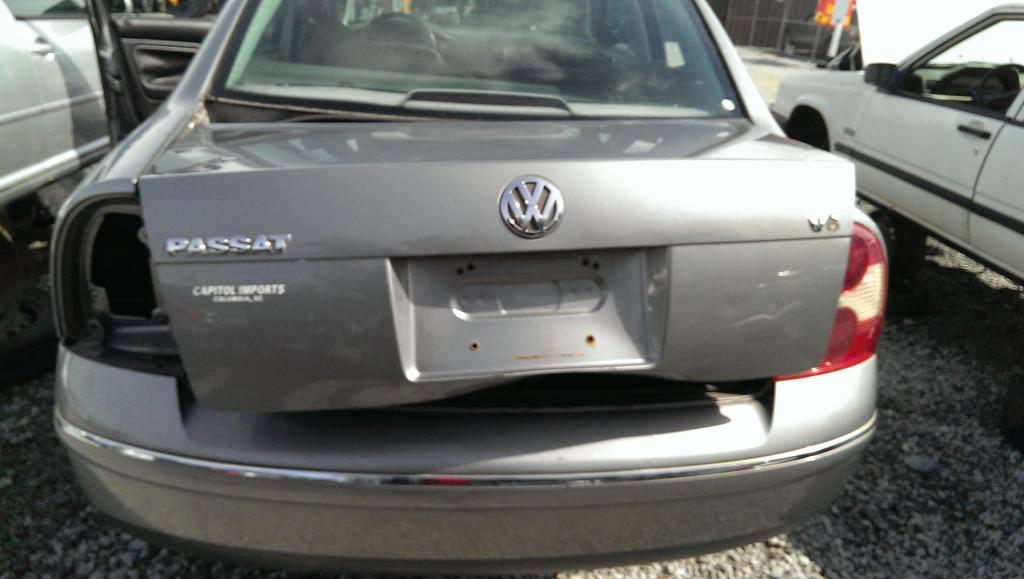

                My research came up with something incredible: 240SXSpotter, on the MyE28 Forum. In his posts, he mentions the fact that his E30 is running off a VW ECU from a late model VR6. A little more digging, and I found myself deep within the world of ECU tuning, remapping, and reverse engineering. So, I decided to do what any reasonable BMW enthusiast would do: add an insane level of complexity by remapping an ECU out of this
                Click image for larger version

Name:	IMAG0354[1].jpg
Views:	1
Size:	62.3 KB
ID:	7175757
                ...and conscript it to run a 26-year-old car with a 30-year-old motor, from an entirely different marque
                Last edited by HappyPuppy; 03-18-2015, 03:45 AM.
                ...It's not road rage--it's simply preemptory defensive driving...:D

                1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
                1981 Porsche 924 S2 Turbo "Bast"
                1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
                1978 Dodge Tradesman B200 "Sasha"
                1966 Lincoln Continental "Gracie"


                Comment


                  #9
                  Now, back to the Body!

                  We're finally at where that first picture comes into play. I have committed myself (HA!) to doing a fairly proper restoration of the body, but I have two things against me: my 2-post is still awaiting a concrete pad, and I loath working (on a car) on my back.

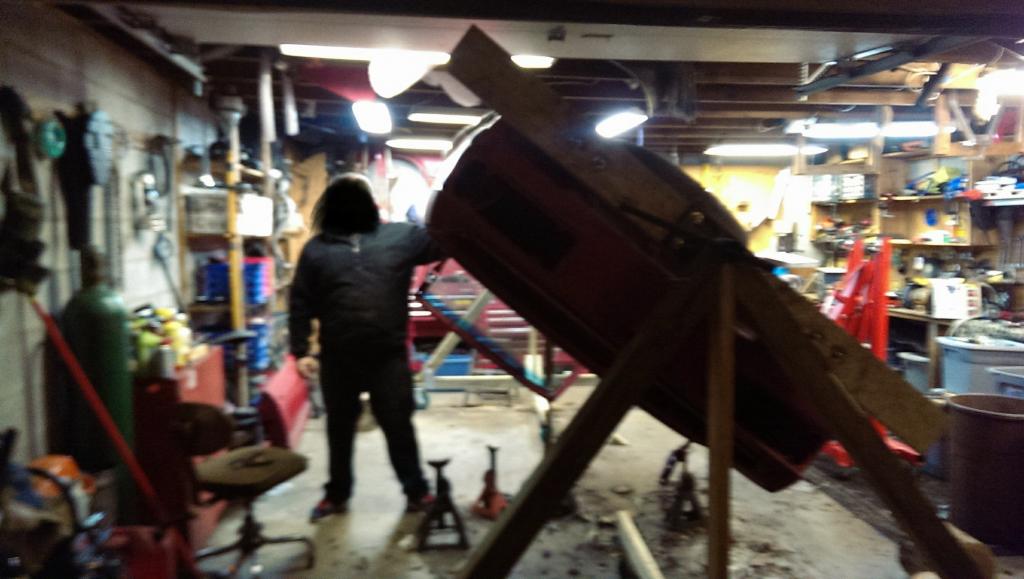

                  The solution? Rotisserie, baby!

                  And after seeing the ($900) price tag of even the cheapest one? DIY rotisserie FTW 8-) (Another one HERE)
                  Click image for larger version

Name:	IMAG0335_1[1].jpg
Views:	1
Size:	73.9 KB
ID:	7175761
                  If you look carefully, you can probably figure out the design. It uses treated 4x4s, 2.5" exhaust pipe, some casters, and two engine stand adapters, which I happened to have somewhat on hand It was about $200 worth of wood and hardware, but it works great! Now, on to the ugly part...

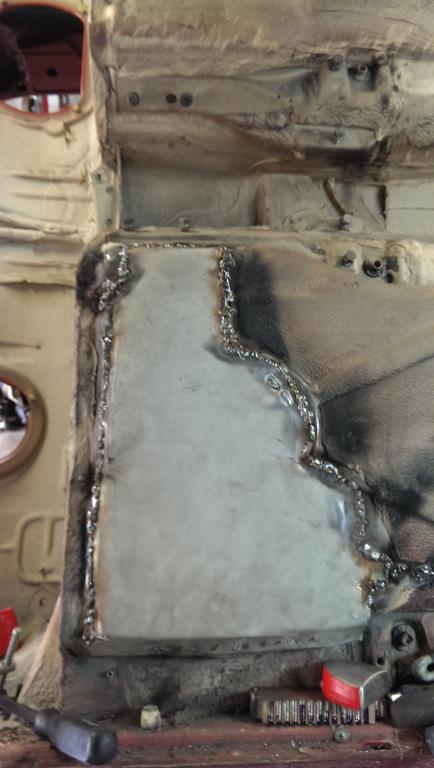

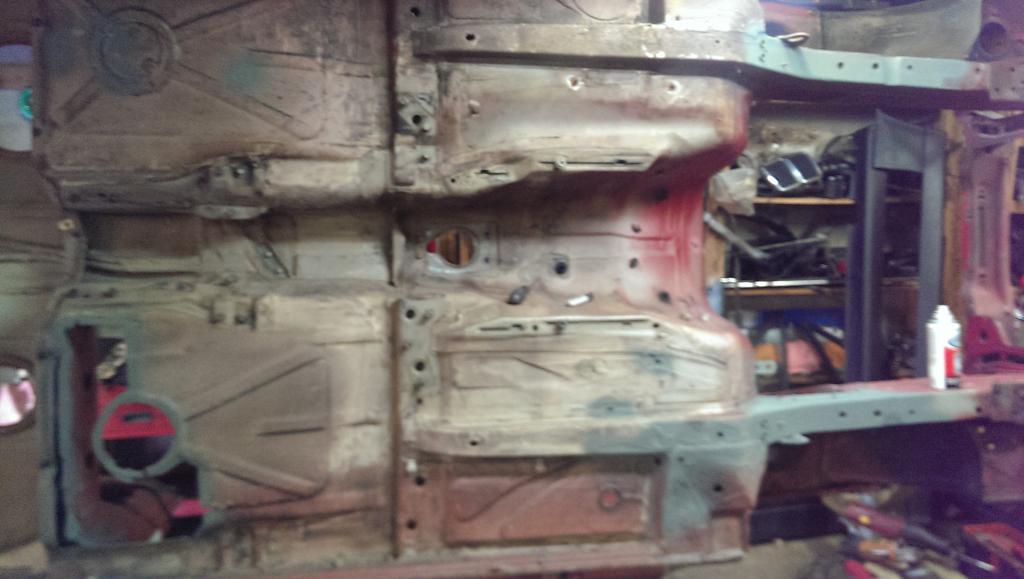

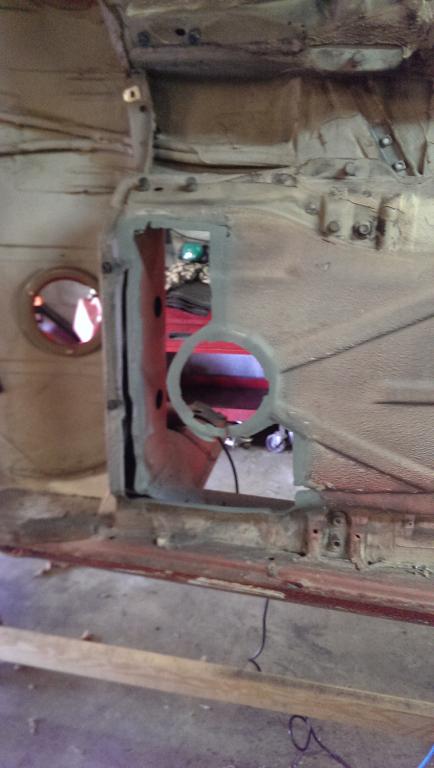

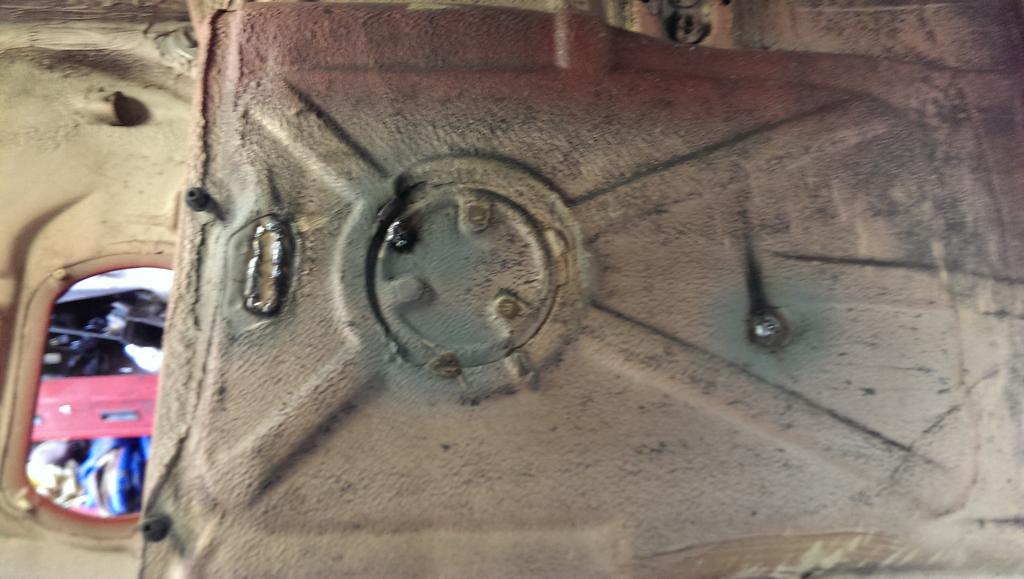

                  Okay, so I had rust. How bad was it? Enter my three amigos: Mr. Grinder, Ms. Wire Wheel, and Sir Cut-Off Wheel :)
                  Click image for larger version

Name:	IMAG0357[1].jpg
Views:	1
Size:	64.6 KB
ID:	7175758

                  Click image for larger version

Name:	IMAG0358[1].jpg
Views:	1
Size:	29.1 KB
ID:	7175759

                  Click image for larger version

Name:	IMAG0356[1].jpg
Views:	1
Size:	40.5 KB
ID:	7175760
                  Yep, pretty ugly
                  ...It's not road rage--it's simply preemptory defensive driving...:D

                  1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
                  1981 Porsche 924 S2 Turbo "Bast"
                  1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
                  1978 Dodge Tradesman B200 "Sasha"
                  1966 Lincoln Continental "Gracie"


                  Comment


                    #10
                    I like most, if not all of this. And semi-local. Come to the Brodeo.
                    Originally posted by Andy.B
                    Whenever I am about to make a particularly questionable decision regarding a worryingly cheap diy solution, I just ask myself, "What would Ether-D do?"
                    1987 325iS m30b34 Muscle car (Engine electrical phase)
                    ~~~~~~~~~~
                    I was born on 3/25…
                    ~~~~~~~~~~

                    Comment


                      #11
                      Originally posted by FrankM E30 View Post
                      Why blank out your face? I don't get it.
                      He did it to protect the guilty

                      Comment


                        #12
                        The last pic shows his face. He's a wookie. No biggie OP. You're not the first wookie we've had on r3v…
                        Originally posted by Andy.B
                        Whenever I am about to make a particularly questionable decision regarding a worryingly cheap diy solution, I just ask myself, "What would Ether-D do?"
                        1987 325iS m30b34 Muscle car (Engine electrical phase)
                        ~~~~~~~~~~
                        I was born on 3/25…
                        ~~~~~~~~~~

                        Comment


                          #13
                          Same reason the stig wears a helmet.

                          Comment


                            #14
                            So if I'm understanding you, the CarTech system doesn't fit the e30 bay in the standard guise, (bottom-mounted turbo between cyls 5-6), yes? If you flip the whole setup and run it top-mount near the front of the engine, you're going to have oiling issues since the feed will be on the bottom and the drain will be on the top. But you might be able to take off the exhaust housing and rotate it 180*

                            Comment


                              #15
                              Originally posted by Ether-D View Post
                              I like most, if not all of this. And semi-local. Come to the Brodeo.
                              I do make it up to Knoxville on a regular basis...and we might even have the blue drift rat vert up by then...I'll see what I can do :)

                              Originally posted by quickervicar View Post
                              He did it to protect the guilty
                              ...we'll go with that, sure ;)
                              Originally posted by Ether-D View Post
                              The last pic shows his face. He's a wookie. No biggie OP. You're not the first wookie we've had on r3v…
                              My brother found your wookie comments...disturbing
                              Originally posted by rcsoundn1 View Post
                              Same reason the stig wears a helmet.
                              While I love to pretend I'm actually a highly-skilled race car driver slumming it with mere mortals, I think it would quickly become more useful to prevent people from knowing who murdered all the cones on Turn 6 :shock:
                              Originally posted by CorvallisBMW View Post
                              So if I'm understanding you, the CarTech system doesn't fit the e30 bay in the standard guise, (bottom-mounted turbo between cyls 5-6), yes? If you flip the whole setup and run it top-mount near the front of the engine, you're going to have oiling issues since the feed will be on the bottom and the drain will be on the top. But you might be able to take off the exhaust housing and rotate it 180*
                              You are absolutely right: that's actually what we were mocking up in the picture with the cylinder head, exhaust manifold, and turbo in position. It's reasonably easy to clock the turbine and compressor housings in any position I need, so oiling can be remedied. However, after some prompting, I am selling off that turbo (RotoMaster T04B), in order to run the GT3782va. It's a fine turbo for a 250-350 HP build, but I want a little more adaptability.

                              Underbody Update:
                              I've been trying to teach myself stitch welding with flux core in my Lincoln 140, and it has been a pain in the ass. It amazes me how sheetmetal comes to life, and runs away from the bead faster than Usain Bolt :???: It finally gave me the push I needed to set my welder up for gas.

                              What a difference It was almost effortless to get it to stick, and I found myself bridging 1/2" gaps with ease. So, I got a chance today to snap a few shots of the work so far...
                              Click image for larger version

Name:	IMAG0364[1].jpg
Views:	1
Size:	43.5 KB
ID:	7175773

                              Click image for larger version

Name:	IMAG0365[1].jpg
Views:	1
Size:	74.9 KB
ID:	7175774
                              I just have the battery tray, and a few odd screw holes (don't ask!), and it will be ready for undercoating.

                              That brings me to a question: I have several cans of the 3M undercoating, but I'd like to figure out that thick stuff they brushed on underneath that. It kinda reminds me of Liquid Nails, or paintable silicone--any thoughts?
                              ...It's not road rage--it's simply preemptory defensive driving...:D

                              1989 BMW 325i Convertible "Desire" (M30 VNT Turbo Swap in Progress)
                              1981 Porsche 924 S2 Turbo "Bast"
                              1980 Porsche 924 S1 Turbo (20V Turbo AAN swap on back burner)
                              1978 Dodge Tradesman B200 "Sasha"
                              1966 Lincoln Continental "Gracie"


                              Comment

                              Working...
                              X
