Another M60 build....

[mark///m3]

I got my mounts and spacers from Garey today, they look great and I had them in a weeks time after payment!

I bolted them up and am now figuring out what to do about my oil filter mounting.




I am either going to adapt the old mount/oil passage to fit over the new arm or explore the idea of the remote mount plate from a m62. Any input on this one is appreciated.

Also I have noticed that most people delete the asc throttle body. Is there any harm into just not hooking it up and keeping it in place?

I hope to drop the engine in place by the end of the week just for some inspiration.

[mark///m3]

Just wanted to give myself some inspiration....

[iamsam]

I too would like to know about the oil filter mounting options. It seems the factory motor mount arm is integral to the oil lines...

[Jean]

x5 part and relocate the filter.

[bmwmech1]

x5 part and relocate the filter.

Yup, check your PM Mark...

Garey

[Jonsku]

Also I have noticed that most people delete the asc throttle body. Is there any harm into just not hooking it up and keeping it in place?

No real harm, though the additional "gas-flap" will increase the air resistance a bit in the intake pipe. You can also buy the large rubber intake hose from M60 versions without ASC..

I too would like to know about the oil filter mounting options. It seems the factory motor mount arm is integral to the oil lines...

Just cut the old mount a bit, that way you retain the P/S pump additional mounting point ;)

X5 mount is another option.

[JGood]

Also I have noticed that most people delete the asc throttle body. Is there any harm into just not hooking it up and keeping it in place?

If it's anything like the m50 ASC TB, you can remove the throttle plate, and you should even be able to remove the post that it rotates on. That will clear out the restrictions in the air path.

Like Jonsku said, the non-ASC boot (13711747995) works great. The MTC brand is much cheaper then OEM, but harder to find as most stores are out of stock and have been for over a year. Ebay is your best bet currently.

[mark///m3]

I ordered up my uuc flywheel yesterday, man did that one hurt. I found a driveshaft on car-part and it should be here by the weekend. I'll be tackling the brake lines this weekend, and should be building my headers by next week. I just need either another e34 steering knuckle and shaft or just order the flaming river stuff. Then I think other then little stuff I'm pretty set with parts. I knew this wasn't going to be cheap but I think I am around 5k as of right now. I will break down everything at the end so everybody has a rough cost idea that is considering this swap.

[mark///m3]

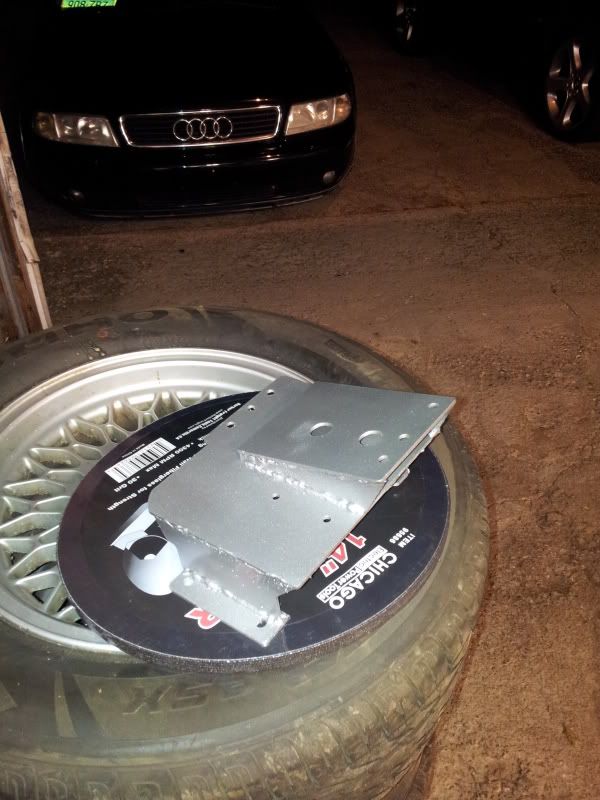

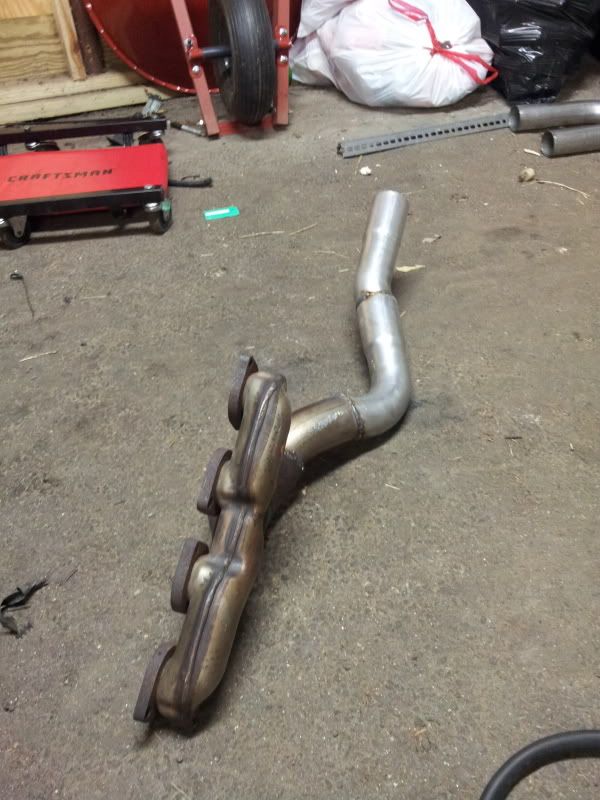

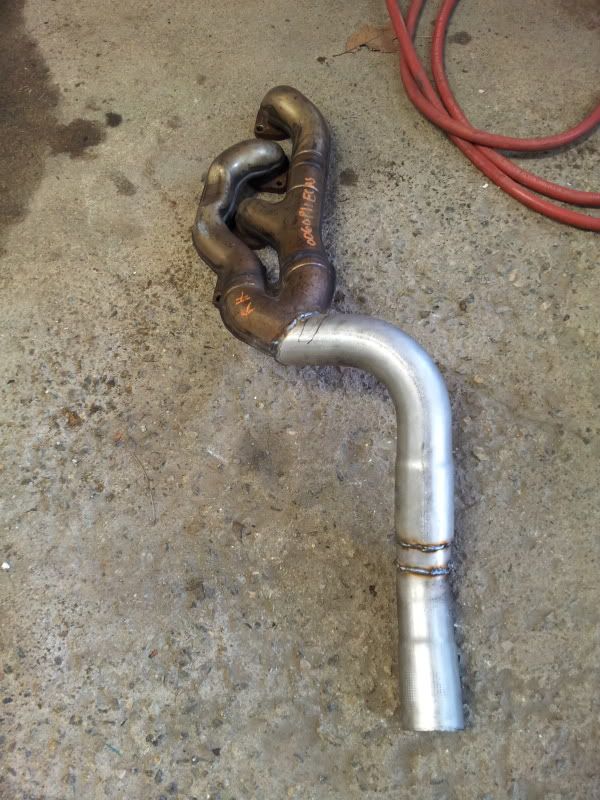

I made my right side header today and my pedal mount.







I am thinking of putting my reservoirs up here with the cap sticking through the dash. I am going to see if it looks clean or if I will have to make a dead panel on top of the caps. I am pretty tight on space for these and this seemed like a descent option.

[Jean]

Did you purchase the plans for the bracket hardware or bought it somewhere?

[mark///m3]

I bought a kit and welded it myself. I will look up the sellers info for anybody interested.

[mark///m3]

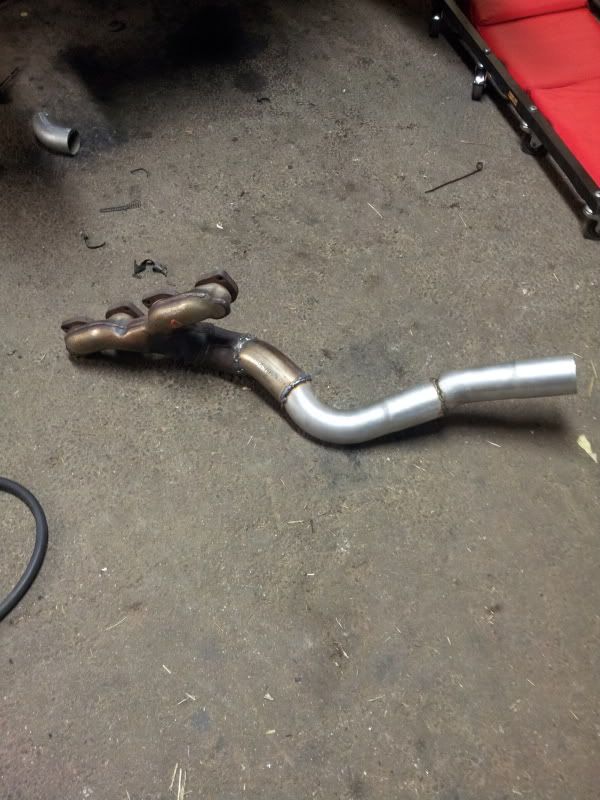

I was away this weekend so not too much progress but I did manage to make the driver's downpipe last night.

[mark///m3]

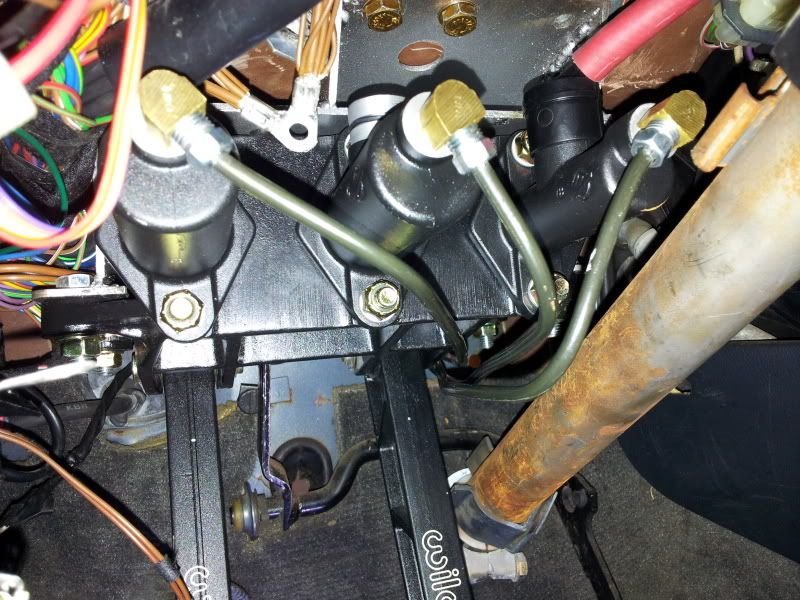

I had some time to make my brake lines and after staring at my car for a solid hour (part of every project it seems,) I found a nice spot to put my reservoirs without destroying anything.

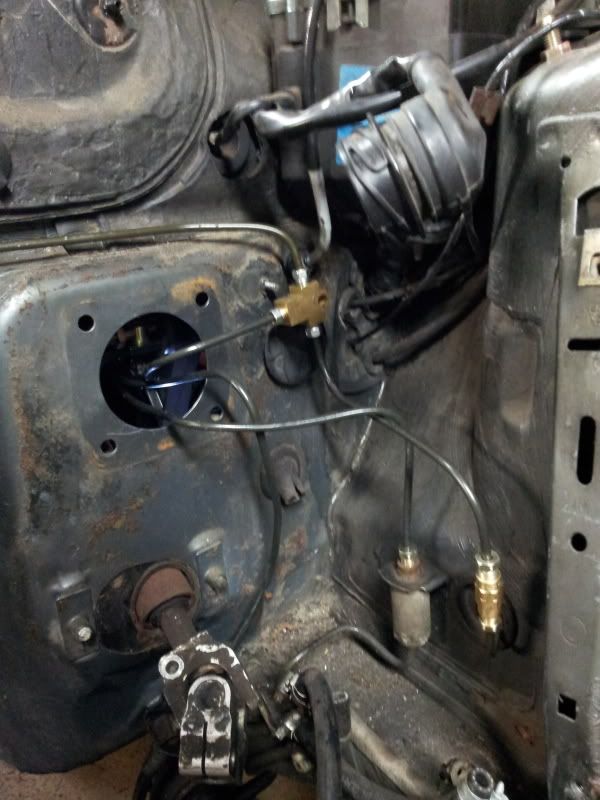

The lines look scrambled in this picture but they come together nicely and will go through a hole in the plate i will be welding on and then sealing up.

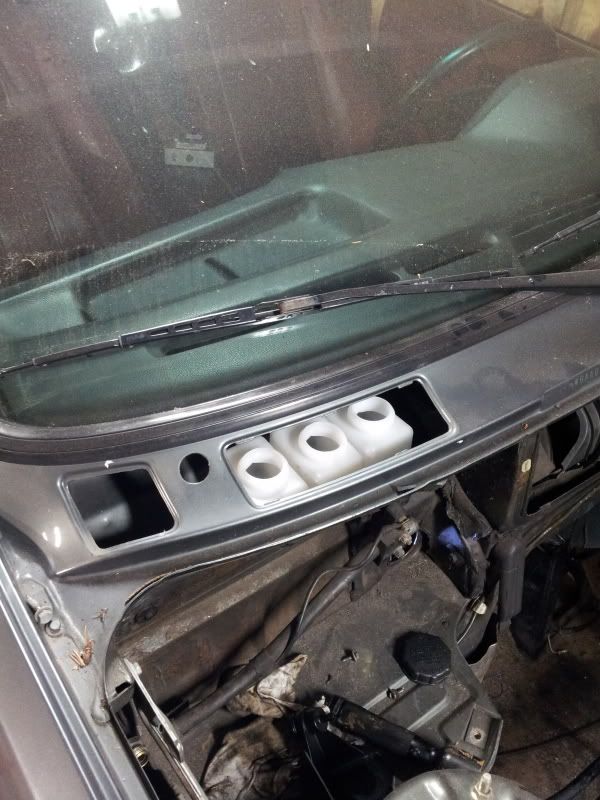

And my reservoir mounting location. I would like to have only two but does anybody know if it safe to mount a y fitting in the lines and have it feed the front and rear masters?

[dirty30]

I had some time to make my brake lines and after staring at my car for a solid hour (part of every project it seems,) I found a nice spot to put my reservoirs without destroying anything.



The lines look scrambled in this picture but they come together nicely and will go through a hole in the plate i will be welding on and then sealing up.


And my reservoir mounting location. I would like to have only two but does anybody know if it safe to mount a y fitting in the lines and have it feed the front and rear masters?

DO NOT share a resevoir for front and rear together. I've seen it done but in a worst case scenario if you lose a line in the front or rear circuit you can still rely on the other one to get you slowed down/ stopped. I mounted my resevoirs on a bracket I welded to the blower motor panel. I routed the lines through the large hole where the booster once was. As long as you have the reservoirs above the level of the master cylinders you're fine. I even though of fabricating a bracket for the drivers strut tower to mount them on.

[thirdlobe]

Question for you guys. Is the set up you currently picked up for clutch and flywheel better than what BruceBe found:

Drivetrain configuration:
Engine: E34 M60 (circa 1995), Alusil
Trans: ZF 5-speed transmission (530i)
Flywheel: JB Racing E39 540i flywheel
Clutch: E36 328 Clutchmasters Organic Stage 1 kit
Slave cylinder: 530i

I may be a bit confused since I am just trying to wrap my head around the M60 swaps.
