    #76
    I had a similar problem with the rear water plate bolts. Snapped 4 clean off in the block.
    I ended up drilling through 3/4 of them, tapping a size up with no helicoil. The 4th one I tried using an easy-out, which snapped off in the bolt. I dont have anything that drills thru hardened tool steel. I ended up welding a nut on it, and it actually unscrewed the bolt after a few nut attempts. I put a thin layer of silicone on both sides of the gasket, I never want this to leak ever again.
    We're in deep now boys
    1988 325i SETA - Daily driver
    1988 340iL - Track car
    My M60 V8 swap thread here
    [oo==OO==oo]

    Comment


      #77
      Fuck me running. I'm trying to get back into this project and it's gonna be a bitch just trying to remember what's next.
      My current E30 M62B44 swap

      Comment


        #78
        That's a real struggle!

        OBDI M62B44/6 swap
        Transaction feedback
        - jpod999

        Comment


          #79
          So I've been "catching up" by doing some stuff and things...
          My current E30 M62B44 swap

          Comment


            #80
            Z3 2.9 turn lock-to-lock with spacers installed. I was not into the idea of bending the tabs too much so this took much longer than it should have.

            My current E30 M62B44 swap

            Comment


              #81
              Gave the trans a little TLC with a brass wire brush.
              My current E30 M62B44 swap

              Comment


                #82
                Installed front and rear ST Suspension sway bars, Megan Racing Coilover kit, 5-lug swap/BBK kit

                5-lug and BBK components

                Front:
                • E36 Front hubs/bearings
                • Elcoy's 5-lug swap sleeve for spindle/bearing
                • Elcoy's BBK adapter
                • E46 M3 Calipers
                • E46 M3 Rotors
                Rear:
                • E36 Z3 Hubs
                • Elcoy's BBK adapter shaved down 2mm for Z3 hubs vs. M3 $250+ hubs
                • E30/36 Bearings (same part #)
                • E39 540i rear calipers
                • E46 325i rear rotors
                ​​​​​​​
                Last edited by wspellmann; 08-26-2019, 04:29 AM.
                My current E30 M62B44 swap

                Comment


                  #83
                  These style 5's are too big at 17x8, especially with the offset of ET20, the nuts on the inside rim were scraping on the calipers.

                  The off-center control arm bushings were too much caster with the bigger wheels/tires also.


                  Click image for larger version  Name:	20190811_174844.jpg Views:	0 Size:	68.4 KB ID:	9864535
                  Last edited by wspellmann; 08-26-2019, 04:40 AM.
                  My current E30 M62B44 swap

                  Comment


                    #84
                    So back to centered bushings it is...


                    Click image for larger version

Name:	20190824_204643.jpg
Views:	69
Size:	69.8 KB
ID:	9864537
                    My current E30 M62B44 swap

                    Comment


                      #85
                      The bad fitment of the Style 5's I bought on a whim got me to start using my google-fu for what I wanted in the first place...

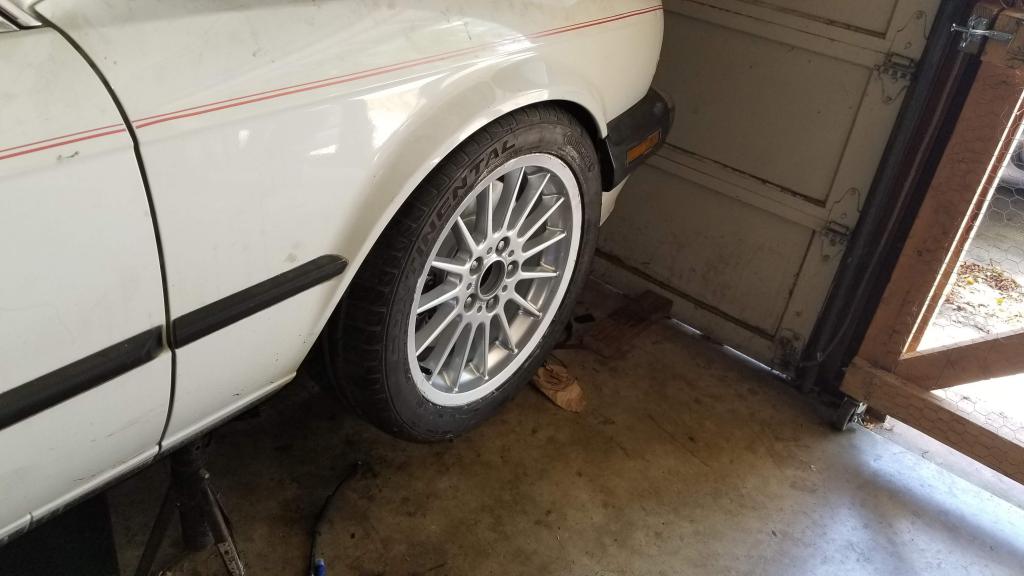

                      STYLE 32!!! A set of 4 17x7.5 ET41 sourced from 3 different sellers on Ebay

                      Click image for larger version  Name:	20190819_151204.jpg Views:	0 Size:	66.1 KB ID:	9864539
                      My current E30 M62B44 swap

                      Comment


                        #86
                        Those 32's look so damn good on the E30. The rotors filling almost the entire inside is sexy AF too


                        Click image for larger version

Name:	20190819_155041.jpg
Views:	69
Size:	64.9 KB
ID:	9864542
                        Click image for larger version

Name:	20190820_193433.jpg
Views:	66
Size:	65.4 KB
ID:	9864545
                        Attached Files
                        My current E30 M62B44 swap

                        Comment


                          #87
                          Got a set of 225/45/r17 Pilot AS/3's with 80% tread for a really good deal. One is already mounted. Waiting for the 4th wheel to arrive to get the other 3 mounted.

                          Click image for larger version

Name:	20190820_193626.jpg
Views:	70
Size:	65.9 KB
ID:	9864547
                          My current E30 M62B44 swap

                          Comment


                            #88
                            Style 5 vs 32... discuss

                            Click image for larger version

Name:	20190821_033134.jpg
Views:	72
Size:	70.9 KB
ID:	9864549
                            My current E30 M62B44 swap

                            Comment


                              #89
                              Moved to a more convenient spot in the garage.

                              Click image for larger version

Name:	20190821_065948.jpg
Views:	70
Size:	70.5 KB
ID:	9864551
                              My current E30 M62B44 swap

                              Comment


                                #90
                                aaand I finally did a test fit last night of just the motor and mounts!!! Seeing the M62 between the frame rails really reinvigorated me. I'm determined to get this done now!

                                I got it all tucked in by my damn self too. I got the bushings and bolts all lined up on my first 15th try.

                                Click image for larger version  Name:	20190825_212736.jpg Views:	0 Size:	74.2 KB ID:	9864553

                                Click image for larger version  Name:	20190825_212726.jpg Views:	0 Size:	76.1 KB ID:	9864554

                                Click image for larger version  Name:	20190825_212746.jpg Views:	0 Size:	75.6 KB ID:	9864555
                                Last edited by wspellmann; 08-26-2019, 05:02 AM.
                                My current E30 M62B44 swap

                                Comment
