    Odd Buzzing from Dash

    I recently inherited a 1984 318i, and I’m planning to hopefully get it back to good driving condition this summer. I haven’t started it yet since I want to drain the old fuel first at least, but I have turned the key to ignition on, and when I do I get a loud whine from the dash that sounds a lot like a piezoelectric buzzer. It plays/whines the whole time the key is turned, but it changes pitch sometimes when I turn the ignition off and on again. Just reading around on this forum, it doesn’t look like there’s a buzzer in the dash (but I could be wrong), so I’m confused what could be causing it. Any ideas? If it would help I can share a video of it but I’ll need to figure out how to convert it to a format that I’m allowed to post. Thanks in advance for any help

    #2

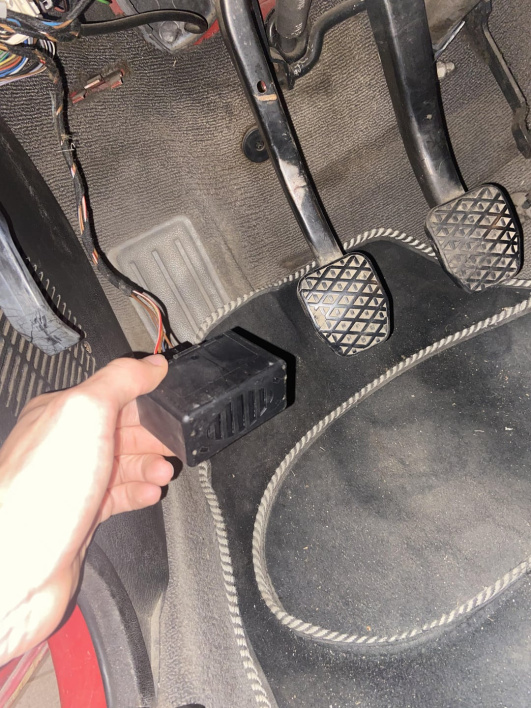

    It's the gong/chime module.
    It's located on the knee cover.

    The noise can come from the instrument panel too. The tachometer and odometer have coils.

    Click image for larger version  Name:	what-is-this-v0-h8b231r7ur7d1.jpeg?width=1080&crop=smart&auto=webp&s=9b4394c1c053d382e095f4627c7505bd2fbcf9be.jpg Views:	0 Size:	210.9 KB ID:	10141349

    Comment


      #3
      I've also got an 84 318i, early 83 production date if that makes any difference. the door chime is a little different than any other e30 ive seen(only seen US models, so can't speak for euro). The door buzzer you're talking about looks like a small relay and is nestled in the steering column plastic shroud, unlike other e30s which have a door chime as seen above
      84 325e, Saphirblau Metallic/Houndstooth Sport, OBD-2 M52B28/ zf320
