Camber and toe

[F34R]

I bought the rear camber correction kit from e30tech and was told I would need a toe also if I went too low.

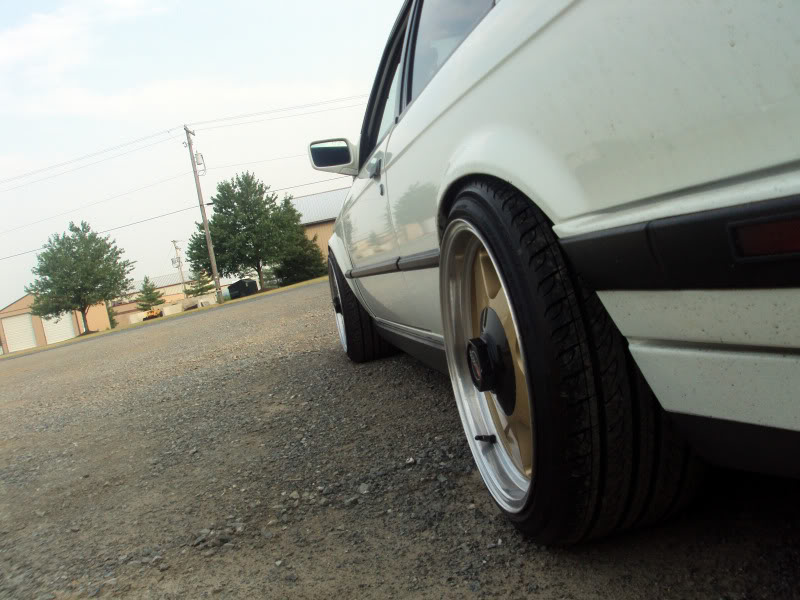

I am planning on 16" rims 205/50 tires and about the height of this car:

Will I need it?

[E30_fiend]

the kit you purchased should adjust both camber and toe settings. Yes you will need to correct both of those if you plan on going low. The car in the picture you posted is very low though, he probably doesnt have correction plates. Neither do I and Im lower than that car is. It does take a toll on the tires but its not horrible. My tires last me 20k miles with rotations every 5k miles so Im really not complaining




Taylor

[F34R]

the kit you purchased should adjust both camber and toe settings. Yes you will need to correct both of those if you plan on going low. The car in the picture you posted is very low though, he probably doesnt have correction plates. Neither do I and Im lower than that car is. It does take a toll on the tires but its not horrible. My tires last me 20k miles with rotations every 5k miles so Im really not complaining




Taylor

Thank you, I'll just buy the toe correction kit too.

I bought weld in plates and bolts. You can get toe and camber or just one. I did not know toe was affected in the rear when you lower.

[xwill112x]

the kit you purchased should adjust both camber and toe settings. Yes you will need to correct both of those if you plan on going low. The car in the picture you posted is very low though, he probably doesnt have correction plates. Neither do I and Im lower than that car is. It does take a toll on the tires but its not horrible. My tires last me 20k miles with rotations every 5k miles so Im really not complaining

Taylor

suspension specs?

Thank you, I'll just buy the toe correction kit too.



I bought weld in plates and bolts. You can get toe and camber or just one. I did not know toe was affected in the rear when you lower.

why dont you want any camber?

[F34R]

why dont you want any camber?[/QUOTE]

I do, I just want to correct it to where it does not eat my tires up. The cool thing with the kit is I can adjust it anytime I want.

I had it lower in the rear before and I ate a pair up in one auto-x. They were on for three days before the auto-x too. 4 days and I killed a pair.

149 for the toe and camber is cheaper then two cheap tires. I will be running R compound tires at the auto-x and those are around 250+ each. I don't want to eat them, I would rather have a tiny bit of camber.

I will do camber first and lower it down to where I want and see how it fairs. I am sure camber will be all I need. It is not like I am SLAMMING it.

[E30_fiend]

I did not know toe was affected in the rear when you lower.

If you take a look at a lowered e30's rear tires, you will notice while looking down from the quarter that the wheel sorta tucks in on the left side more than the right. This is toe in that all e30's have but just like camber, greatly increases when you lower it. It changes the whole suspension geometry of the car.

suspension specs?

2.5" Eibach 600lb 6" springs up front with modified bill sports and GC camber/caster plates. E30 M3 solid offset CABs and toe is set to .06" on both sides. Camber is at -3 degrees with caster set to 10degrees.

2.25" Eibach 750lb 5" rear springs with good ol billy sport rear shocks. Billet aluminum RSM




Taylor

[e304me]

It would be so dumb to just get one kit. You have to remove/sand/grind/weld/paint the subframe anyways, might as well spend another $75 to be able to get a good alignment

[nando]

just get the 12mm shorter subframe bushings. if nothing is bent (ie you have the same camber/toe on both sides) it takes out just enough camber/toe, and there's no welding.

[AndrewBird]

I don't see how toe is affected by lowering. The suspension doesn't move in that plane when compressed/decompressed, so how would it change?

Are the pivot points for the trailing arm not perpendicular to the center axis of the car?

[F34R]

The trailing arms are a in a shape of a slanted A so when you lower it gives a toe in. I am going to buy the other two and do it while I have it out.

[nando]

I don't see how toe is affected by lowering. The suspension doesn't move in that plane when compressed/decompressed, so how would it change?

Are the pivot points for the trailing arm not perpendicular to the center axis of the car?

because the pickup points of the trailing arms are angled.

http://www.e30m3project.com/e30m3performance/tech_articles/susp-tech/rear_curves/index.htm

12mm shorter subframe bushings will reduce camber by 1/2 degree. Toe isn't affected that much, so if you have wild toe from lowering your car then something is bent or broken. 3" of lowering is 1/16th in, that's not much, and it's toe out that you really don't want.

[StereoInstaller1]

As far as tire wear goes, I was eating a set of cheap tires every 8,000 miles with frequent rotations. I installed a set of urethane trailing arm bushings and now have over 10,000 miles on this set of cheap ass Federal tires and they have plenty of life left.

[F34R]

I think it is safe to say the camber kit will correct the bad wear. I don't think I am getting that much toe to make a difference. Plus it takes only 45 minutes to remove the subframe.

[jlevie]

Once you have the subframe out install camber correction plates, it makes little sense not to also install toe correction plates. Then you have full control of camber and toe on the rear.

[E30Nova]

Probably a dumb question, but is it even possible to adjust camber/toe with stiff poly bushings? I just adjusted my brakes yesterday and saw my rear tires were worn pretty bad on the inside so I swapped em to the front.

I've got IE Stage 3 springs and every bushing has been replaced with AKG 75D. It was damn near impossible to do anything to those bushings, so I don't even know if it would be possible to adjust anything with them since there's so little give.

Matt
