The 15 Y/O Turbo M42 Build Thread (Now Holley EFI Terminator X Controlled)

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Originally posted by lambo View Post
    I apologize if you mentioned this earlier, but are those real Brides or reps? How comortable are they?

    They are not real. They are actually pretty comfortable and decently built. Ive been really pleased with them ever since I bought them. They work well and hold you in great. Like all race seats, its not that fun to drive around for long periods of time. Sitting in them gets annoying after a while.

    Turbo M42 Build Thread :Here
    Ig:ryno_pzk
    I like the tuna here.
    Originally posted by lambo
    Buttchug. The official poster child of r3v.

    Comment


      In other news my m42 powered sedan gave up the ghost this evening. Driving along and all the sudden no power and a very loud metal on metal noise coming from the engine. If I let off the gas the sound stops immediately. Car began to slowly overheat. Dies if you dont keep your foot in it. Misfiring, the whole lot of awesome. Compression test reveals 30psi on cyl#1 and 40psi on cyl#2. 3 and 4 are good at 180ish.

      ugh. fml.

      Turbo M42 Build Thread :Here
      Ig:ryno_pzk
      I like the tuna here.
      Originally posted by lambo
      Buttchug. The official poster child of r3v.

      Comment


        You need to throw a big six or 24V turbo setup in that thing and quit dicking around with that 4 popper.
        Need a Turbo manifold? We have them in stock- Click here---> http://rapidspoolindustries.com/
        ____________________________
        E-mail Panayiotisx2@gmail.com
        Dyno vid http://www.youtube.com/watch?v=C7aM7..._order&list=UL

        Comment


          Originally posted by Good & Tight View Post
          You need to throw a big six or 24V turbo setup in that thing and quit dicking around with that 4 popper.
          couldnt agree more

          blown head gasket of peace.

          Turbo M42 Build Thread :Here
          Ig:ryno_pzk
          I like the tuna here.
          Originally posted by lambo
          Buttchug. The official poster child of r3v.

          Comment


            Originally posted by Dj Buttchug View Post
            couldnt agree more

            blown head gasket of peace.
            Too much timing burned through that gasket.
            Need a Turbo manifold? We have them in stock- Click here---> http://rapidspoolindustries.com/
            ____________________________
            E-mail Panayiotisx2@gmail.com
            Dyno vid http://www.youtube.com/watch?v=C7aM7..._order&list=UL

            Comment


              One of the few times I will have to disagree with Otis. You should stick with the 4cyl because M42 turbos are unique :) The lure of cheap easy 24v power is hard to overcome though!

              On the gasket he is right, too much timing.

              Also, did you ever dyno the car? I don't think I have seen a chart for this? Just curious.
              Last edited by wazzu70; 06-29-2013, 06:30 PM.
              -Nick

              M42 on VEMS

              Comment


                Originally posted by wazzu70 View Post
                One of the few times I will have to disagree with Otis. You should stick with the 4cyl because M42 turbos are unique :) The lure of cheap easy 24v power is hard to overcome though!

                On the gasket he is right, too much timing.

                Also, did you ever dyno the car? I don't think I have seen a chart for this? Just curious.

                The thing about this gasket is that it is from a completely stock NA m42. I have two cars.

                Not sure what could have caused this to happen. I take very good care of my engines.

                I am to invested in m42s now to back out. I may swap my other car someday but the turbo one is here to stay. :up:

                Turbo M42 Build Thread :Here
                Ig:ryno_pzk
                I like the tuna here.
                Originally posted by lambo
                Buttchug. The official poster child of r3v.

                Comment


                  Glad to hear you are sticking with the turbo M42!
                  -Nick

                  M42 on VEMS

                  Comment


                    well the 225s dont work. Im at 8psi running off just the stock wastegate setting and I can light the tires up in 1st and part of 2nd.



                    balls.

                    Turbo M42 Build Thread :Here
                    Ig:ryno_pzk
                    I like the tuna here.
                    Originally posted by lambo
                    Buttchug. The official poster child of r3v.

                    Comment


                      Originally posted by Dj Buttchug View Post
                      Bit late to the party here. Might I suggest that the baffle in the center their be more designed like the shape of a wing (or halve teardrop) with the flat edge facing the throttle body. That should reduce the swirl you have going on there and increase cylinder 1 velocities.

                      Other then that I am waiting for the end results :up:
                      sigpic

                      Comment


                        I was able to get some more tune time. Things are looking up as my goal for 300+ whp is now closer than ever.

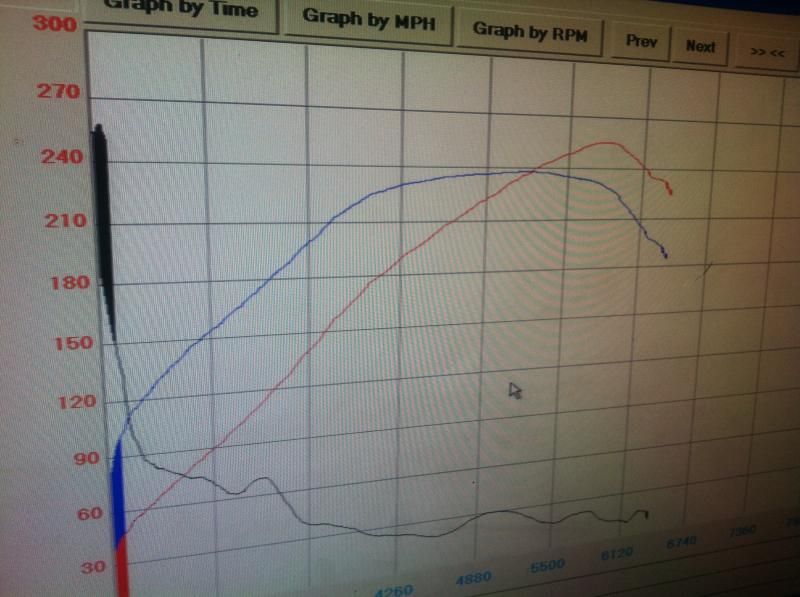

                        blue is torque red is hp. here we are only at just a little over a bar of boost. AFR is below in black. Its a little rich, better safe than sorry...

                        its falling flat on its face around 6100 revs. the m42 throttle body is just not cutting it anymore. It cant support enough airflow to sustain the engine at anything above 6. I will be making adjustments for a m5x throttle body. A whole new intake is in order soon.



                        Turbo M42 Build Thread :Here
                        Ig:ryno_pzk
                        I like the tuna here.
                        Originally posted by lambo
                        Buttchug. The official poster child of r3v.

                        Comment


                          Nice results. A new manifold/tb should work well.
                          -Nick

                          M42 on VEMS

                          Comment


                            Originally posted by wazzu70 View Post
                            Nice results. A new manifold/tb should work well.
                            I think it will make a huge difference.

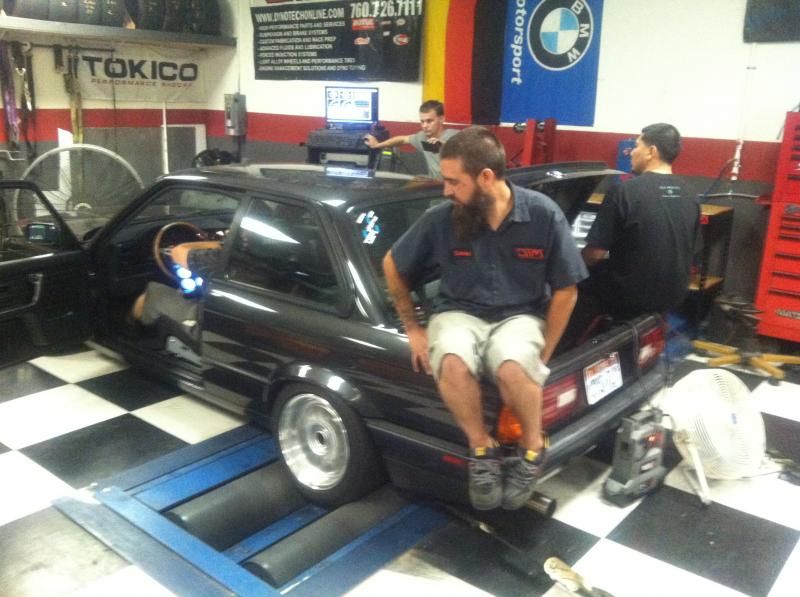

                            A few things happened that we didnt expect. First off the car would not keep traction. We had to air the rear tires down and even with 3 full size dudes sitting on the trunk it still managed to spin tire. The torque my turbo is creating is quite impressive for an m42.
                            the rollers are also small and pretty slick. We managed to make it work

                            Also a note to anyone running a m20 clutch and fly conversion on there m42 with a g240 trans. make sure you cut and extend the clutch slave pushrod. If you dont the cylinder will push out of the slave housing and piss fluid everywhere.

                            ask me how i know.


                            Will have a video up soon.
                            Last edited by Dj Buttchug; 08-08-2013, 09:31 AM.

                            Turbo M42 Build Thread :Here
                            Ig:ryno_pzk
                            I like the tuna here.
                            Originally posted by lambo
                            Buttchug. The official poster child of r3v.

                            Comment


                              Is your cam timing stock? If so you can retard the intake a few degrees for dome more top end.

                              You shouldn't be losing traction on the dyno with that level of torque. I know smaller rollers hold less torque. I havent used a dyno with two rollers like that though.

                              Either way, excited to see the build keep progressing!
                              -Nick

                              M42 on VEMS

                              Comment


                                What ignition timing are you running? I am running waaay dialed back timing on my DASC but it isnt intercooled. I need to have it professionally tuned.
