Part 5: building the head

The entire head has been cleaned, tested and prepped for rebuilding. Here too some steps are crucial and should be done with great care. The head is a very complicated piece, but wonderful to look at.

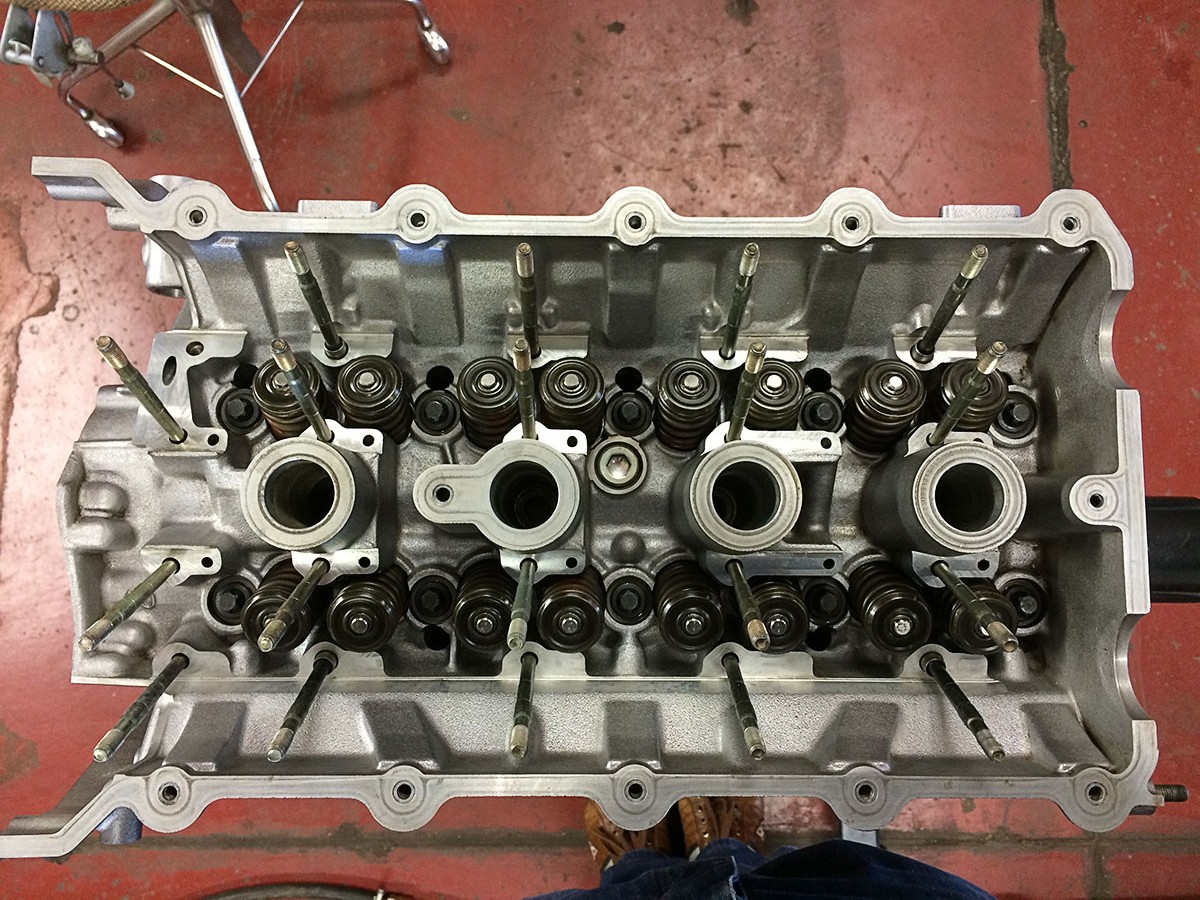

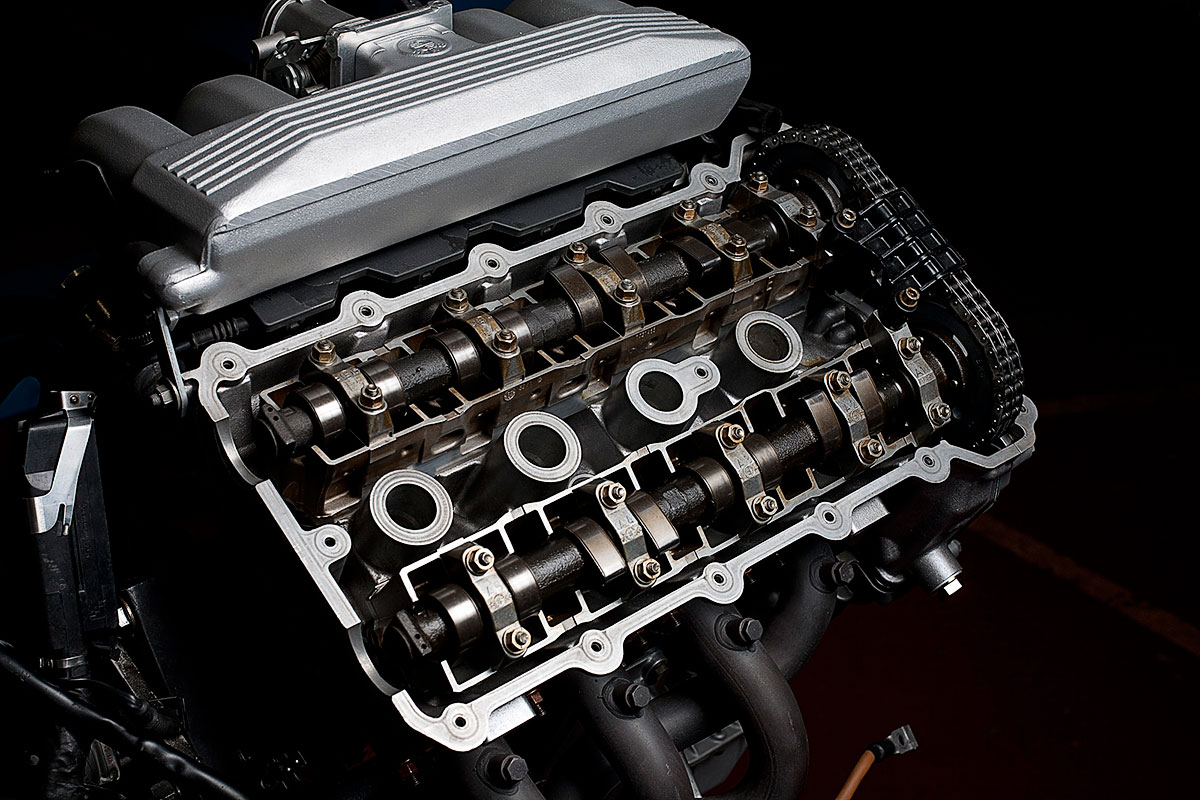

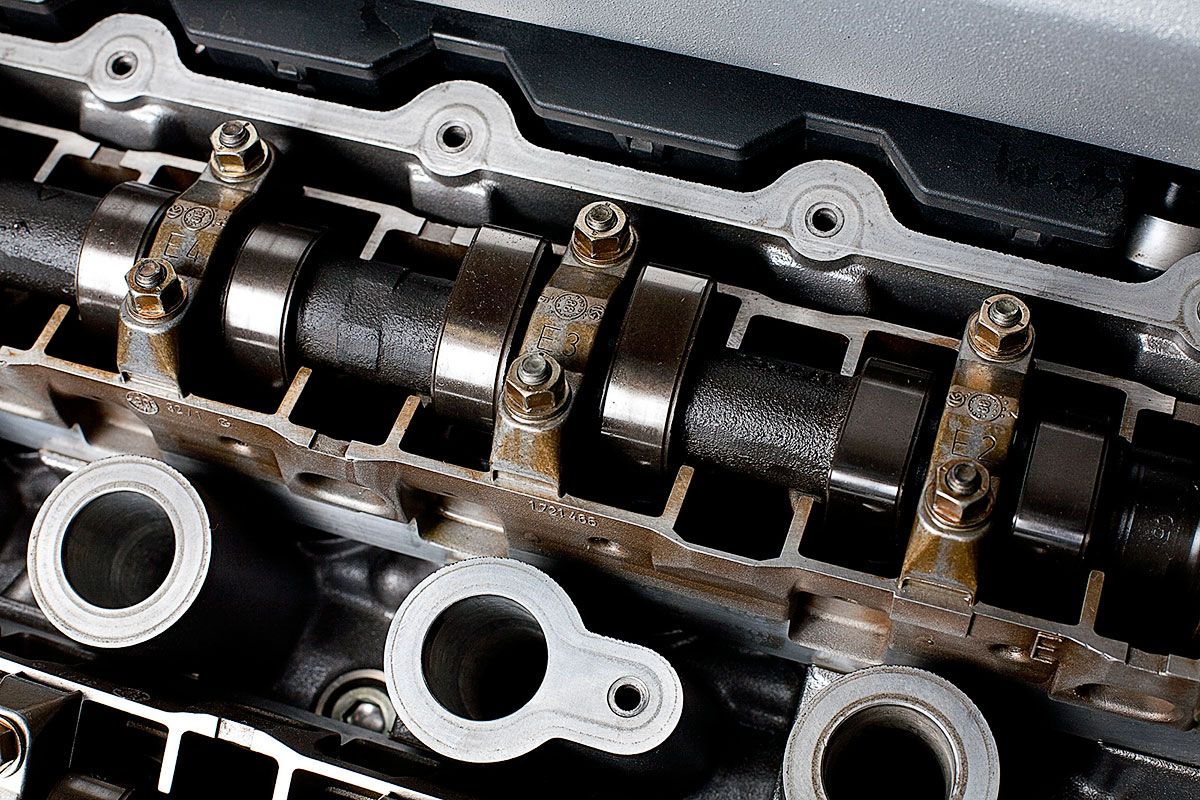

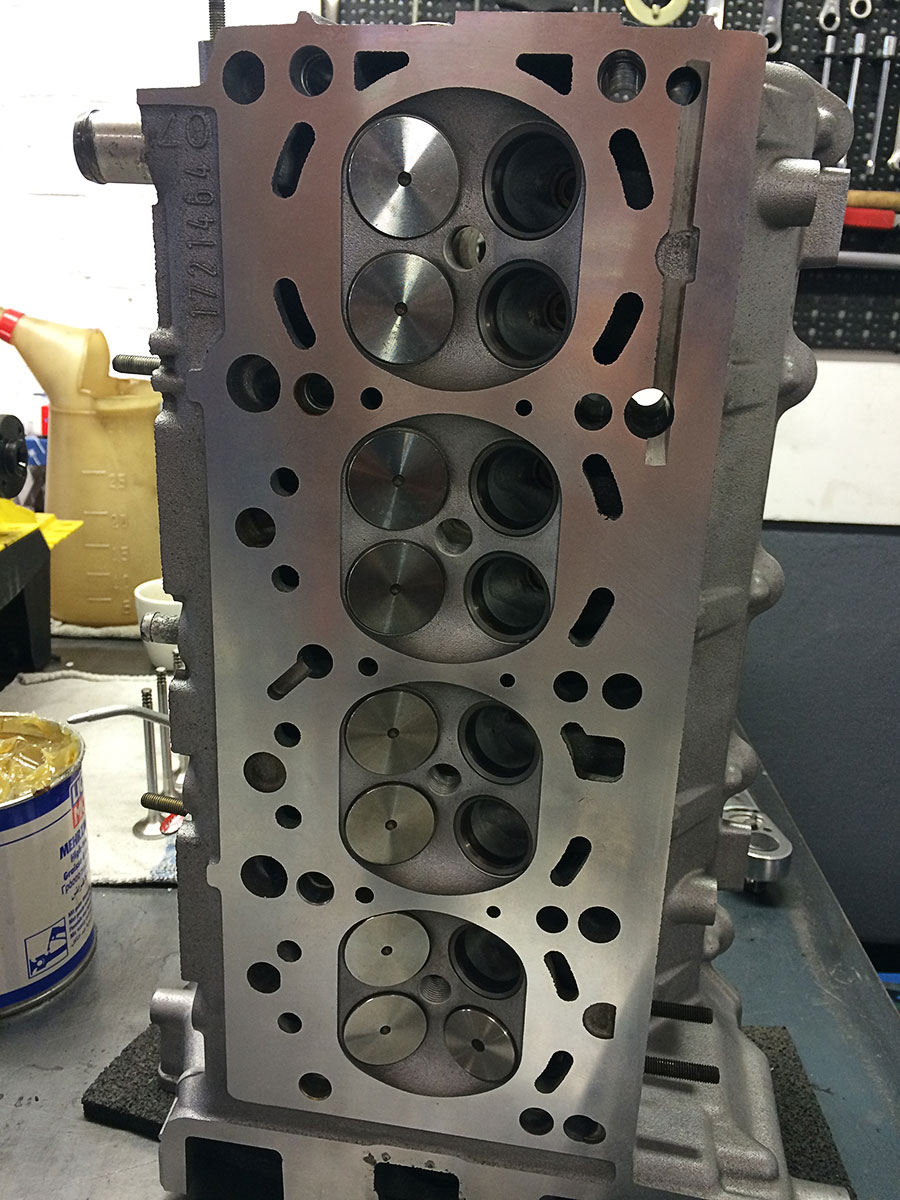

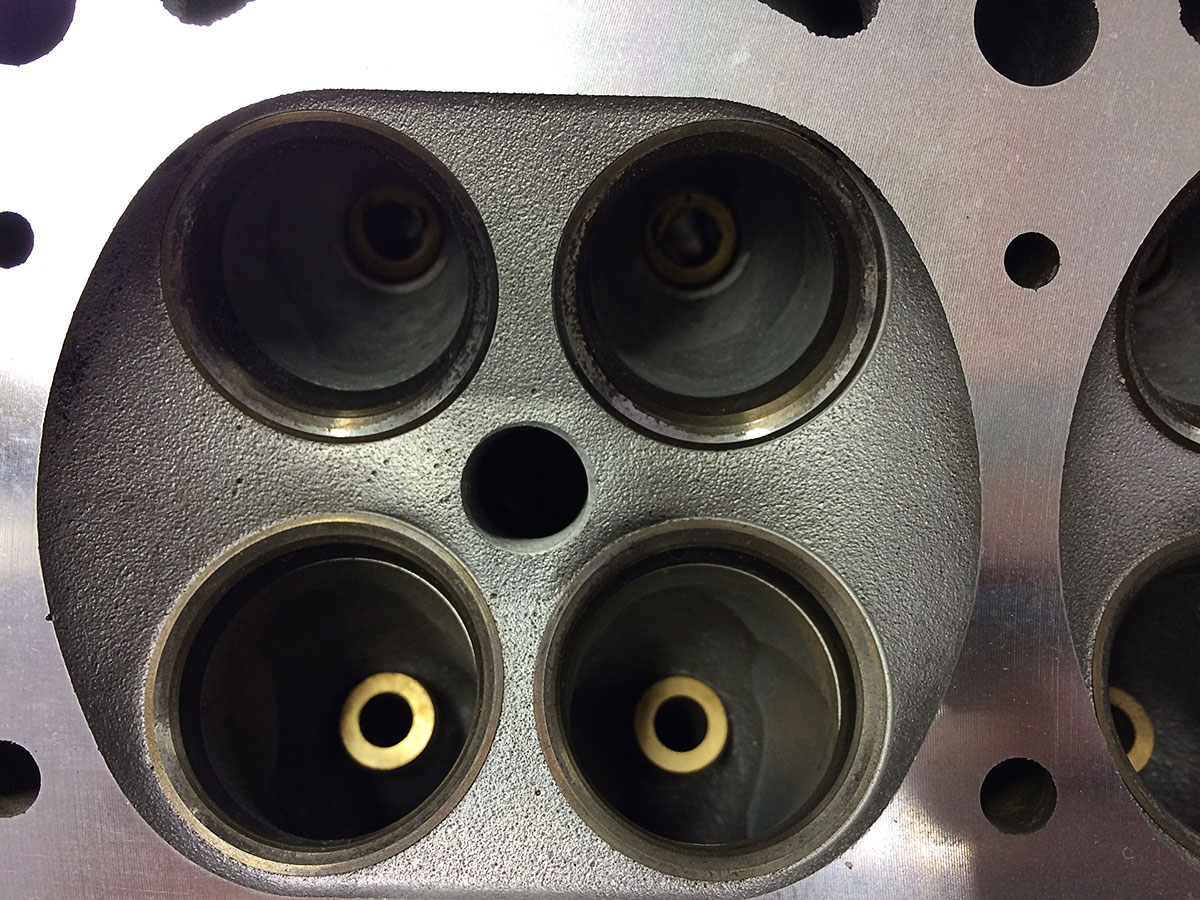

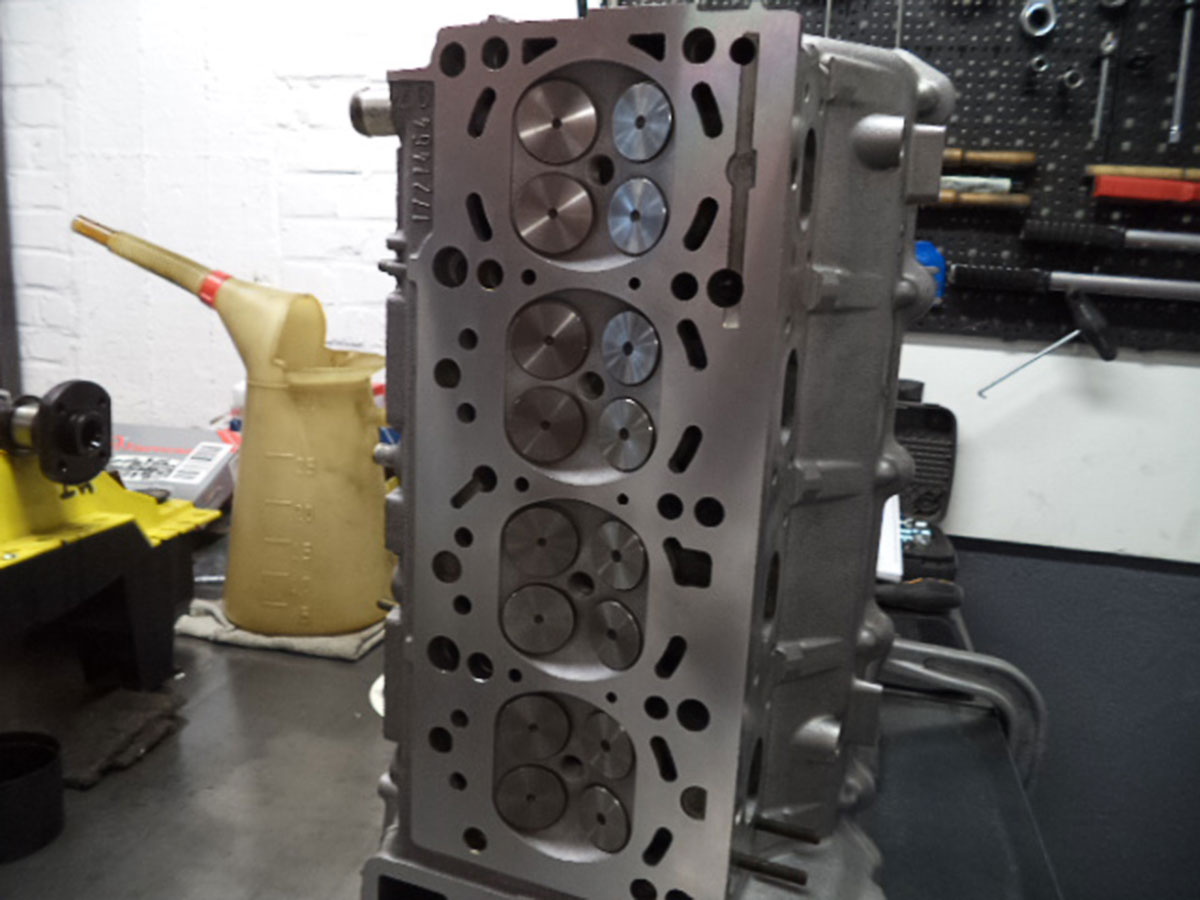

The head itself:

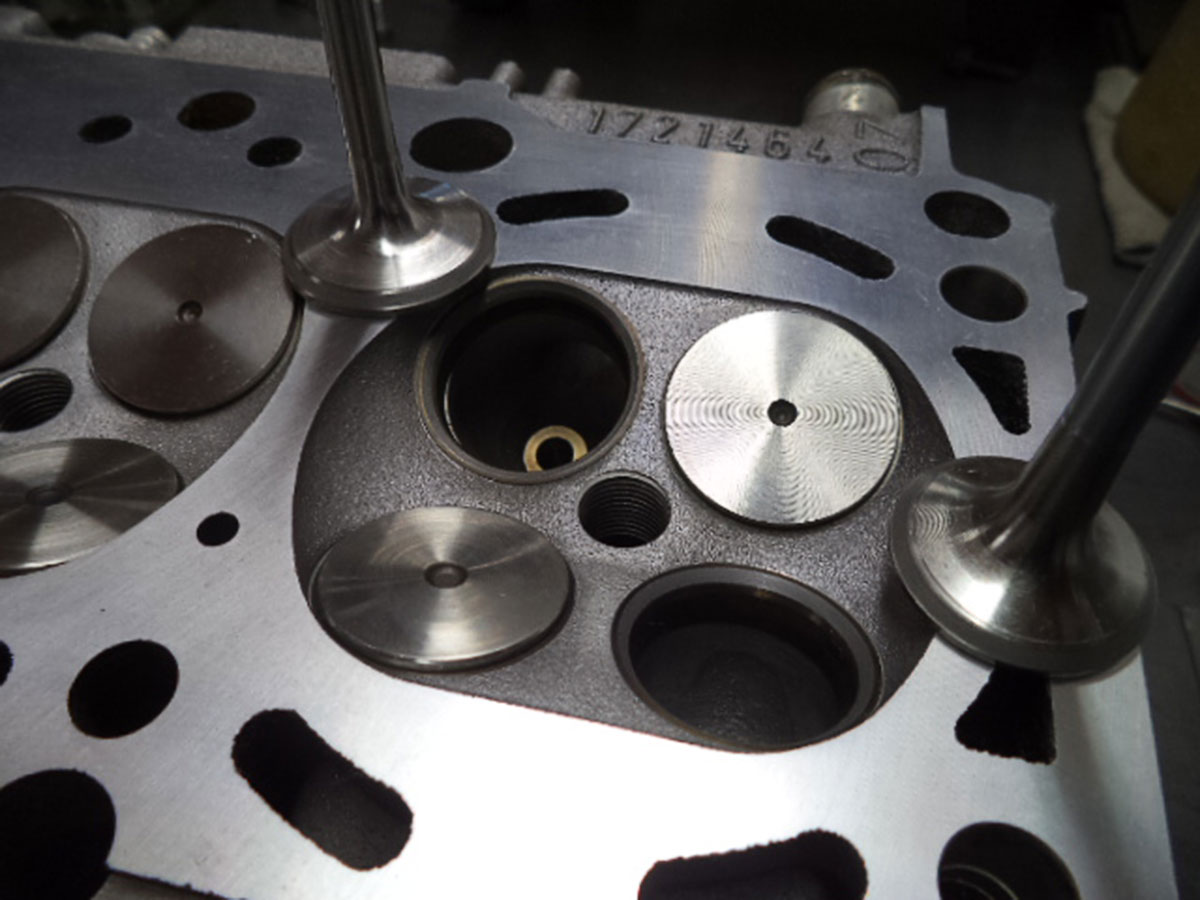

Getting good compression values depends not only on the piston rings, but also on the valves. These need to sit perfectly into their seats. The seats are cleaned and adjusted to the valves, so that leakages should not take place.

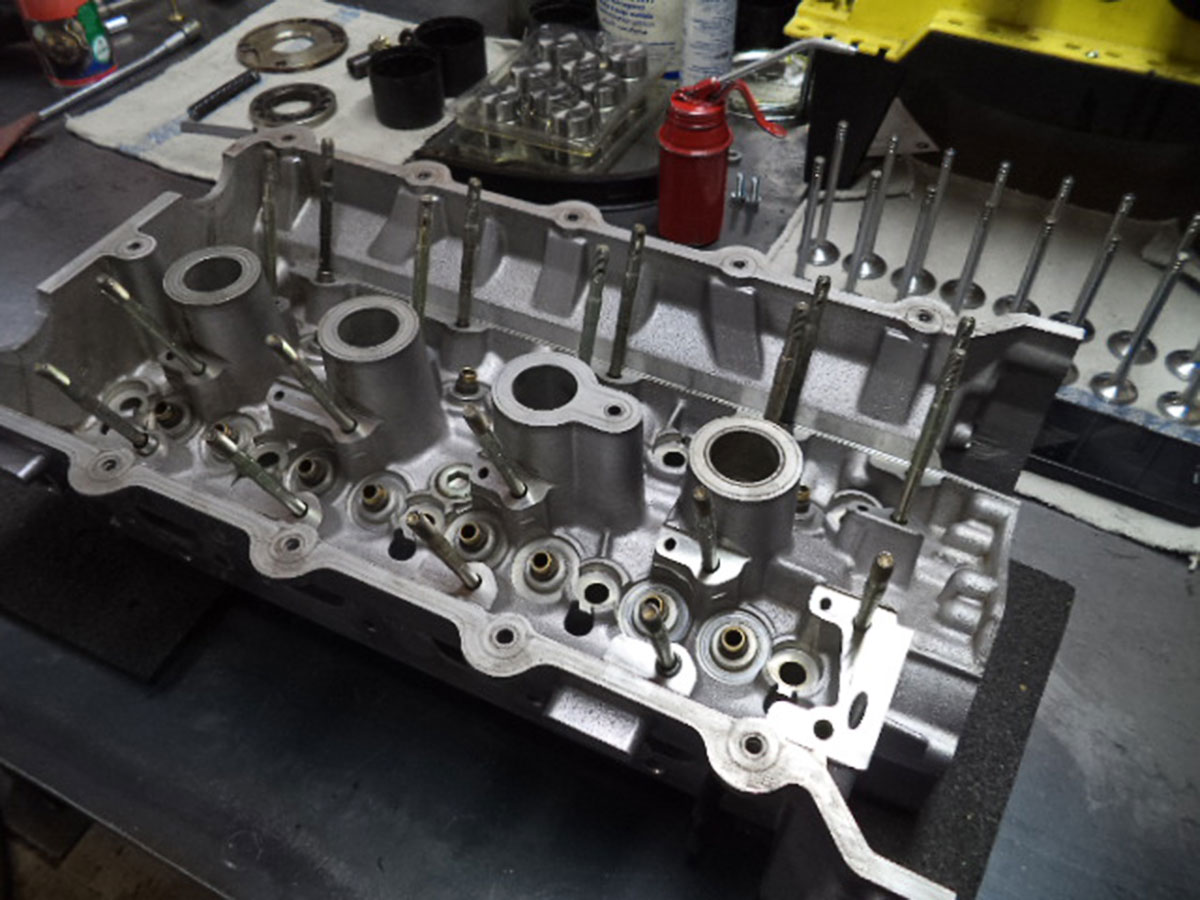

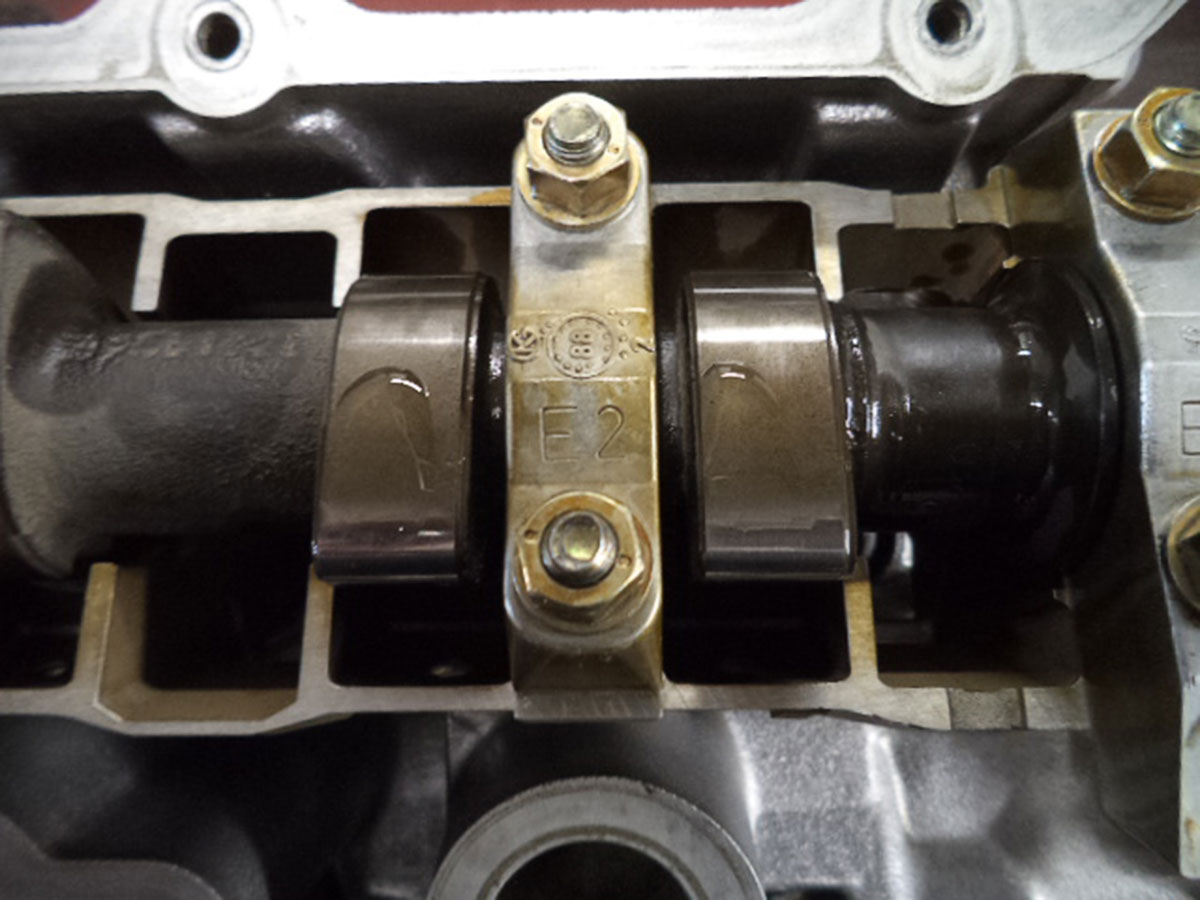

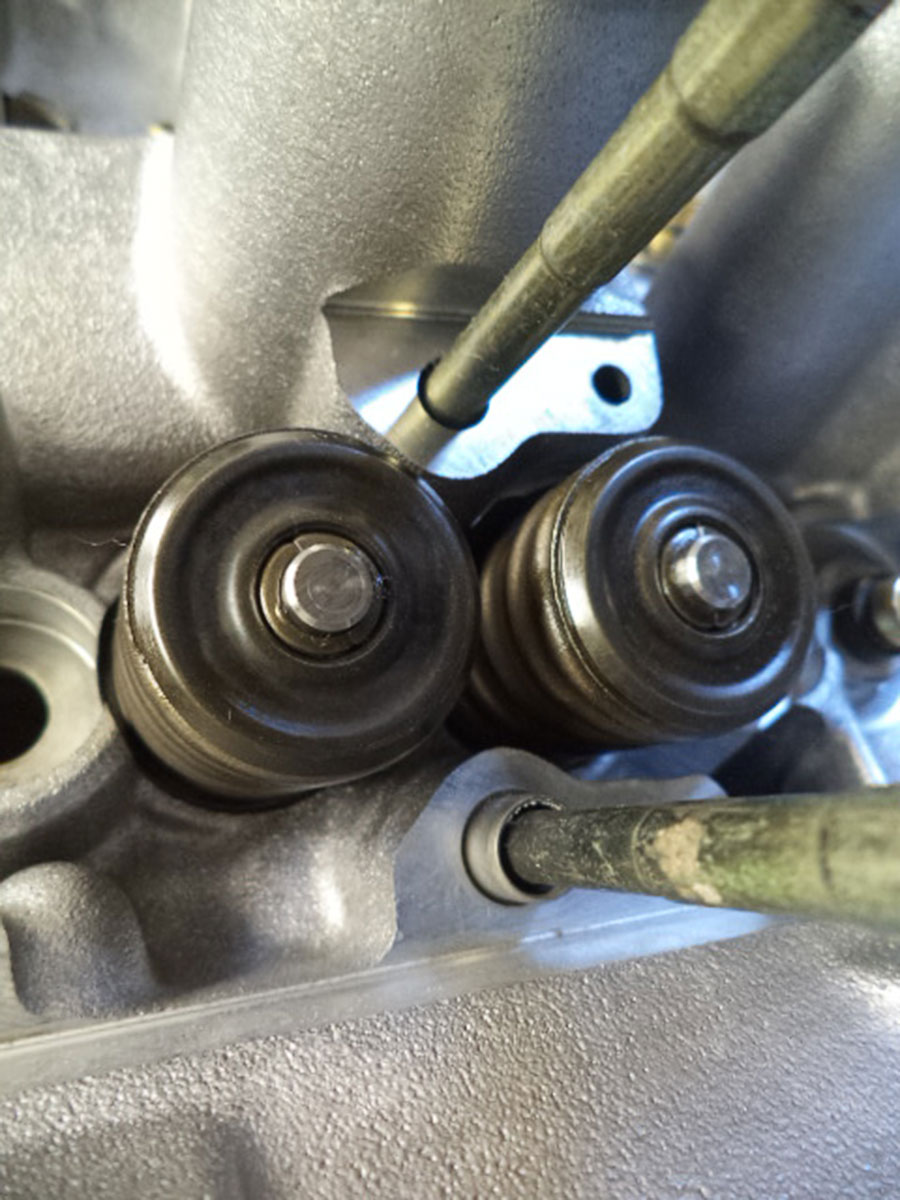

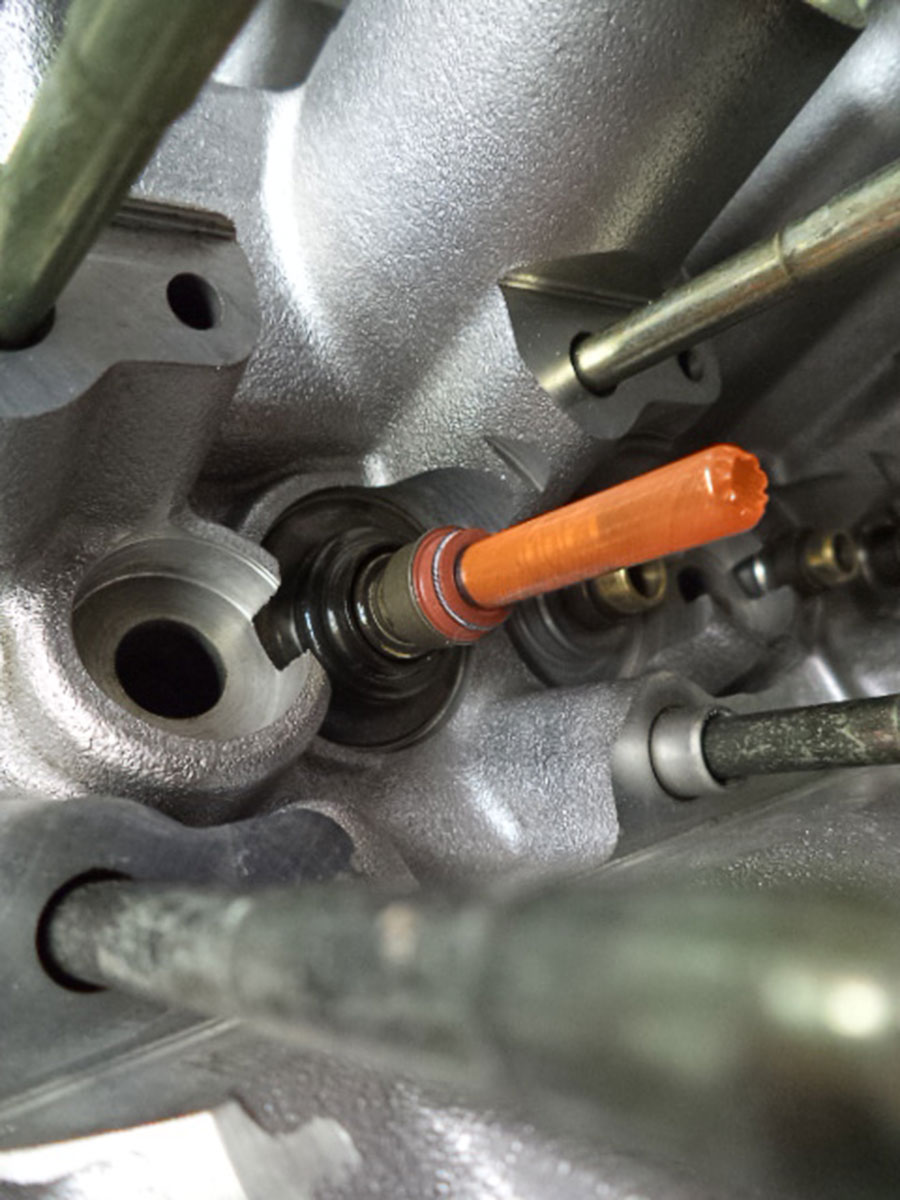

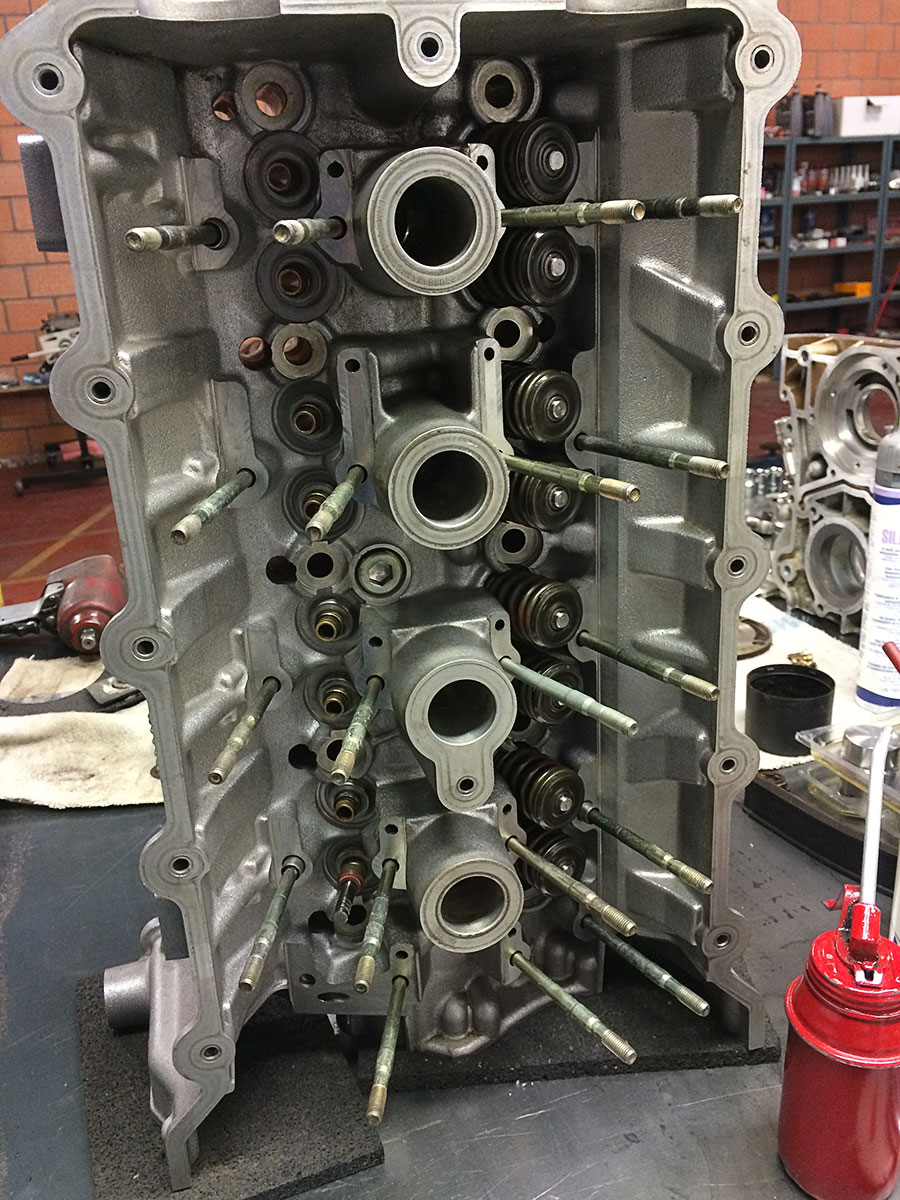

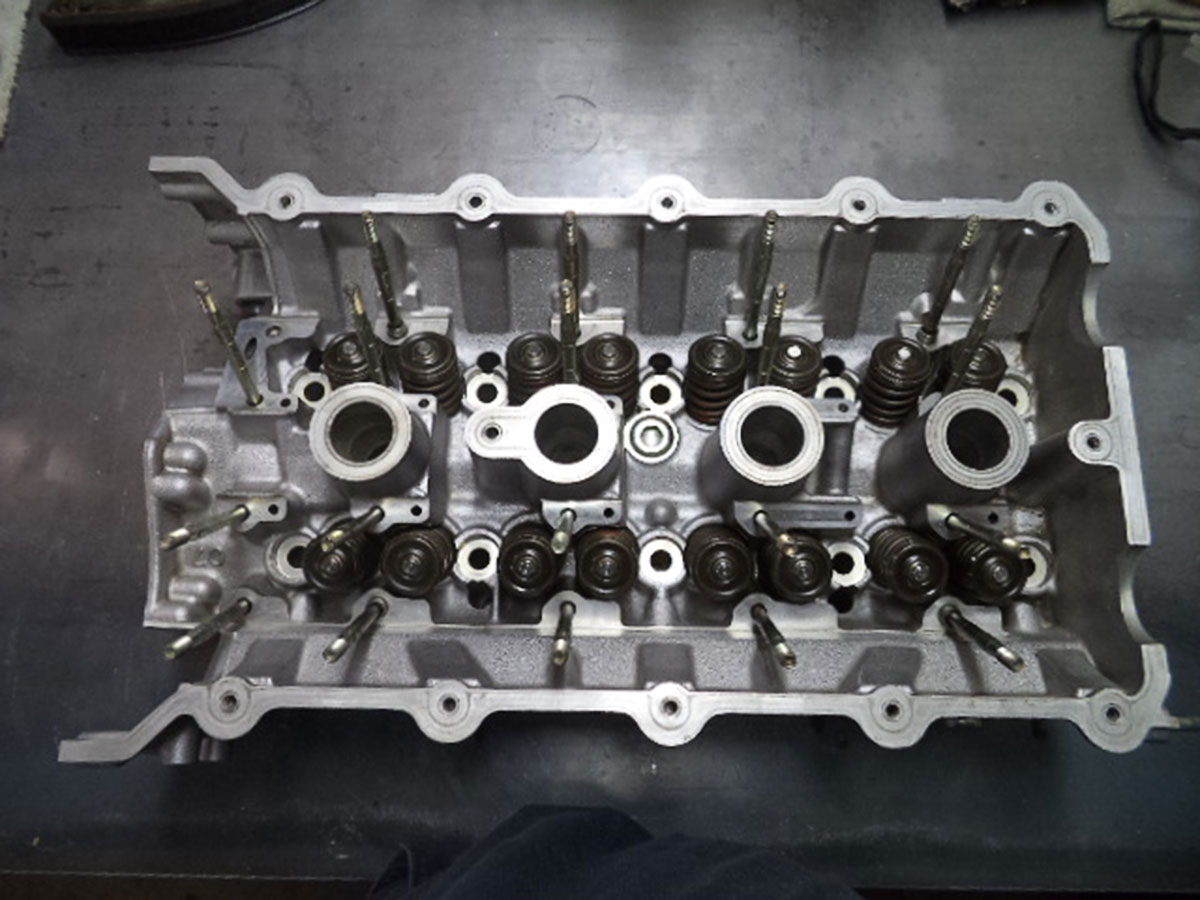

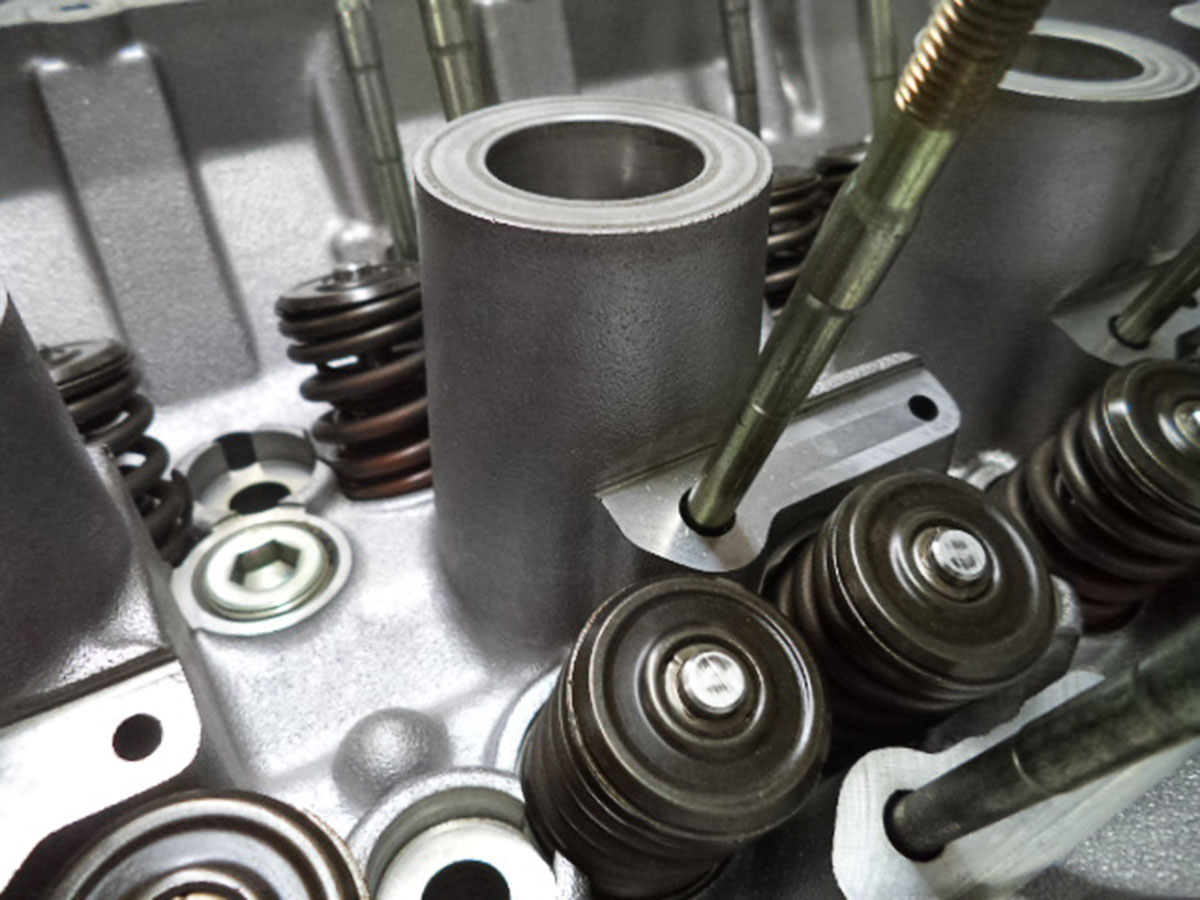

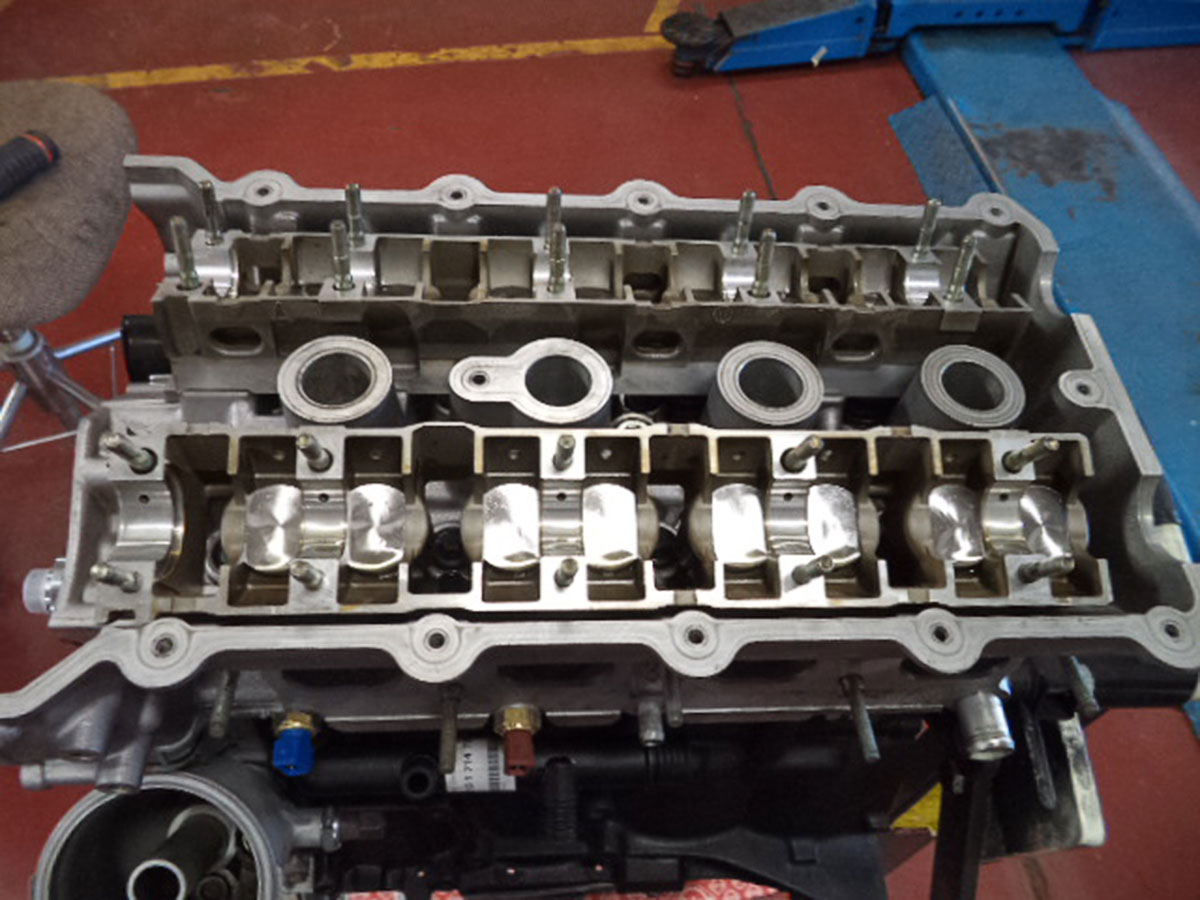

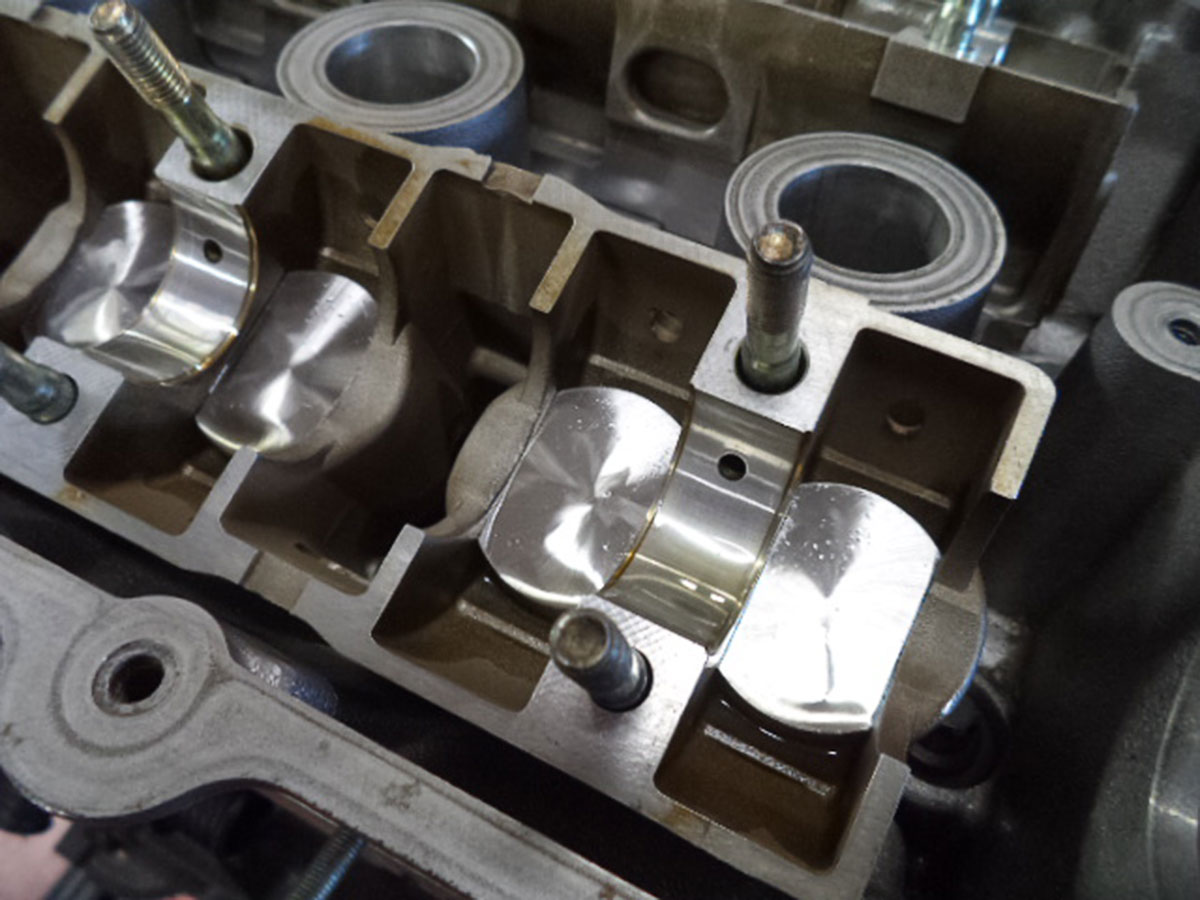

Further placement of the 16 new valves:

[PJH]

Part 6: finishing the engine

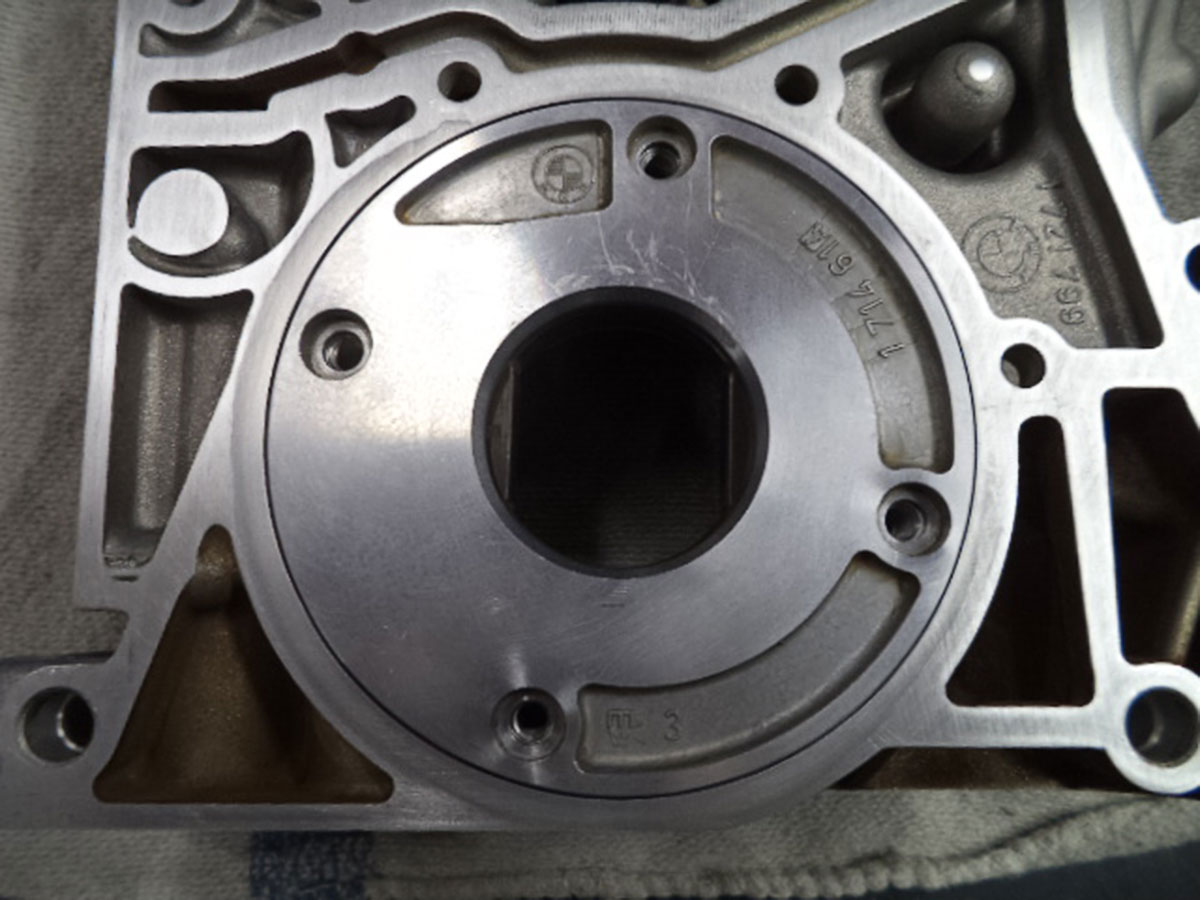

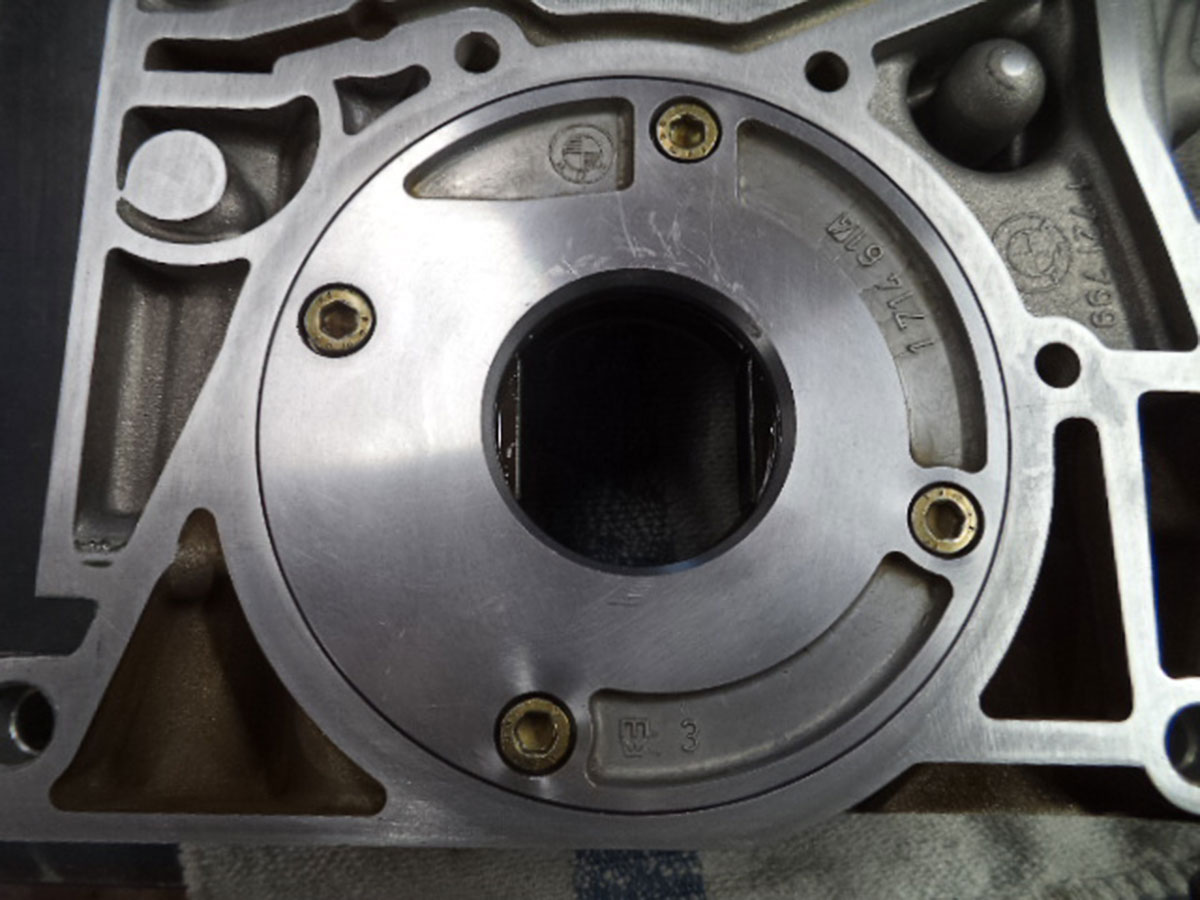

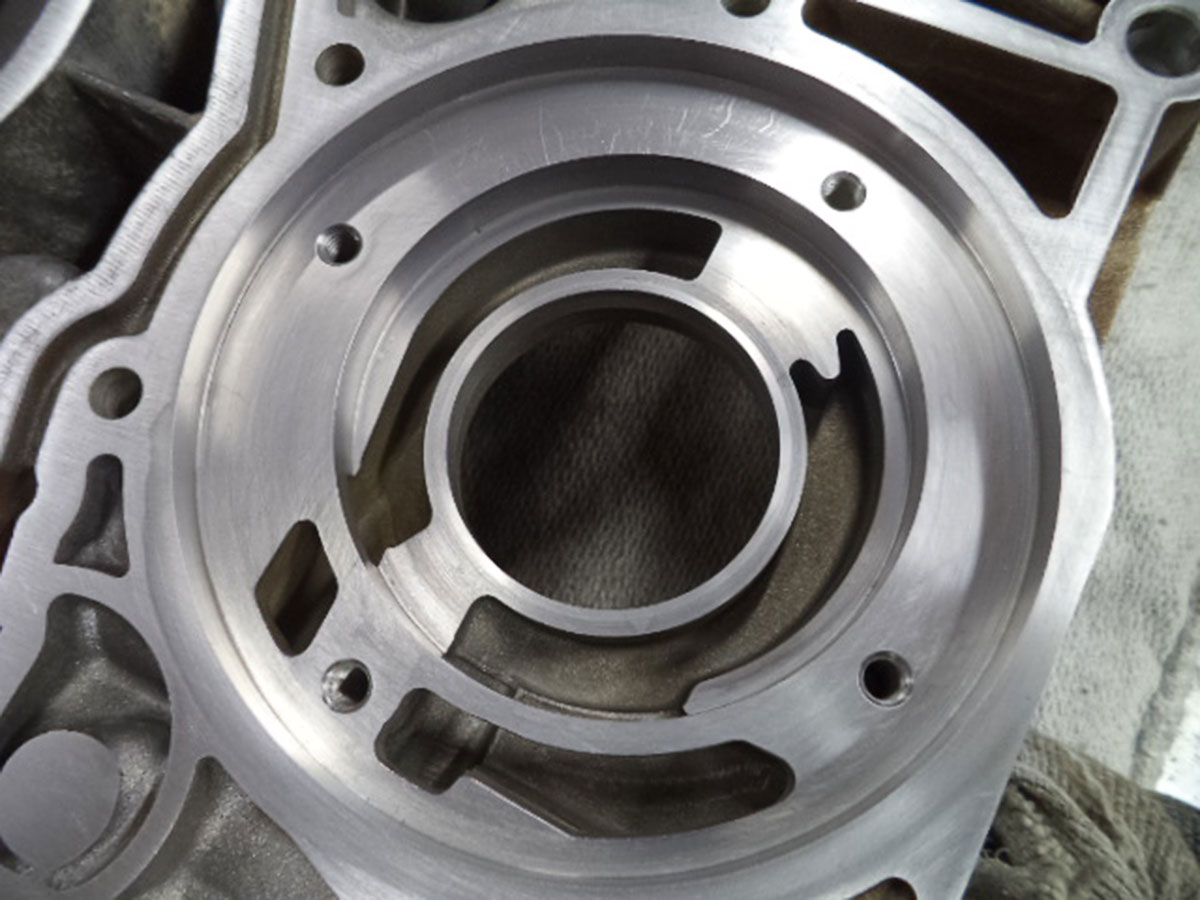

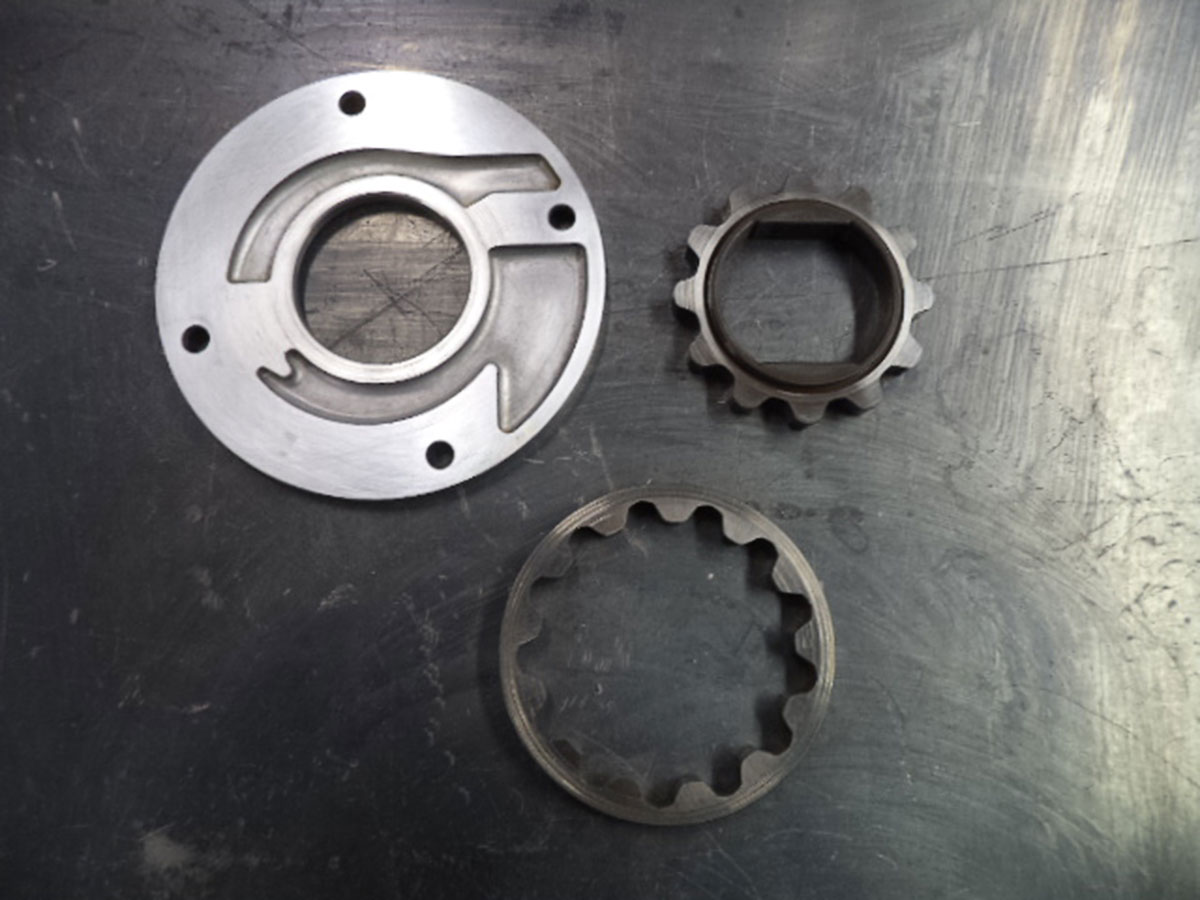

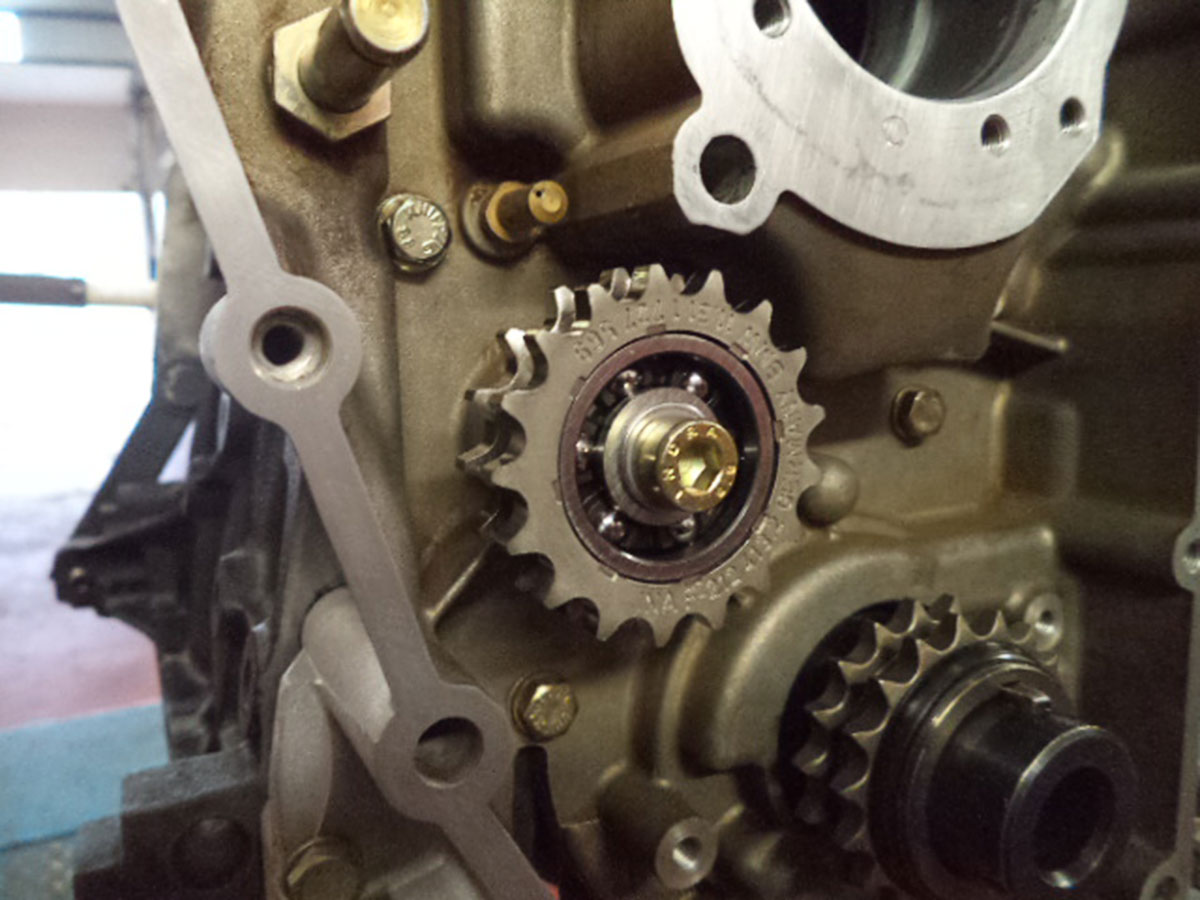

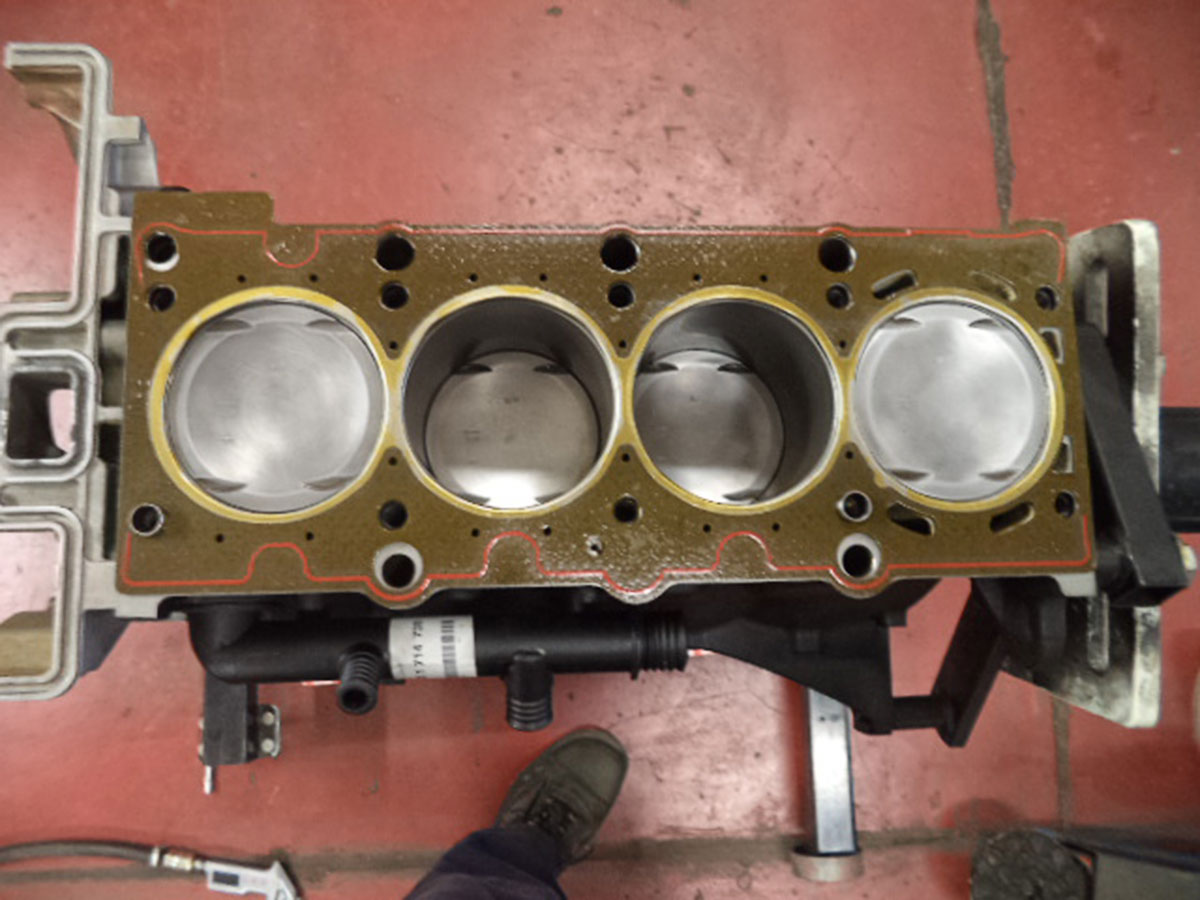

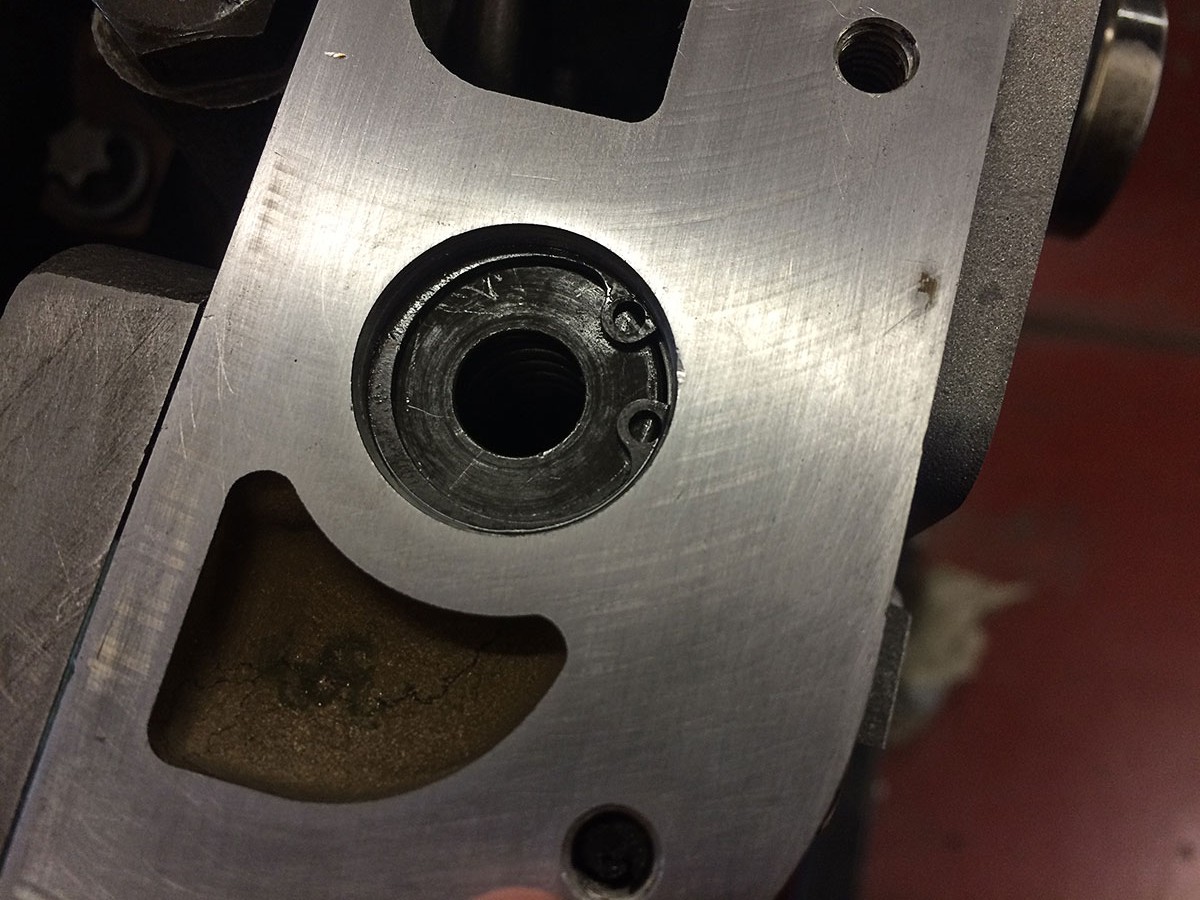

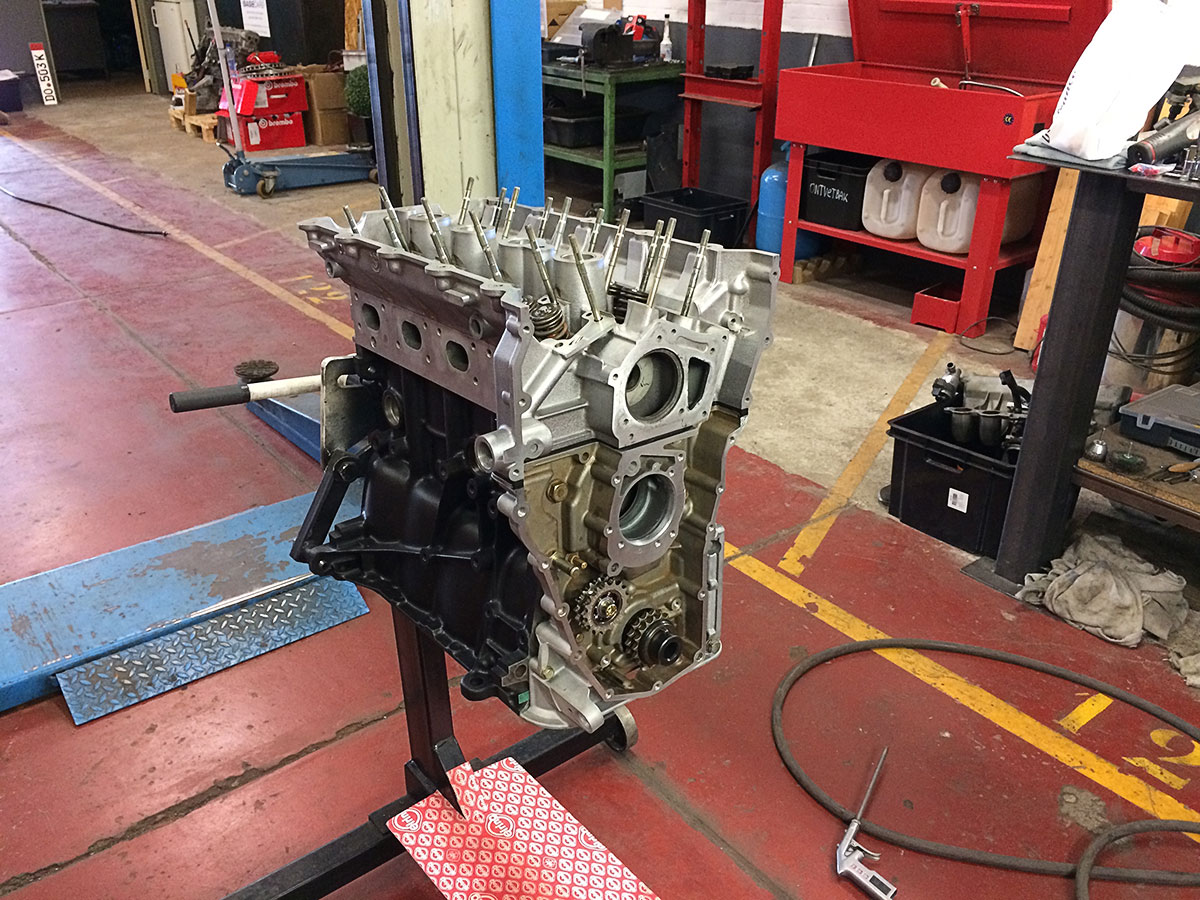

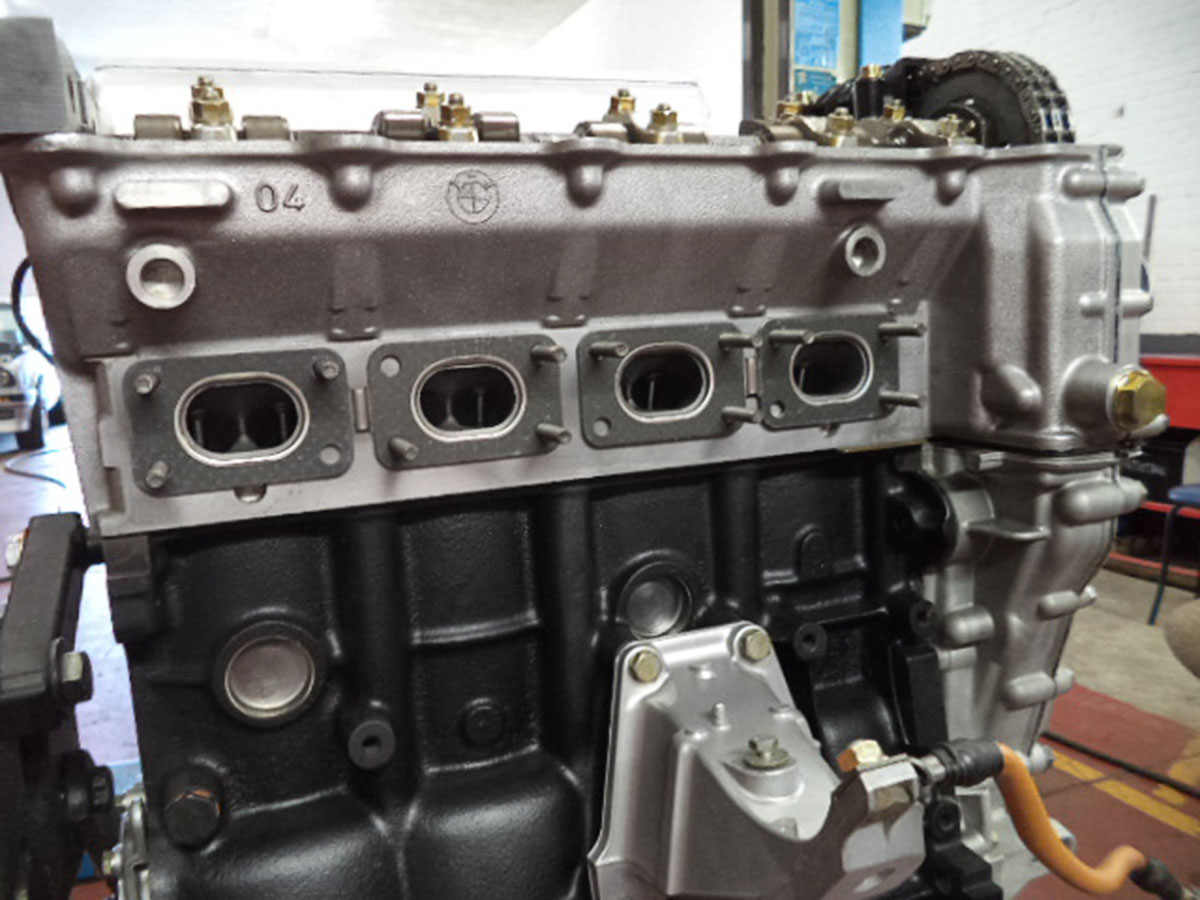

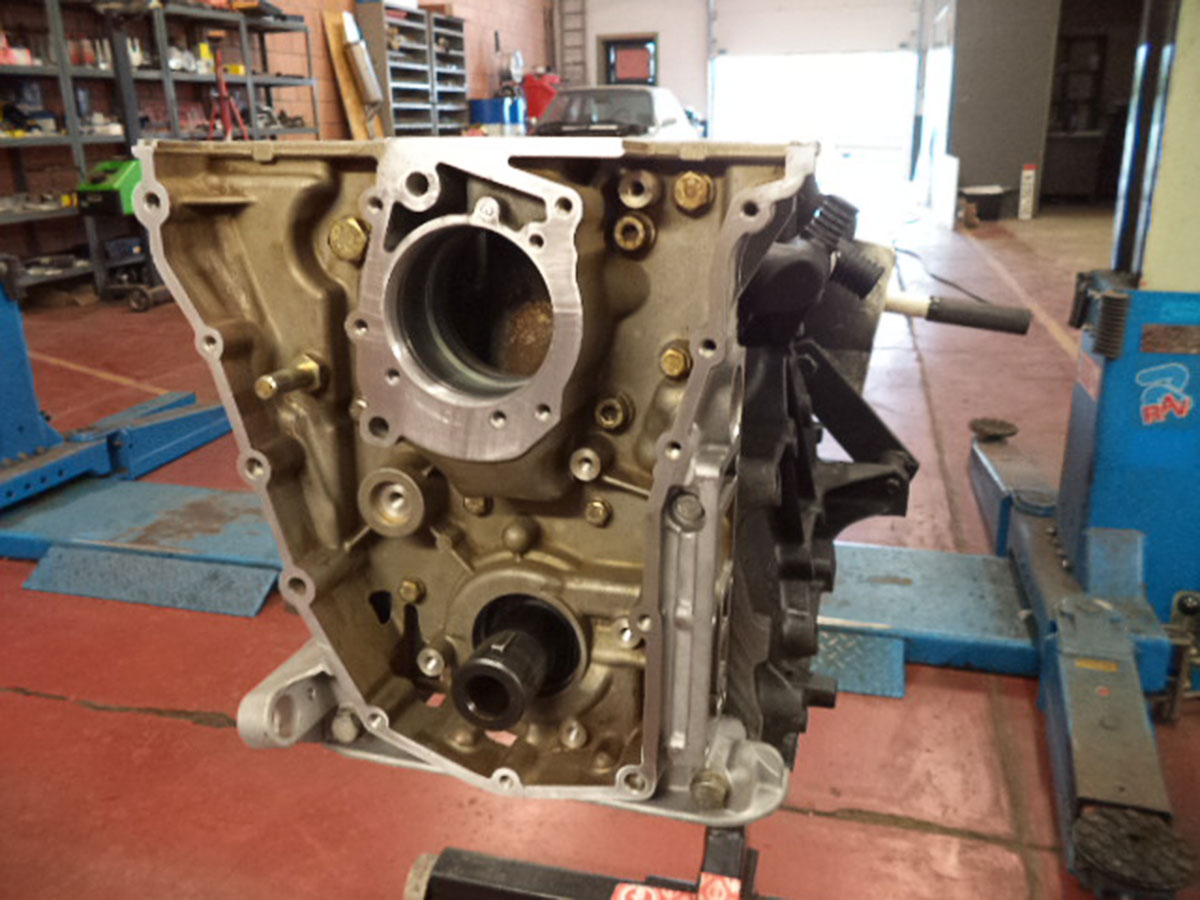

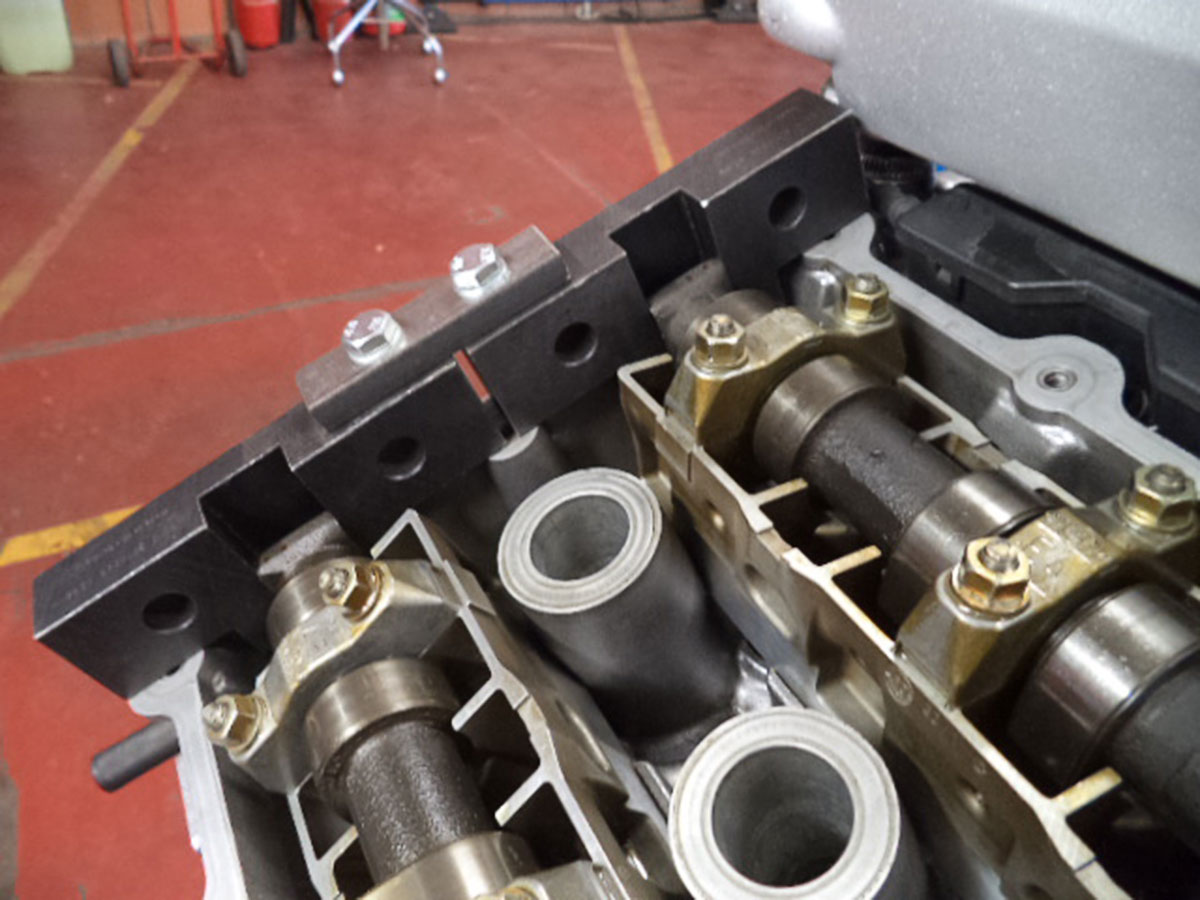

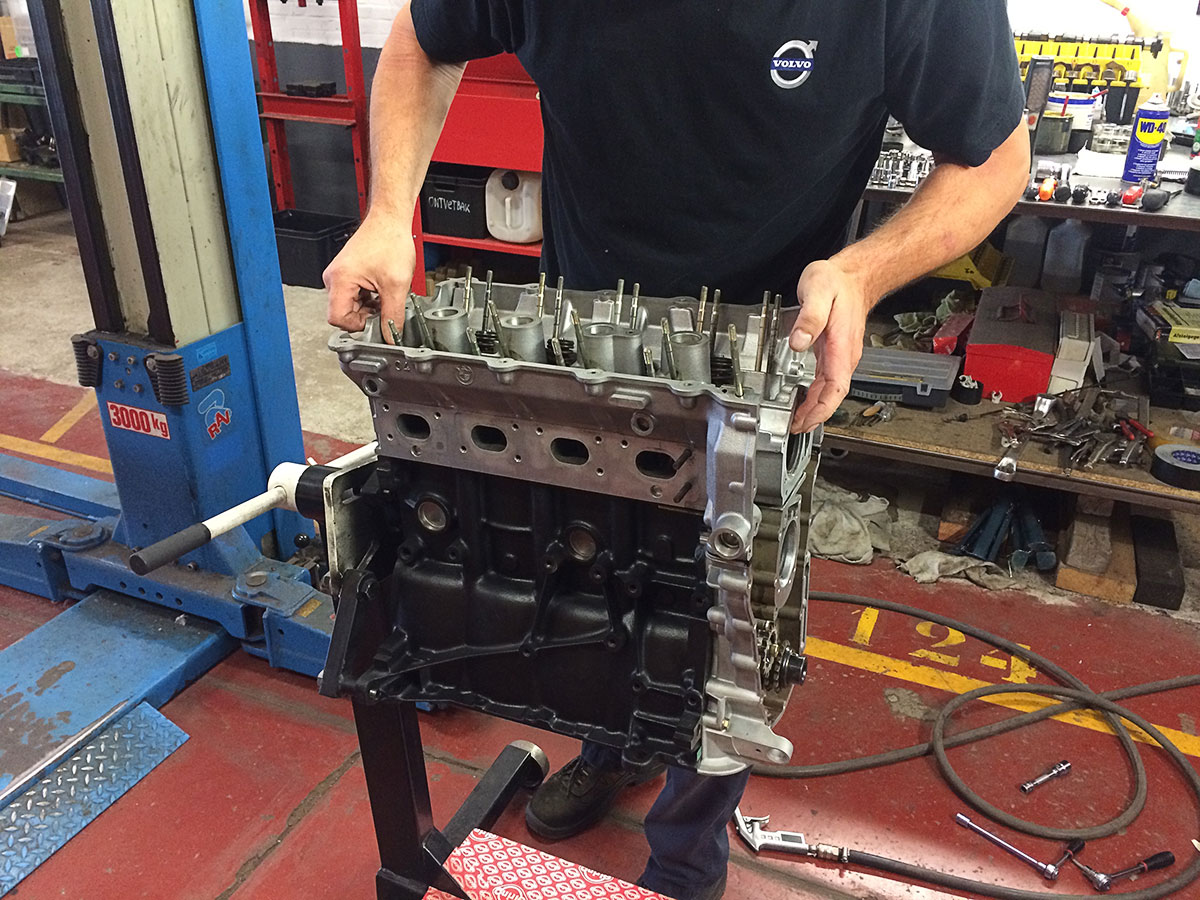

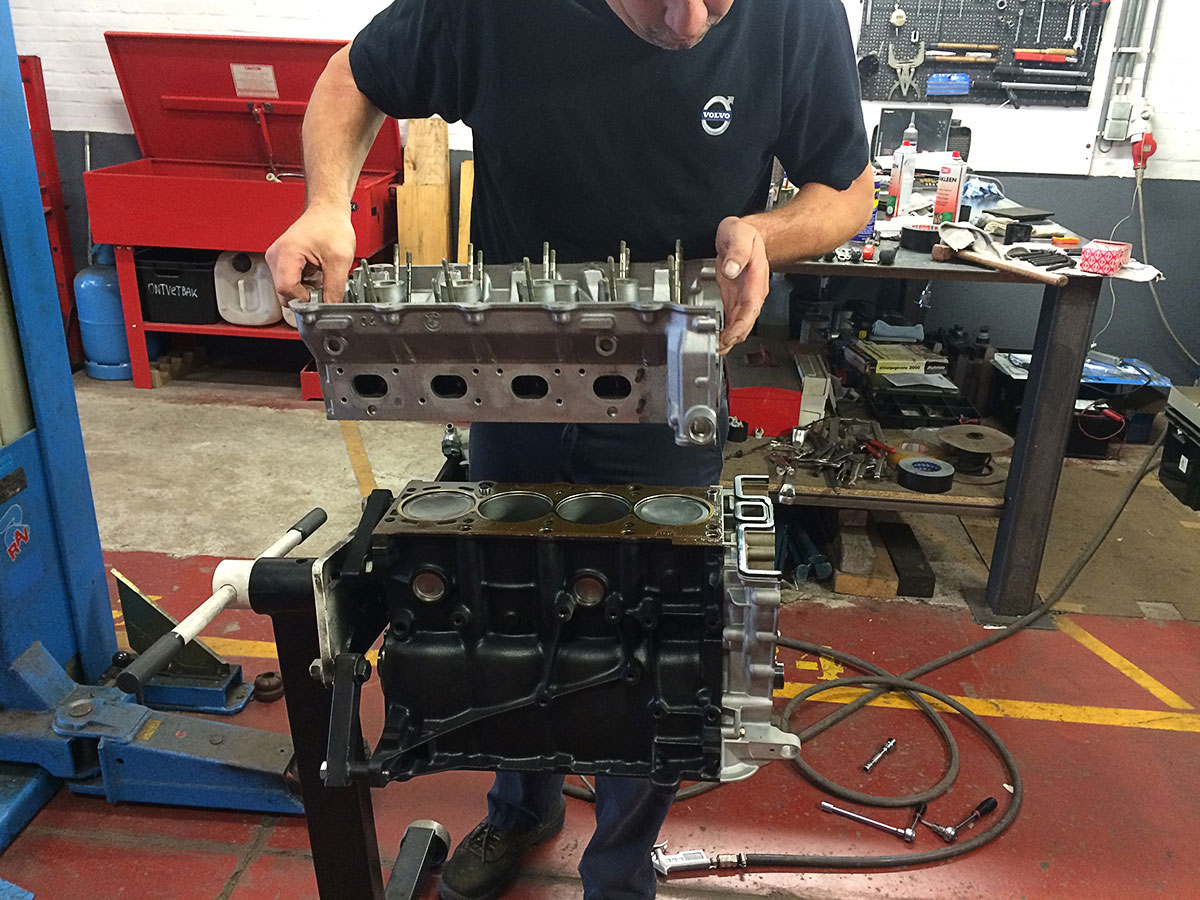

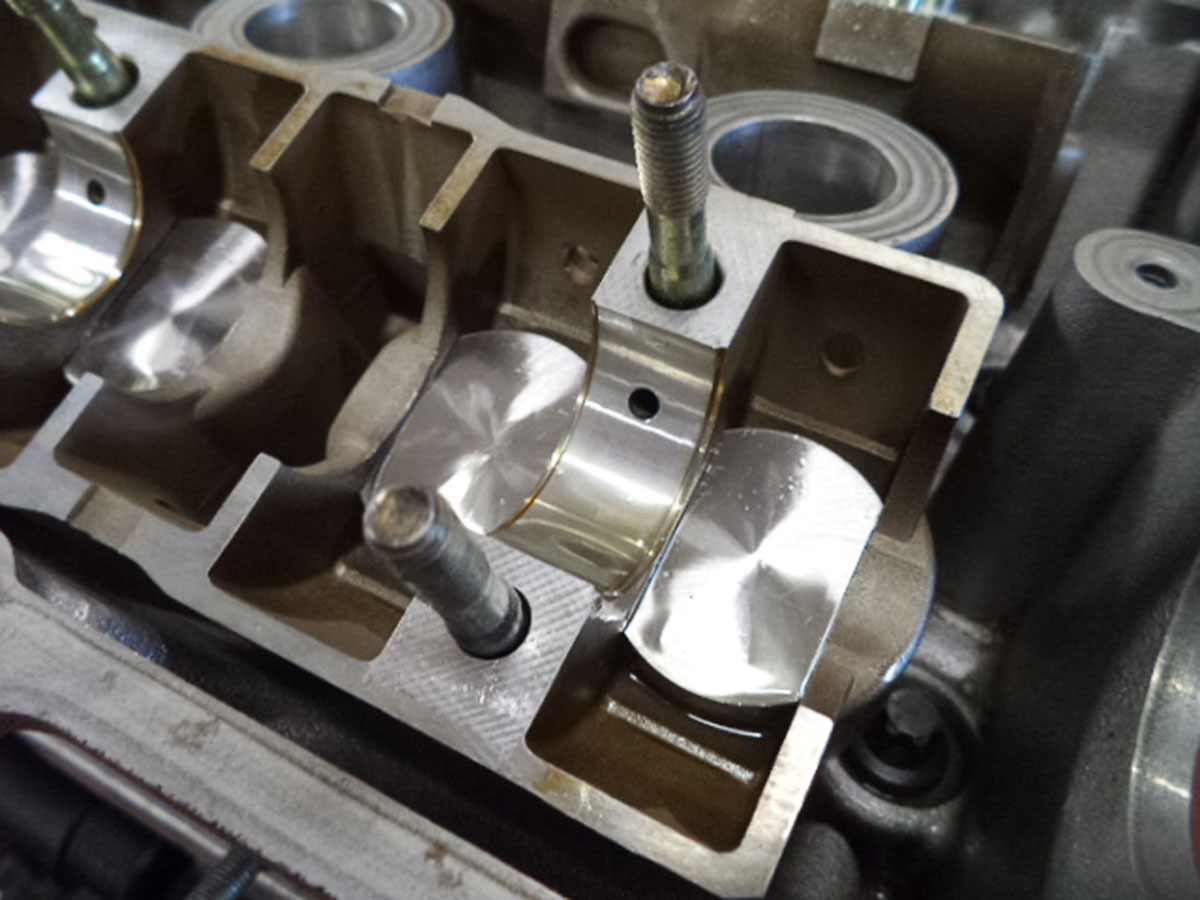

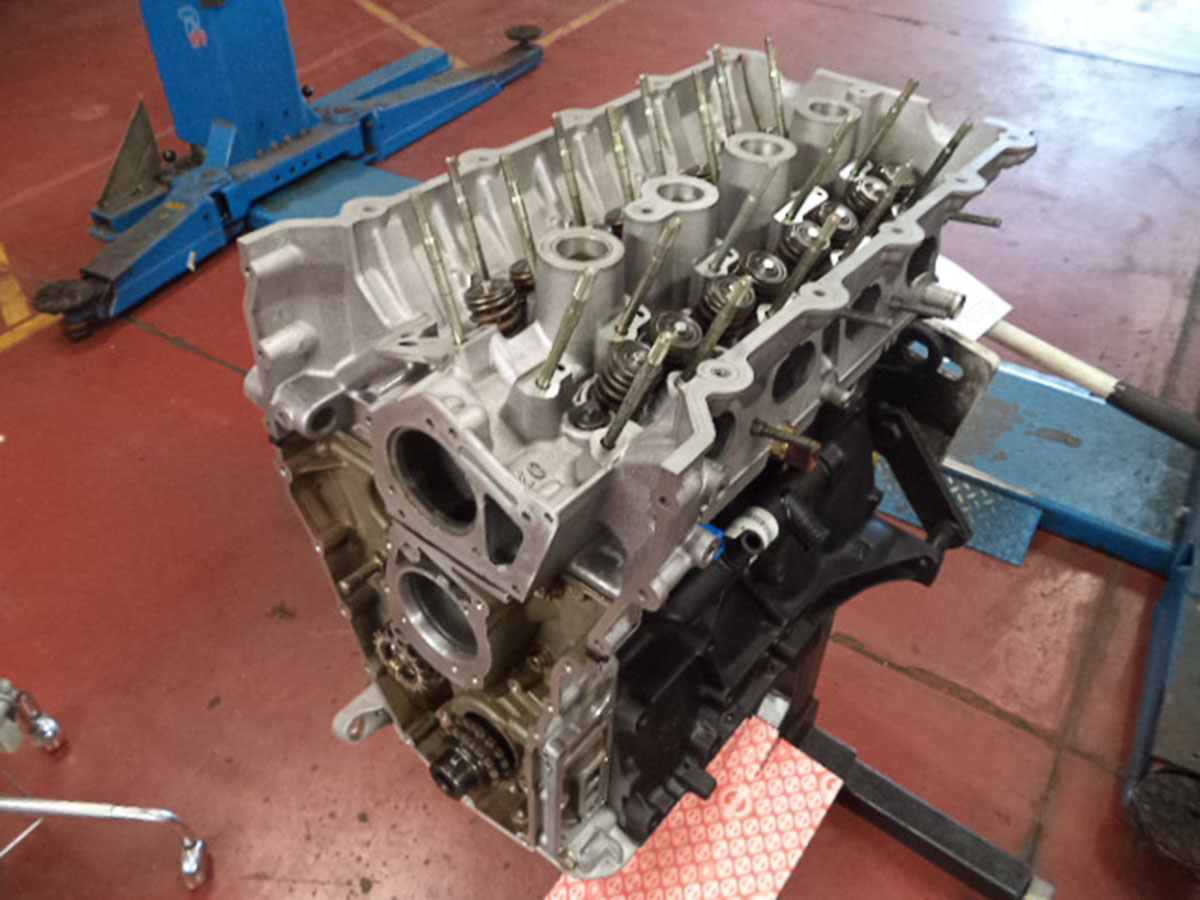

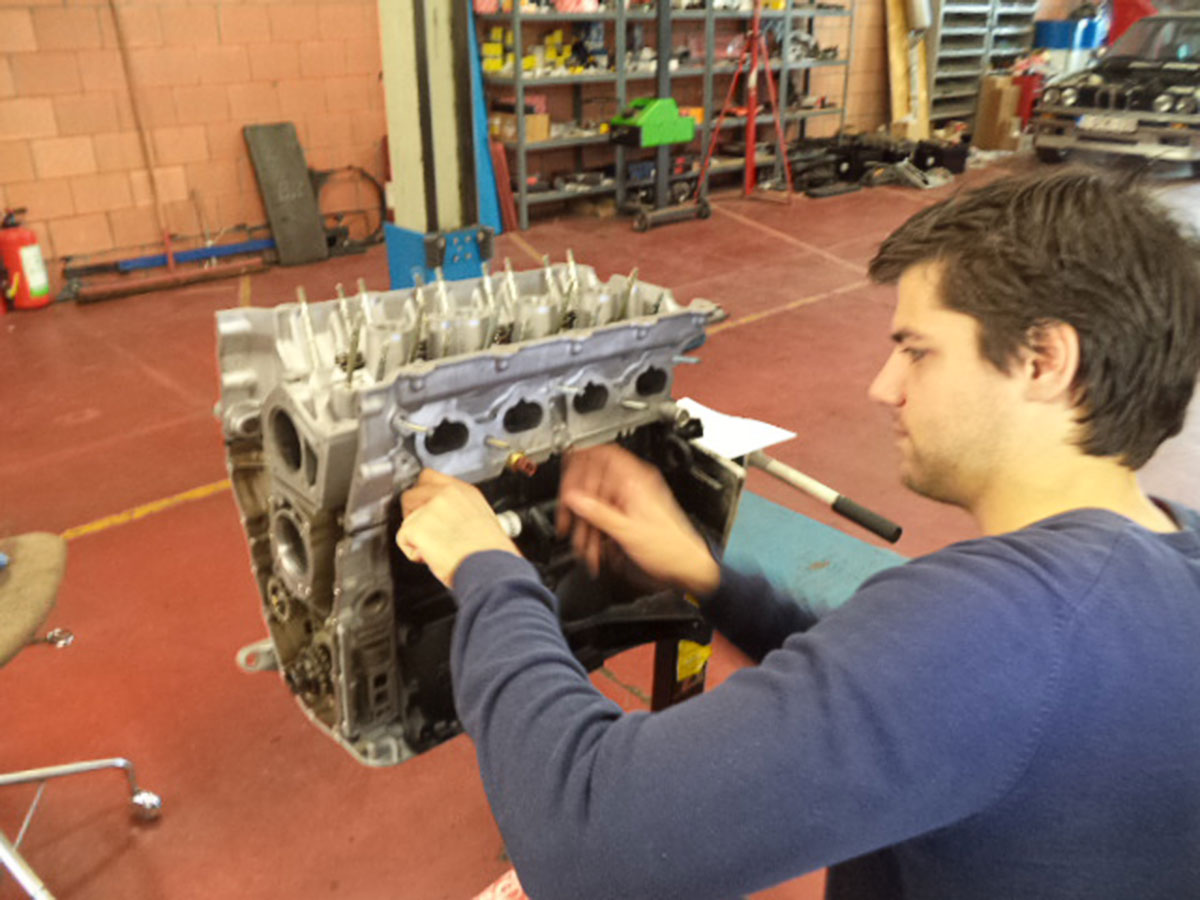

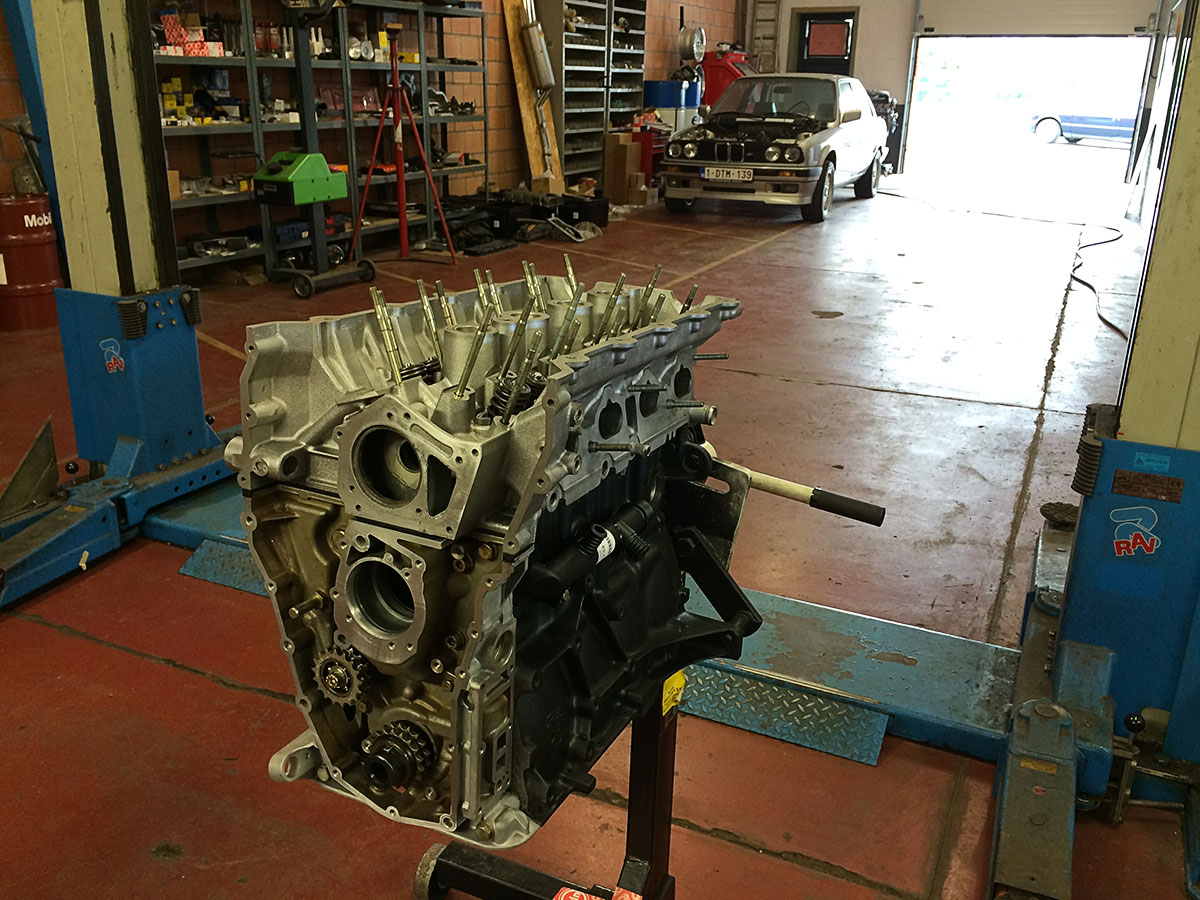

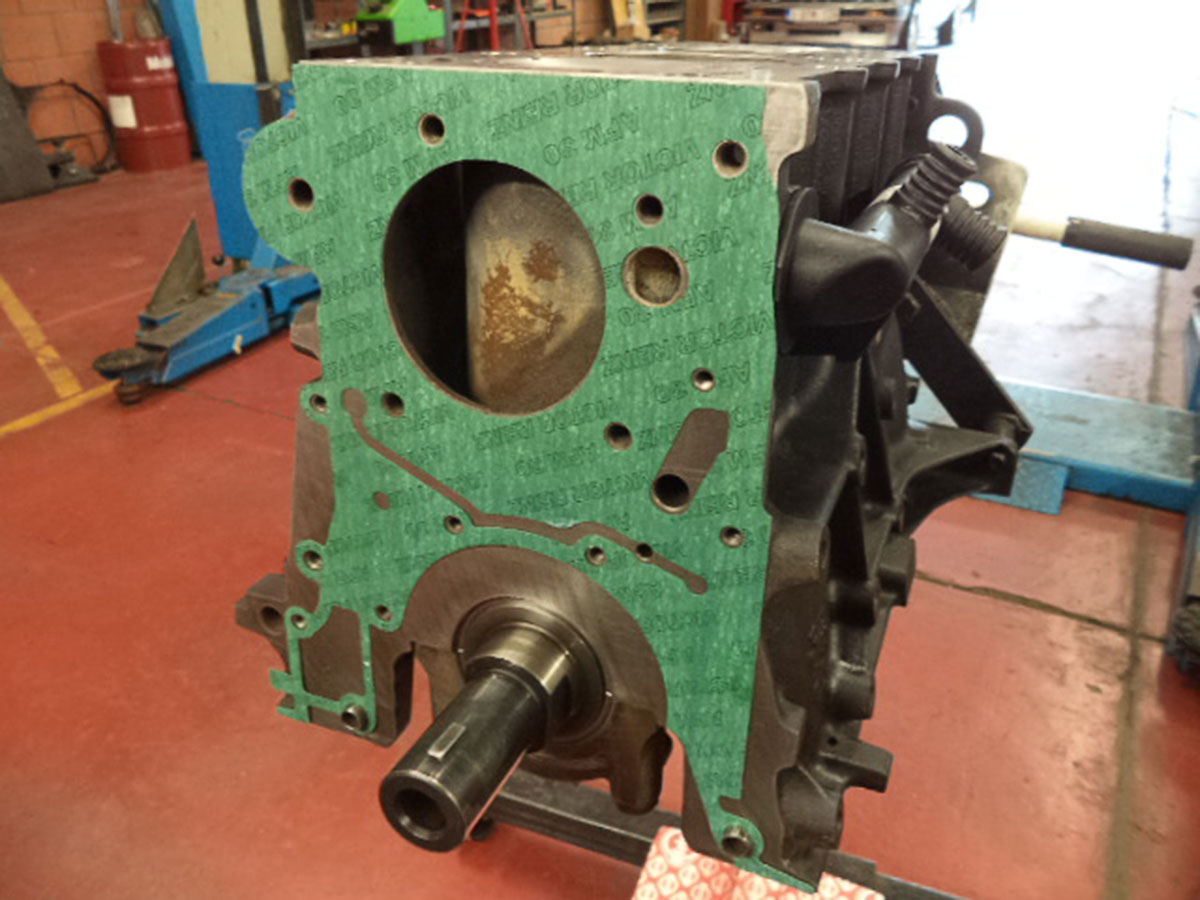

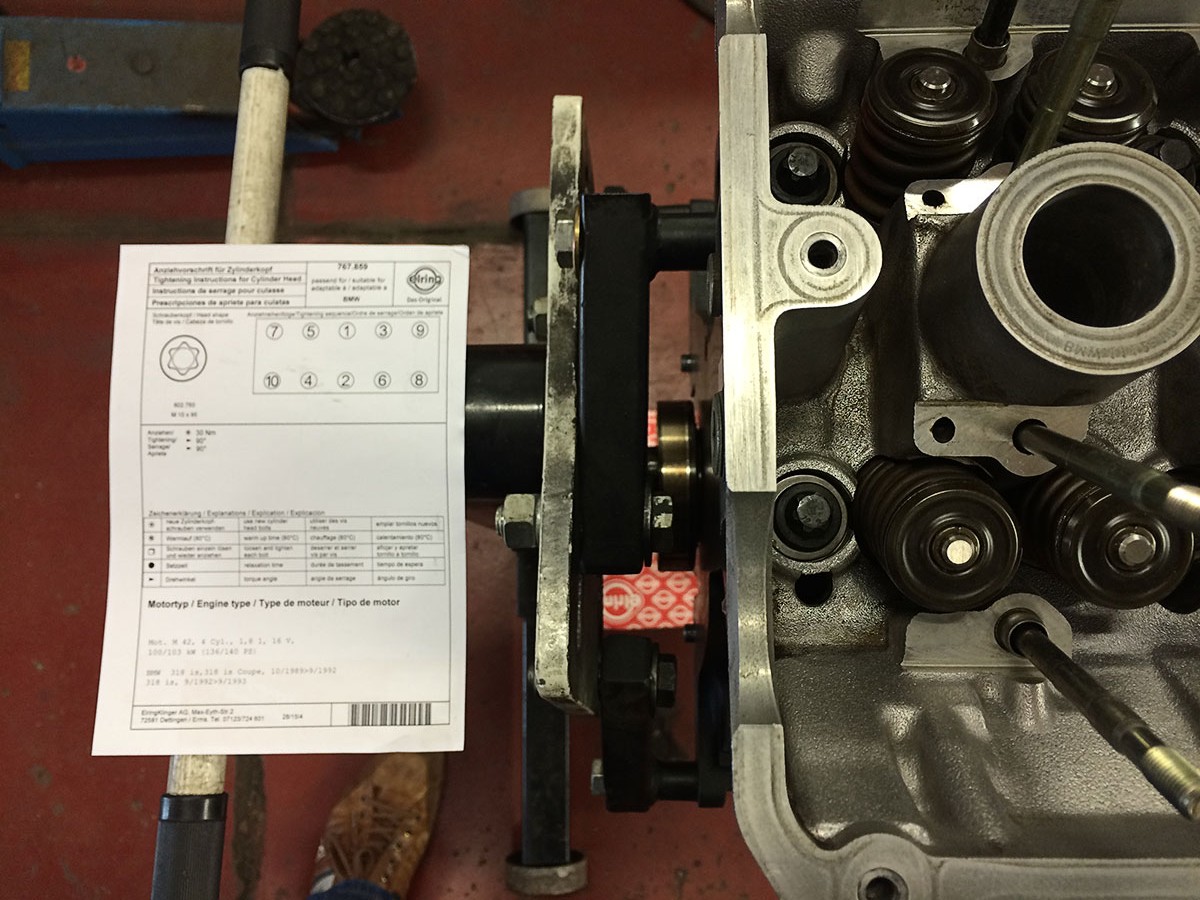

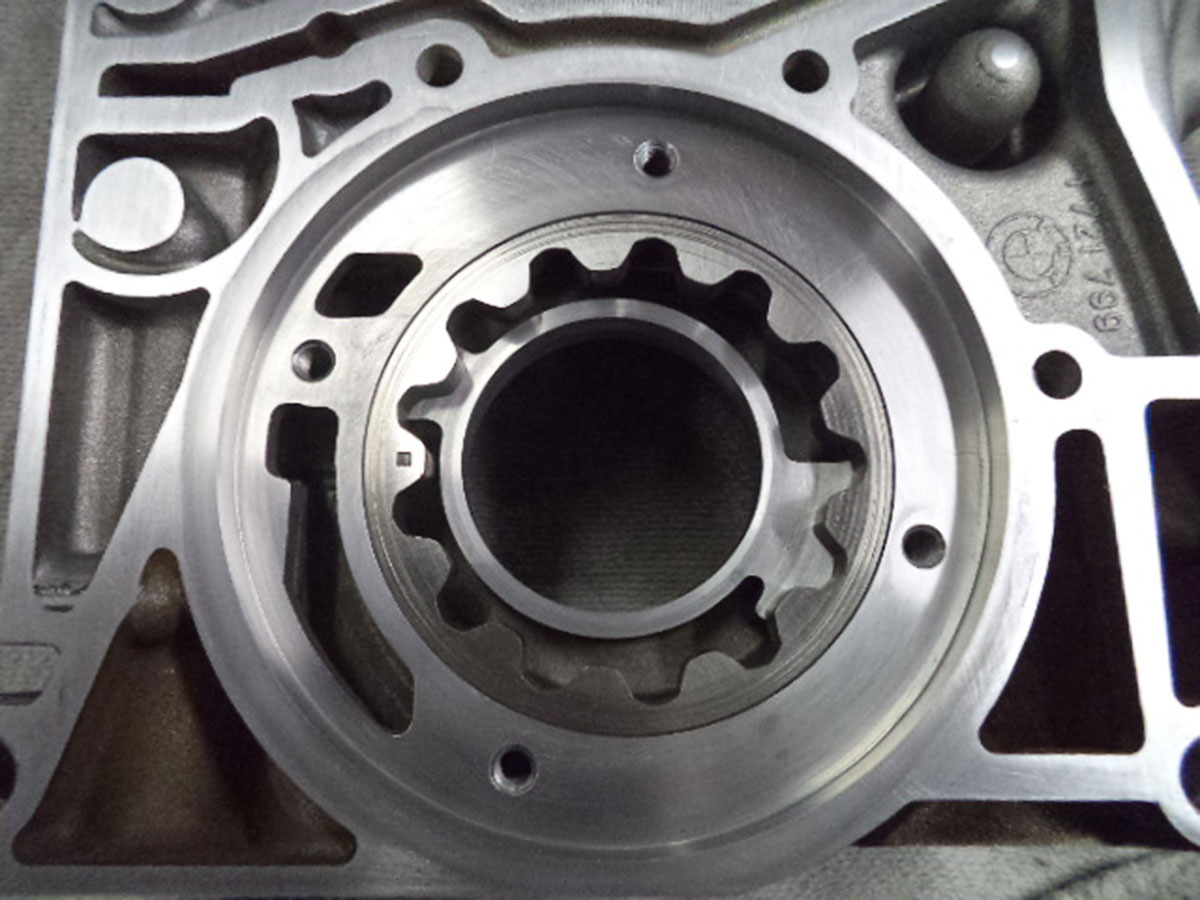

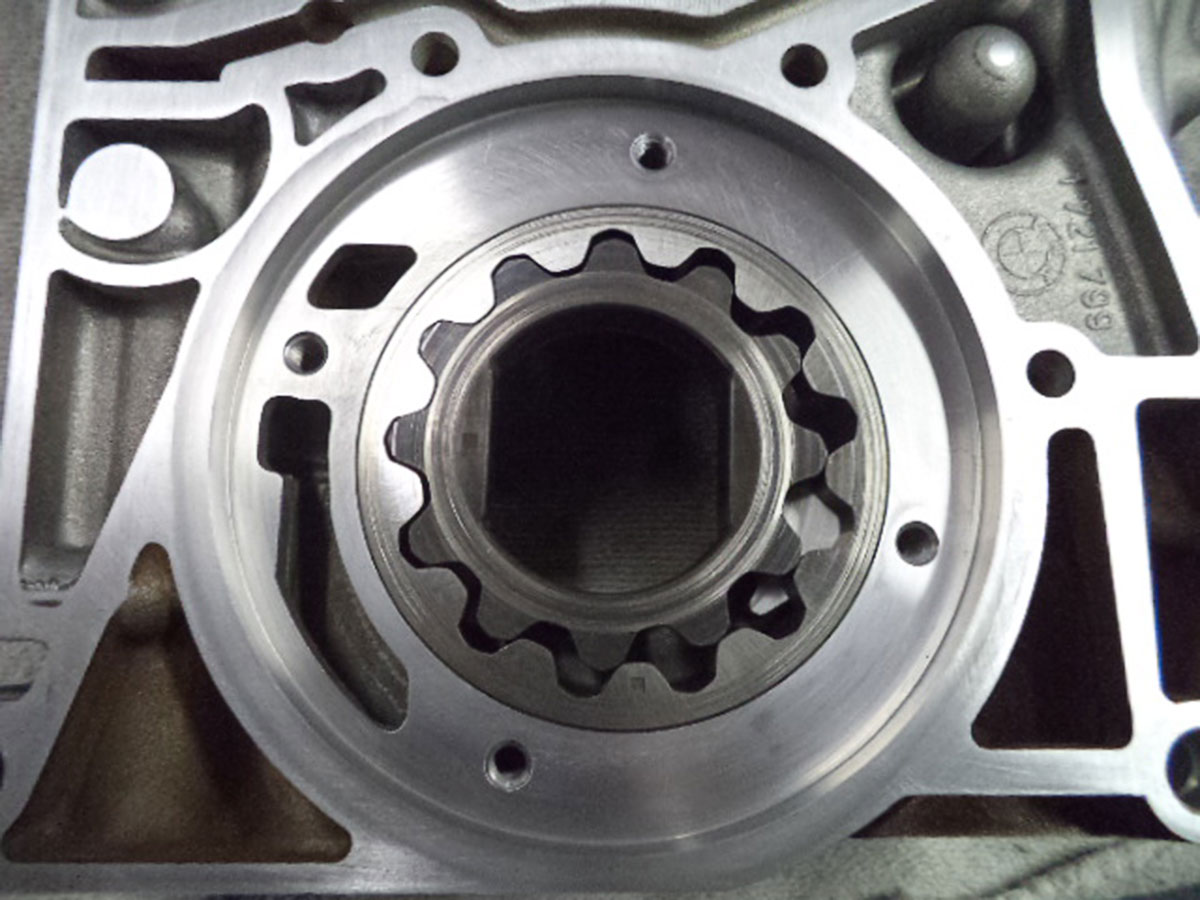

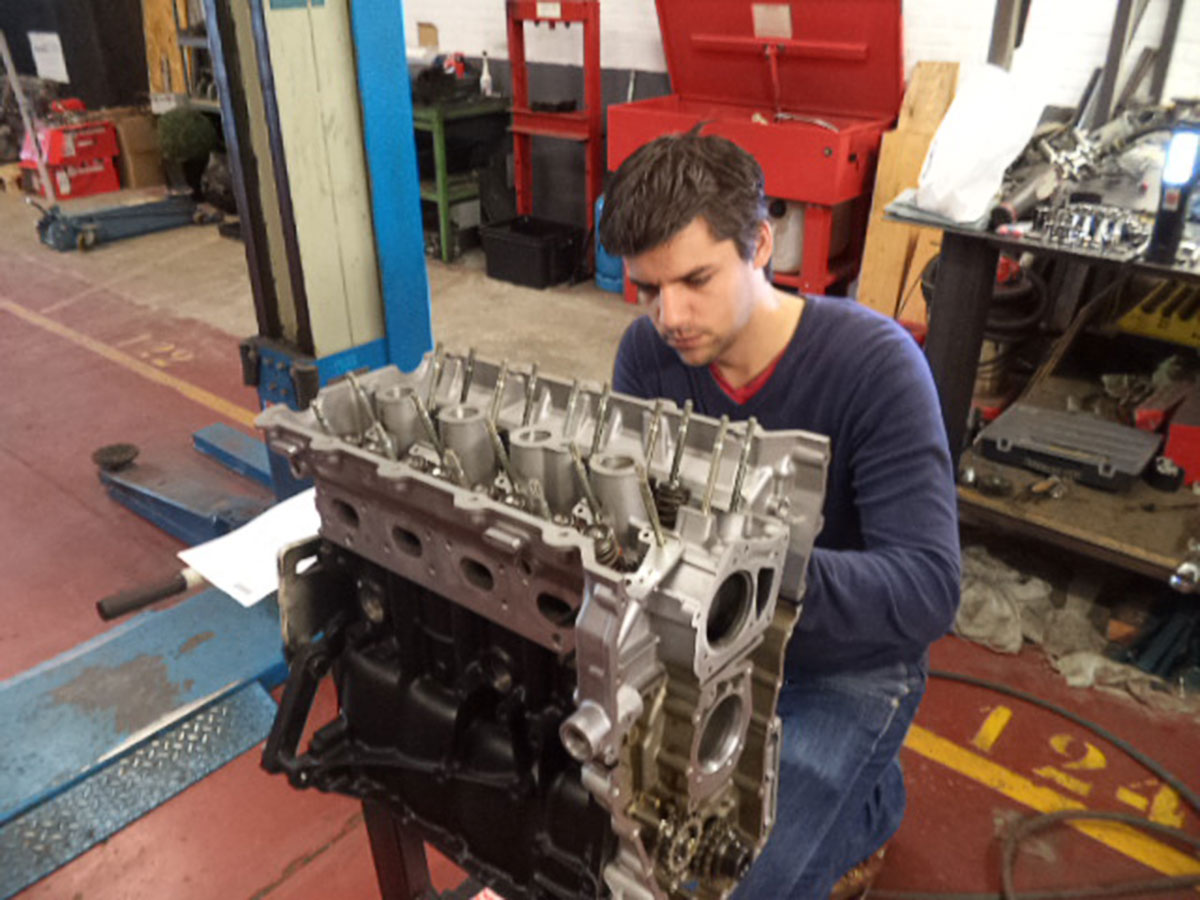

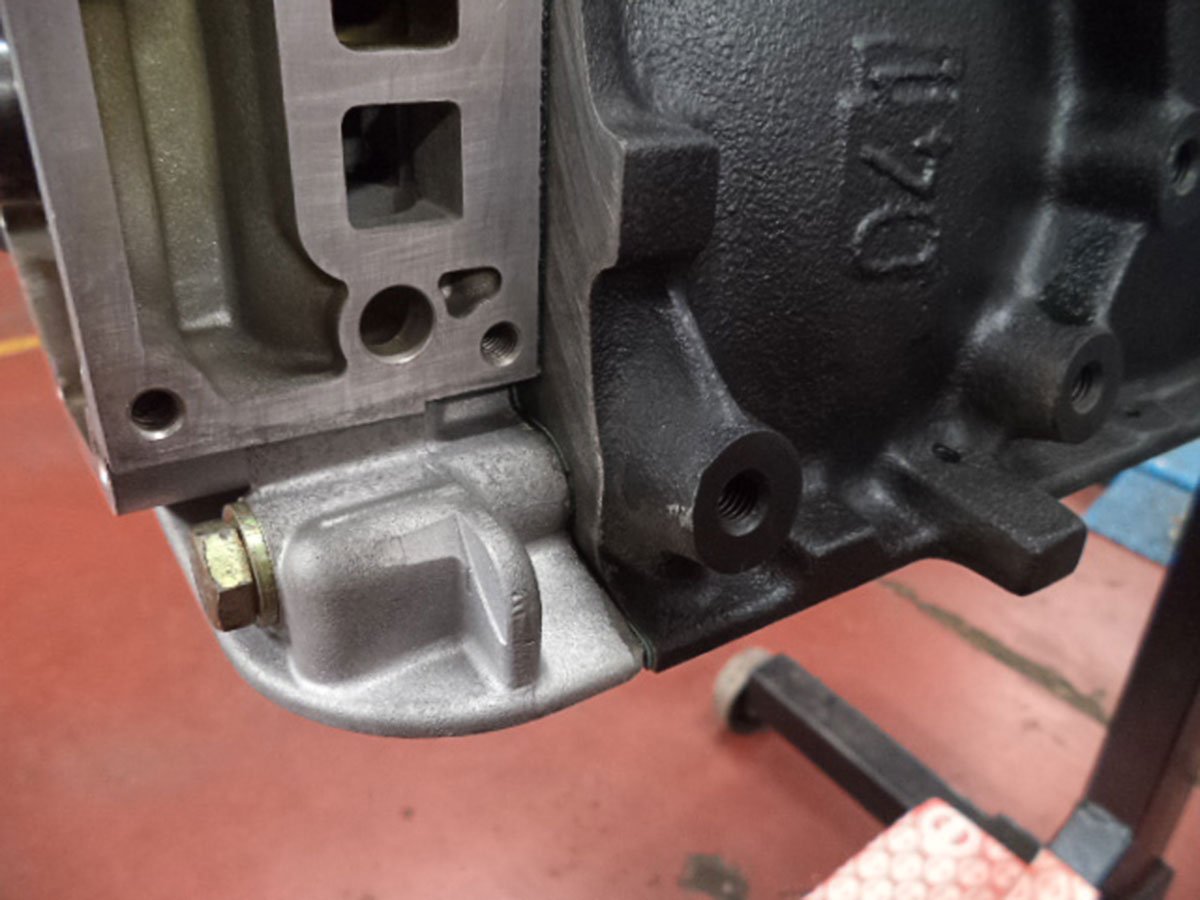

Most of these pictures do not need further explaining. We build the engine until it is ready to put it back.

[PJH]

[PJH]

[PJH]

Before and after, big difference.

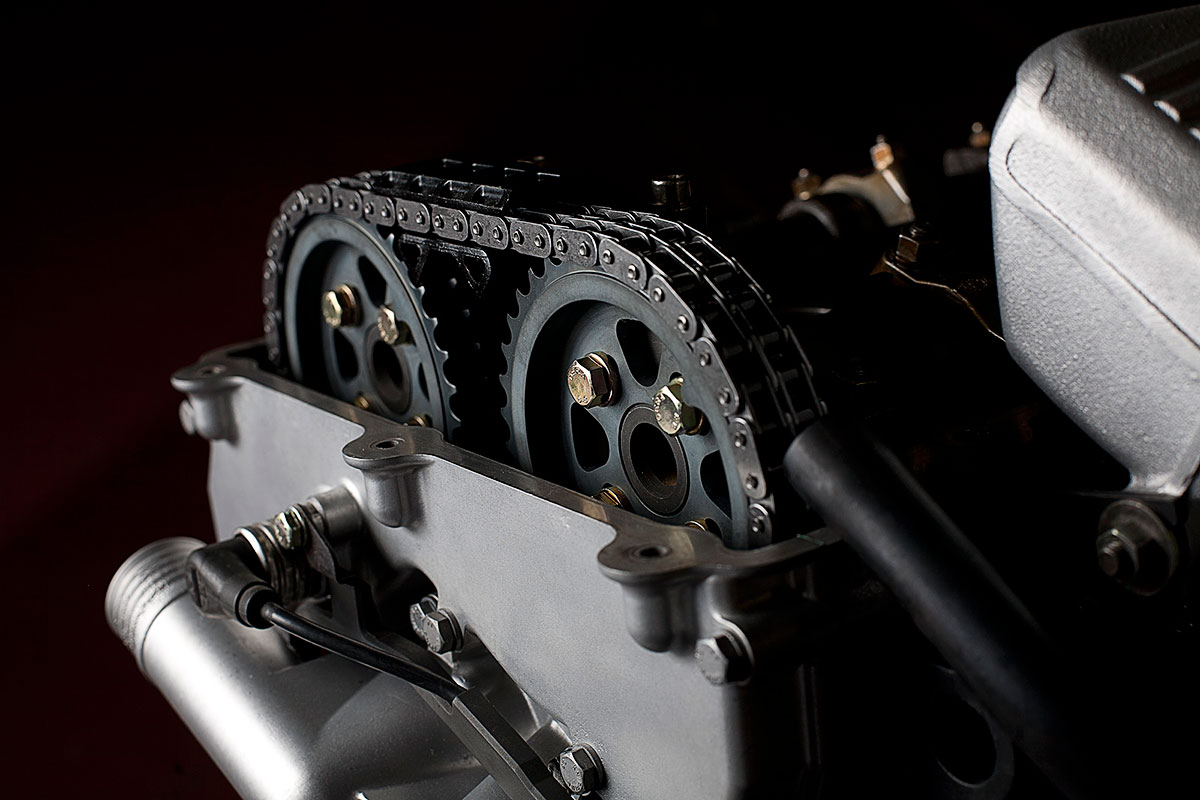

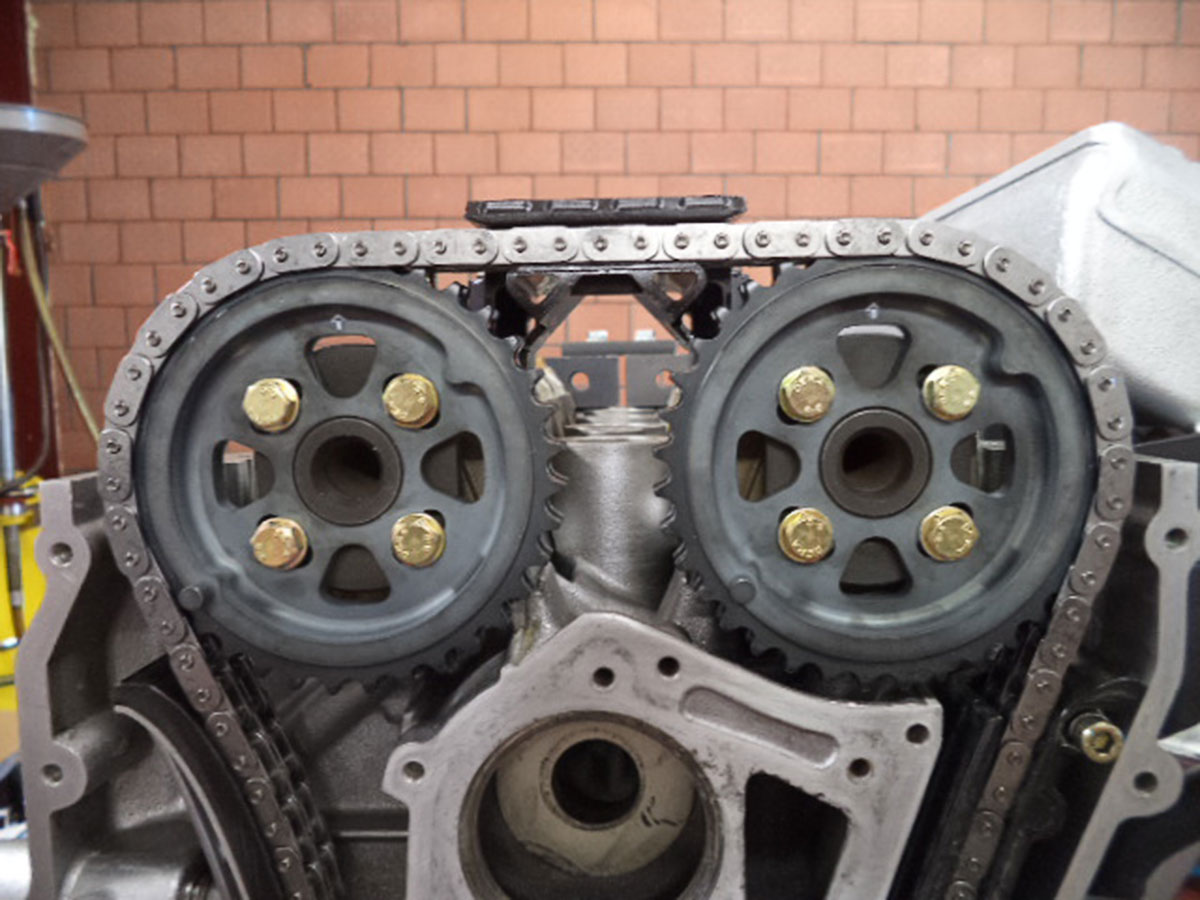

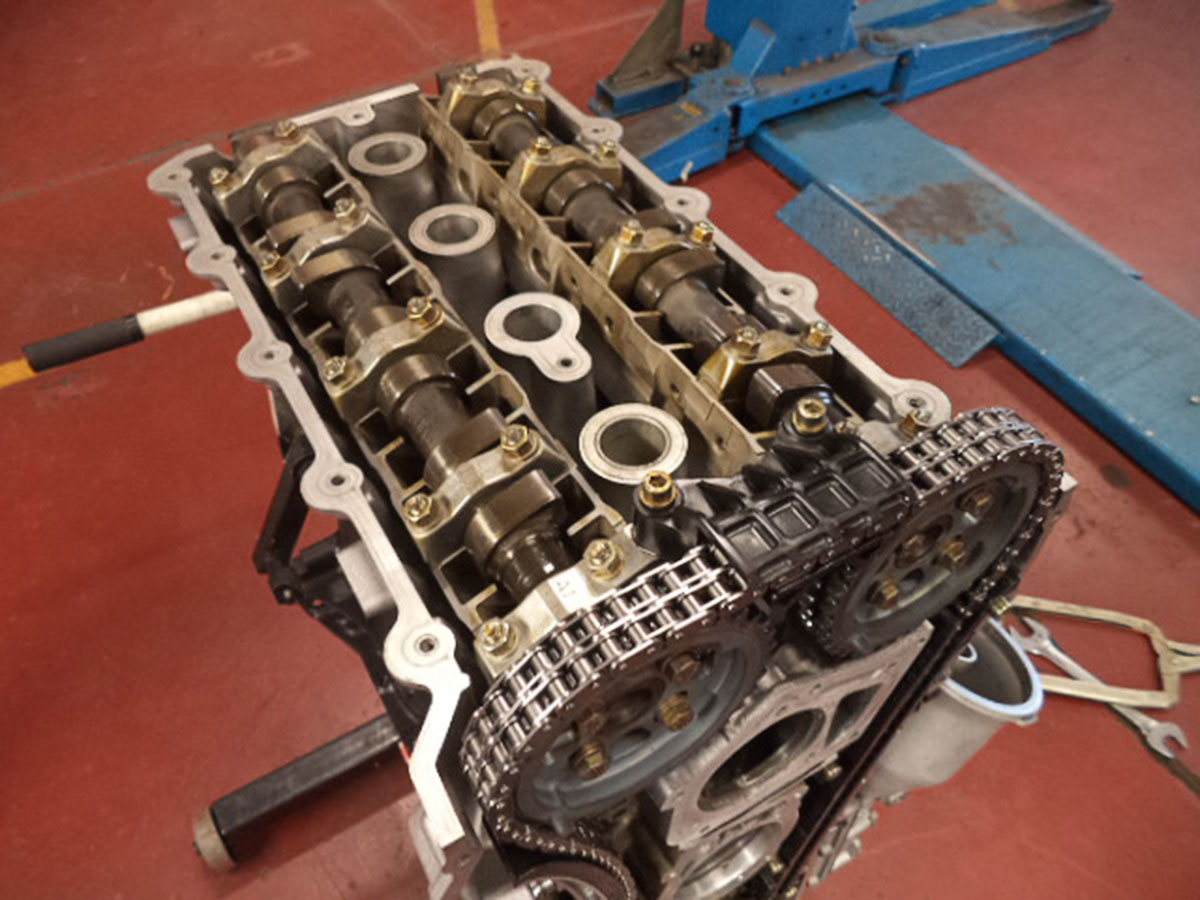

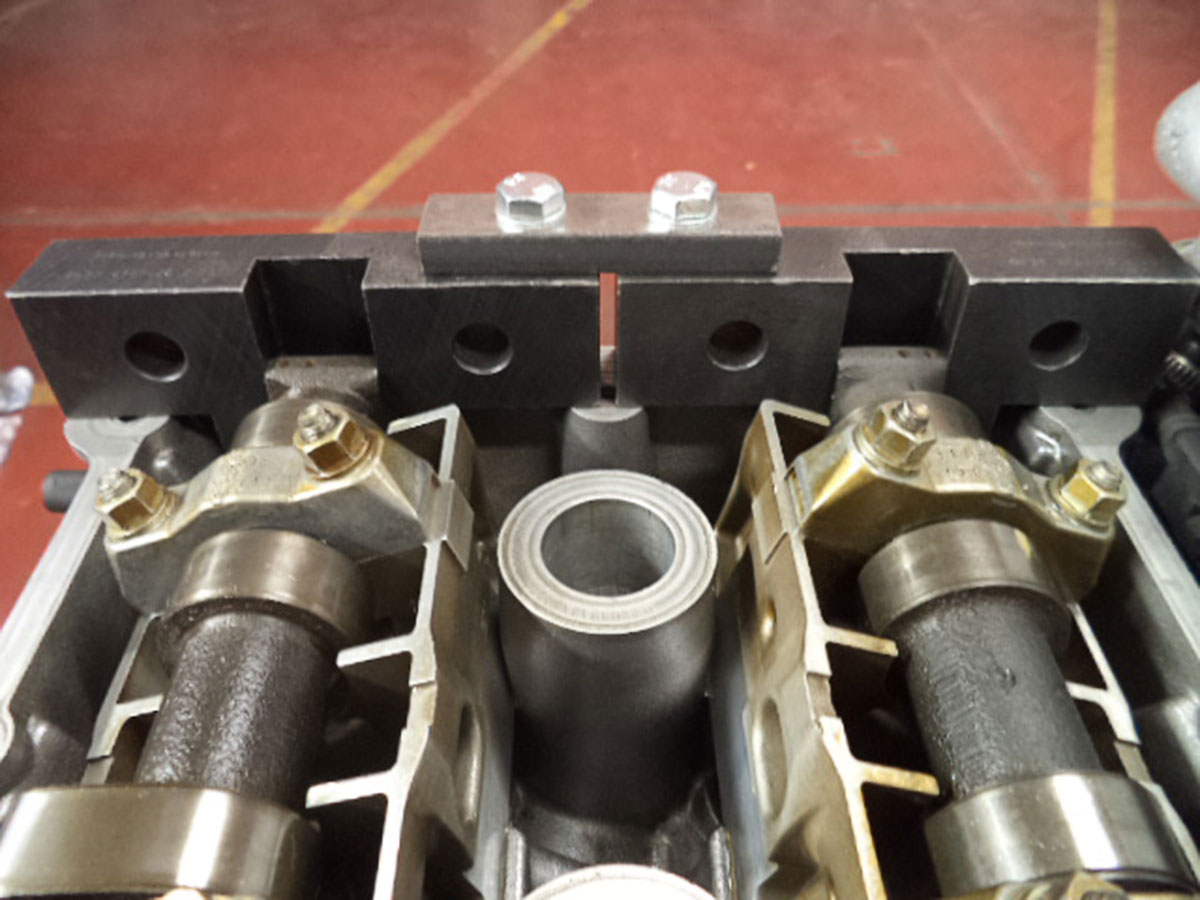

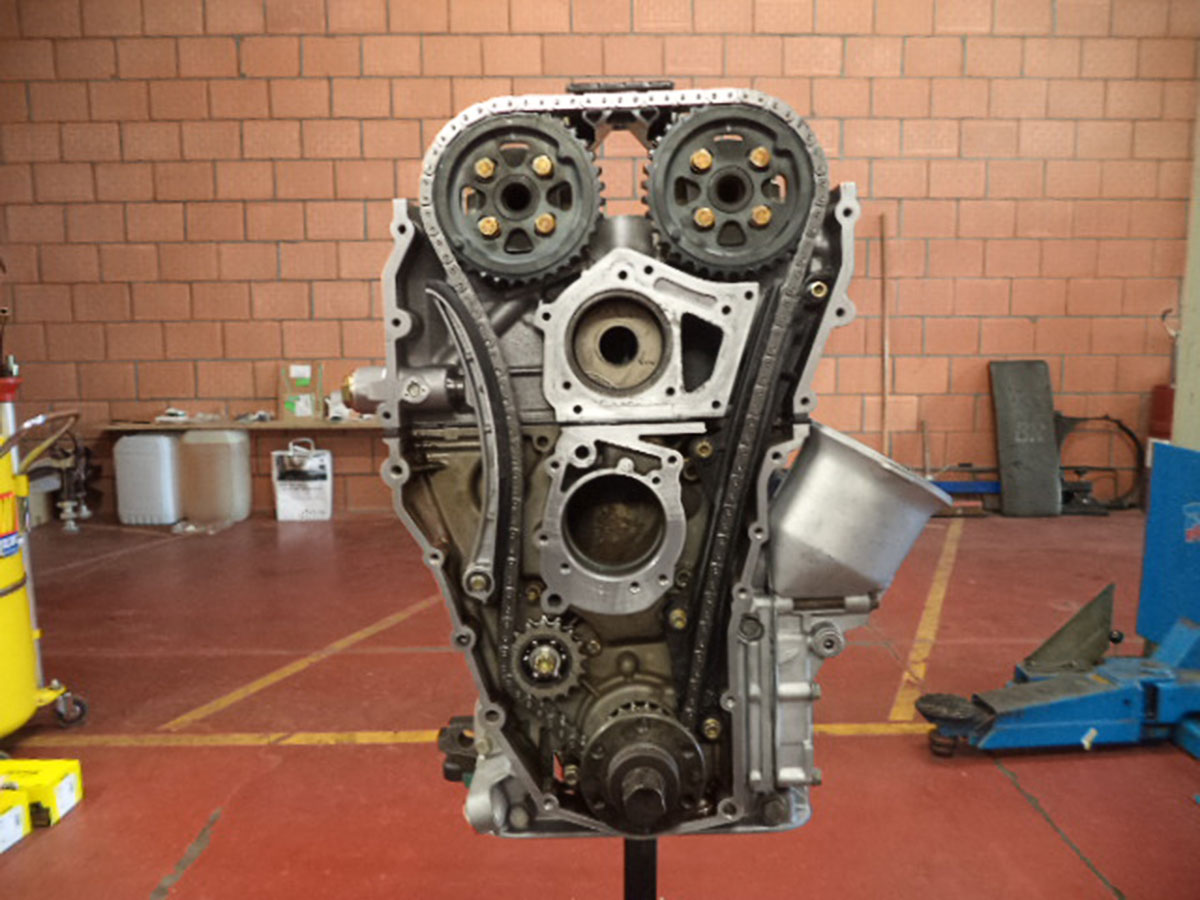

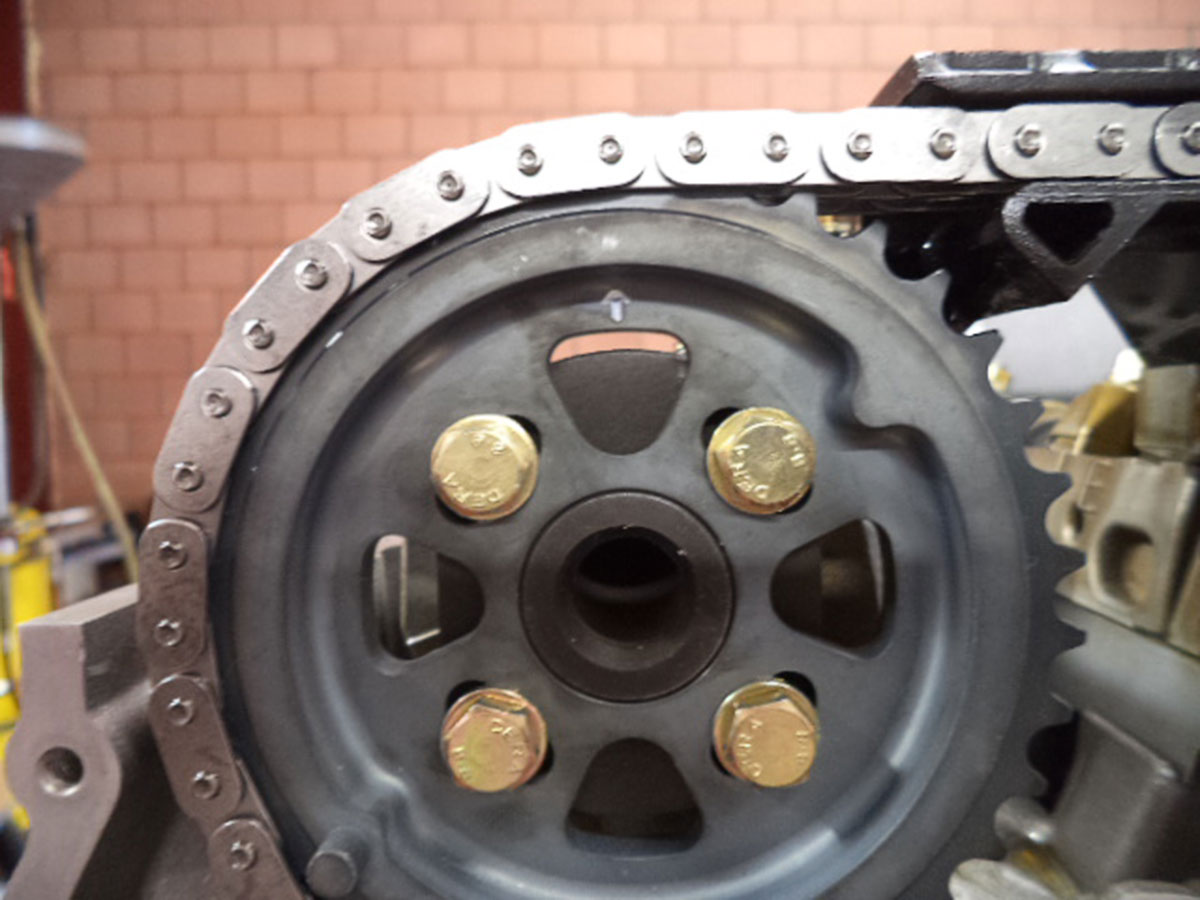

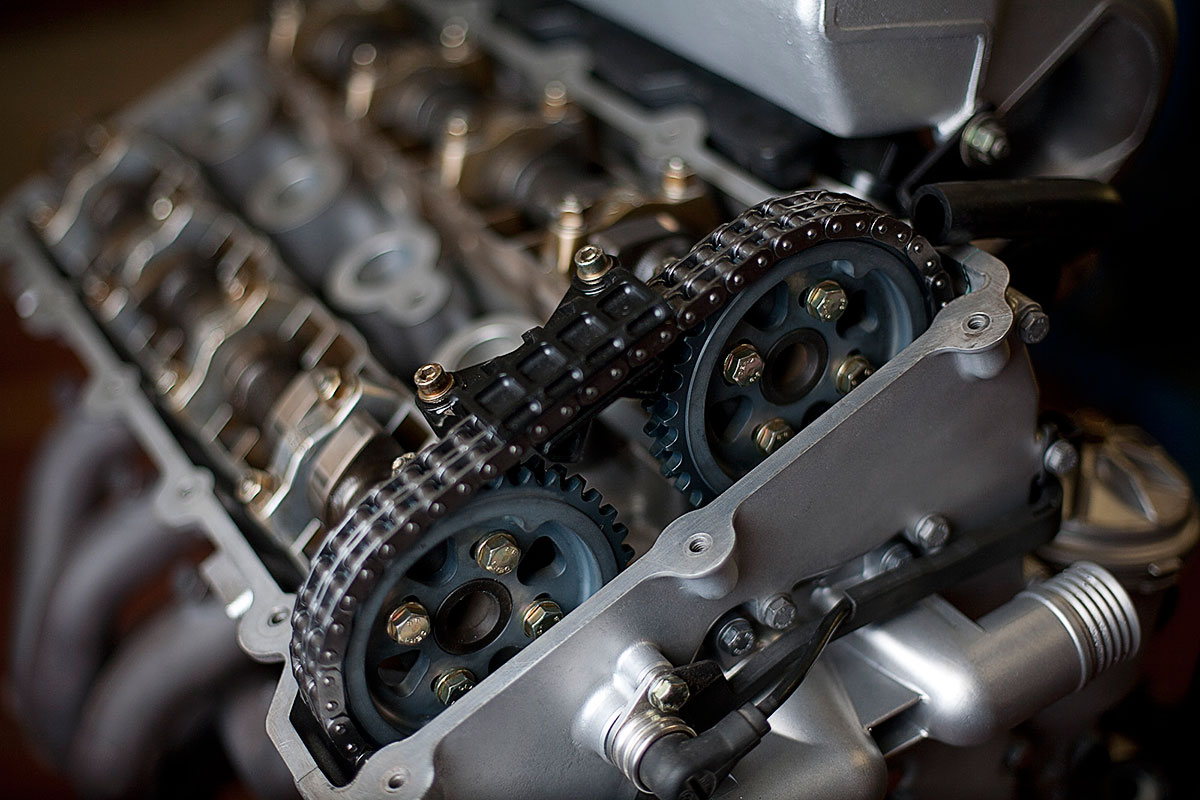

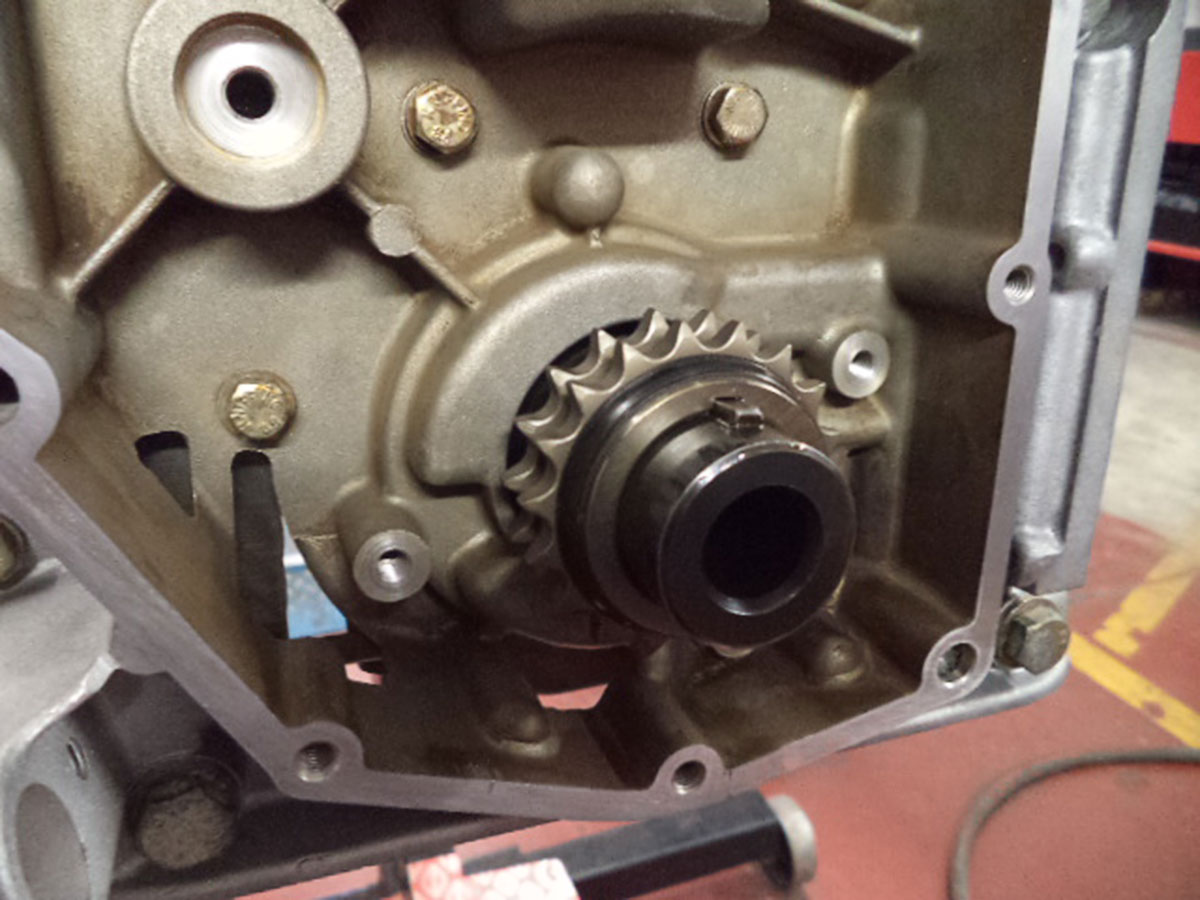

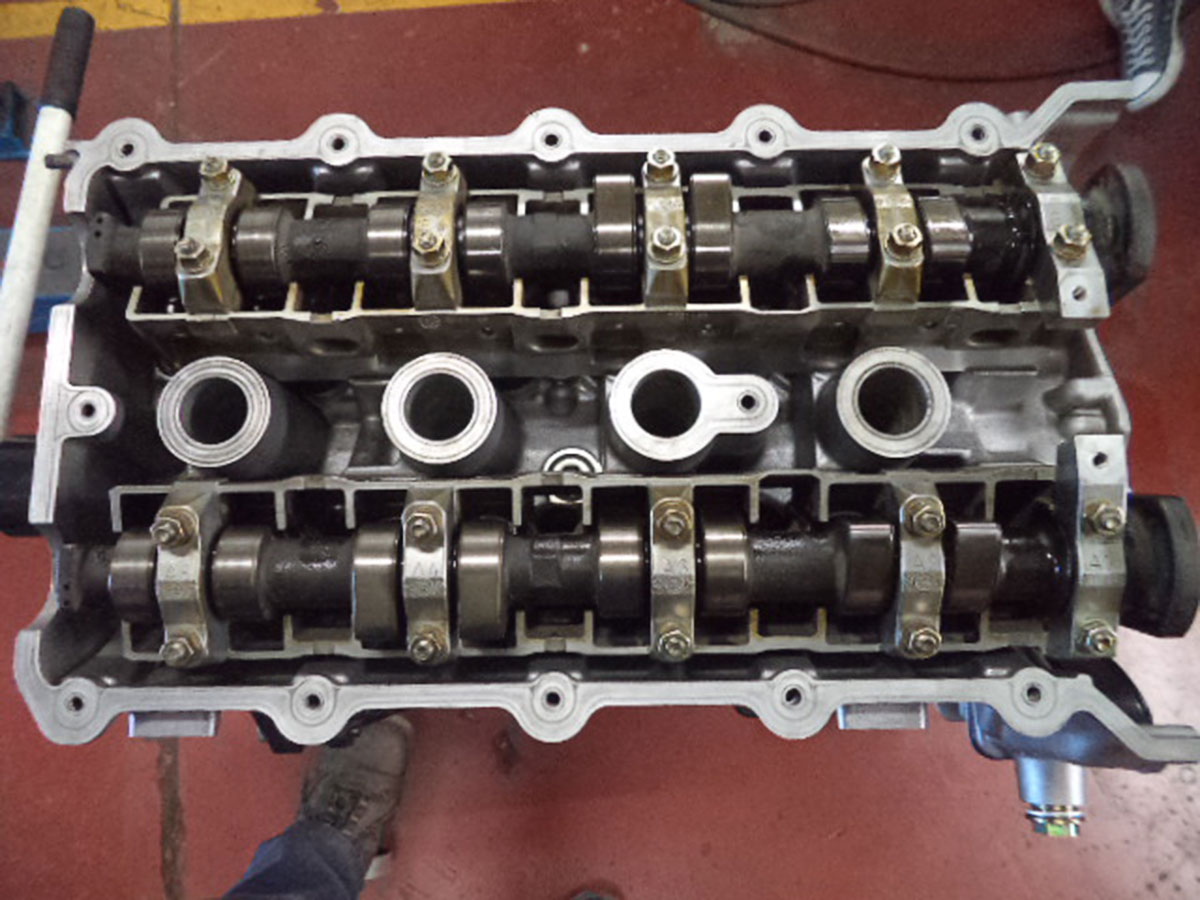

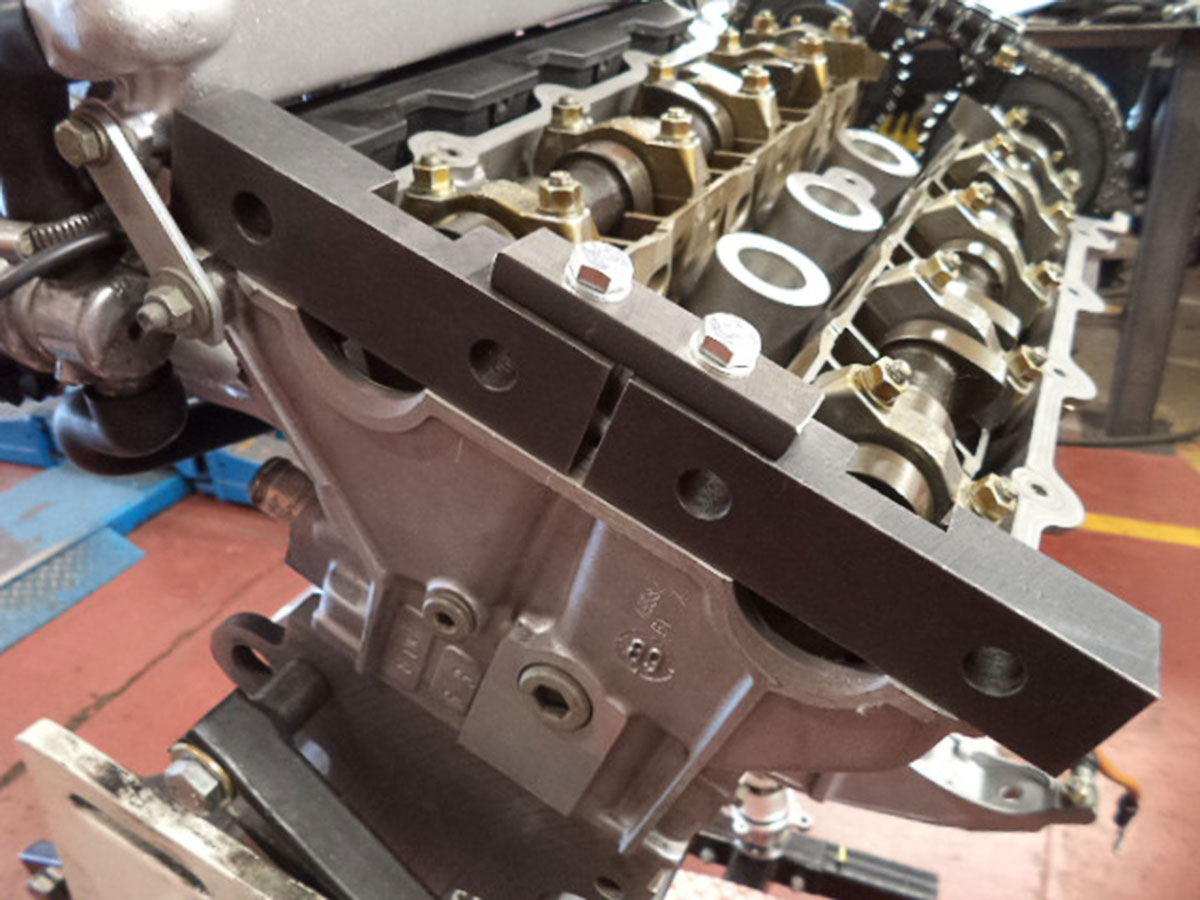

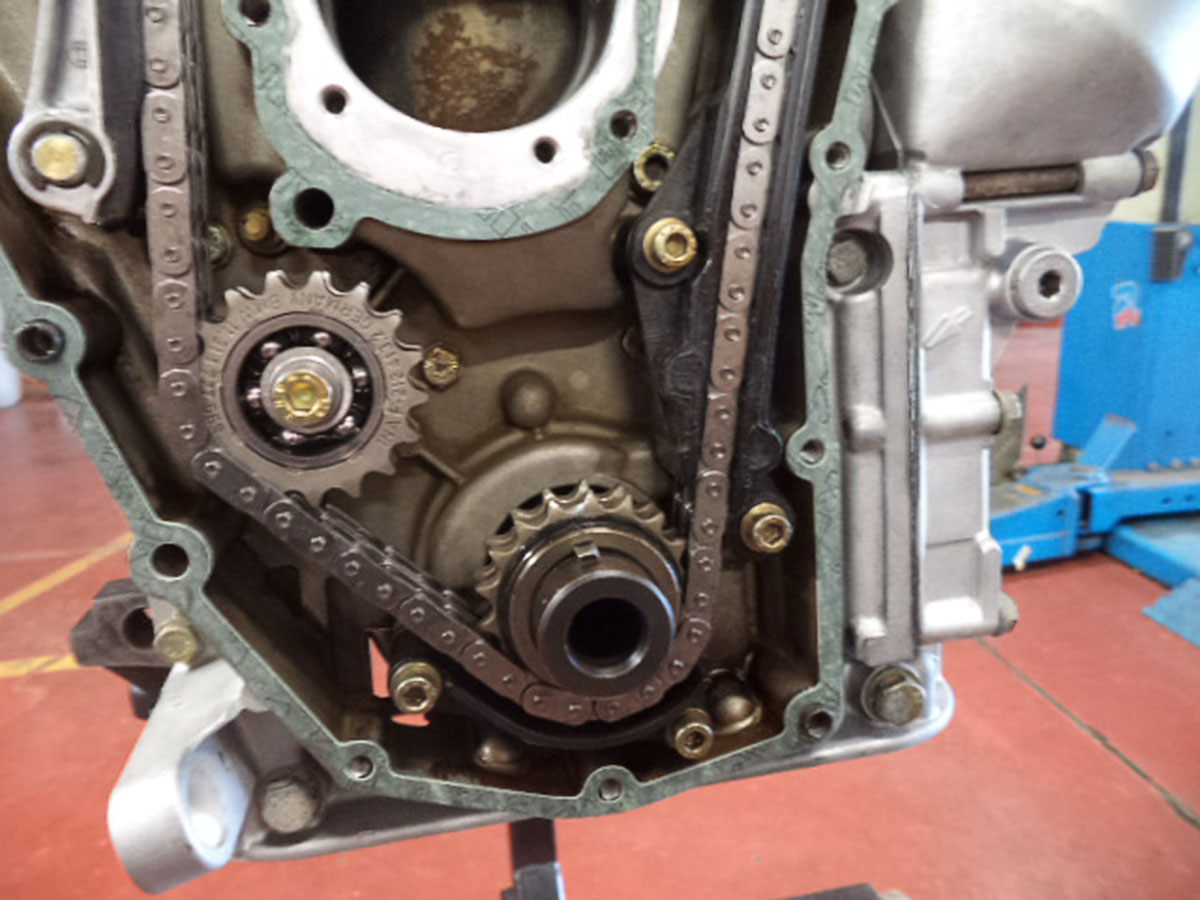

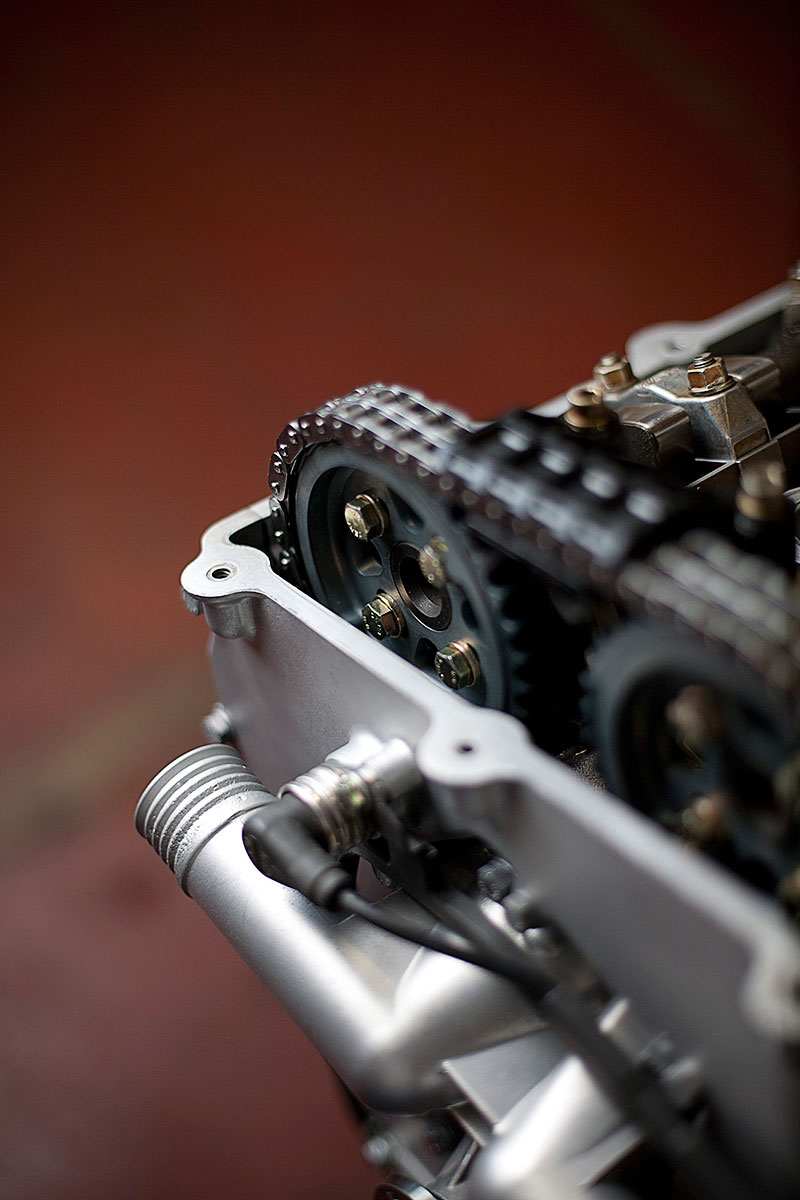

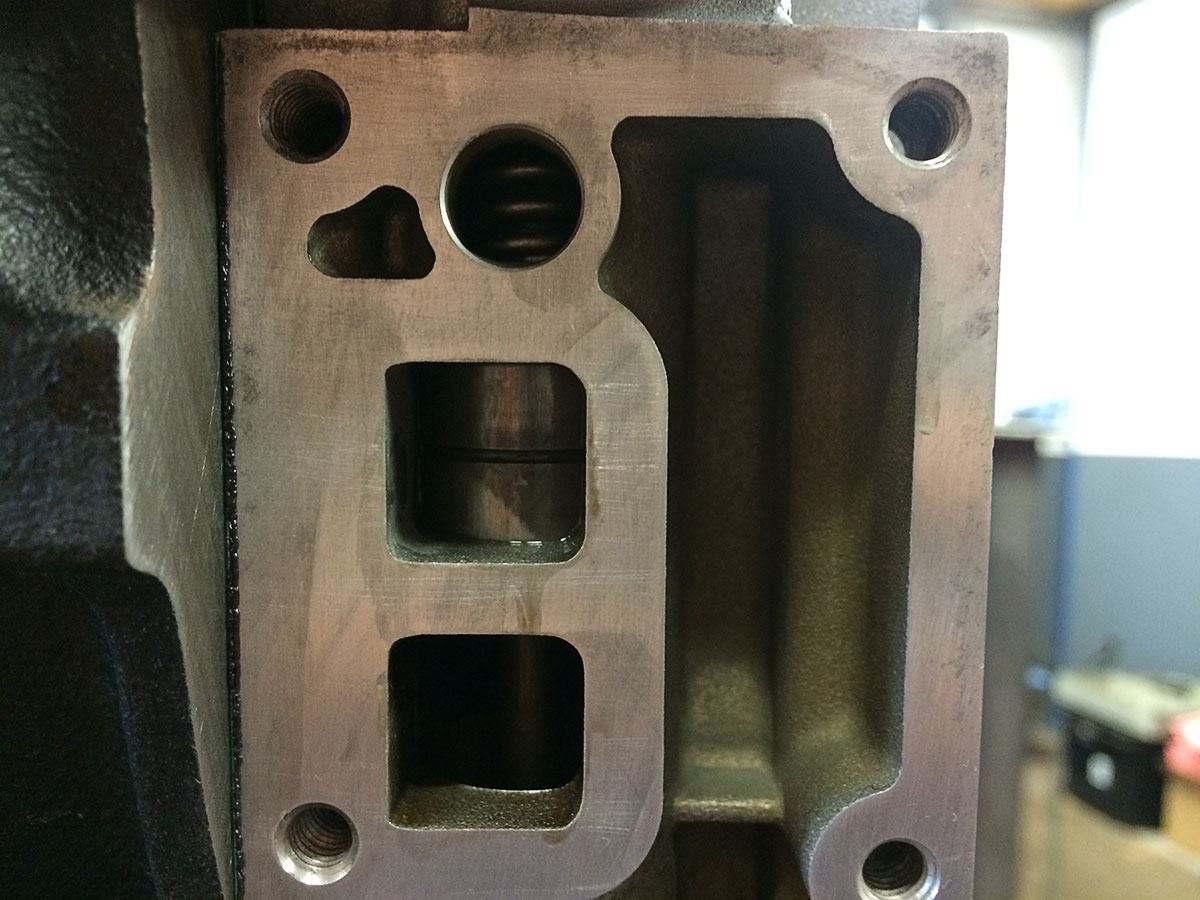

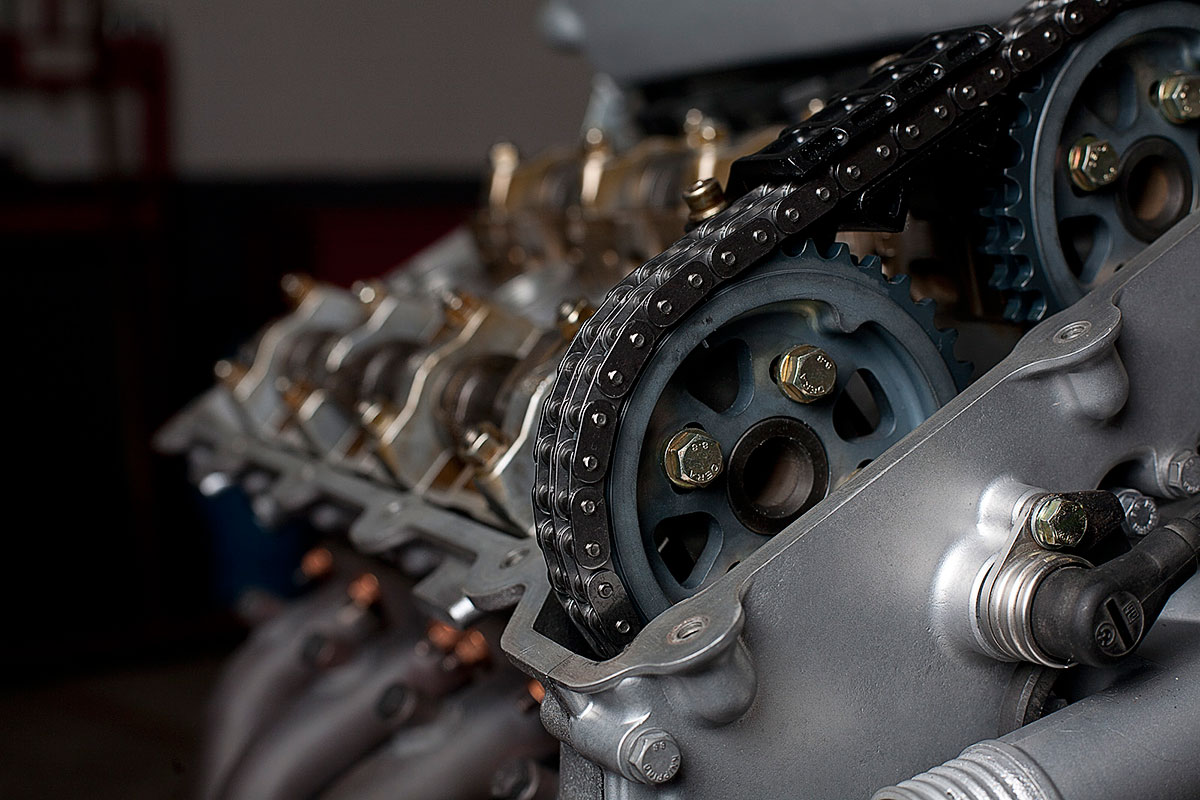

Setting the timing perfectly right, so we get the full potential of the engine:

[PJH]

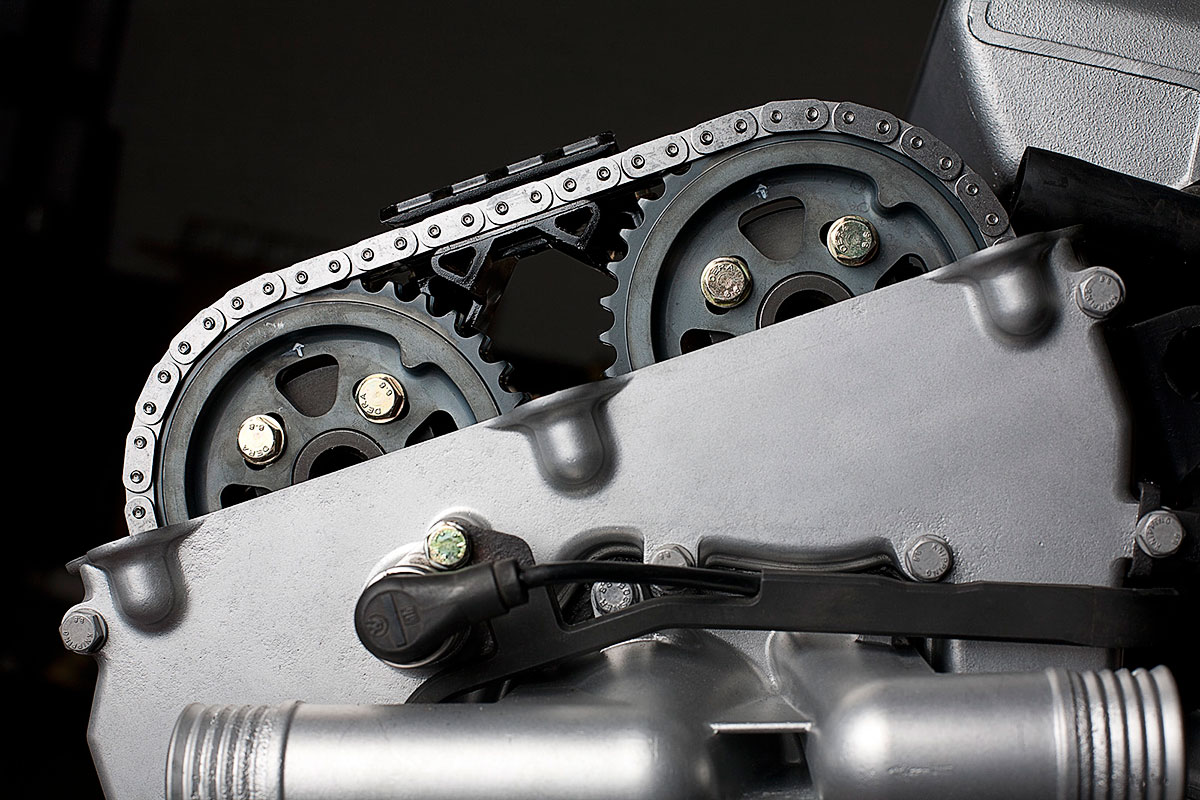

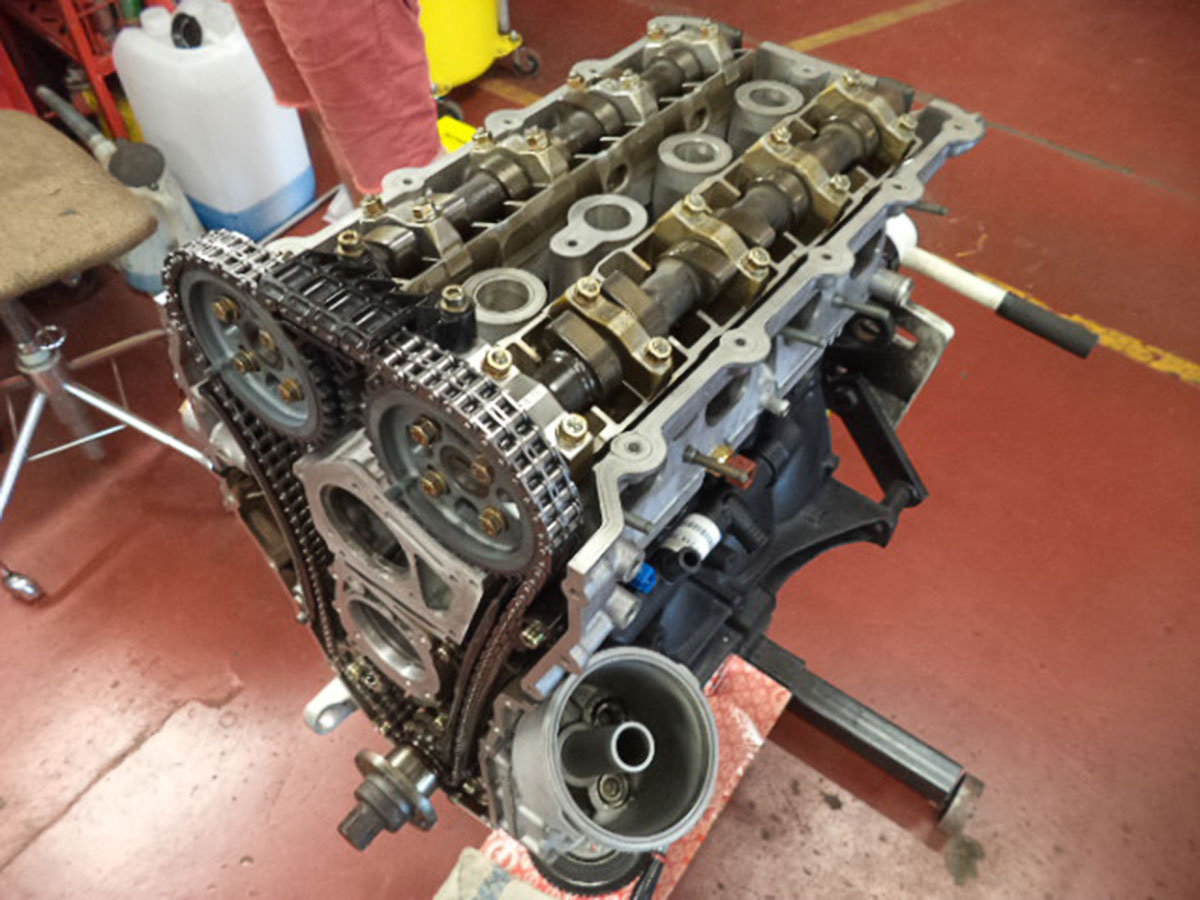

Once the chain is in place, we seal the engine.

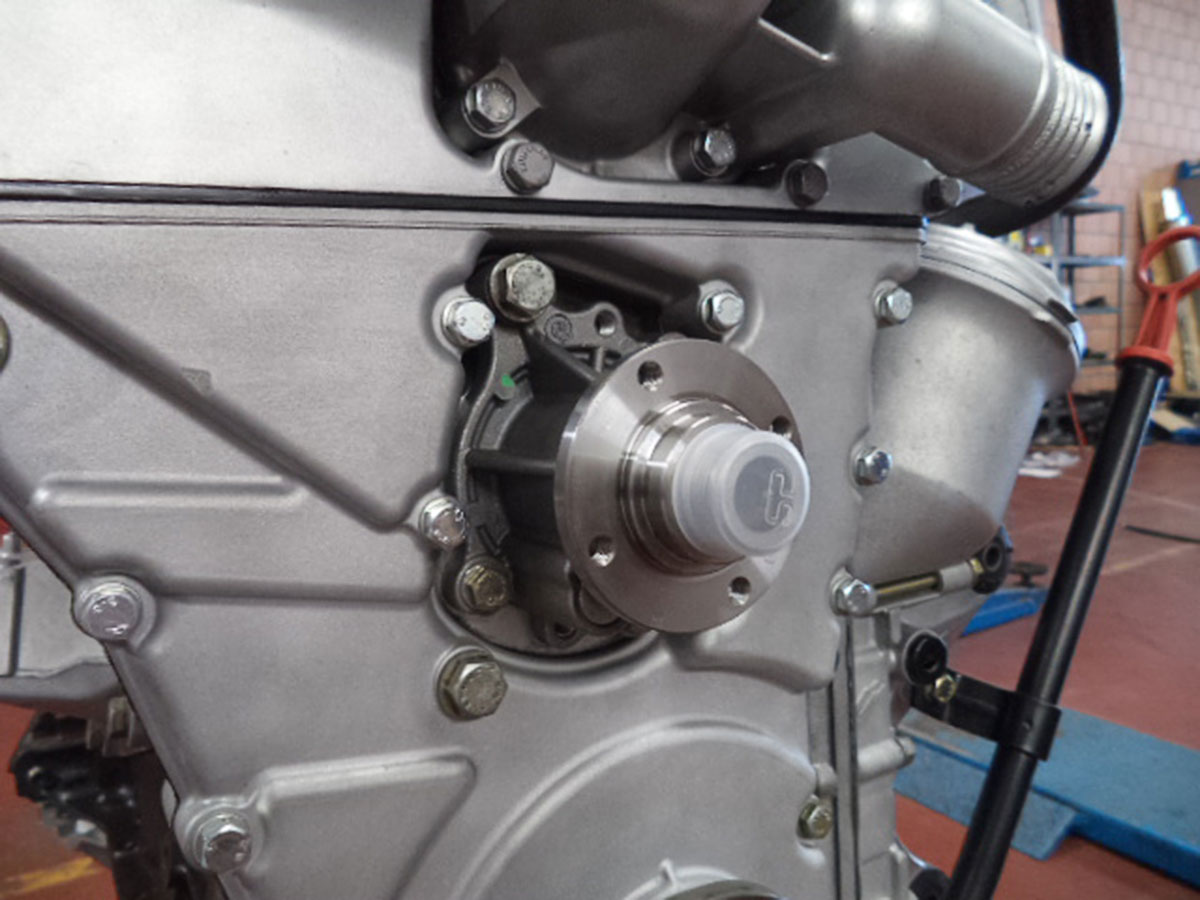

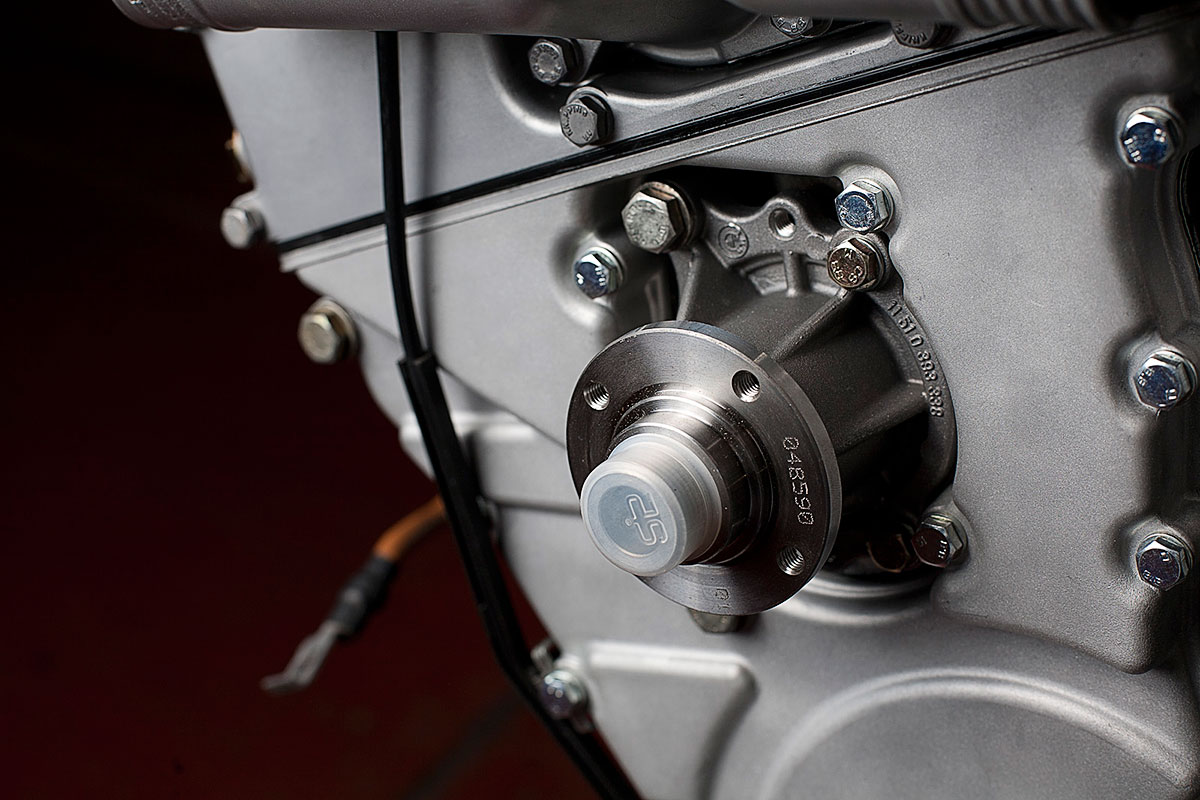

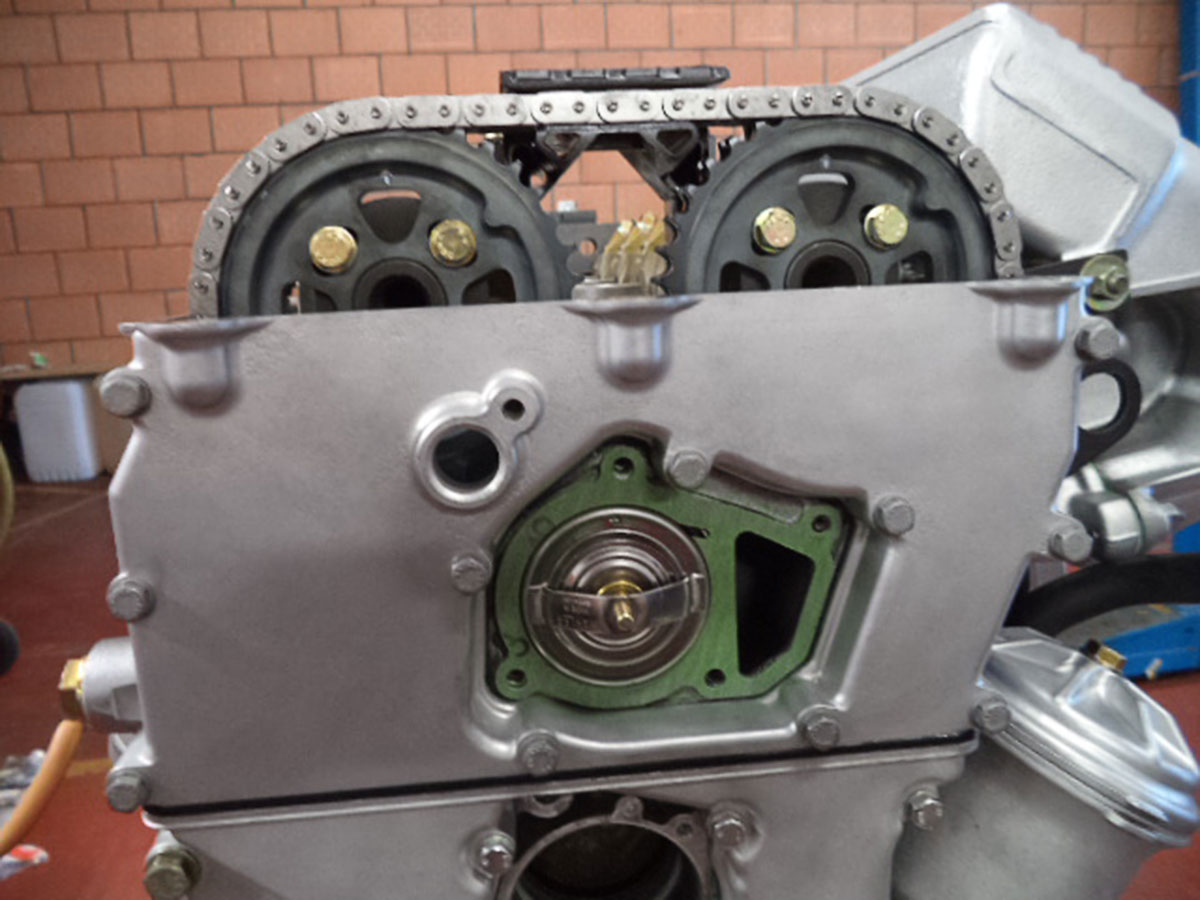

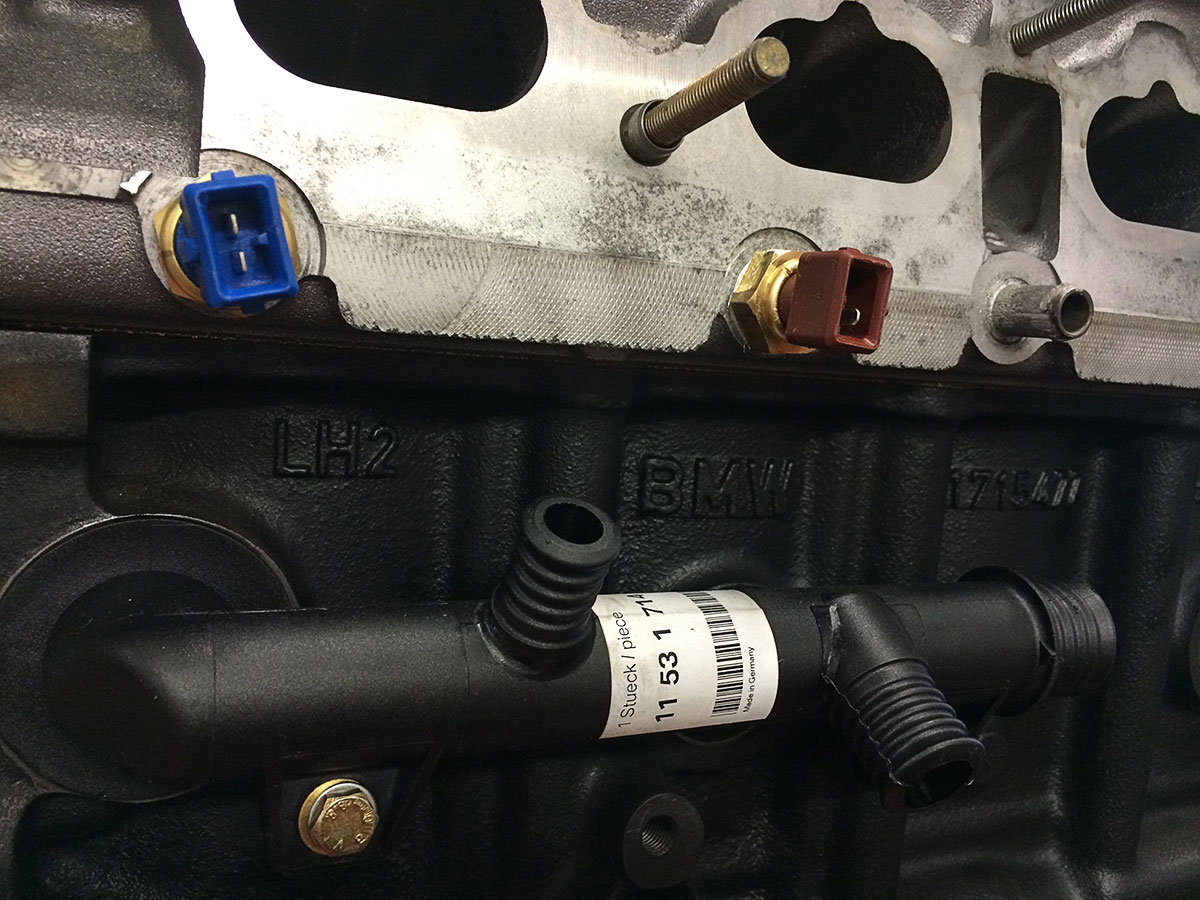

New thermostat and waterpump

[PJH]

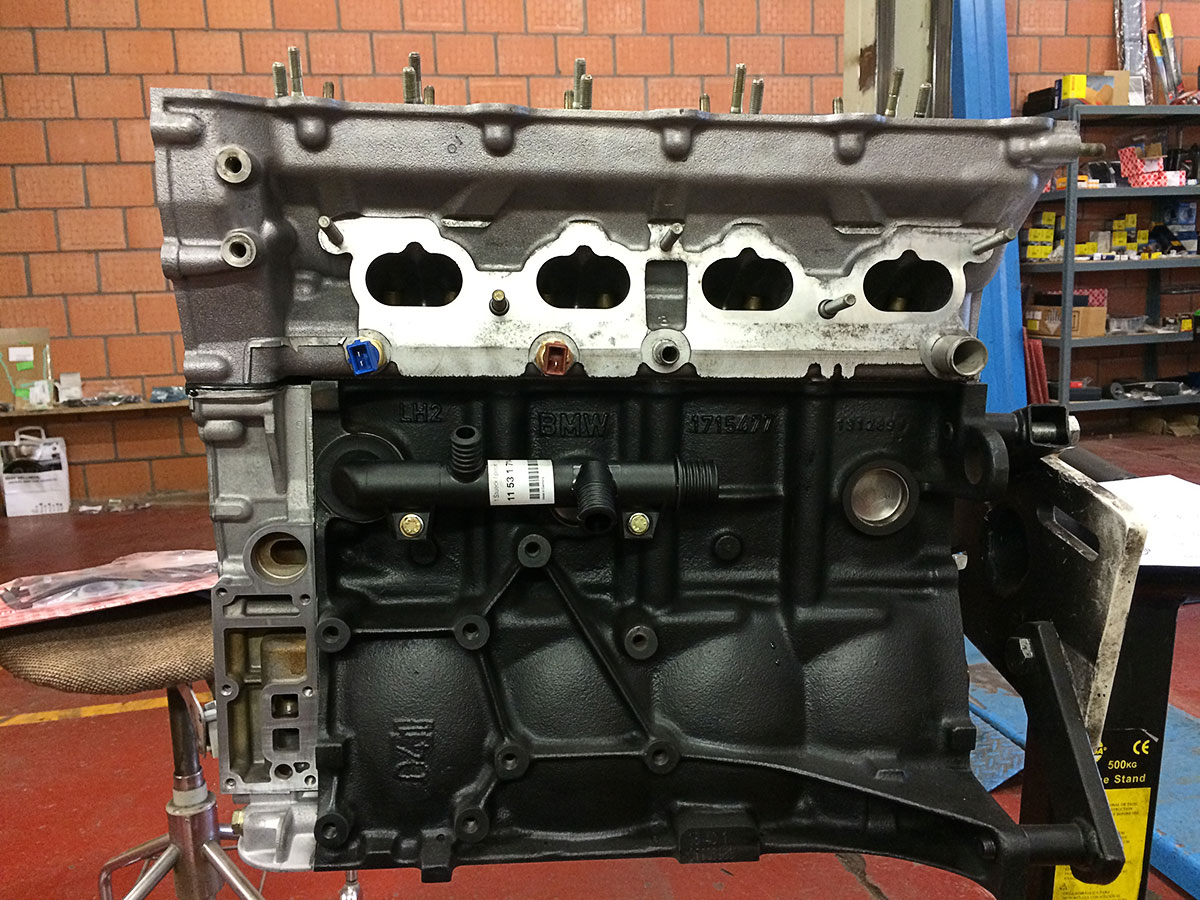

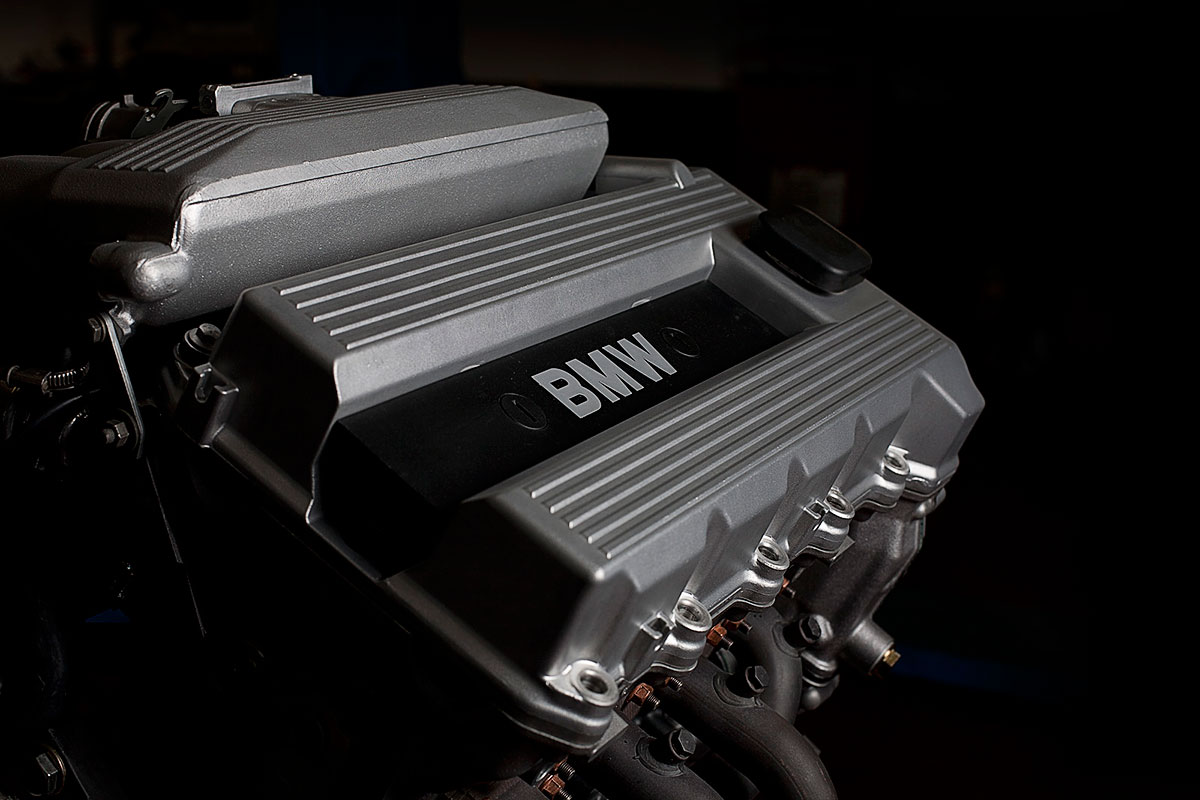

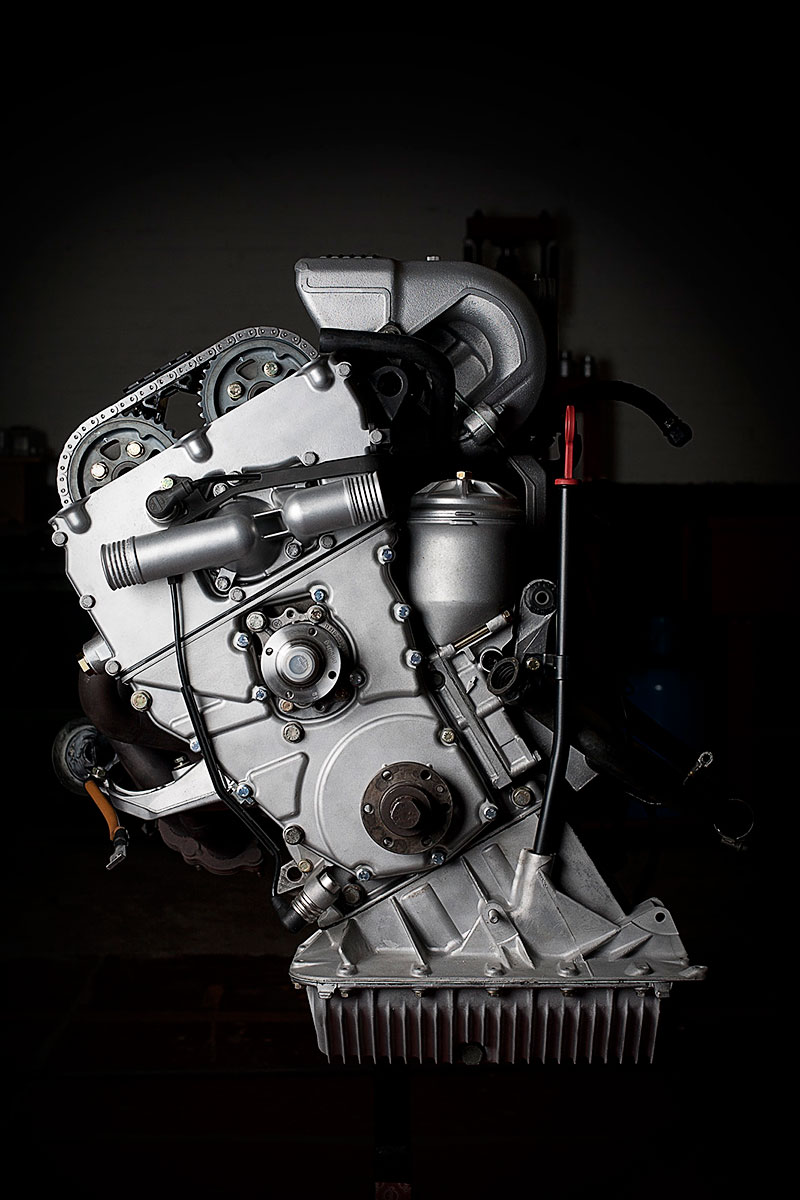

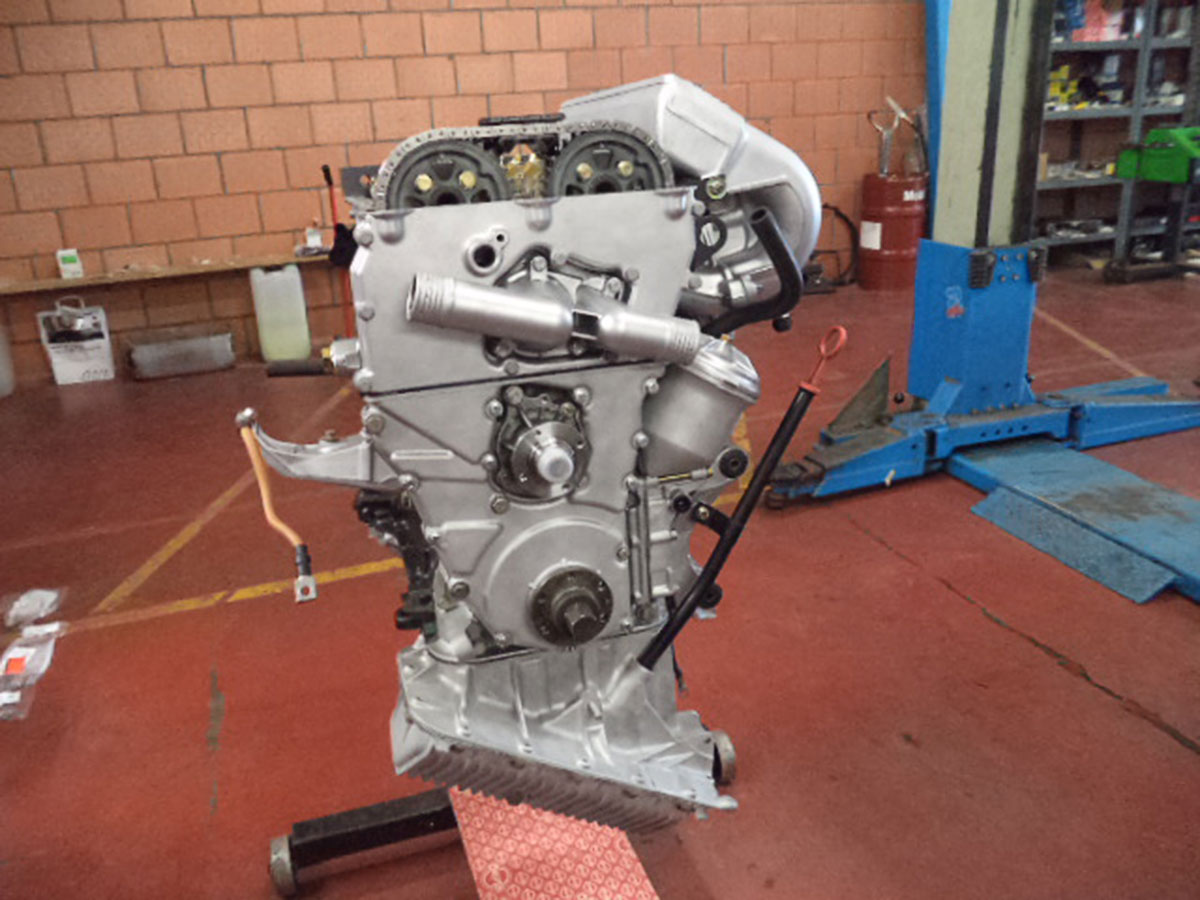

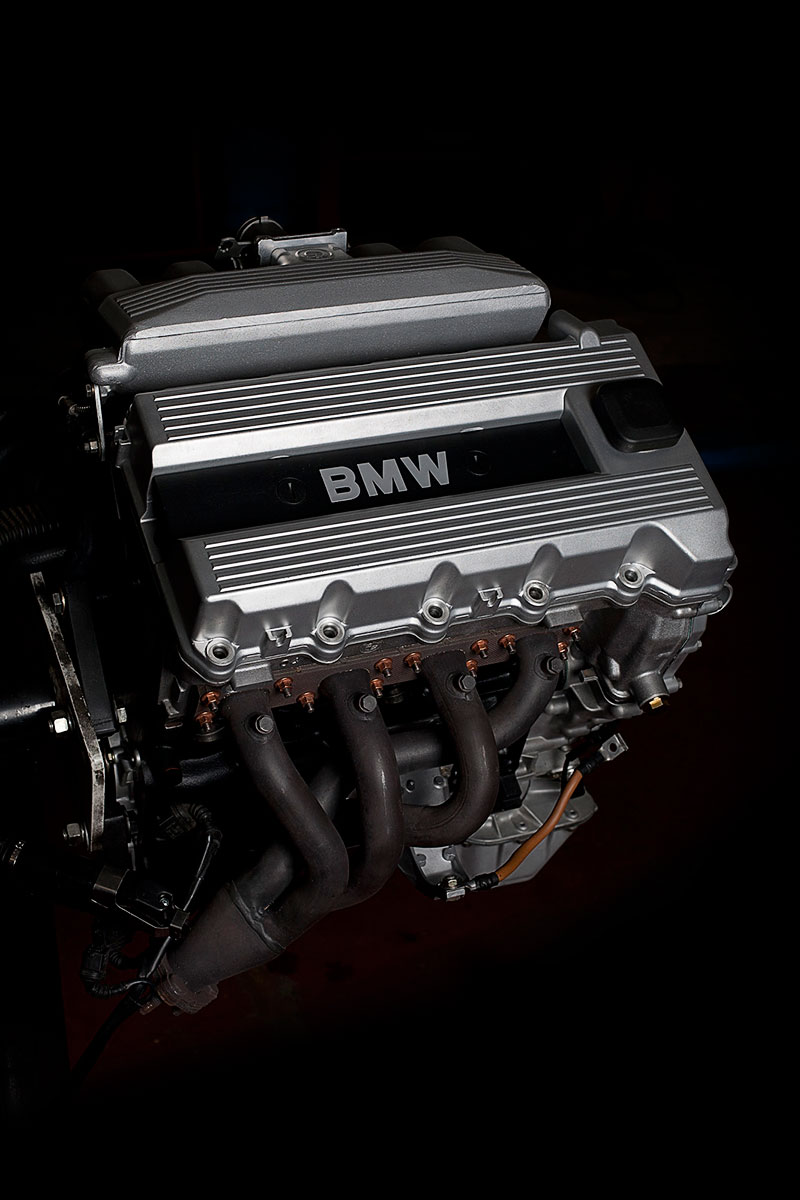

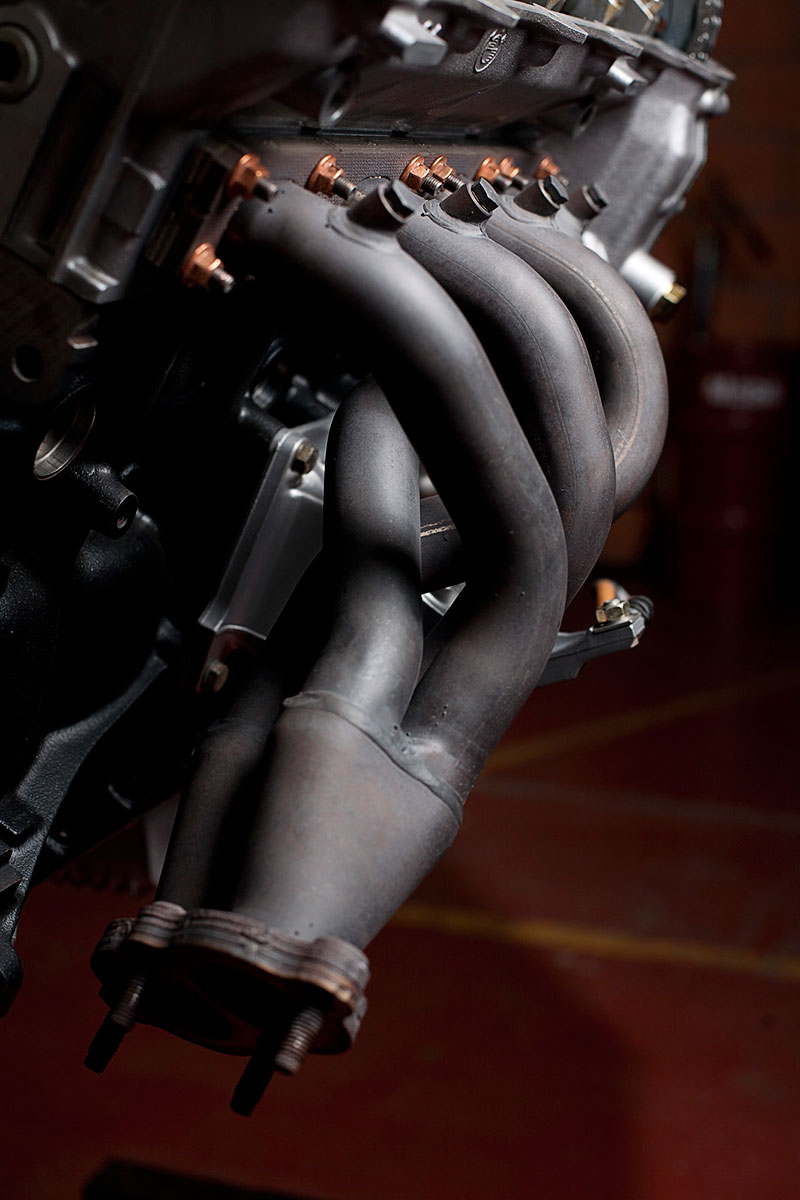

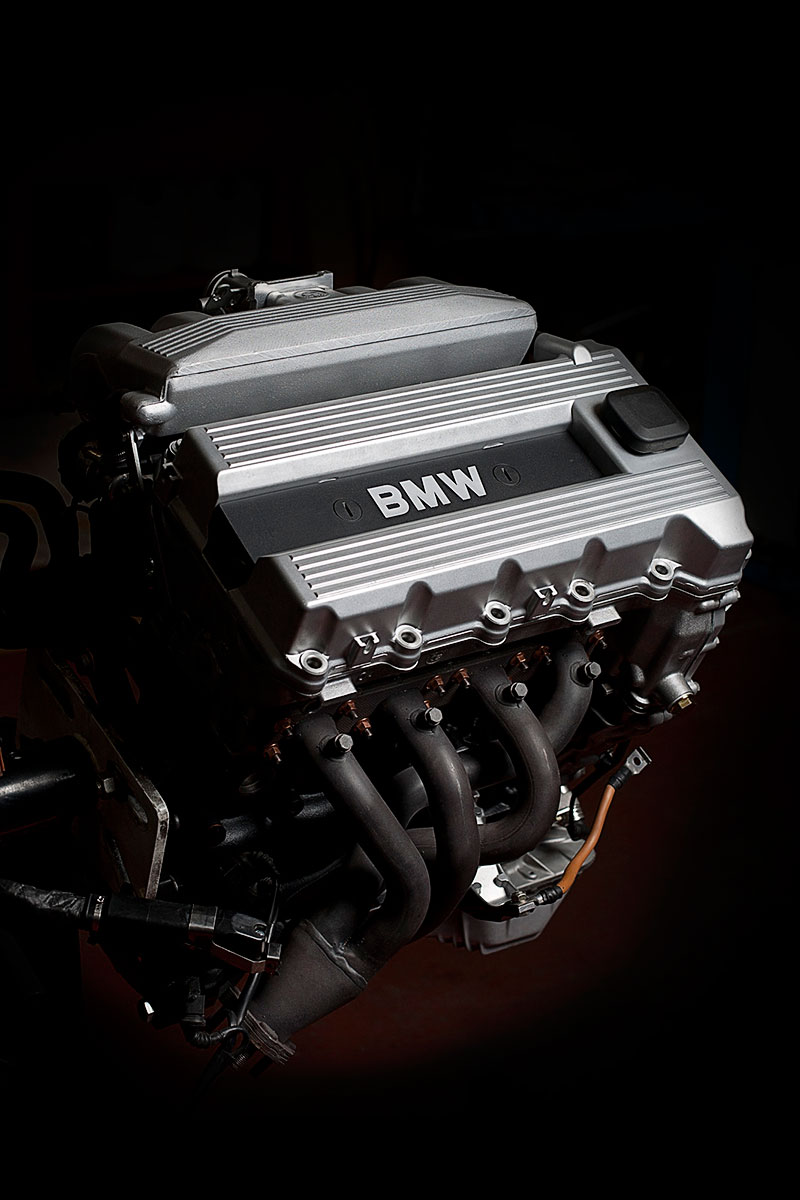

Finished product:

[PJH]

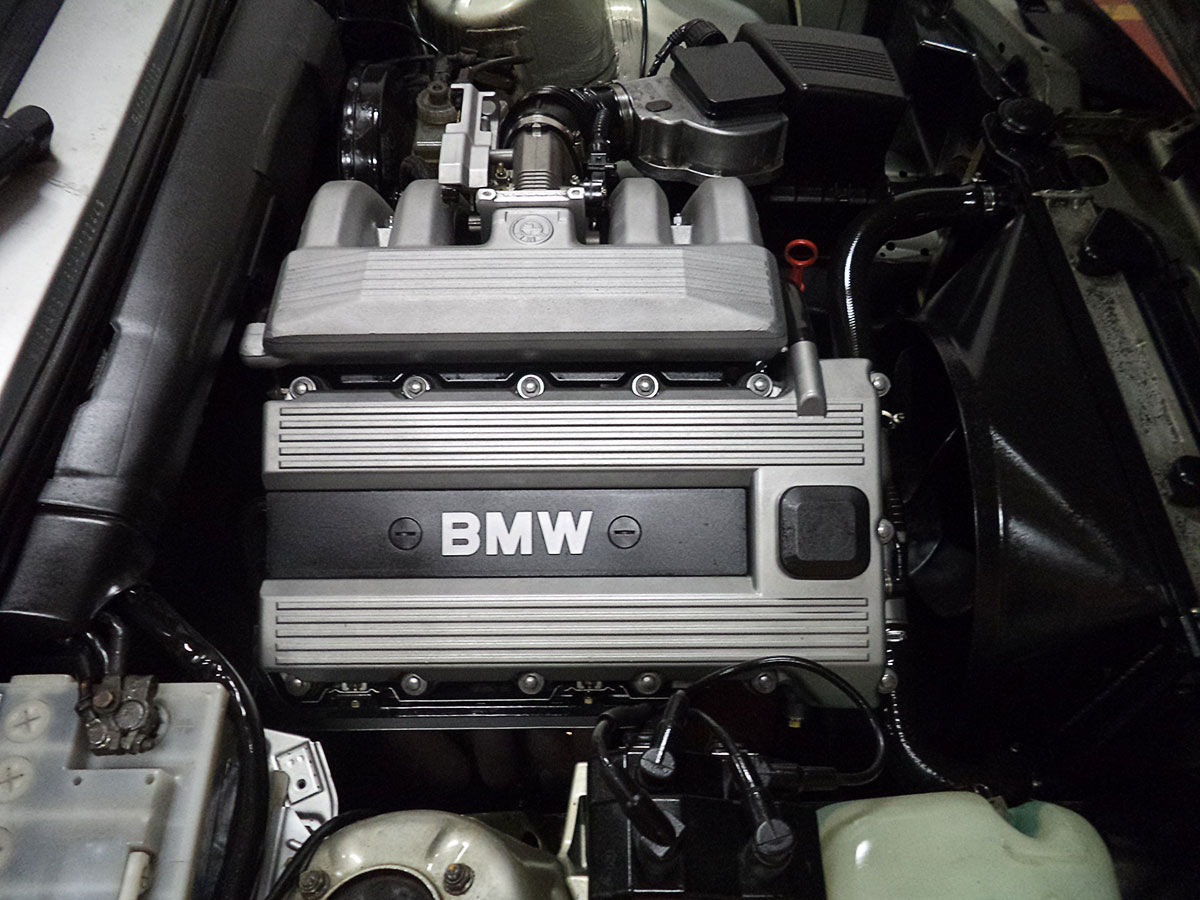

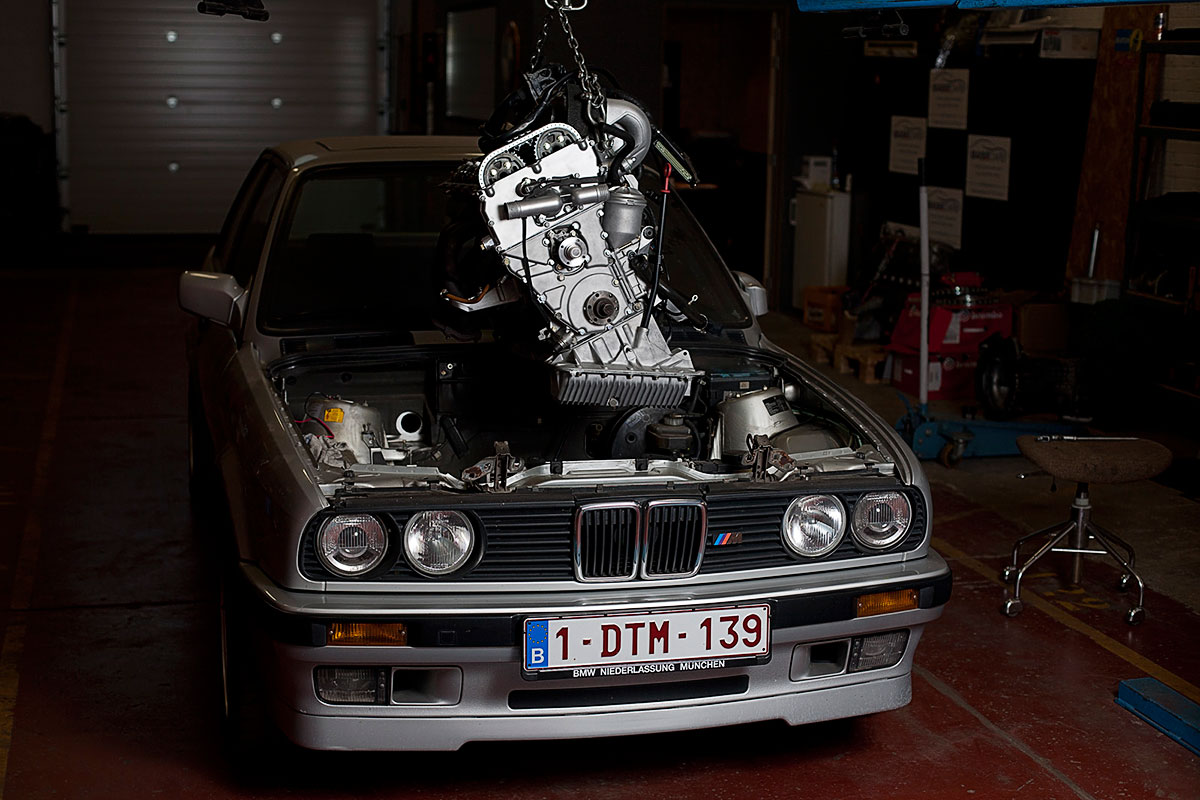

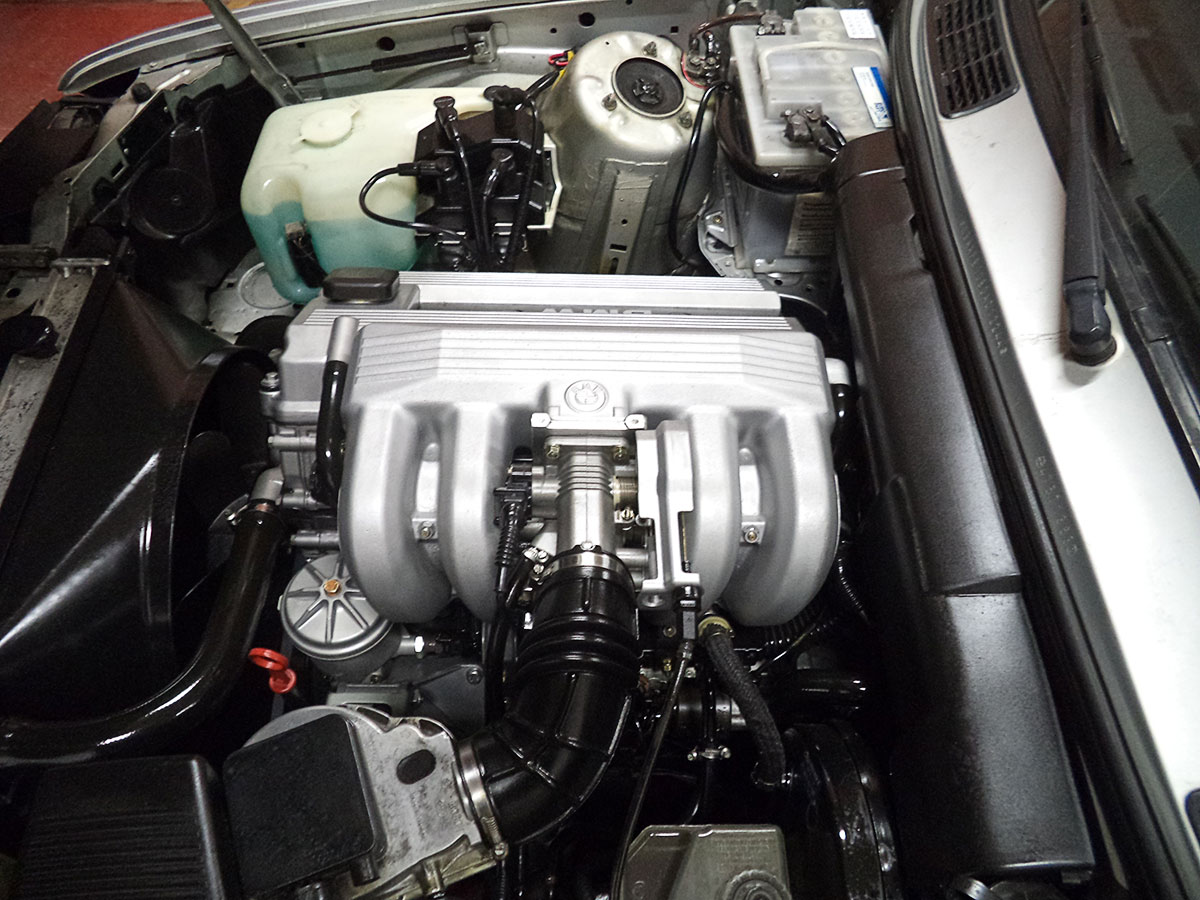

Back in place:






Back on the road

[PJH]

Sorry for the long post ;)
