  • dranttna
    Advanced Member
    • May 2009
    • 127

    #436

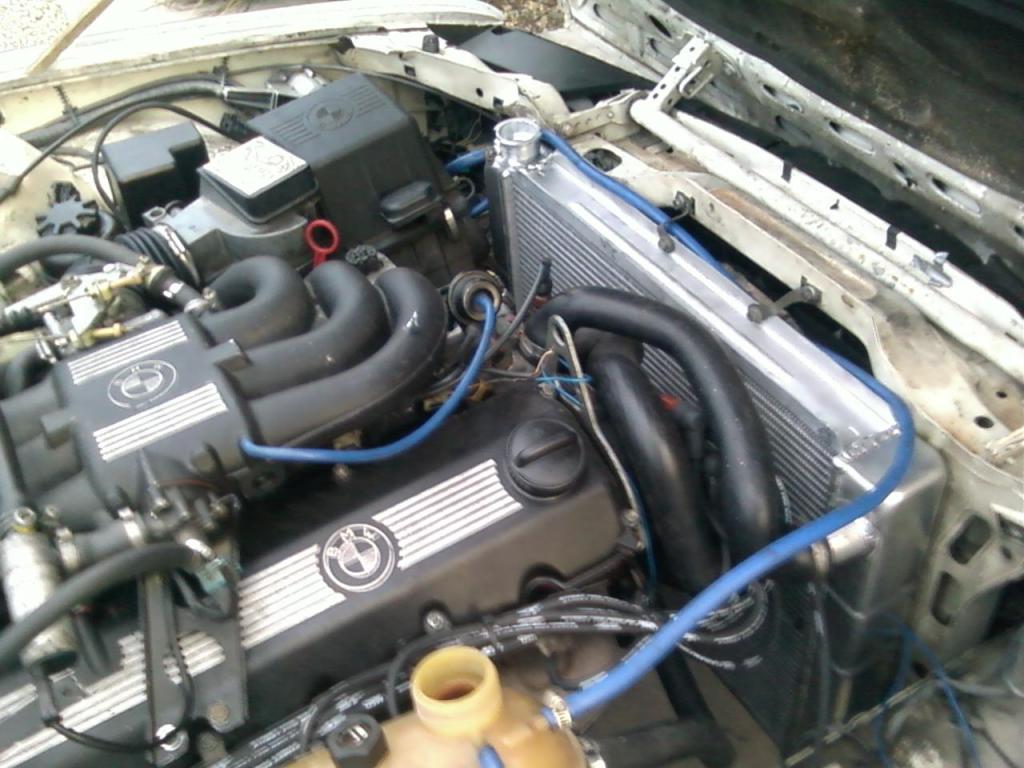

    my eta after cleanup and paint while replacing head gasket, and radiator
    Attached Files
    325es/24v's/20psi/meth injection/

    sigpic

    Comment

    • gstuning
      E30 Modder
      • Oct 2003
      • 833

      #437
      M20B28
      1.1bar boost
      335rwhp , 380lbs rw torque.
      Gunni
      @ Prodrive / Aston Martin Racing

      Comment

      • ubernasty
        R3VLimited
        • Jan 2009
        • 2749

        #438
        ^^ sick. carry on.

        Comment

        • Jand3rson
          Banned
          • Oct 2003
          • 37587

          #439
          After this weekend's top-end rebuild. 325i intake manifold, throttle body, and valve cover on an eta head, port-matched to meet the intake manifold.





          dranttna, nice blue hoses.

          Comment

          • mattdk318i
            No R3VLimiter
            • Jun 2006
            • 3953

            #440
            very nice. Gotta love a Clean M20.
            sigpic

            Comment

            • YAN-3
              R3V OG
              • Jan 2004
              • 6018

              #441
              clean oh soooooooo clean!

              Comment

              • Jand3rson
                Banned
                • Oct 2003
                • 37587

                #442
                That's still dirty from assembly, too. Engine detail is tomorrow, I'll get more pics then.

                Comment

                • dranttna
                  Advanced Member
                  • May 2009
                  • 127

                  #443
                  dranttna, nice blue hoses.
                  i know, im ashamed of them... but needed hoses and those were just laying around not being used, for abvious reasons
                  325es/24v's/20psi/meth injection/

                  sigpic

                  Comment

                  • pitbull09
                    Advanced Member
                    • May 2009
                    • 101

                    #444
                    well here's mine

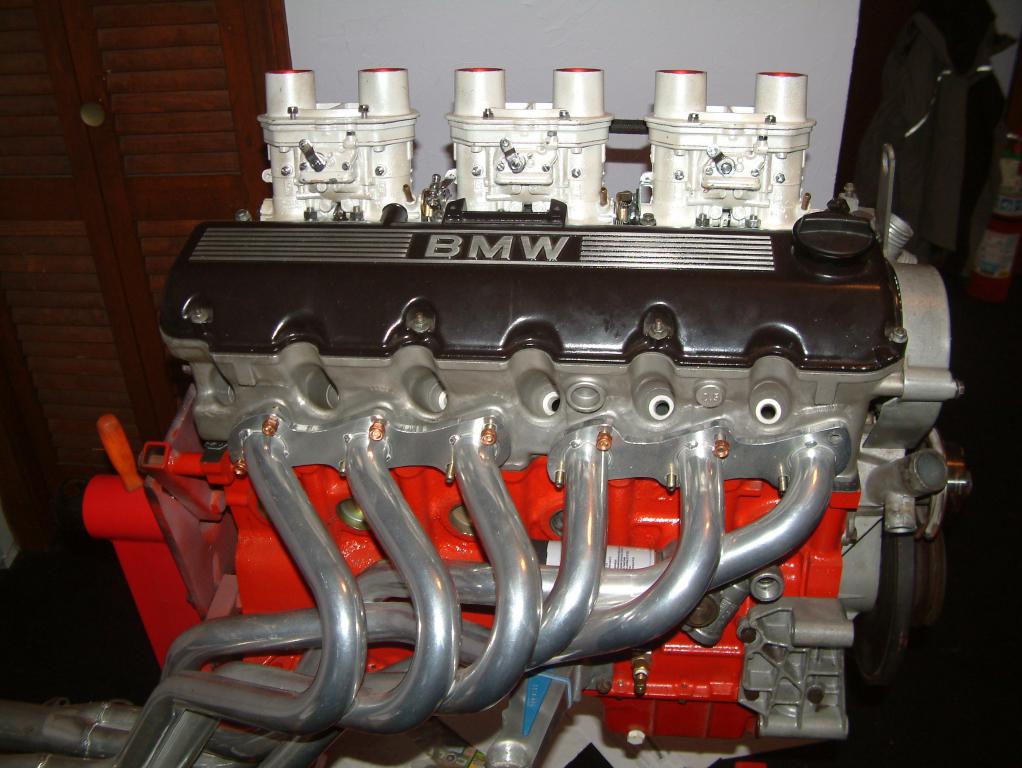

                    This isn't in my car as of now but I figured I'd share it anyway. I'm still waiting to pick a nice clutch and light weight flywheel before it goes in. Also gonna have to do some electrical work as well but here it is. It's a 2.7 block bored to 3.0ltrs, Metric mechanic custom pistons, 85 524td crank, 325I rods, ported and polished 325I head with schrick 304 cam and valve springs, tripple weber 40IDF downdraft carbs, mangaletsi (prob spelled wrong) intake manifold ported n polished, euro 323 side mount distributor and us spec distributor delete timing cover, BAV auto headers and plug wires. I'm sure there's more but I forget the rest LOL.
                    Attached Files

                    Comment

                    • ubernasty
                      R3VLimited
                      • Jan 2009
                      • 2749

                      #445
                      wawaweewa ^

                      i could drool over these pics all day

                      i'm rebuilding my head and gettin ready for the 2.7i... then it will be purdy.

                      Comment

                      • netcsk
                        E30 Mastermind
                        • Apr 2004
                        • 1609

                        #446
                        These will be going in my engine bay here in another few weeks.
                        So beautiful.









                        Comment

                        • nando
                          Moderator
                          • Nov 2003
                          • 34827

                          #447
                          Originally posted by Janderson
                          After this weekend's top-end rebuild. 325i intake manifold, throttle body, and valve cover on an eta head, port-matched to meet the intake manifold.





                          dranttna, nice blue hoses.
                          I like the red, I'm thinking gloss to match my strut brace, but I'll probably go ahead with body color. I got sidetracked with other BS so I never had time to finish that or any other paint projects before the picnic :(
                          Build thread

                          Bimmerlabs

                          Comment

                          • ubernasty
                            R3VLimited
                            • Jan 2009
                            • 2749

                            #448
                            Originally posted by Janderson
                            That's still dirty from assembly, too. Engine detail is tomorrow, I'll get more pics then.
                            moar pics, love your bay. especially the eat.sleep.bmw.

                            ever considered a wire tuck?
                            Last edited by ubernasty; 06-12-2009, 10:47 AM.

                            Comment

                            • ubernasty
                              R3VLimited
                              • Jan 2009
                              • 2749

                              #449
                              Originally posted by netcsk
                              These will be going in my engine bay here in another few weeks.
                              So beautiful.
                              thats sexy, hope the rest of your bay looks good to match the new bling. :p

                              Comment

                              • E3024vtouring
                                Noobie
                                • Aug 2008
                                • 26

                                #450

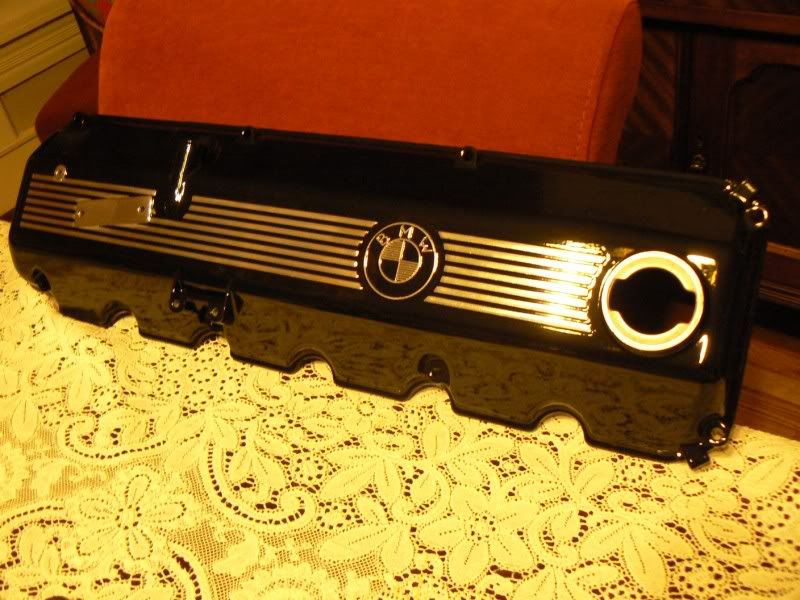

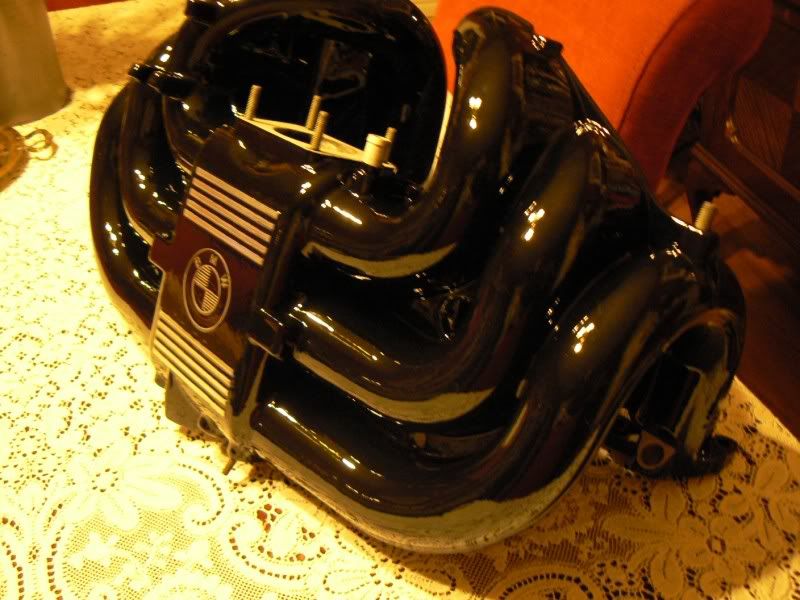

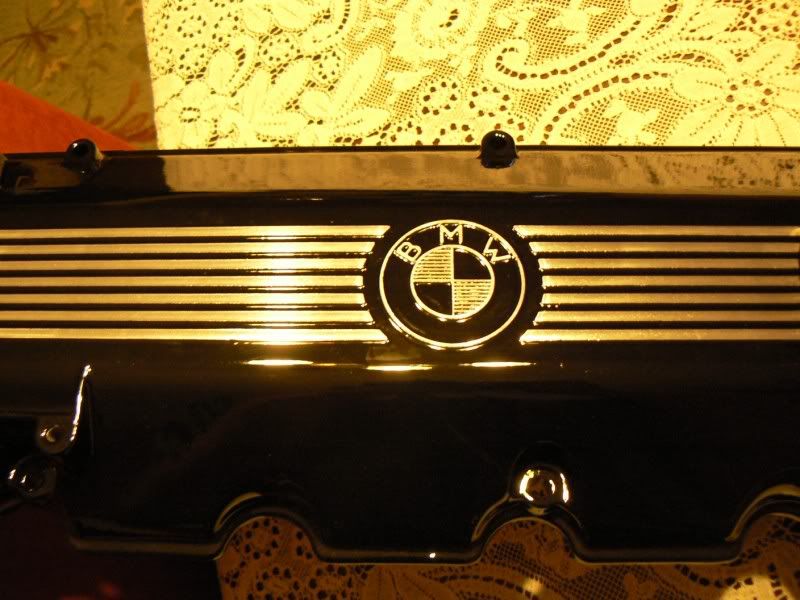

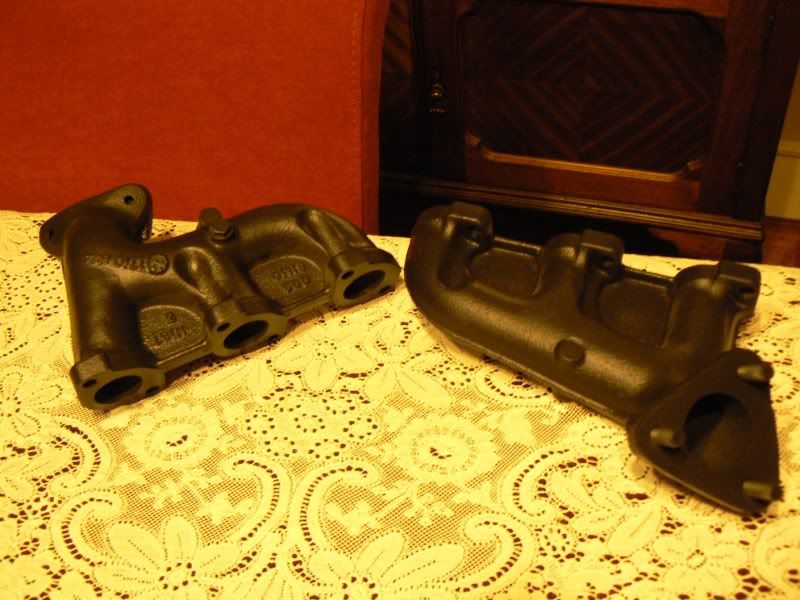

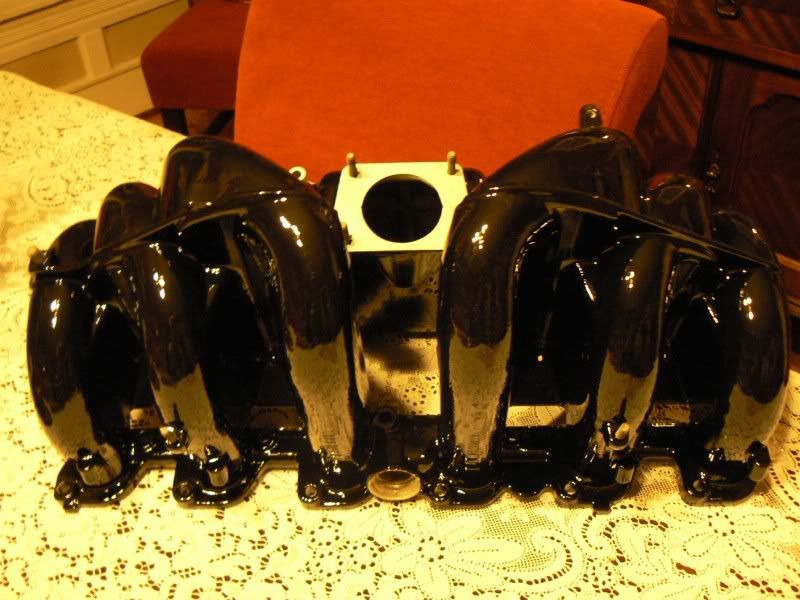

                                Black is beautiful...

                                NenimousGarage
