    Originally posted by diegom6 View Post
    I heared that these Cosworth heads were much more "agressive" design, like it flows quite more than the counterpart, the S14 engine.
    The head is definitely superior to the S14. Better flow and much stronger ("cup under" solid lifters, etc.). These engines were designed to spin to 8k rpm and make 270 hp in street trim. Race versions were designed to make 300+ hp at 10k rpm. The factory seriously detuned the street version by dropping the compression, putting in mild cams, revising the intake, retarding the timing, and dropping the rev limit to 6800 rpm. Apparently, it doesn't take much to get the 2.3L back into 245-250 hp at 7-8k rpm territory.
    sigpic
    1987 Mercedes 190E 2.3-16: Vintage Racer
    2010 BMW (E90) 335xi sedan: Grocery Getter

    Comment


      Fitting the interior

      Putting the new interior in.

      Dash...



      Seats/nets installed...







      sigpic
      1987 Mercedes 190E 2.3-16: Vintage Racer
      2010 BMW (E90) 335xi sedan: Grocery Getter

      Comment


        Shifter rebuild

        Had the bushings and links replaced...it was getting sloppy!





        Next step will be to lengthen the shifter rods to shorten the throw. But that project will have to wait until after the Mosport weekend.

        Now, there's only the diff left to finish off. Should be able to pick up the car this weekend as planned. w00t!
        sigpic
        1987 Mercedes 190E 2.3-16: Vintage Racer
        2010 BMW (E90) 335xi sedan: Grocery Getter

        Comment


          Originally posted by Emre View Post
          Here's the steering wheel that's going in once the work is done...


          love it :up:

          Comment


            What has happened to this project? M3's need an arch-enemy, so this car must be completed!
            Originally posted by LJ851
            kingston is the play by play announcer for this thread.
            ‘Tis by the grace of God that my cars run!

            Originally posted by unloadedak
            #teamross
            Siobhan's Build Thread - UPDATED!

            Comment


              Quick update

              I've had a very difficult time finding a wheel and tire package that does what I need it to do for this project. The W201 chassis has tiny wheel wells to start with, and things have gotten even tighter after swapping in the coilovers. Since we're building the car for vintage racing, we can't just cut out the fenders to make room. On top of that, I'm running the Evo II Brembos, which adds yet another dimensional constraint to the picture.

              After trying out a whole bunch of different wheel/tire combos and spending literally thousands on wheels that didn't quite work, we've finally found a combo that looks promising:

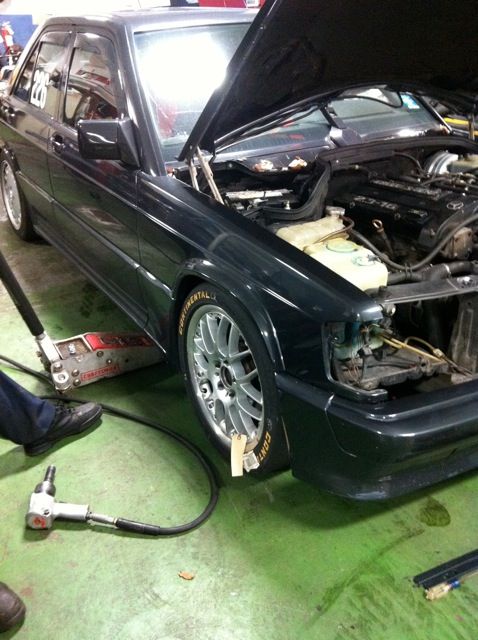

              These are 2-piece BBS RX II 503 alloys in 17x8" ET35. They're a bit heavier than I would have liked, but at least they fit properly. The tires are 225/45-R17 Continental Challenge semi-slicks, which are rebadged Hoosier endurance racing tires (basically R5's with a harder rubber compound). They should hold up well for HPDE and amateur racing.
              sigpic
              1987 Mercedes 190E 2.3-16: Vintage Racer
              2010 BMW (E90) 335xi sedan: Grocery Getter

              Comment


                Nice work - those rims with the raised yellow letter tires are cool!
                I Timothy 2:1-2

                Comment


                  Originally posted by markseven View Post
                  Nice work - those rims with the raised yellow letter tires are cool!
                  I 2nd that!!! #SAPPHIRE
                  Nunzio
                  Creative Director & Professor
                  Twitter

                  2010 Vespa GTS300 | 2000 323iT Euro | 1991 RRC Hunter | 1987 325is (guten build) | 1983 Jaguar XJ6 Vanden Plas

                  Comment


                    Nice build.... im waiting for my 16v to arrive.

                    Comment


                      Soooooo psyched to see updates on this! Much basaddery!
                      Originally posted by LJ851
                      kingston is the play by play announcer for this thread.
                      ‘Tis by the grace of God that my cars run!

                      Originally posted by unloadedak
                      #teamross
                      Siobhan's Build Thread - UPDATED!

                      Comment


                        Parked next to it at the gathering last night outside - absolutely epic!
                        - Frank
                        '87 325ic M-Tech 1 For Sale!
                        http://r3vlimited.com/board/showthread.php?t=407503
                        Build Thread http://www.r3vlimited.com/board/showthread.php?t=229347

                        Comment


                          emre,

                          thanks for the hot laps at lightning. i'd be happy to do a proper shoot of your car anytime :up:

                          drew






                          E46t

                          Comment


                            Hi, Drew.

                            Originally posted by leegf View Post
                            thanks for the hot laps at lightning.
                            My pleasure. It's too bad that the car wasn't running right. You didn't really get the full experience.

                            Originally posted by leegf View Post
                            I'd be happy to do a proper shoot of your car anytime :up:
                            That would be awesome. I'd definitely take you up on that.
                            sigpic
                            1987 Mercedes 190E 2.3-16: Vintage Racer
                            2010 BMW (E90) 335xi sedan: Grocery Getter

                            Comment


                              Time for an update...

                              Just did some head work. Replaced the timing chain and guides. Had the valve timing adjusted, which meant all new shims. Some of the shims had to be machined down to the perfect size:





                              Had the valve cover powder-coated. They managed to match the factory paint color:



                              Also, I bought another set of Evo I alloys (16x8" ET34). I gave up trying to make 17" wheels work for now. The combination of Evo II brakes (300mm rotors; 4-piston Brembo calipers) and stock fenders is simply causing too much headache. That really limits my tire choices: not much available in 225/45-R16 these days. I picked up a set of Yoko A048 tires. I know these are hardly the best R-comps around, but they're the best I can do for now. I'll revisit 17x9" wheels after the season is over.

                              Finally, I've started working on fabbing some plates to mount my SPA GT mirrors. I'll admit this is race-car bling, but I like the look!
                              sigpic
                              1987 Mercedes 190E 2.3-16: Vintage Racer
                              2010 BMW (E90) 335xi sedan: Grocery Getter

                              Comment


                                I am in LOVE!
                                Matt in VA- CCA 418835
                                1987 5/87 325 5 speed (mine)
                                2005 325Ci vert 5 speed (hers)
                                "Seek the approval of no one."
