1991 318is M52 / Shaved bay / Wire tuck / Air Ride / NOW PAINTED!!

Collapse
X

  • Time
  • Show
Clear All
new posts
  • mtlbloodshot
    Mod Crazy
    • Jul 2011
    • 761

    #136
    Originally posted by tonywonder
    IIRC that box is the auxiliary fuse box. i have the same thing in my 318is.
    theres no fuses inside there right now tho


    MY BUILD THREAD
    http://www.r3vlimited.com/board/showthread.php?t=235231

    INSTAGRAM : @luchcolaneri

    Comment

    • Dj Buttchug
      R3V OG
      • Jun 2010
      • 7632

      #137
      Originally posted by mtlbloodshot
      theres no fuses inside there right now tho
      its fine. leave it that way. its also a good place to get power for an electric fan ect...

      Turbo M42 Build Thread :Here
      Ig:ryno_pzk
      I like the tuna here.
      Originally posted by lambo
      Buttchug. The official poster child of r3v.

      Comment

      • mtlbloodshot
        Mod Crazy
        • Jul 2011
        • 761

        #138
        Originally posted by Dj Buttchug
        its fine. leave it that way. its also a good place to get power for an electric fan ect...
        And if I remove it.. whats the worst that can happen?


        MY BUILD THREAD
        http://www.r3vlimited.com/board/showthread.php?t=235231

        INSTAGRAM : @luchcolaneri

        Comment

        • NotColtonOrr
          Banned
          • Jun 2011
          • 243

          #139
          Great work. I too am swapping in an m52 so i'll continue to follow this closely. Keep it up dude!

          Comment

          • jizo
            E30 Enthusiast
            • Apr 2010
            • 1191

            #140
            Huuummmmm??????

            Comment

            • mtlbloodshot
              Mod Crazy
              • Jul 2011
              • 761

              #141
              Tuesday, November 13, 2012 --

              I wasn't very surprised when I saw my wheel wells with the wheels/subframe off. Apparently they really are one of the e30 weak spots. Being driven in the snow for who knows how long, they really took a beating. The driver side can be saved according to my friend but the passenger needs to be replaced completely. It's rotten to the point of no return all the way up to the gas cap. Driver side has already begun.

              At this point of the build, I am well over my intended budget but hey, do it once, do it right. Enjoy the rust.








              MY BUILD THREAD
              http://www.r3vlimited.com/board/showthread.php?t=235231

              INSTAGRAM : @luchcolaneri

              Comment

              • mtlbloodshot
                Mod Crazy
                • Jul 2011
                • 761

                #142
                Wednesday, November 14, 2012 --

                Great day! Went to pick up the rear subframe, trailing arms and crossmember from sand blasting. They look great. Obviously they aren't perfect as they are 20 years old but once they are painted, they'll be much better looking than rusty and old.
                Just waiting for my friend to finish painting a car in the paint booth, then they'll get painted black with a tough clear.





                My Z3M Diff gasket was placed with silicone. Brand new copper washers on the bolts and drain plugs. AKG bushing pressed in. I searched around online and saw that 45NM is a good number for the torque on the bolts/plugs. Correct me if I'm wrong.




                MY BUILD THREAD
                http://www.r3vlimited.com/board/showthread.php?t=235231

                INSTAGRAM : @luchcolaneri

                Comment

                • White325is
                  R3V Elite
                  • Oct 2006
                  • 5947

                  #143
                  Any reason that you're not powder coating them pieces?
                  May I also suggest reinforcing the sway bar mounts on the front subframe. Along with adding a bar between the trailing arms to make an "a" frame.

                  Comment

                  • mtlbloodshot
                    Mod Crazy
                    • Jul 2011
                    • 761

                    #144
                    Originally posted by White325is
                    Any reason that you're not powder coating them pieces?
                    May I also suggest reinforcing the sway bar mounts on the front subframe. Along with adding a bar between the trailing arms to make an "a" frame.
                    I wish I could powder coat but I dont speak to my contact anymore.

                    As for reinforcing the sway bar mounts.. I'd need your guidance on how to do that and also was thinking about adding a bar between the trailing arms.

                    Any suggestions on how to do both of those things?
                    Thanks


                    MY BUILD THREAD
                    http://www.r3vlimited.com/board/showthread.php?t=235231

                    INSTAGRAM : @luchcolaneri

                    Comment

                    • White325is
                      R3V Elite
                      • Oct 2006
                      • 5947

                      #145
                      AKG sells the sway bar kit to reinforce it. I'm pretty sure its peanuts. I'm also sure you could make your own since its not to hard.
                      As for the trailing arms. Just add a bar in between. I believe the MZ3 come that way from factory? I could be wrong.
                      Have you thought about sending them out to get done? Im not sure what shipping to the US would be. But contact dave@renewedfinishes.com

                      Comment

                      • mtlbloodshot
                        Mod Crazy
                        • Jul 2011
                        • 761

                        #146
                        Originally posted by White325is
                        AKG sells the sway bar kit to reinforce it. I'm pretty sure its peanuts. I'm also sure you could make your own since its not to hard.
                        As for the trailing arms. Just add a bar in between. I believe the MZ3 come that way from factory? I could be wrong.
                        Have you thought about sending them out to get done? Im not sure what shipping to the US would be. But contact dave@renewedfinishes.com
                        I just looked at the AKG website for the sway bar reinforce and I'm probably going to make the plates. Very easily.
                        As for the trailing arms, I believe you're right that Z3M came with the bar.
                        I'm going to tackle making mine the same way.
                        Powder coating can be here locally. Shipping to the US will be mad expensive, especially with the weight and length. I'll have them painted. No biggy.

                        Off the record.. Do you know if Z3M half shafts are shorter than E30 half shafts? I put my out put flange on my Z3M diff and they stick out more than the stock ones.


                        MY BUILD THREAD
                        http://www.r3vlimited.com/board/showthread.php?t=235231

                        INSTAGRAM : @luchcolaneri

                        Comment

                        • MaxBell
                          E30 Fanatic
                          • Oct 2010
                          • 1390

                          #147
                          Welding a bar into your trailing arms? Bro...do you even drift?
                          REMEMBER: Be safe and have fun is Rule Number 1.

                          The Epic Unbuild of Clint Eastwood

                          Comment

                          • mtlbloodshot
                            Mod Crazy
                            • Jul 2011
                            • 761

                            #148
                            I could if I wanted too


                            MY BUILD THREAD
                            http://www.r3vlimited.com/board/showthread.php?t=235231

                            INSTAGRAM : @luchcolaneri

                            Comment

                            • Jozi
                              Wrencher
                              • Feb 2009
                              • 244

                              #149
                              Bar is a bit much but be careful it doesn't foul the filler neck or anything else around them!

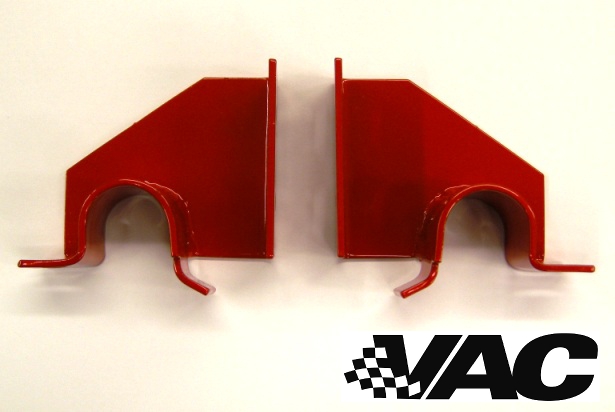

                              Front subframe you can easily make up reinforcement plates for the engine mounts and swaybars. http://www.turnermotorsport.com/p-40...ement-kit.aspx

                              I also did these while I was at it




                              All easily done and free if you have some steel and a welder.

                              Comment

                              • mtlbloodshot
                                Mod Crazy
                                • Jul 2011
                                • 761

                                #150
                                I already have the rear sway bar reinforcement tabs because I bought the car with ST bars on it and the tabs come with the kit.
                                As for the front, AKG sells them for 10$ but somehow they want 35$ to ship to Canada. They could simply send them in a basic envolope for less than 2$ but ill make my own.
