    yahh's 1986 325e S50+Recaro+BBS RS

    Current Pictures 10/4/13


    Mod List:

    Exterior:

    Euro Grills
    Front Late Model Bumper
    Front Late Model Valance
    "i" Lip
    Late Model Foglights

    Engine:

    Condor Speed Shop 24v Swap Motor + Tranny Mounts
    S50 Motor and a ZF Transmission from a 95 M3
    e34 Throttle Cable
    e34 Oil Pan
    e34 Dipstick / Pickup Tube
    Mishimoto Intake Boot
    SiliconeIntakes Intake Filter
    2.93S LSD Differential
    OE BMW Differential Axle Seals
    OE BMW Drain + Fill Plug Gaskets
    OE BMW Differential Gasket
    Rebuilt Axles with GKN Boots
    SPAL Fan + Radiator Gasket + Mounts
    Mishimito Z3M S54 Radiator
    UUC Stainless Steel Clutch Line
    UUC Magnetic Drain Plug
    Deka ETX20L Small Battery
    XS Power Brass SAE Posts
    "REDE30" 24v Skid Plate - Not installed
    Hartge front Strut Bar - Not installed
    Garagastic Delrin Rear + Shifter Bushings
    OE BMW Shifter Cup
    OE BMW Shifter Carrier
    ECS Aluminum Water Pump Pulley
    Pelican 80* Fan Switch
    Bimmerworld 80* Thermostat
    Meyle HD Driveshaft Center Bushing
    Redline D4 ATF Transmission fluid
    Redline 75-90 Differential Fluid

    Exhaust:

    Ebay "Supersprint" Exhaust manifolds
    OBD1 Y Pipe
    6" Stainless Flex Pipe
    Borla XS Muffler
    2.5" Stainless Steel Piping
    Vibrant Dual Exit Rear Muffler
    2.5" Godspeed Vband

    Brakes:

    944 Porsche Booster
    UUC Stainless Steel Brake Lines
    Centric Double Slotted rotors (Front+Rear)
    Hawk HPS Pads (Front+Rear)
    Rebuilt Rear Calipers
    ATE Super Blue Brake Fluid
    Febi E-Brake shoes
    OE BMW E-Brake Hardware


    Supension/Steering:

    BC Coilovers (10k Front 14k Rear)
    Revshift 95A "Red" 12mm Reaw Subframe Riser Kit
    Revshift 95A "Red" M3 Offset Control Arm Bushings
    Revshift 95A "Red" Rear Trailing Arm Bushings
    Revshift 95A "Red" Differential Bushing
    E30Tech "Dungeon Motorsports" Toe/Camber rear Subframe Kit
    E36 Steering Rack
    E30Tech Rack Swap Kit
    "White325is" Rear Strut Bar
    Lemforder Lower Control Arms
    FAG Wheel Bearings
    OE BMW Wheel Bearing Clips
    BBS RS003 16x8.5 ET3
    -4x 2.5 Felgenfuchs Stepped Lips
    -Gunmetal Powdercoated Centers
    -Elefant Supply 1/4 Height Center Caps
    -BBS 70mm Center Caps
    -Re-coated BBS Bolts (Cobalt Zinc)
    205/45/16 General GMAXX AS-03
    20mm Front + 16mm Rear Adjustable Eibach Swaybars - Not installed

    Exterior/Interior/Electronics:

    Recaro Seats
    Crack Free Dash
    Morimoto H1 retrofitted Depo Smileys
    Morimoto 3FIVE Ballasts
    Morimoto XB35 Bulbs
    Euwerks Gauge Pod
    Innovate LC-1 w/ XD-16 Wideband
    Innovate Oil Pressure Gauge
    Holden Oil Sensor Adapter
    Innovate Boost Gauge
    Innovate Coolant Temp Gauge
    Mishimoto Coolant Temp Housing
    Nokya 2500 fog light bulbs
    Cletonius shift/ebrake boots
    ZHP Weighted Shift Knob
    Z3 3.0 Shift Lever

    Exterior:


    DSC_0027 by yahh-, on Flickr

    DSC_0014 by yahh-, on Flickr

    DSC_0019 by yahh-, on Flickr

    DSC_0023 by yahh-, on Flickr

    Interior:


    Interior update by yahh-, on Flickr

    Interior update by yahh-, on Flickr

    Interior update by yahh-, on Flickr

    Interior update by yahh-, on Flickr

    Engine Bay:





    I'm Sure I missed some things that I've replaced but i'll edit it in when I go through my spreadsheet.

    Still Need:
    Install Skid Plate
    Install GE Keyless Entry
    Install Rear Plastic Bumper
    Install Eibach front and rear adjustable sway bars
    Paint
    VDO Gauges to replace Innovate G3 gauges


    Big thanks to ECS Tuning, Turner Motorsports, and Blunttech for their great pricing and amazing customer service!
    Last edited by yahh; 10-10-2013, 01:08 PM.


    s50 86 325e Project

    S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

    Feedback Thread

    #2
    Here are some pictures of the project, keep in mind that i only paid $650 for it and it runs. In these pictures I have already stripped a lot of panels/molding/lights etc for paint. It will be getting painted alpine white. (PPG Paint code: 91627 (Alpineweiss III) )

    Here is the cluster which obviously doesn't show the correct redline for the eta motor.

    Motor




    Body




    Here are some of my Dad's 91 318i that we have done a whole lot of work on already. All it really needs is the hood repainted.
    Custom Interior
    http://i64.photobucket.com/albums/h1...904_124704.jpg
    http://i64.photobucket.com/albums/h1...904_124620.jpg
    Exterior
    http://i64.photobucket.com/albums/h1...904_124641.jpg
    http://i64.photobucket.com/albums/h1...904_124610.jpg
    http://i64.photobucket.com/albums/h1...904_124704.jpg

    Almost everything on the car is functional and working and all maintenance is done including all new gaskets in the motor. Mine is being built for performance while his is more of a nice to look at cruiser.
    Last edited by yahh; 03-18-2013, 05:25 PM.


    s50 86 325e Project

    S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

    Feedback Thread

    Comment


      #3
      Clean 3g. Looks like the e30 is in good hands.

      Comment


        #4
        Originally posted by nokincy View Post
        Clean 3g. Looks like the e30 is in good hands.
        Thank you. The 3G is actually being parted to help fund this, just trying to decide in which direction to go on.


        s50 86 325e Project

        S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

        Feedback Thread

        Comment


          #5
          Picked up a new set of wheels today for the E30. Only flaw is that the stickers are peeling. There is literally no rash on the wheels. 17x7.5 offset 40. I will probably run 15-20 mm spacers. I'll see after I test fit them. I won't be going for slammed, the gap will be similar to my Eclipse.

          http://i64.photobucket.com/albums/h1...pscecea934.jpg
          http://i64.photobucket.com/albums/h1...ps6ebe1216.jpg
          http://i64.photobucket.com/albums/h1...psfcda5596.jpg
          http://i64.photobucket.com/albums/h1...psa4eb8a01.jpg

          Edit : 3-11-13 Sold these to refinish the RS'
          Last edited by yahh; 03-18-2013, 05:26 PM.


          s50 86 325e Project

          S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

          Feedback Thread

          Comment


            #6
            Cleaned one of the wheels up with dawn dish soap + water and removed whats left of the stickers on that wheel. :yum:



            Also got Late Model Plastic Bumper on in the front



            The rear needs modification so I'm waiting on mounting hardware so I can start modifying it.



            Also Found the fuel pump acces unbolted, so I'm going to remove the pump to see what the P/O was doing/trying to do.




            Vacuumed the interior finally. Front seats have two tears in them but its not that bad.




            Also hit the bay with a little more degreaser .




            Removed the rear windows to check for rust. Also can't decide on popouts or fixed windows in the rear. I have both.

            Extra Parts





            s50 86 325e Project

            S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

            Feedback Thread

            Comment


              #7
              Here's a picture of the front with the headlight grills on. They will be replaced with euro ones once the car gets painted. Have too much maintenance to do right now.

              http://i64.photobucket.com/albums/h1...9-25201942.jpg

              Also, here is what I pulled from the yard today.

              http://i64.photobucket.com/albums/h1...9-25191024.jpg
              http://i64.photobucket.com/albums/h1...9-25191020.jpg
              http://i64.photobucket.com/albums/h1...9-25191030.jpg
              http://i64.photobucket.com/albums/h1...9-25191034.jpg

              Cleaned the head, valve cover, and intake manifold up

              http://i64.photobucket.com/albums/h1...9-25194656.jpg
              http://i64.photobucket.com/albums/h1...9-25194646.jpg
              http://i64.photobucket.com/albums/h1...9-25194652.jpg
              http://i64.photobucket.com/albums/h1...9-25195324.jpg

              Here is what I pulled today.
              Head with full valve-train
              Throttle Body
              Intake box with AFM
              325IS ECU (173)
              iFPR, Fuel Rail, and Injectors
              Thermostat Housing/ w thermostat
              Fan and Water Pump also their pulleys as well as the crankshaft pulley.
              IS Lip Spoiler for my dads E30
              Wires
              Coolant Overflow from an IS
              Bunch of Misc stuff.

              The timing belt was still on the car so it wasn't snapped. Pistons weren't damaged and valves look good. I will at minimum be replacing all the seals and have it pressure tested at the machine shop and checked to make sure that its true.


              Also I read somehwere to grab the brake booster from the 325is, is this credible? If so I'll go back and grab it tomorrow.

              11-25-12 Scrapped the m20 build as I found a wrecked 95 M3 for cheap to use as a donor
              Last edited by yahh; 03-18-2013, 05:28 PM.


              s50 86 325e Project

              S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

              Feedback Thread

              Comment


                #8
                Hey man, it looks like you are coming a long with your car. Why dont your boost your m20 before you do a b30. the m20 will handle a lot better.

                Comment


                  #9
                  Originally posted by Paukert11 View Post
                  Hey man, it looks like you are coming a long with your car. Why dont your boost your m20 before you do a b30. the m20 will handle a lot better.
                  I am. That as before I had done the research. Eta m20 with the 885 head. From what I have gathered that's the best for boost. I need to edit the OP. I want to be boosted by Christmas. So she can go into paint around January.


                  s50 86 325e Project

                  S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                  Feedback Thread

                  Comment


                    #10
                    10/3/12

                    The replacement stickers for the the te37s came in from Eric



                    Also Picked up 4 cans of R12 Freon, 2 cans of oil, and a charge hose for the AC. It will be for my dad's vert as I probably won't run AC in mine.



                    10/5/12

                    Few more updates.

                    Shocks for the rear bumper came in so tomorrow after work or sunday I will work on fitting/modifying the rear bumper.



                    Also forgot to picture that I picked up another windshield wiper motor from the yards a few days ago as they like to go bad/ frequently needed.



                    Now the craziest deal that I have probably ever come across. Re-Upholstered Vinyl Drivers and Passengers Seats in almost perfect condition for $10. Offered to give the guy $50 per seat and he wouldn't take it. I'm very grateful for people like that. I will see how much it will be to get the rear bench seat done to match and I will sell the houndstooth seats.

                    Driver


                    Passenger
                    [/QUOTE]

                    10/20/12

                    Found these at the junkyard brand new in the trunk of a 325es :) $3 for OEM

                    Various Seals

                    Z4M Shifter, Timing Belt, Tensioner, Alarm

                    Finally got the correct ODO

                    Spare E Harness and an I harness for the head swap

                    Crackfree Dash ;)

                    How she sits currently.



                    Here are some pictures of the $800 Jeep :)




                    I will be restoring the plastic pieces sometime soon and buffing/polishing it. Jeep just needs tires and maybe a windshield which has a small hairline crack in it. It also needed a oil pump, which has been replaced. (PITA btw)

                    10/27/12
                    UPDATE!

                    Euro Grills

                    USDM Grills on the left and EDM grills on the right

                    Hella Euro Smiley Projector Headlights

                    Free Euro clock he threw in

                    Just placed on there, not mounted yet. I still need to paint the kidney's trim black.



                    I'll also be painting the trim rings on the Smilies black. I decided not to go with the black depo headlights like I originally planned because these have a much better output/cutoff.


                    s50 86 325e Project

                    S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                    Feedback Thread

                    Comment


                      #11
                      Haven't posted here in a while but the build has gone in a completely different direction than before.

                      Hella Smiley's in. I was thinking about retrofitting with mini H1 projectors but i'm worried about the patterns in the glass. Might look into picking up a set of Bosch ones instead. Are the Depo ones worth retrofitting? They are considerably cheaper and come with brand new glass/acrylic whatever it is.




                      Morimoto Ballasts and XB35 Bulbs


                      Condor Speed Shop s50 Motor mounts and tranny


                      95 M3 Cosmo Black Parts Car for the S50








                      Planning on staying 4 Lug and selling the TE37's and getting 15" SSR Type C's as well as the RX7 brake upgrade.

                      Fog Lights pulled from a yard, just need to order the acrylic to replace the lens.


                      944 Booster. I also have the e36 oil pan, dipstick, and pickup tube laying around in a box. All I need is the throttle cable.
                      Last edited by yahh; 06-06-2013, 06:42 PM.


                      s50 86 325e Project

                      S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                      Feedback Thread

                      Comment


                        #12
                        Came home to these



                        and my girlfriend wanted some HID's so I bought her a set from DDM for her '12 Mazda 3. They shouldn't be too bad as they have halogen projectors in there from the get go.



                        s50 86 325e Project

                        S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                        Feedback Thread

                        Comment


                          #13
                          1-08-2013
                          Because you guys love pictures so much :P






                          I'll take many more when I pull the motor.

                          1-10-2013


                          Hankook Makeup Products?!?!

                          15x7 +38 SSR Type C 9lbs a piece!



                          Need to give them a good cleaning and should be good to go. I will be running adapters on them since my friend that I will be tracking with drives an 01 MR2 (undergoing a 2zz swap currently) which is 4 lug as well. That way we can share wheels if need be. The adapters will be something like 22mm rear to give a final offset of +15 in the rear and 18mm front to give +20 in the front.

                          Also went to town with the motor today.

                          Half way through




                          Near the end





                          Removed the radiator, AC condenser, all AC lines, fan shroud, overflow tank, windshield wiper reservoir, removed exhaust manifolds, and unplugged everything that needed to be unplugged as well as every vacuum line that was connected to the motor. All that's left is to loosen the motor and tranny mounts and separate the driveshaft at the guibo and lift her out.

                          Motor will be pulled tomorrow or Saturday hopefully and then have the s50 in by sunday/monday.

                          1-12-13

                          Got off at 4 and by 10:30 both motors and transmissions were out. Had my dad and my good friend Alan (mr2) helping me, it was a good time.

                          I kept forgetting to take pictures so I took them whenever we got snagged on something we couldn't get off or out. Anyways enjoy the pictures!








                          All out!




                          Then the M3 was in the way so we had to move it. (insert chain + truck = V)



                          Time for motor #2










                          Both out

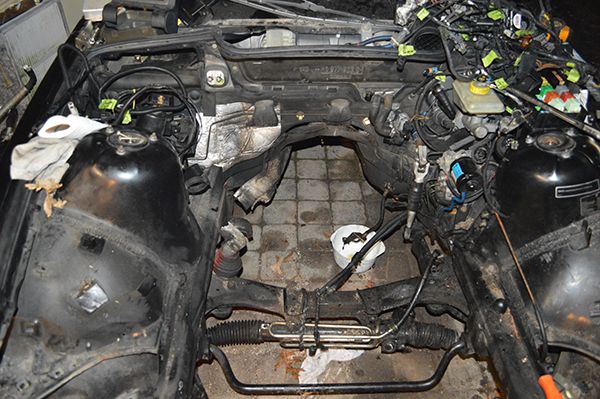

                          Empty E30 bay!



                          M20 (E30 Motor)


                          Both Motors and where we stopped for the night.


                          1-14-14

                          Sorry for the cell pics but I got some more work done today. I got the entire front suspension/steering rack removed from the shell today so it can be sold.





                          ^ That's another e30 back there btw haha. Currently working on fixing it to sell. Paid $400 for it and rebuilt the motor with new gaskets and she drives beautiful now. Just need a rear (convertible) window for it.

                          A picture I had on my phone that I took sunday morning after the motors were pulled.




                          s50 86 325e Project

                          S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                          Feedback Thread

                          Comment


                            #14
                            1-20-12

                            Third set of wheels for the e30 are in the garage. TE37's are getting sold for sure now. The style 5's might get pc'd gloss black and im pretty sure i've decided on the color for the e30.



                            1-23-12

                            Bushings finally came in today and the spacers and bolts came in so I can swap to the E36 steering rack which is a 3 lock to turn rack. Much improved over the e30's. Also got the correct throttle cable to use.



                            From L to R
                            Top Row -Rear Trailing Arm Bushings, Rear Subframe mounts, Differential mount
                            Bottom Row- Steering Rack Swap, Offset differential studs/spacers/screw and M3 offset LCAB's

                            Throttle Cable



                            M3! :)



                            1-25-12

                            UUC Coated Stainless Steel brake lines and Clutch line. I also got a magnetic drain plug as the old one was pretty stripped.



                            1-26-12

                            Rear Strut bar came in =D



                            I love wrinkle black coating :)


                            s50 86 325e Project

                            S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                            Feedback Thread

                            Comment


                              #15
                              Brake Pads came in today. Hawk HPS pads. From what I've read they're low dust, low squeal, and grip much better than stock but will definitely be a down grade from the Brembos I had on the 3G. These will be strictly street pads and maybe some light auto x. I will get a set of track pads when the time comes.




                              s50 86 325e Project

                              S50 - BBS - Recaro - BC Coilovers - Morimoto H1 Retrofit

                              Feedback Thread

                              Comment

                              Working...
                              X
