RedStreet: S52 Powered, 5 Lug, Hoonable DD Project - SOLD

[M-technik-3]

Haven't edited in three years should do that. Been busy with work too much seems.

[pandaboo911]

I'm on the lookout for new rear shocks as well. My car bounces around like crazy in the rear. Are those shocks stock e30 length? What are your rear spring rates?

[JonTheHero22]

Dang man, you are a trooper. It's so crazy to see how much work you put into it in such a short time, s52 swap in 3 days, replacing a water pump in no time at all, that's just insane to me. It must be really nice to have such a nice work space, I have a really cramped garage that I have to work in but you do what you gotta do. Great work on both cars and I can't wait to finally see the euro bumpers on there, It's gonna be nice. Are you going to go with a full kit? (Mtech 1)

[unloadedak]

I'm on the lookout for new rear shocks as well. My car bounces around like crazy in the rear. Are those shocks stock e30 length? What are your rear spring rates?

not sure on e30 length but they're about 3.5" shorter than the e36 ones. i have IE3 so like 570# progressive

Dang man, you are a trooper. It's so crazy to see how much work you put into it in such a short time, s52 swap in 3 days, replacing a water pump in no time at all, that's just insane to me. It must be really nice to have such a nice work space, I have a really cramped garage that I have to work in but you do what you gotta do. Great work on both cars and I can't wait to finally see the euro bumpers on there, It's gonna be nice. Are you going to go with a full kit? (Mtech 1)

hahah i've just taken over my parents 4 car garage.. i've got my own small one car struggle at my place lol. i'm trying to get one of my sponsors pesch motorsport to start making mt1 kits, they aren't planning on it anytime soon but i want to change that. i want mt1 soooo bad but can't justify spending oem money on something that'll get rock chipped and scraped up





so i test fit the 235/40 again, but this time at its actual ride height. super happy with the fitment.
i'll probably get 7.5/10mm spring pads from bimmerworld, just to be safe.

spring pads + iX rear bar + konis set firm should be good enough to stop me from rubbing. i wanna try to dial out some rear camber if possible but it might not work out how i'd like.


sold the 215/40 neo gens off the gold mesh. there is no turning back now, 235s or bust!





I hate these DSIIs, about 5 more weeks and I'll be done with them forever.




here are some 235 fitment pics





i also ordered some stuff too; with plans to get it all done later this week..

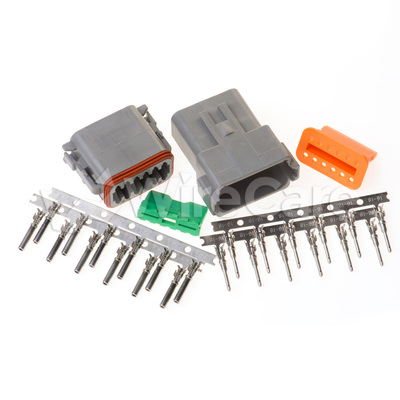

i got two deutsch 12 pin connectors, one in black to replace my c101 (the c101 only needs 10 wires to be fully connected, no reason to have a bulky c101 that's only half used) & one to place the si thingy in the glove box (the connector won't fit through the oem hole so i'll need a connector to make it fit)

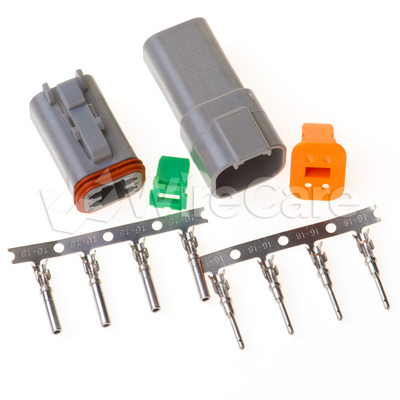

i also got a 4 pin connector to essentially replace the c103 and to route the check engine light to the cluster. and then a 2 pin connector to add the oil level sensor to the check panel. it's time to clean up the sorry excuse of an engine bay that this car has.



ordered the federal tyres as well. 235/40-17 from onlinetires.com




ordered a box of 3m red scuff pads since i am totally out, these are going to be used for shadow line and other 'chrome blackout' (except kidneys). i'd keep it all chrome but my window trim & bumpers are so scratched and beyond polishing.. i think chrome looks better but being black will make it actually, look better.



also grabbing an iX rear bar from a local-ish salvage yard for dirt cheap. [jk, it was too rusty/rotten to sell]

[animal]

Please at least leave your kidneys chrome!!!

[unloadedak]

Please at least leave your kidneys chrome!!!

of course! i also think i'm gonna keep the diving boards as is.. just do shadow line trim.



well i got the federals mounted on the bbs and they definitely rub in the rear at my current height, in the front they only hit the footwell which can be simply fixed with a bfh or cut and patch it in flat. i'm not too worried about running these, granted i'm not gonna slam it so i have no problem raising it a bit if it allows me to run meat.

for the rear:

• cut out the already rolled/folded up inner arch lip
• grind the inside as flat as possible & seam seal/undercoat it all
• install a 10mm rear spring pad on each side
• cut the center out of two more 10mm pads and stack those on top
• install the oem upper rear spring pads

this will give me more room for suspension travel into the arch as well as raise the car 23mm which will match the front wheel gap & hopefully eliminate rub.


i will be cutting up the arches & installing my deutsch connectors this weekend. all those rubber parts are on order and should be in around wednesday. i'll refit the gold later in the week, hopefully with success.

quick refresh
front - e36m3 ; bilstein sport ; IE3
rear - 318ti ; koni sa ; IE3
17x8 et20
235/40-17 SS-595

[pandaboo911]

Are your Konis single adjustable? Where did you source them?

Also, can our e30s get married?

[rzerob]

Subscribed.

[unloadedak]

Are your Konis single adjustable? Where did you source them?

Also, can our e30s get married?

Yessir SA from the top, no pulling out of the car and throwing it in a vice bs.

They're off a mustang and are PN 8041 1186SPORT. Got em from THMotorsports. I googled a coupon code and were like $201 shipped for the pair.

Same dampers that TCK and GC use on the rear.


Only if I get half of the MT1. What's yours is mine right? ;)

[unloadedak]

quick update to catch up before i do more work on this car during the week..


i got the renown 130r motorsport leather and the e30_dad cluster installed.. i can't keep my eyes on the road anymore....










i installed the oem spring pads in the rear, two 10mm stacked and the oem top rubber mount. the bbs still rubbed under anything over 50% throttle. no good. i began thinking of what to do, a lot of ideas in cutting up the chassis came to mind...










but i decided to give the coilovers off of the track car a shot before chopping anything up. i installed the rears first when i was hanging out with grsmonkey at his work.. went on several test hoons and kept dialing in my height, it rarely rubs now, they're 650# springs right now but i'm thinking of upping them to 750#










several days later i attempted to throw the front coilovers on, word of advice, don't use grade 8 stuff on your spindles, one winter will cause it to sieze and it will just shear off when you try to install your coils in the spring time. :| i broke my tap tool trying to use a bolt extractor, ended up grabbing the passenger spindle off of the track car. i also accidentally ripped open the tie rod end too. ugh, these also won't go high enough because of ground controls chopped housings. i'm gonna do oem tubes with koni inserts and gc sleeves sometime in april.














i finally got the bbs on for good & gave the car a good spring cleaning.. once i shadow line and spray some trim paint it'll get a clay&wax. i'm still messing around with ride heights, the rears aren't equal right now. nothing will be final until i get oem konis up front.








for this week
shadowline & replace pop out seals
iX rear sway install
deutsch connector s52 harness


near future
e36m tubes w/ koni inserts
front brake pads [pfc z rated]
vert front sway
87 iS valance
trunk floor fab
possible tint [35%]
center the shifter


during summer
driver footwell & floor board rust repair
hvac box refresh [blower/heater core/gaskets]
door seals

[Dj Buttchug]

where you get that rpm decal?

[lambo]

beefy

[rzerob]

That gauge cluster is awesome. How much did that cost? If you don't mind me asking.

[unloadedak]

where you get that rpm decal?

email bimmerhead1@gmail.com

That gauge cluster is awesome. How much did that cost? If you don't mind me asking.

i worked out a deal/trade with diego so what i paid isn't a true representation of what it costs.. iirc retail without SI board would be around $170.




shadowlined the driver side & installed one of ironfreaks pop out seals today. man it looks so much better than the oxidized crappy chrome. i'm either gonna keep the door molding chrome or plastidip it so it can be removed later, i think the chrome there will go well with euro bumpers [and it's still in good condition]

[IronFreak]

What a creep.......
