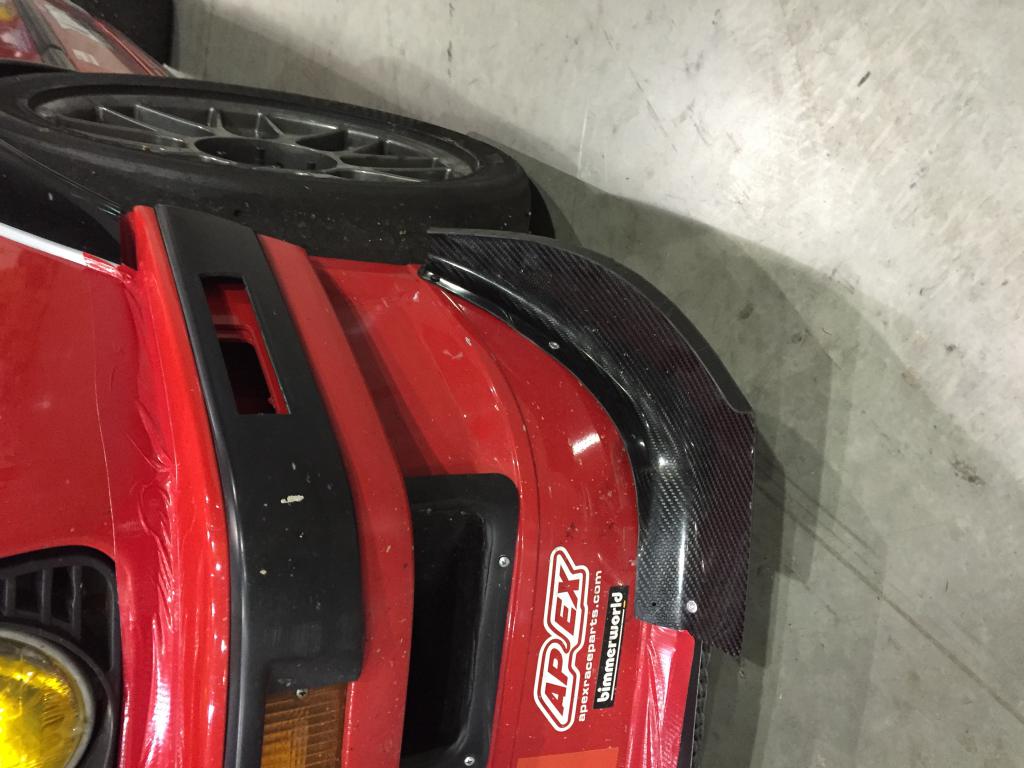

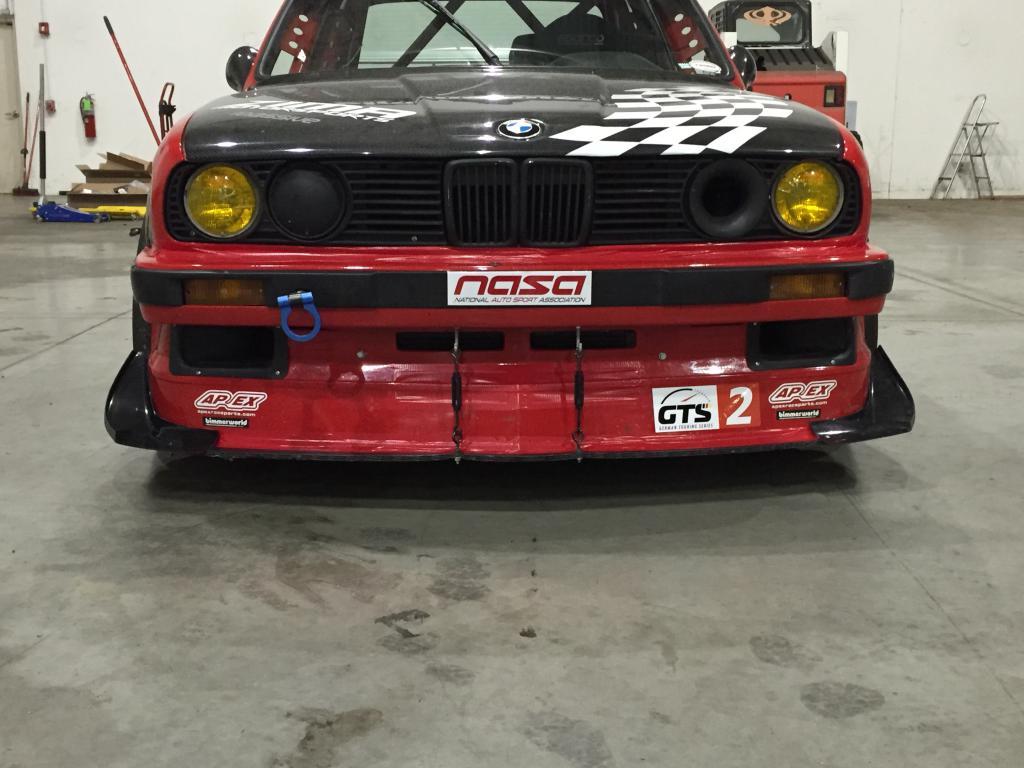

Here is mine. Home made splitter out of alumalite and e36 conards from BW.

[djjerme]

That looks decent (and functional.)

how far under the body does your splitter come back?

[Beej '86 325es]

Here is mine. Home made splitter out of alumalite and e36 conards from BW.

This is a very trick setup and it has me very intrigued. From this picture anyway, it looks as though it's very well pieced together and very functional.

Is that an Alpina spoiler with the center part blocked off?

How did the E36 dive plates fit to the spoiler? Any modifications?

What are the brake duct plenums you're using?

[djjerme]

Is that an Alpina spoiler with the center part blocked off?

Oh snap - I didn't notice that before! Good eye.

Look good with that, and supposedly, the Alpina spoilers are (claimed) designed as functional. Be curious to see what difference it did offer with out the added dive planes and splitter.

[vitiokas95]

Yes it is Alpina spoiler. My splitter goes as far as oil pan and it is bolted to skid plate. It is actually very sturdy, been of track couple times and it stayed intacked. As mention before conards is from e36. It is not the fit it wanted to be but I think it will work. My idead was to mount it a bit higher so I would cover tires and would re-direct drag from it. As it is mounted now, it should pick up air from splitter and blow it from tires. At least I think so. I might be wrong here. I will be at Road America this weekend, which is very fast track, and will see how it feels. My buddy told me I might have too much drag and might have to choose either splitter or conards. Will see

[vitiokas95]

This is a very trick setup and it has me very intrigued. From this picture anyway, it looks as though it's very well pieced together and very functional.

Is that an Alpina spoiler with the center part blocked off?

How did the E36 dive plates fit to the spoiler? Any modifications?

What are the brake duct plenums you're using?

No mods to conards. I got brake cooling plenums from Summit Racing. It was direct fit.

[e30_302]

[e30_302]

[autox320]

tilted, fully sealed, and ducted rad+oil cooler from bumper to hood; also home made with an old aluminum road sign and some roof flashing using rivets

splitter is home made diy job; adjustable from about 4-8 inches; all aircraft aluminum bolts(they look heavy but are in grams), made out of 1/2" sandyply hardwood and extends to behind the subframe in length

rear custom ltw evo replica wing

Maxx Automotive 2.7L S14

[Balleristic31]

^^ Wow any videos of this car in action? Would love to hear that s14 scream. What kind of power figures are you making?

[autox320]

^^ Wow any videos of this car in action? Would love to hear that s14 scream. What kind of power figures are you making?

No dyno's or power figures just road tuned AlphaN. If had to guess a mild street build like this has made about 280hp flywheel. But torque is excellent for a 4pot.
I just started back with NASA in 2014 when finished the motor. Messed with cam timing over the years to find what it likes. Trying the all ducted front this year soon and tweaked the cam timing once again. This is a street car build S14 with goals for torque and 93 pump gas. Topend runs stock valves and schrick 292/284. Suspension setup is close to specE30 with additional bracing.
build is on S14power.com

https://www.youtube.com/channel/UCjXrbIjeFI8a0WYc1d12Mgg/videos?shelf_id=0&view=0&sort=dd

[Digitalwave]

I notice that most aggressive aero E30's don't run any side skirt. Is our curved rocker panel ideal?

[e30_302]

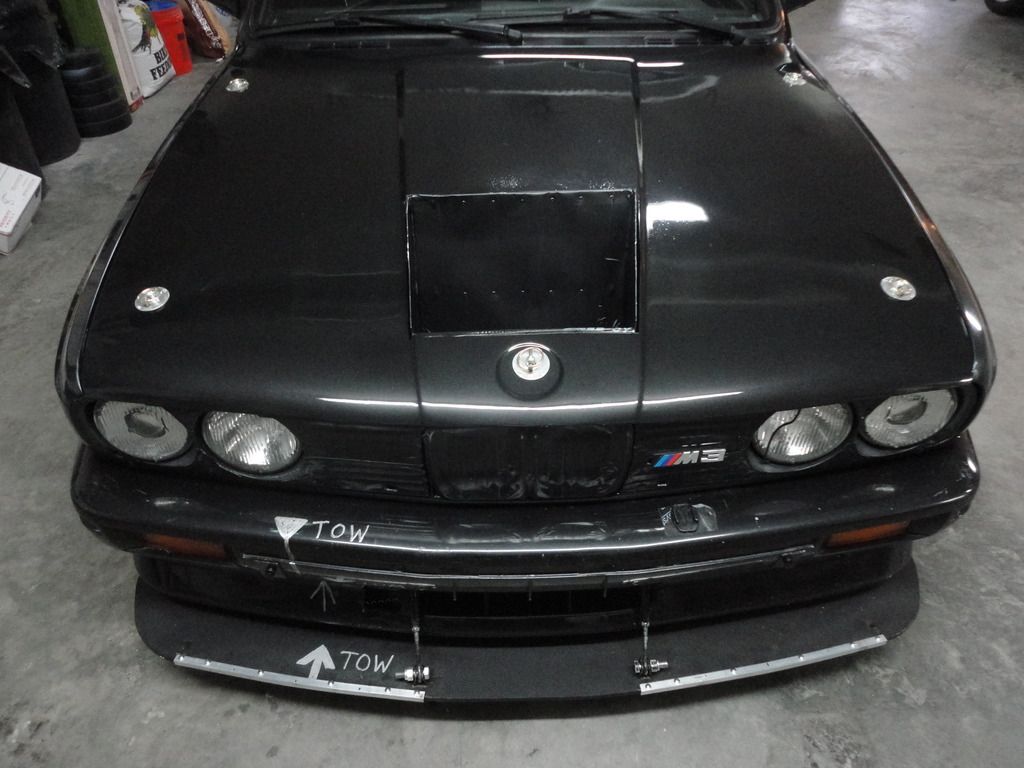

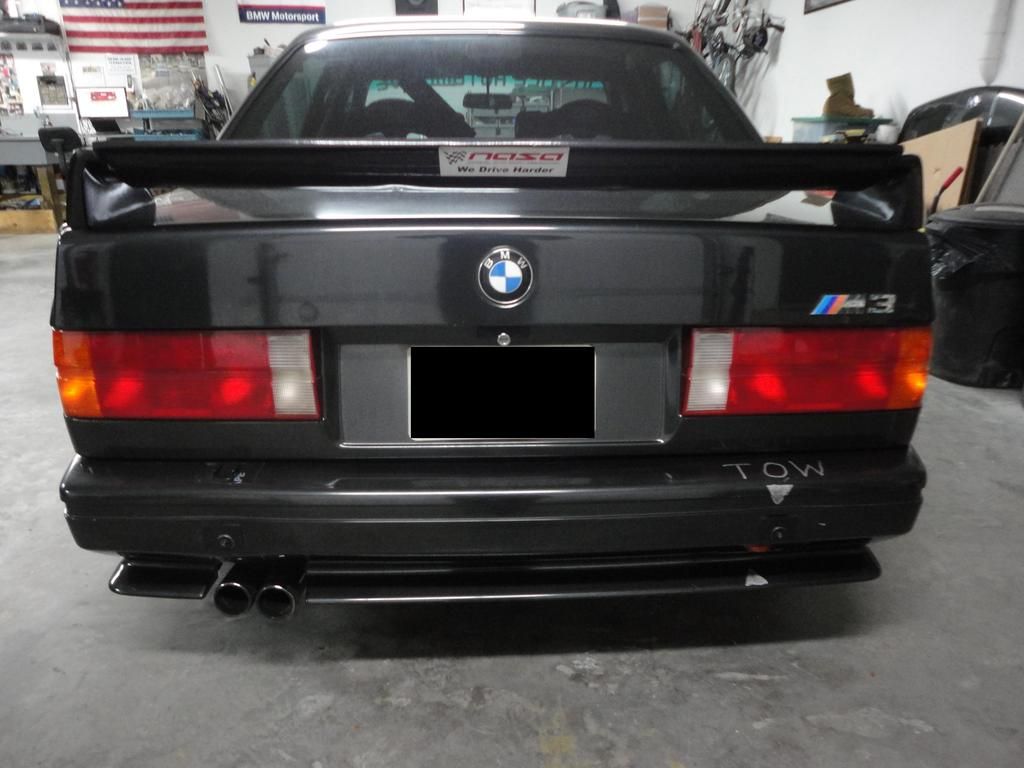

Far from it, ideal would be a straight vertical wall. I plan on adding some garden edging for a side skirt whenever I get around to it.

[Digitalwave]

Far from it, ideal would be a straight vertical wall. I plan on adding some garden edging for a side skirt whenever I get around to it.

Any theory why most of the cars pictured in this thread have got to great lengths for front and rear aero but haven't even put on a simple side skirt?

[e30_302]

Lack of interest, less of a return compared to front and rear aero. I'm not sure how much side skirts are going to do on a car without a flat bottom and not making downforce from the underbody. We're making downforce (or at least less lift) on the exterior body mainly. But like I said, some garden edging and some rivits and it's done, so stay tuned.
